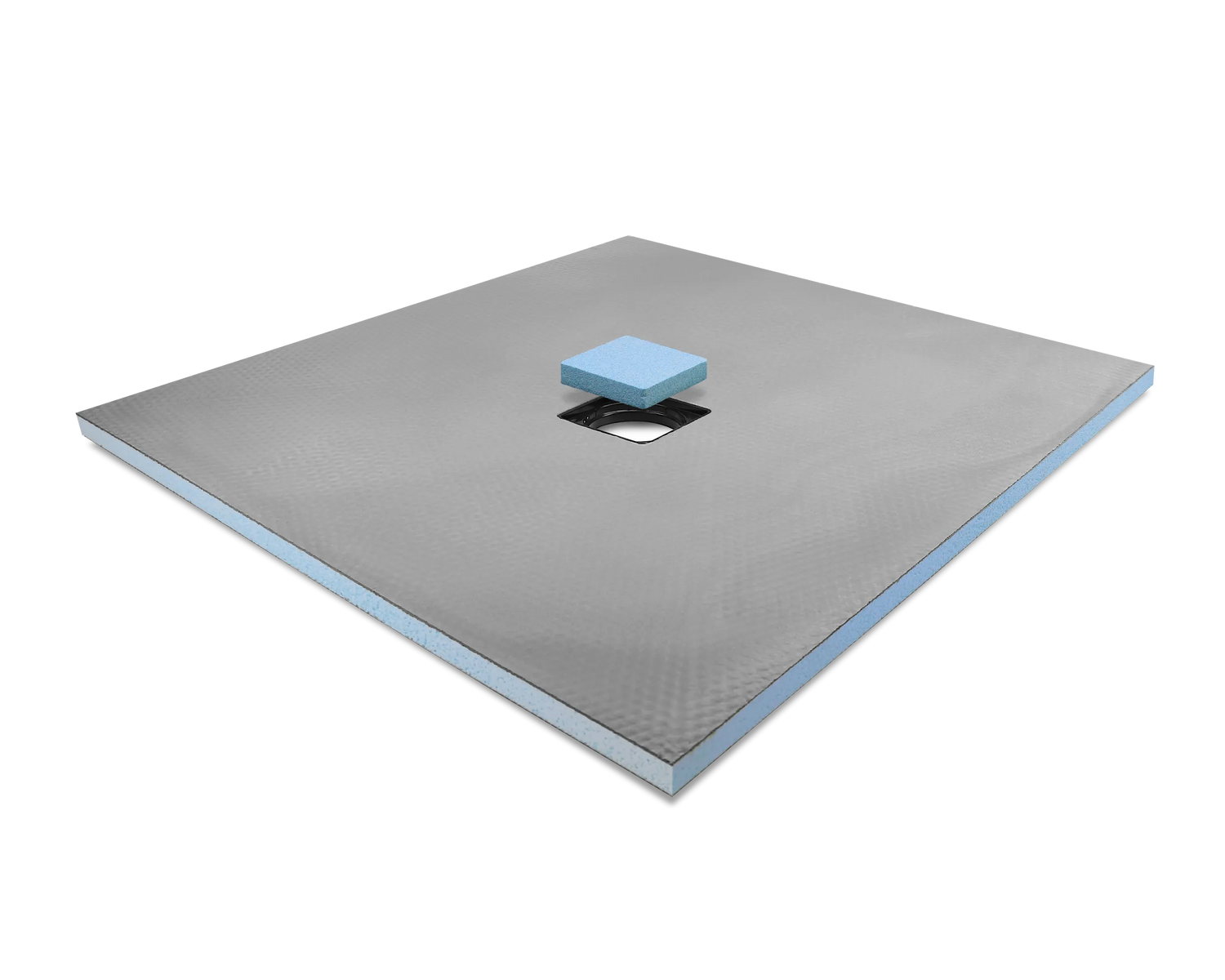

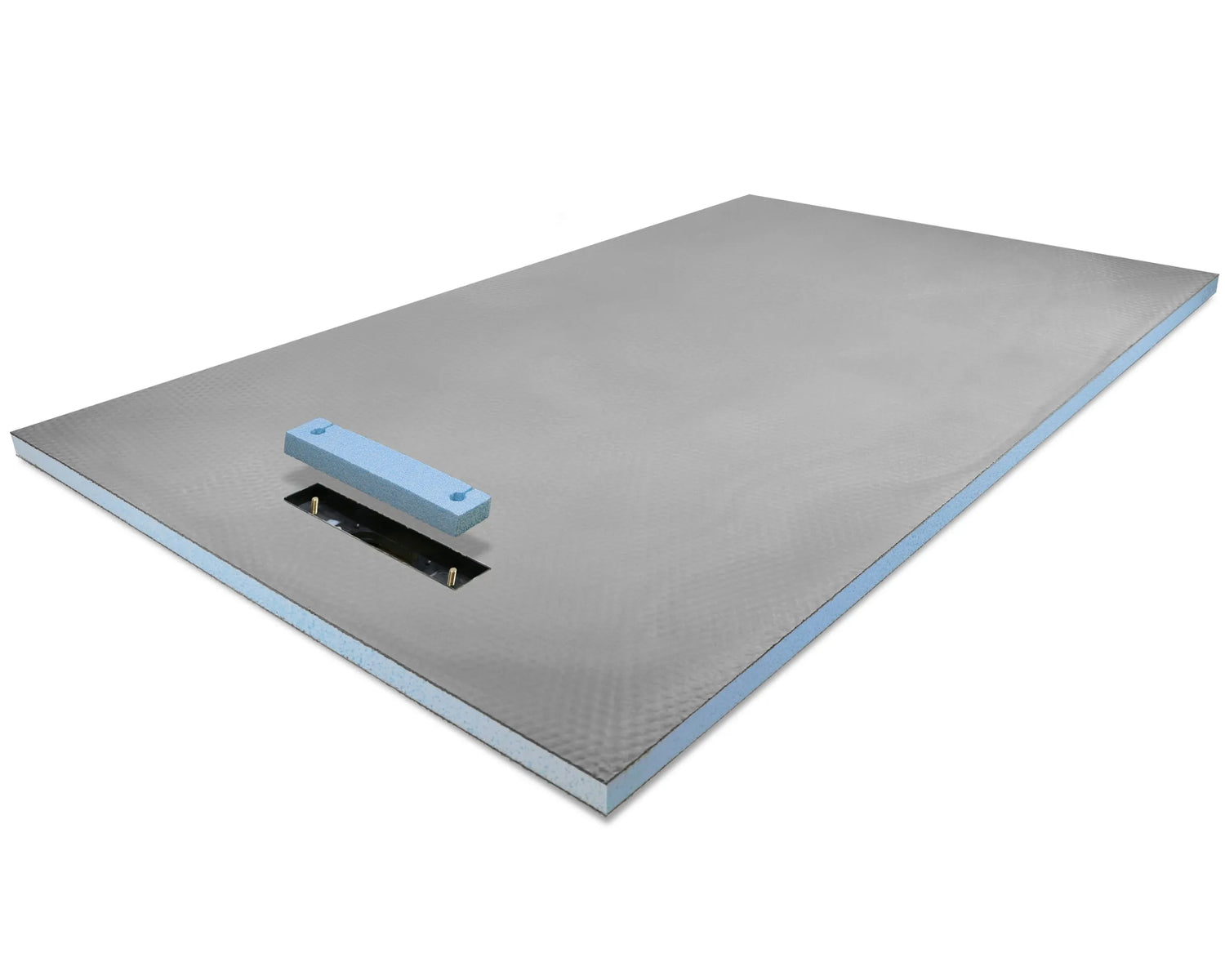

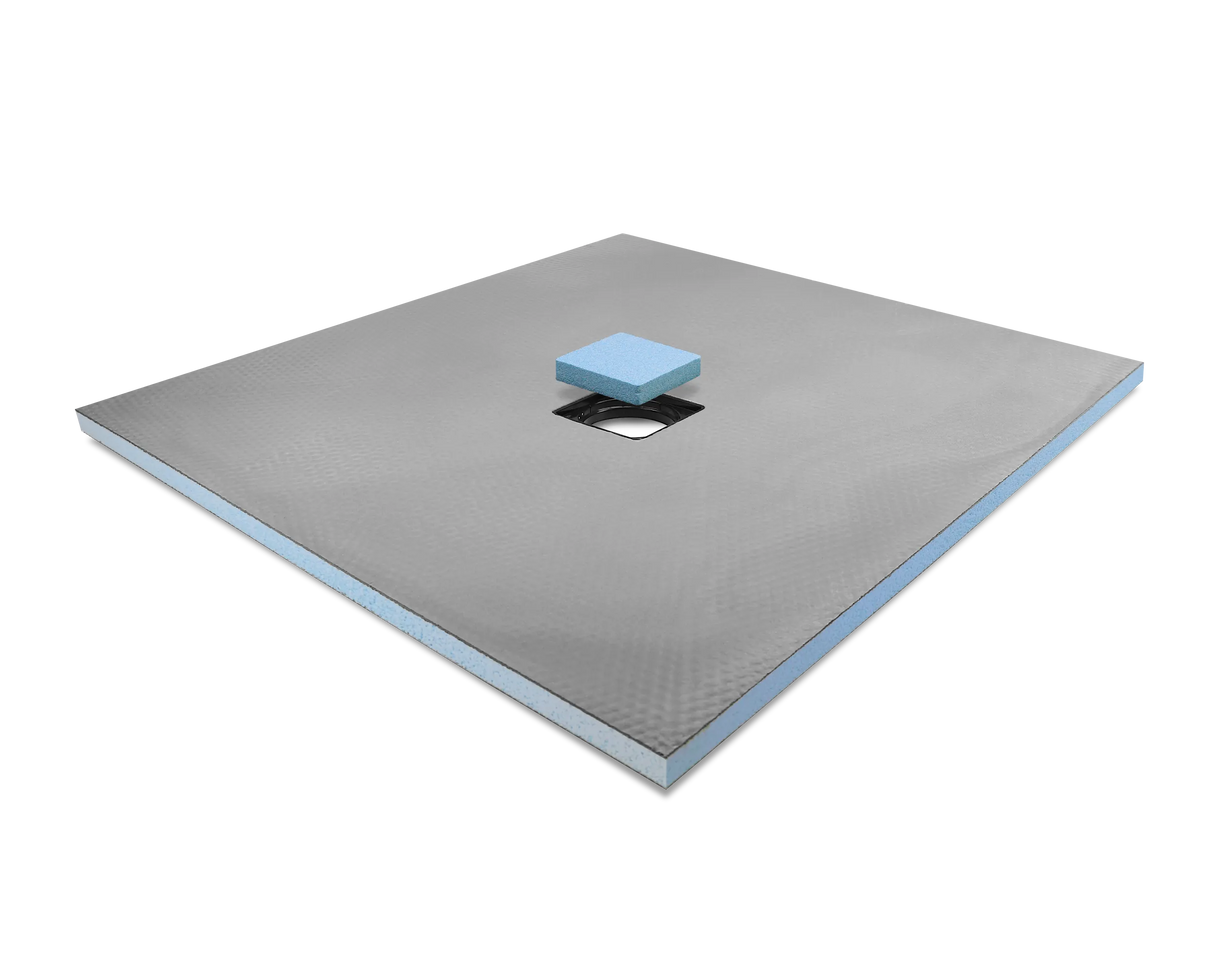

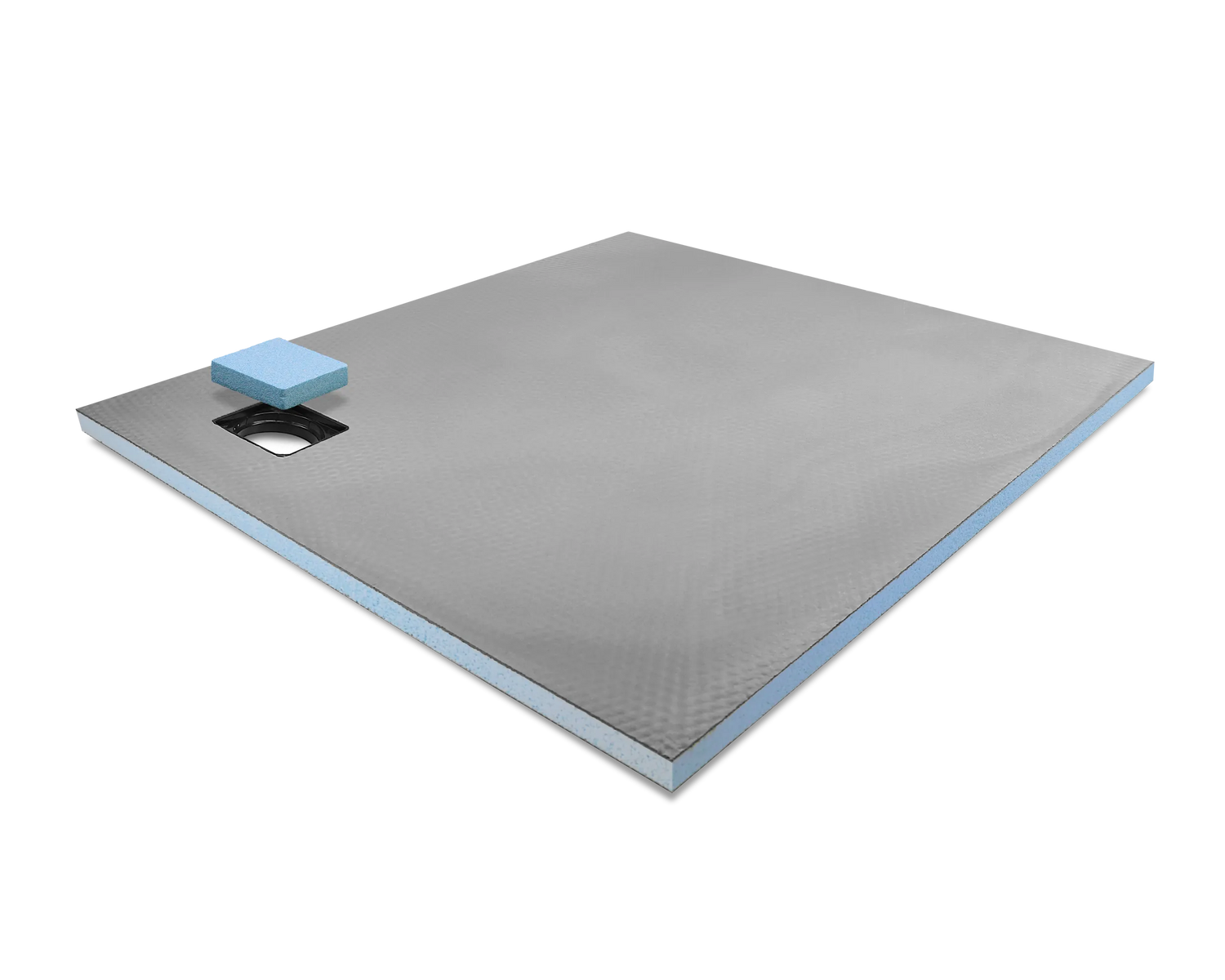

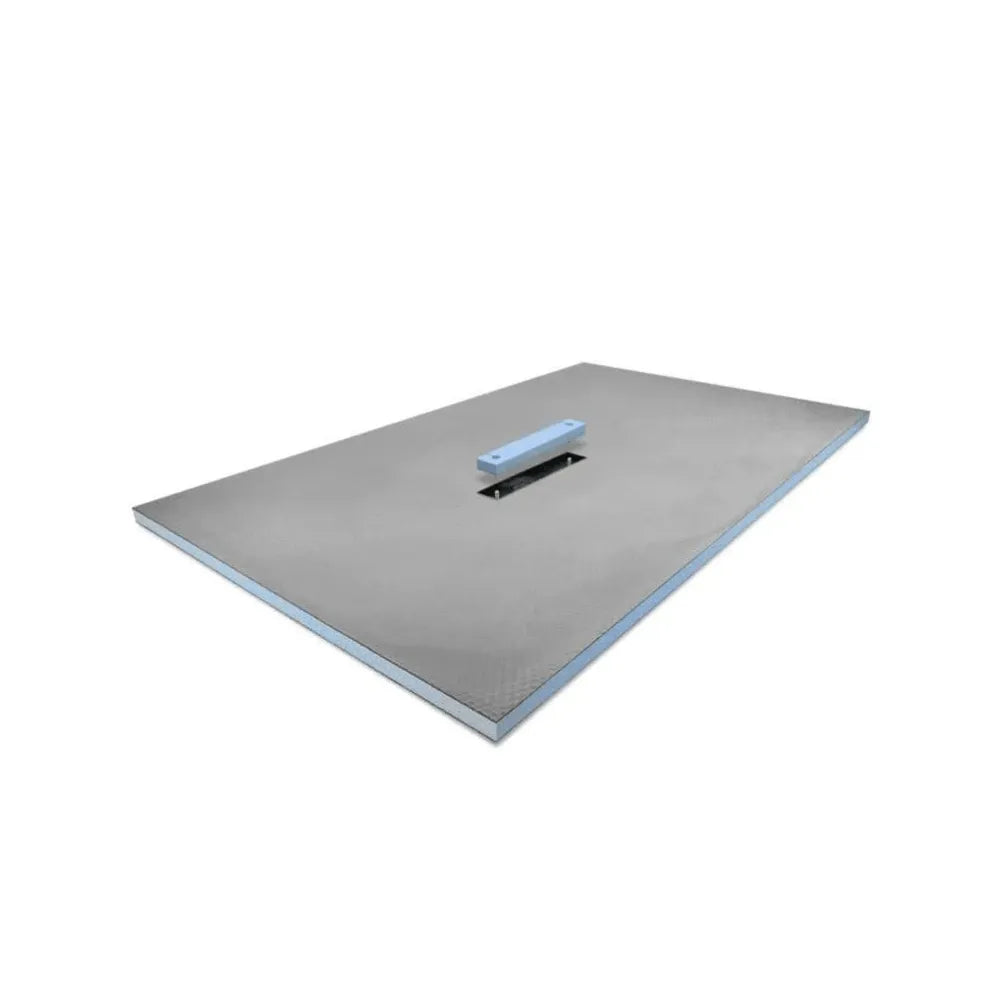

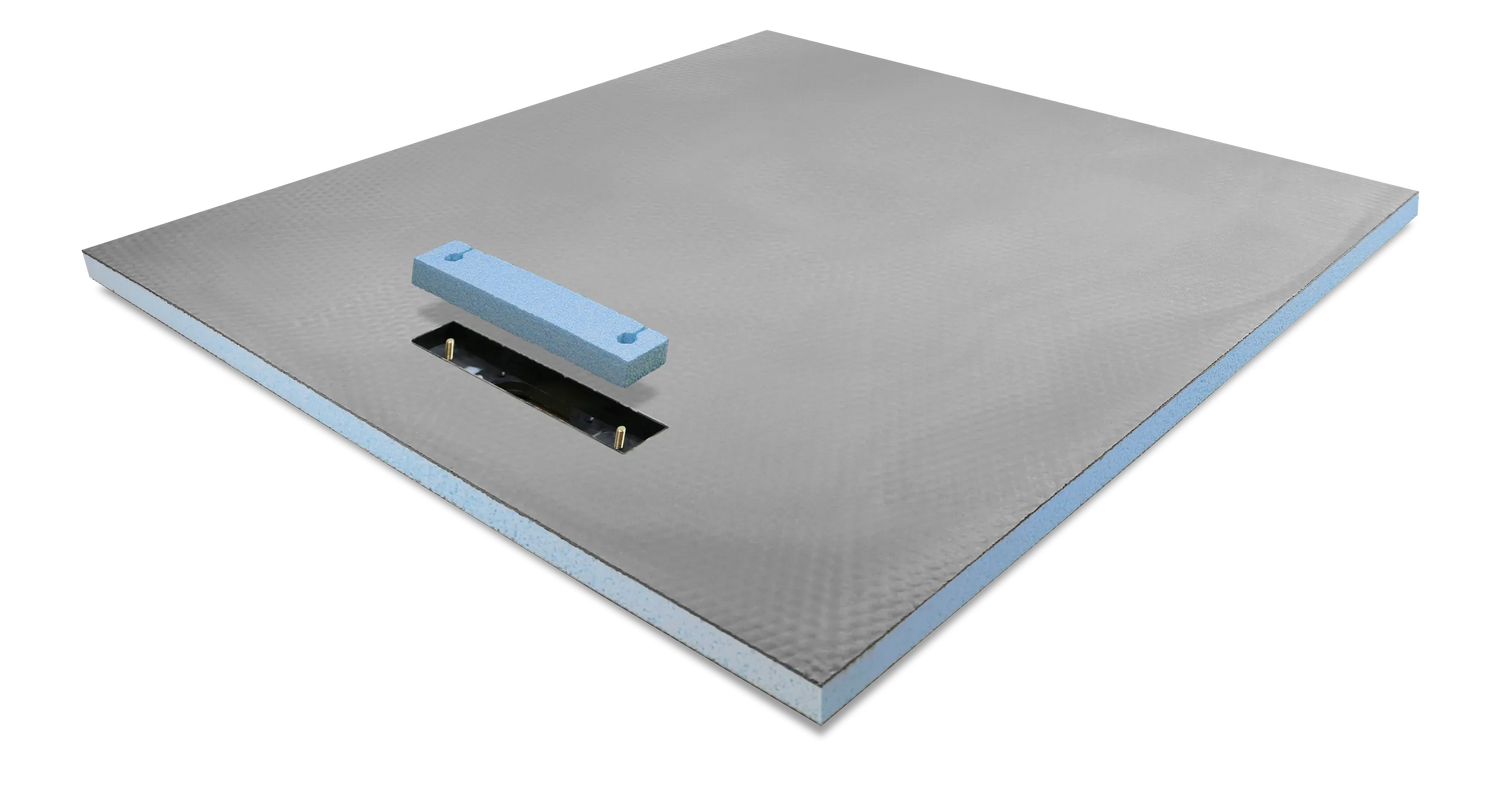

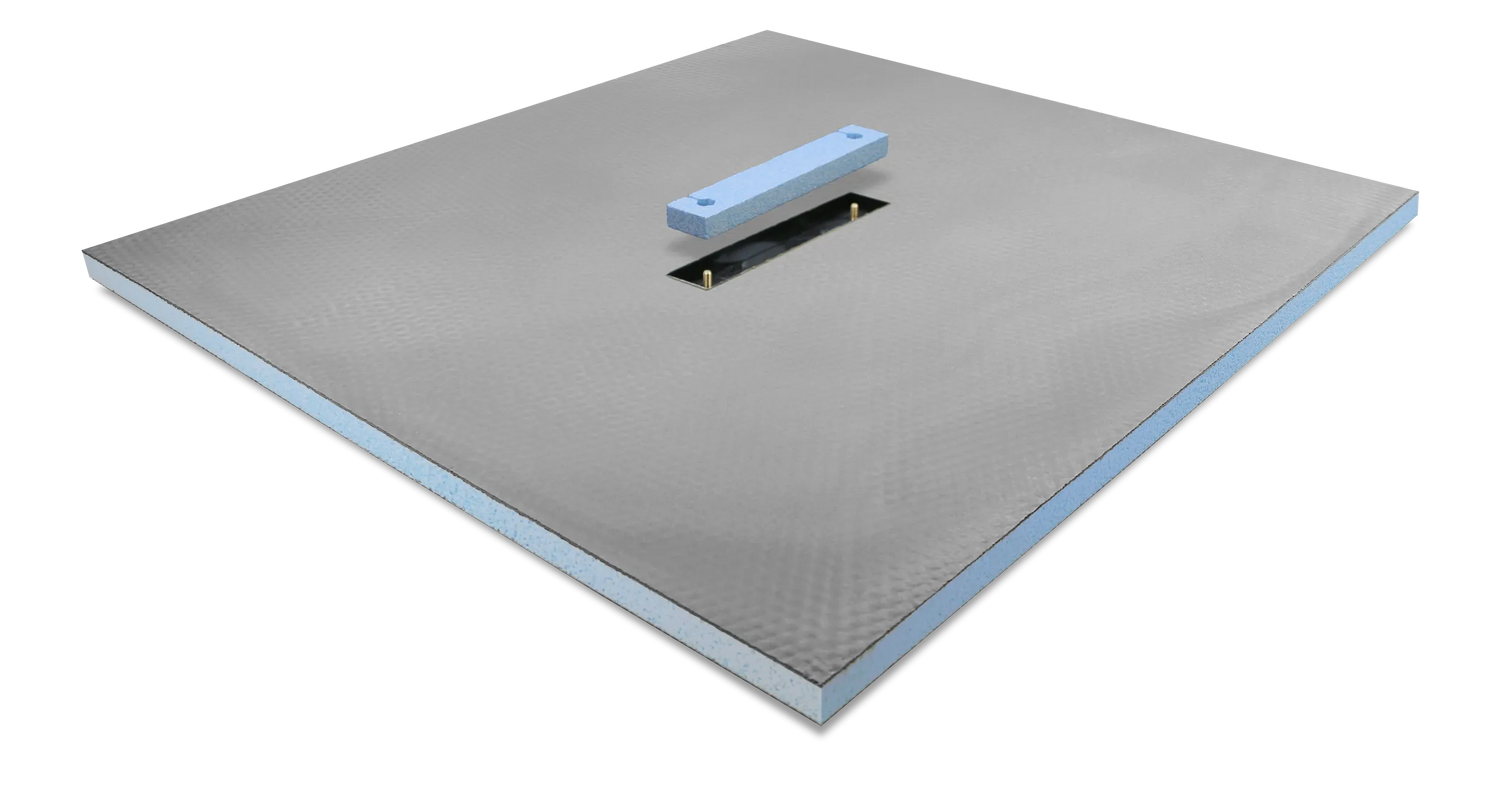

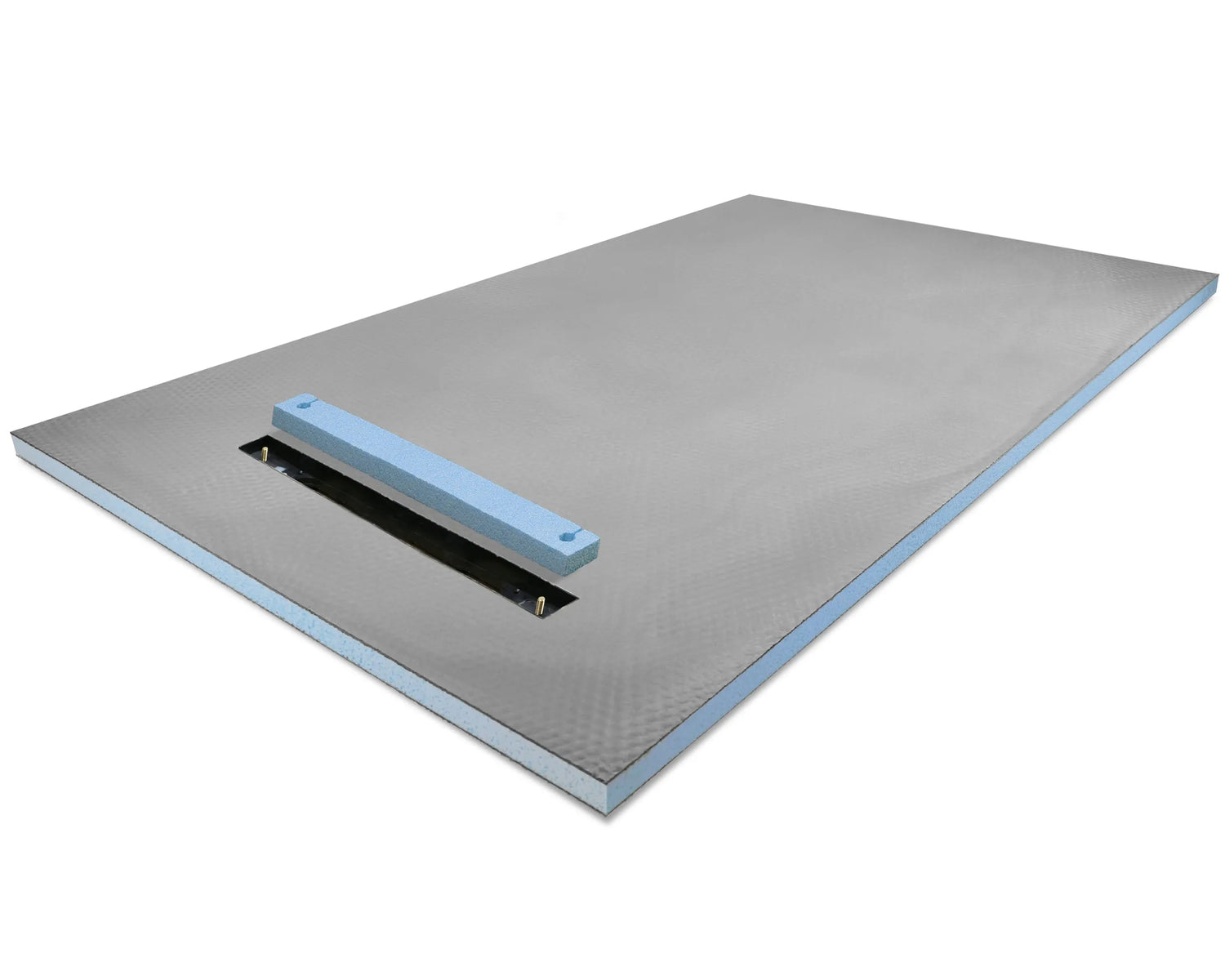

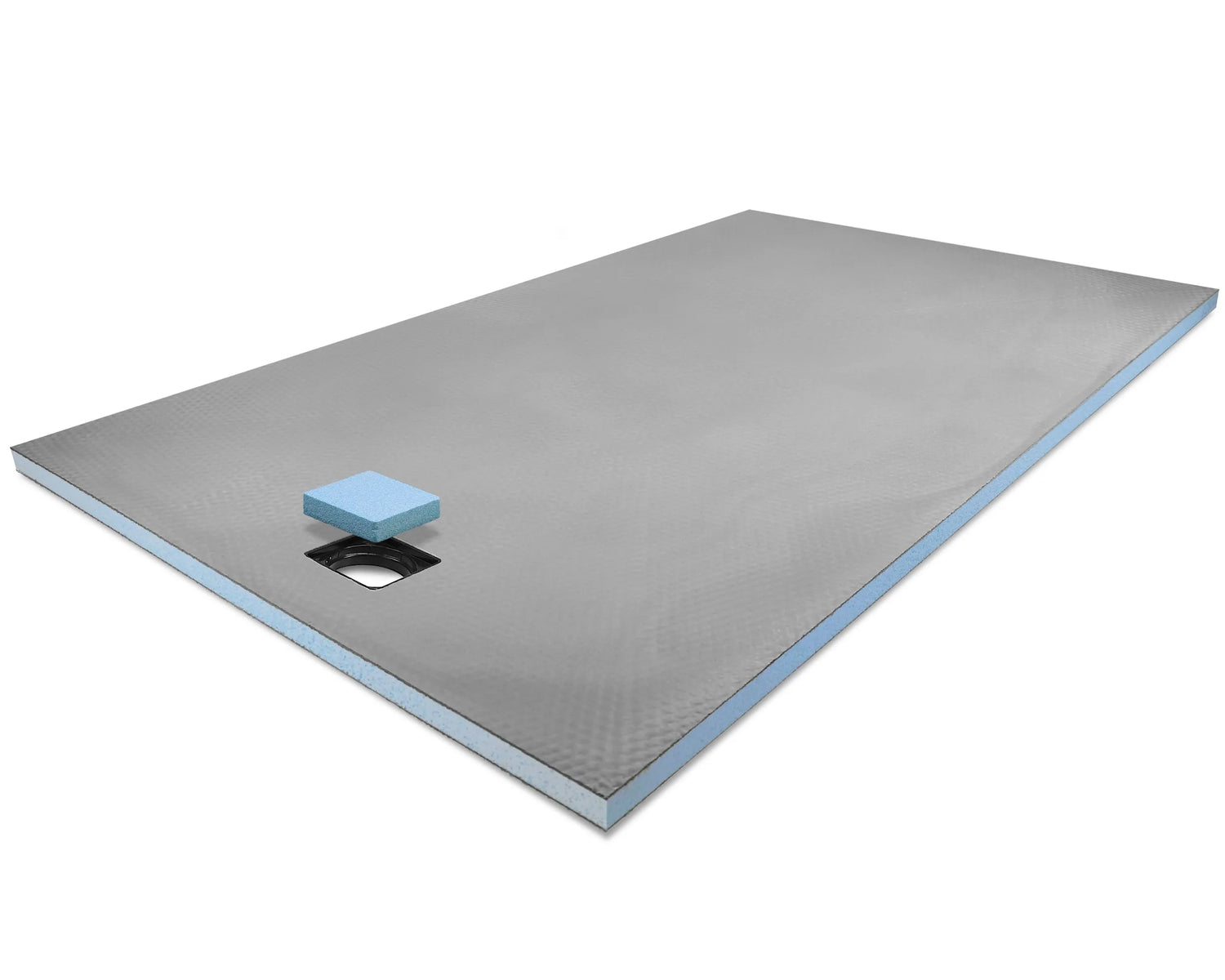

- ProWarm™ 30mm End Drain Wetroom Shower Tray
These wet room trays are not suitable for use with Vinyl or Altro resin floor coverings.
The wet room tray is lightweight, and can be cut easily using a fine tooth hand saw, the tray is designed to accept most tiles including porcelain, stone and ceramic tiles.
- Solid integrated drain base (to prevent leaks!)
- 10 year manufacturers guarantee
- High compressive strength
Drain cover options

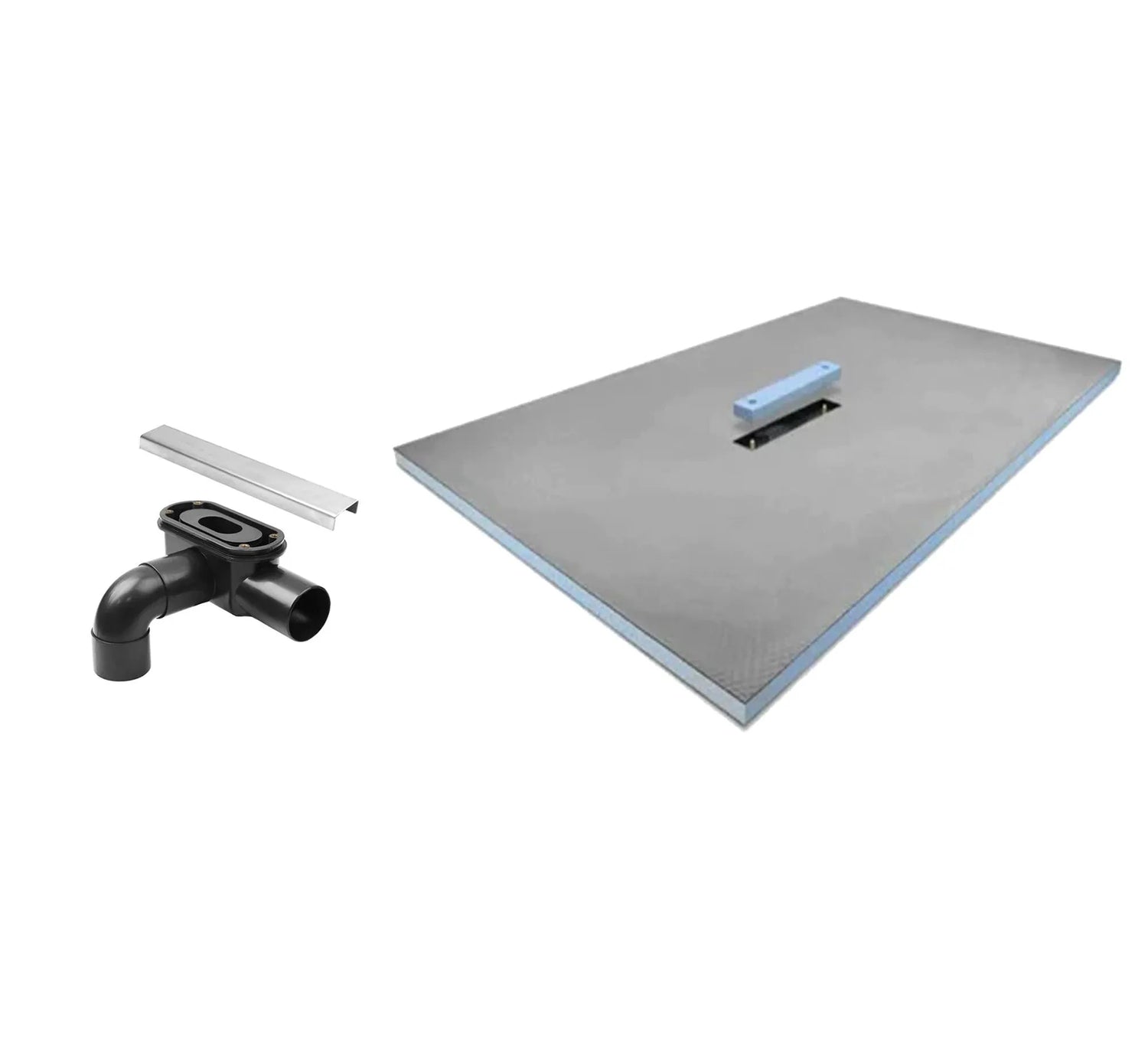

Standard horizontal drain and basic stainless steel cover
The standard horizontal drain cover comes complete with a 2" solvent pipe , this is compatible with standard british pipes also non standard 1 ½" pipes, the drain also comes with a removable hair trap. Grate size is 120mm x 120mm and has a 60l per minute flow rate. A 10 year guarantee against manufacturing defects comes as standard with this drain system.

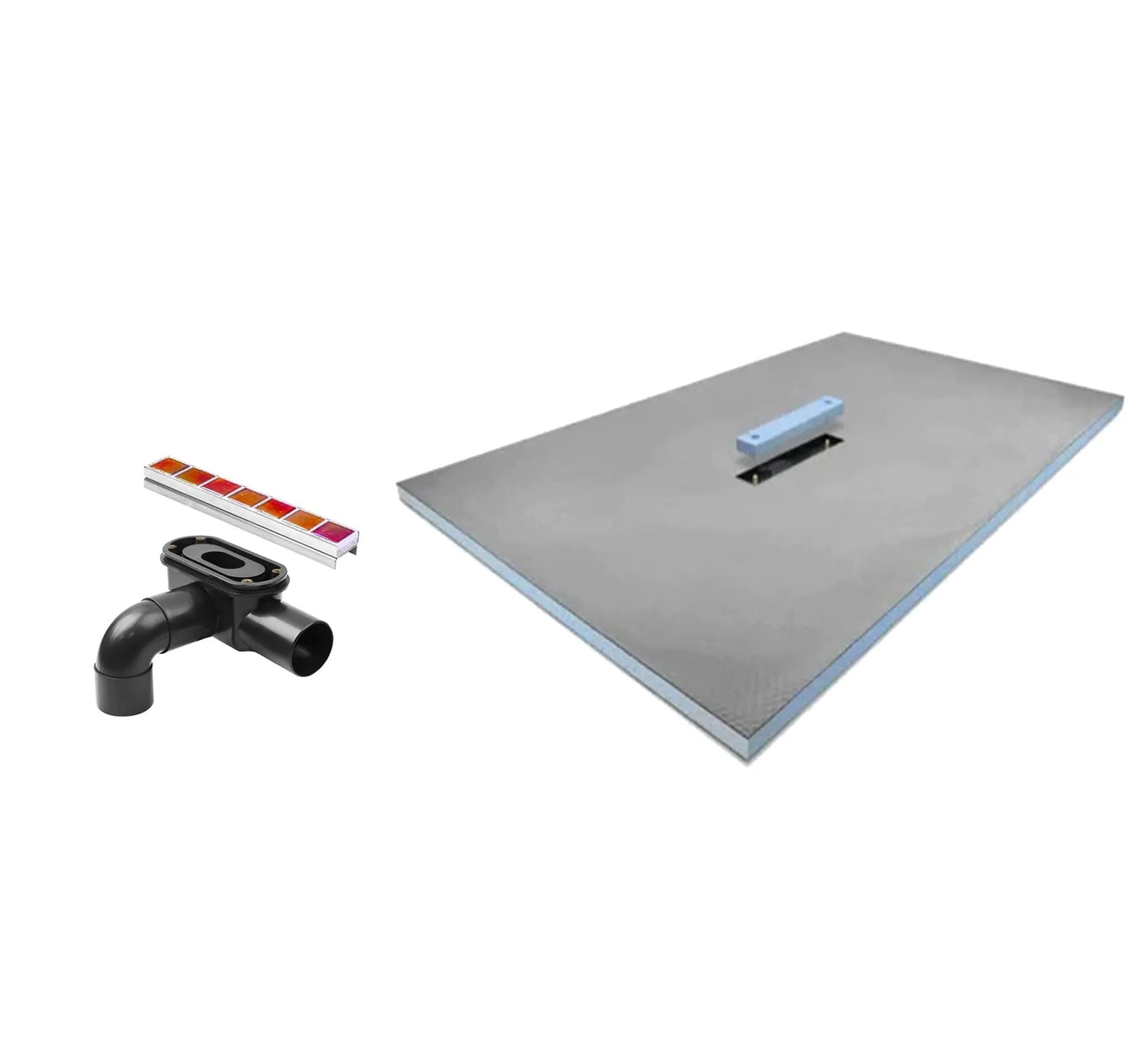

Standard horizontal drain and tileable cover kit
This option comes with the standard drain as above but has a tileable cover (replacing the standard steel grate).
Standard horizontal drain and solid stainless steel grate
This option comes with the stndard drain as above but is supplied with a solid stainless steel grate for a more designer look, this grate can also be screwed down (which is ideal for commercial installations).

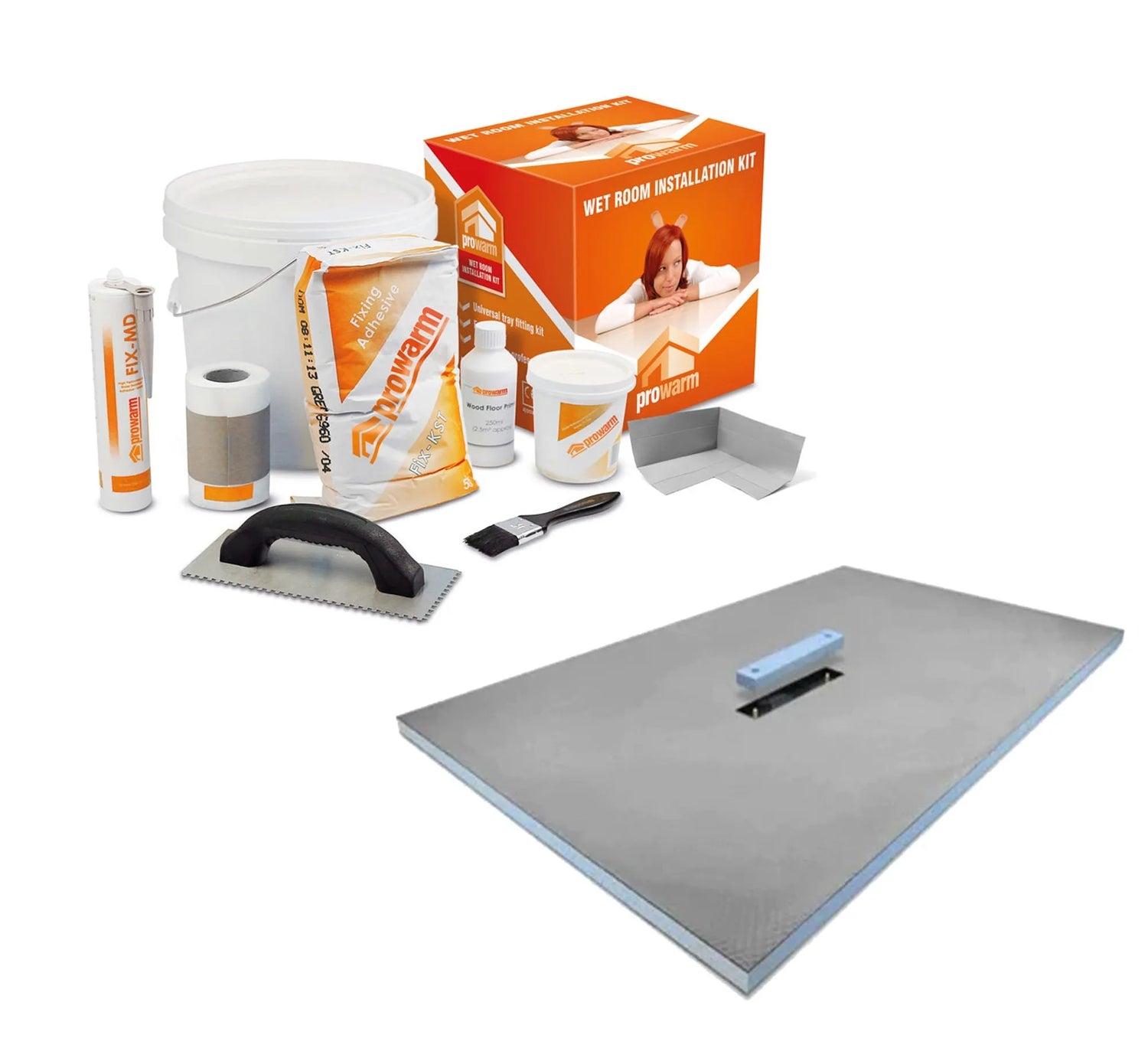

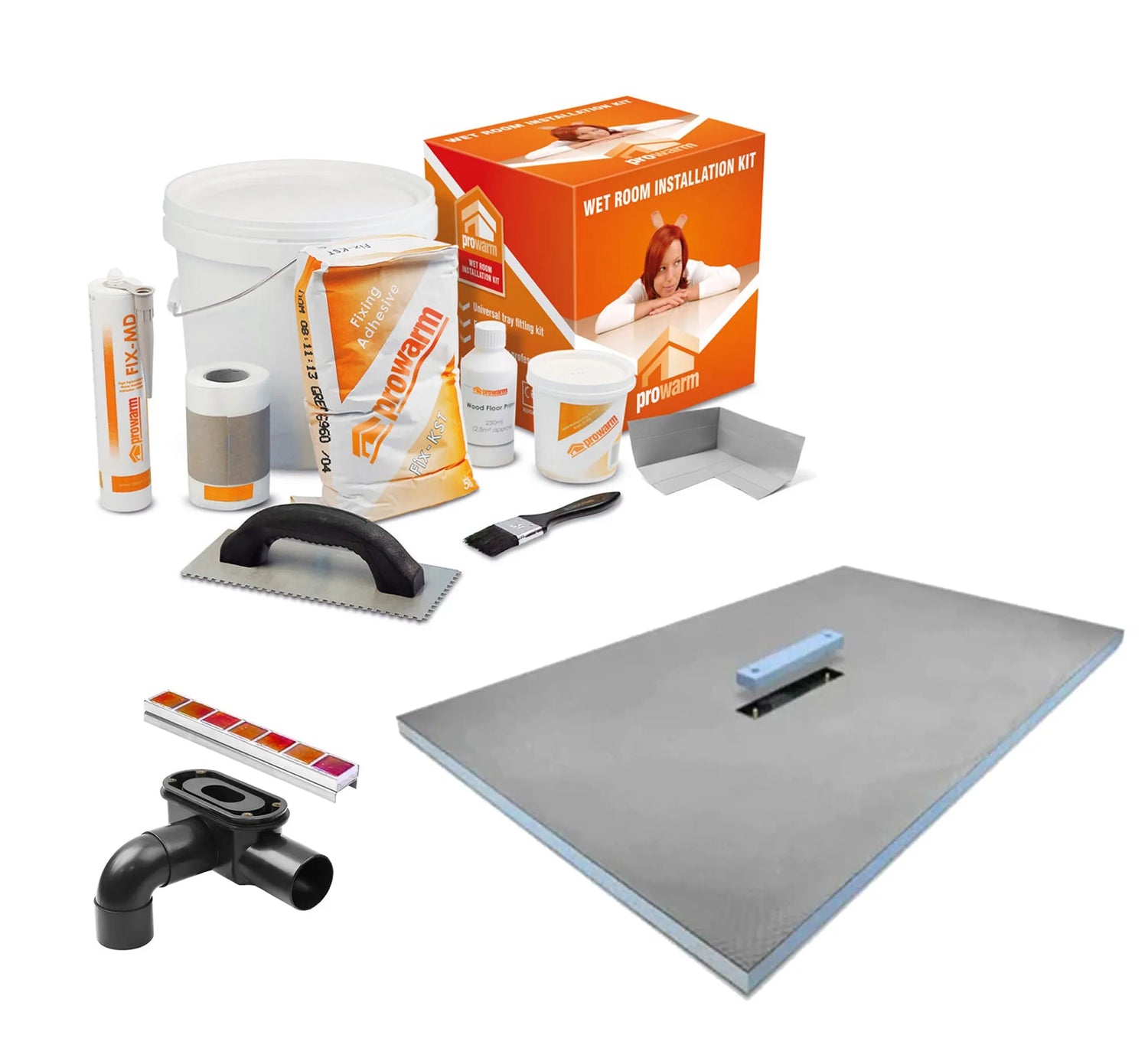

Installation kit contents:
If you have selected yes to purchase an installation kit it will include everything you need to install the shower tray inc:
- 5kg Flexible tile adhesive for fixing the tray to the subfloor
- 0.5l Pro seal tape sealing compound
- 5m waterproofing tape
- 2 waterproofing internal corners
- 0.25l wood floor primer
- protective gloves
- plastic bucket to mix contents
If you require external corners as well you can find these in our wet room shop.
To join the shower tray to the backer boards you have 2 options:
- Use Prowarm™ self adhesive waterproofing tape
- Separate waterproof tape and sealing compound
Both of these are avaliable in our shop.
PLEASE NOTE: You will need a minimum of 15mm from the top of the shower tray to the top of the finished tile to ensure you can fit this tileable drain.
Compressive Strength @ 10% Def (k/pa) 250 Compressive Strength @ 1% Def (k/pa) 100 Bending Strength (k/pa) 350 Thermal Conductivity (w/mk) .031 Dimensional Stability @ 23°C/50% RH DS (N) 2 Dimensional Stability @ 23°C/90% RH DS (23,90) 1 Water Absorption Capillary 0 Water Absorption by Immersion 0.1% U-Value 0.83 W/m2K
Download the Prowarm™ Shower Tray data sheet.download now
