Warmup VLo Econna-12 Water Underfloor Heating & Chipboard Kit
We’ll Beat Any Price
As the UK's biggest underfloor heating store, we're dedicated to offering competitive prices. We regularly monitor market prices and are ready to beat any competitor price. Simply give our sales team a call!
Introducing the Warmup VLo Econna-12 Water Underfloor Heating & Chipboard Kit, a system designed specifically for a straightforward installation over battened or joisted floors. Experience optimized performance and efficiency with this cutting-edge system.
An ideal choice for home refurbishment projects

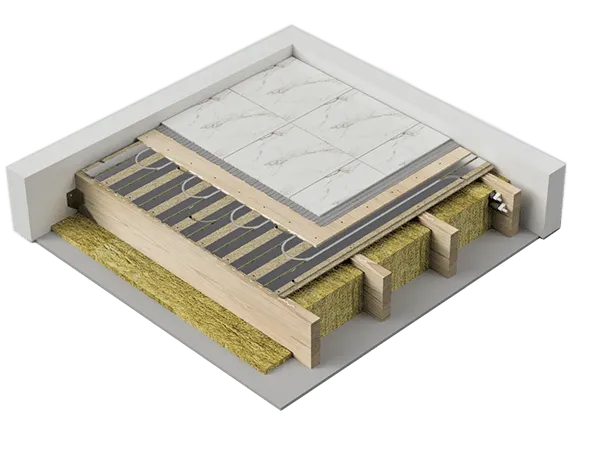

Discover Warmup's VLo Econna-12, an enhanced version of its predecessor (Econna Joisted Floor System). Meticulously designed, this advanced system allows for insulation material and other services to be accommodated in the voids between them. Its low-profile design makes it the perfect choice for infusing radiant warmth into renovation projects with timber floor constructions.
Equipped with energy-saving technology, the Econna-12 not only provides superior comfort but also offers significant savings on your energy bills. Compatible with both traditional boilers and heat pumps, this versatile system ensures efficient heating in any setup*. The updated design boasts enhanced efficiency, ensuring exceptional value for money and rapid installation times.
Consistent warmth throughout your space

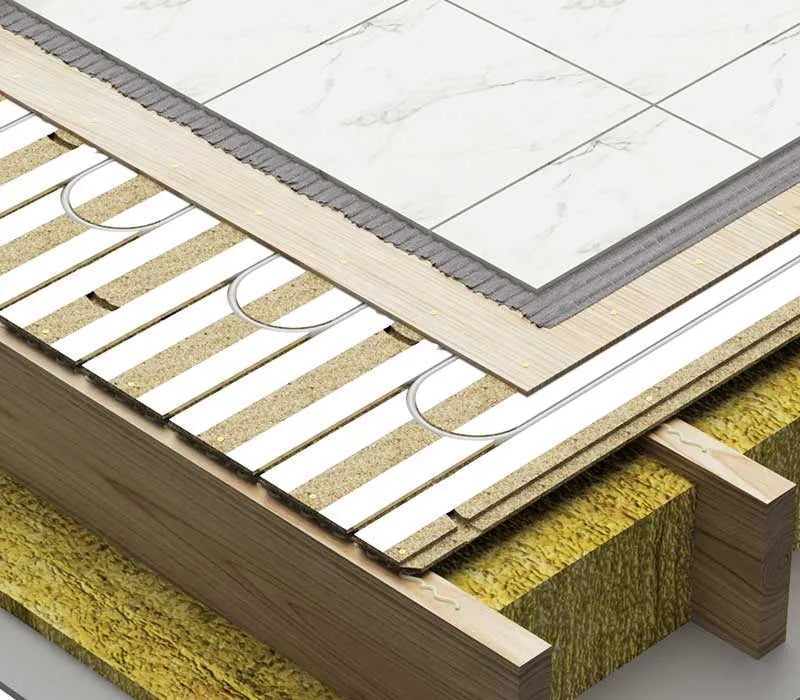

Experience swift installation times with the VLo Econna-12 Joisted Floor System, thanks to its dry, screedless installation method and ingenious one-piece panel design. These slimline 22mm thick panels, equipped with a built-in heat diffusion foil, guarantee an even and consistent heat distribution, eliminating any potential hot or cold spots.
The Econna-12's low-profile design incorporates a 12mm heating pipe with effortless integration into the structural floor, ensuring that the floor finish remains at an optimal temperature without any risk of overheating. The 22mm chipboard panels can be installed over battens or joists, with spacings of up to 600mm centres. With a fluted exit for easy panel-to-panel transition, the universal panels securely hold the heating pipe in the ideal position. The installation process is as simple as gluing and screwing down the boards, placing the pipes within the grooves, and applying a 6mm ply on top before fitting the desired floor finish. Econna-12 provides a streamlined and efficient solution for your heating needs.
*For use with heat pumps and boilers with low flow temperatures we recommend system output is calculated using the values & formulae detailed on page 5 of the Technical specifications manual to ensure the system output is adequate.

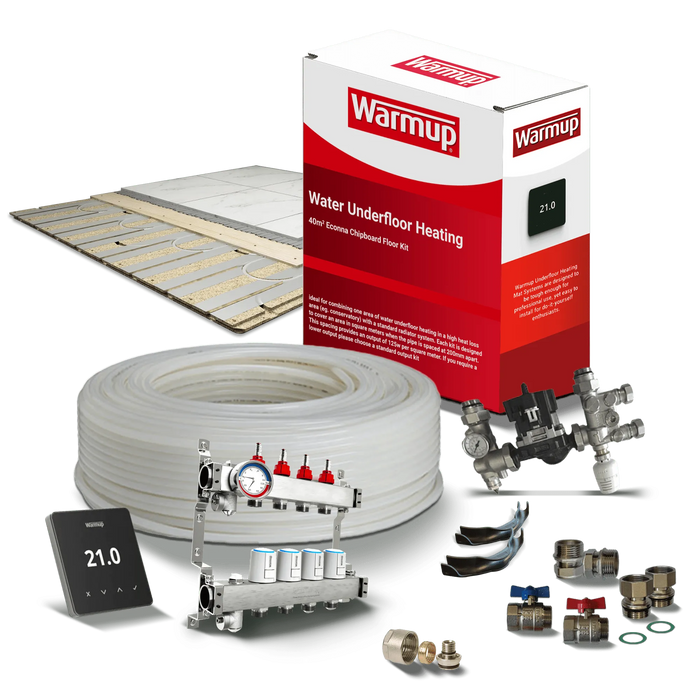

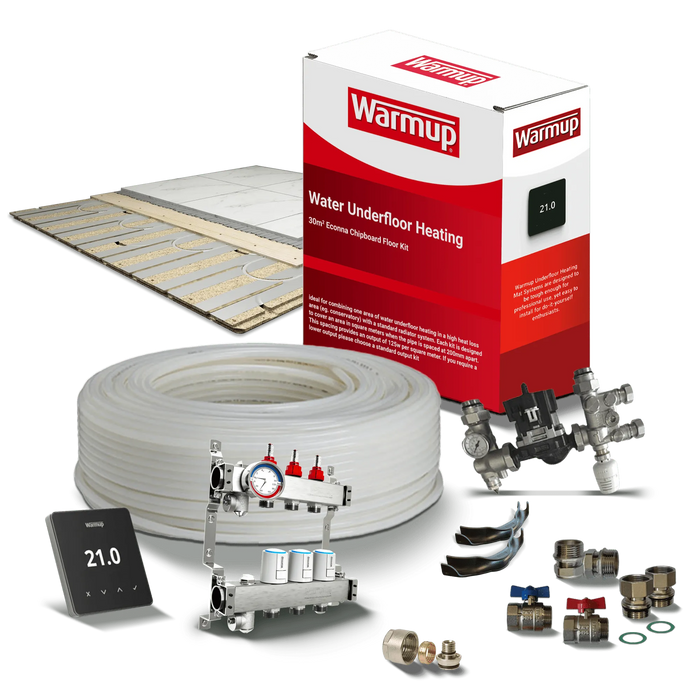

Manifold
Pump / blending unit
Fill/drain ports
Isolation valves
Eurocone
PERT Pipe
Curved pipe support
Grooved chipboard
Thermostat (if selected)
Warmup 6ie Smart
Controlled by the latest version of the Warmup MyHeating App
Custom photo backgrounds and adjustable screen brightness
Exceptional efficiency savings using Warmup exclusive SmartGeo technology
AutoSwitch technology that switches Warmup users to their most favourable tariff, for free and by election each year a new and better tariff appears
Dimensions (HxWxD): 115 x 90 x 16mm
12 years manufacturer's warranty when installed with Warmup heating systems
