ProWarm™ Water Underfloor Heating 16mm LoFlo LITE Kit - Single Room

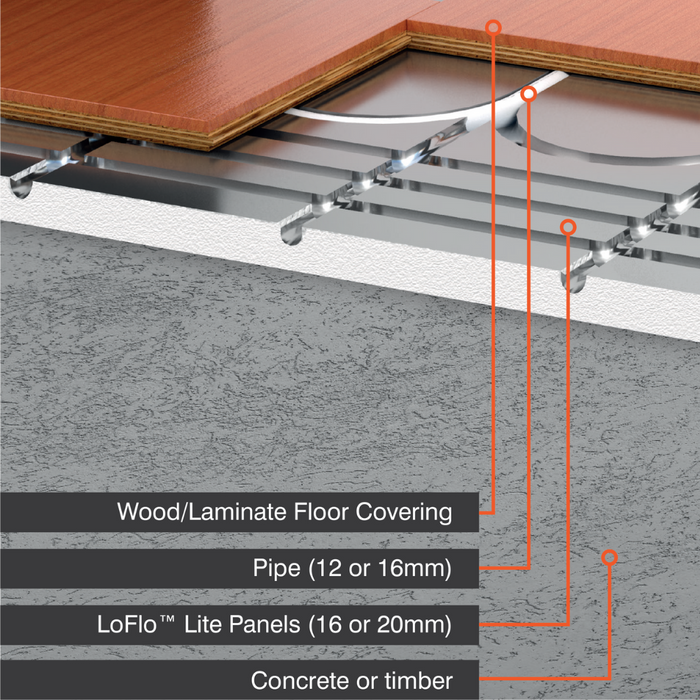

The ProWarm™ LoFlo™ LITE Panels are specifically designed to meet the requirements of both tile and floating floor installations. These dual-purpose panels are suitable for use underneath various floor coverings, including tiles, engineered wood, and laminate flooring. With two distinct installation methods tailored to each flooring type, the ProWarm™ LoFlo™ LITE Panels offer versatility and convenience. We take pride in using the same high-quality EPS 400 kpA grade polystyrene across all our panels, ensuring consistent performance and reliability for different floor coverings.

Featuring 400kPa grade highly effective Polystyrene, the ProWarm™ LoFlo™ LITE Panels are engineered to deliver exceptional heat transfer. The bonded 200-micron aluminium heat diffuser evenly and rapidly spreads heat across the floor, maximizing heat output and ensuring superior comfort for end-users. These panels are the ideal solution for a wide range of wet underfloor heating installations, offering optimal performance and energy efficiency.

The ProWarm™ LoFlo™ LITE Dual-Purpose overlay panels offer a range of outstanding features:

• Ultra-Strong and Lightweight: These panels are designed to be robust yet lightweight, making installation hassle-free and efficient.
• Flexible Floor Covering Options: The ProWarm™ LoFlo™ LITE Panels can accommodate a variety of floor coverings, including laminate, engineered wood, and porcelain/ceramic tiles. This versatility allows customers to choose their preferred finished floor covering with confidence.
• Peace of Mind Approval: Our panels are the ONLY ones in the market that have received comprehensive approval from Instarmac Group PLC, a leading provider of tile adhesives and leveling compounds and a trusted member of The Tile Association. This endorsement guarantees that the installation process meets the highest standards and provides complete peace of mind for both customers and installers.

Experience the exceptional performance, versatility, and peace of mind provided by ProWarm™ LoFlo LITE Dual Purpose Overlay Panel 1200x600x16mm. Create a comfortable and energy-efficient underfloor heating system with the industry's leading solution.

Please ensure proper installation and adherence to the provided guidelines to achieve optimal results and customer satisfaction.

Available in 2 thicknesses (20mm/16mm) the ProWarm™ LoFlo™ LITE Dual-Purpose overlay panels can accommodate 2 different thickness of pipework, depending on the installation.

ProWarm™ Water Underfloor Heating Kit Components

Below, we provide examples of the products that could be included in your ProWarm™ Water Underfloor Heating Kit. For a detailed breakdown of the contents, please refer to our convenient Kit Content Comparison Table.

• Grundfos Temperature Unit: A rated UPM3 Grundfos Single Circuit Constant Supply Temperature Unit, offering reliable and consistent temperature control for optimal comfort.
• Grundfos Mixing Unit: A rated UPM3 Grundfos Manifold Pump/Mixing Valve Unit, ensuring efficient mixing and distribution of the heated water within the system.
• 2, 3, or 4 Port Manifold: A stainless steel manifold with an adjustable flow meter, allowing for easy balancing and control of the water flow. The manifold comes factory assembled on a fixing bracket, simplifying the installation process.
• For a small additional fee, you have the option to upgrade your thermostat to a manual dial, programmable, or wireless one, providing enhanced control and convenience for managing your underfloor heating system.
• ProWarm™ European Standard Pert-Al-Pert Pipe: A 16mm (outside) diameter Pert-Al-Pert pipe, adhering to the highest European standards of quality and durability. This pipe ensures efficient heat transfer and long-lasting performance.
• ProWarm™ LoFlo™ LITE Dual Purpose Overlay Panel 1200x600x20mm. These innovative panels are designed to accommodate various floor coverings, making them the ideal solution for both tiles and floating floors, such as engineered wood and laminate.
• Tools: The kit includes essential tools such as a Pipe Re Rounding Tool, Pipe Staples, and Pipe Cutters, enabling precise and efficient installation of the system.
