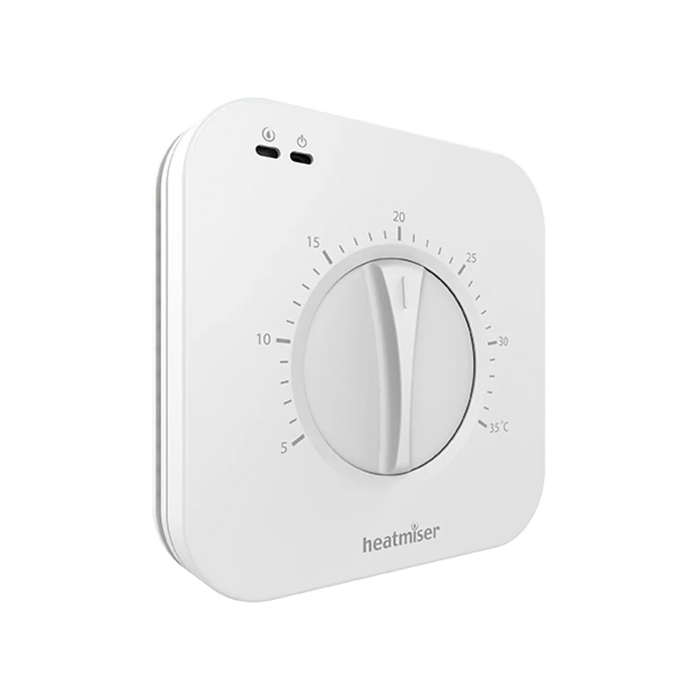

The Heatmiser DS1 is a 230v electronic room thermostat ideal for conventional or combi-boiler systems. This thermostat is used in conjunction with a separate programmer.
This thermostat is an electronic dial thermostat, offering greater control when compared with standard bimetallic thermostats.
Power On and Heat On Indication
Modern Apperance
Easily increase or decrease the required temperature
Variable Switching Differential
Built In Air Sensor
Important Note:This thermostat does need at least 3 wires to operate (Live, Neutral and Switch wire) Please check your wiring and the manual download to ensure your system is compatible.
Max Current
3A
Supply
230v AC

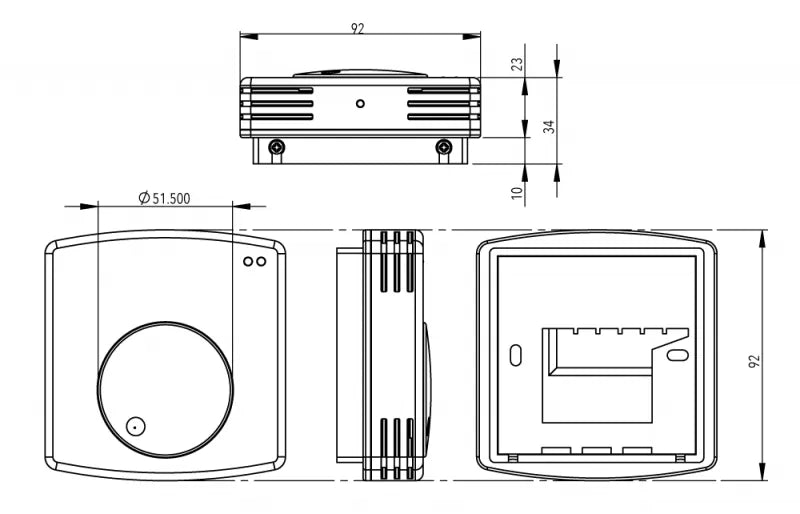

Dimensions (L,H,D)
92x92x34mm
Temperature Range
05-35C
Mounting Type
Surface
This dial thermostat is designed to be surface mounted.
Separate the front part of the thermostat by unscrewing securing screws on the bottom face of the thermostat.
Mark 2 hole positions on the wall using the backplate as a positioning template. Drill at the marked positions and insert a wall plug in to each hole.

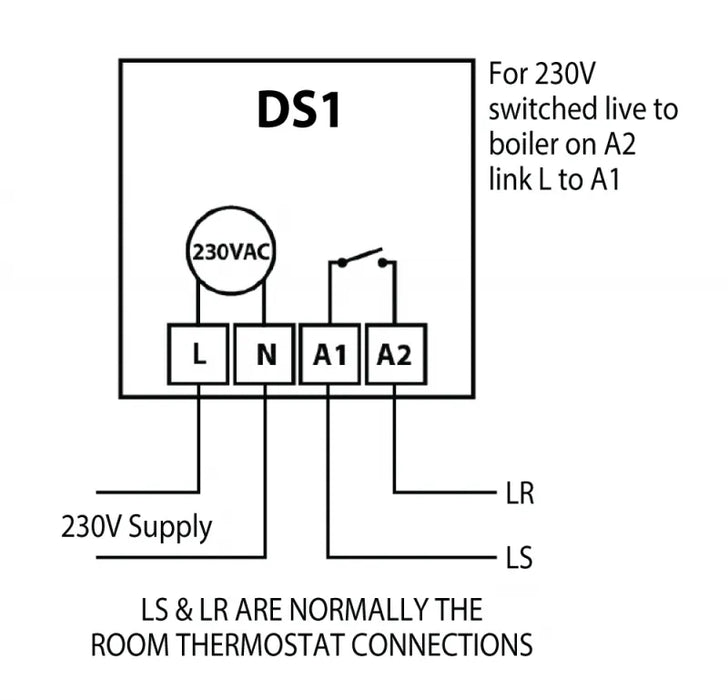

Terminate the thermostat as per wiring diagram and screw the DS1 back plate to the back box.
Reconnect the thermostat front plate and insert the securing screws.
