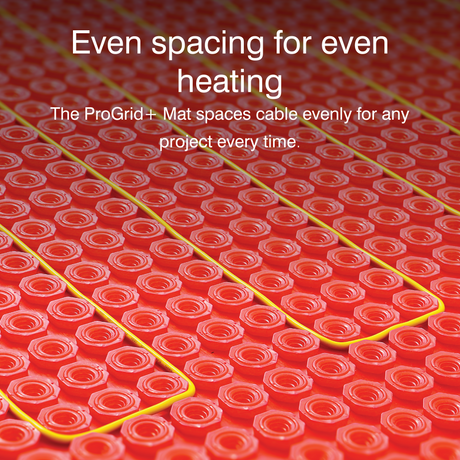

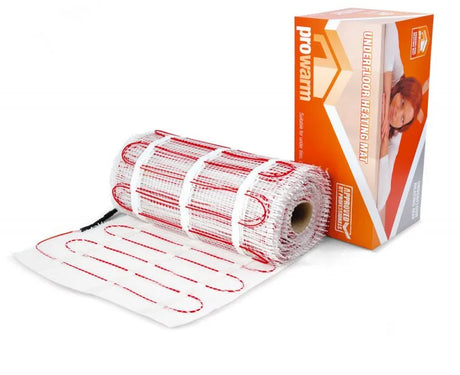

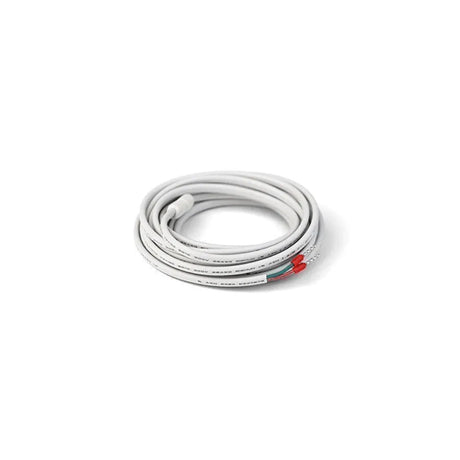

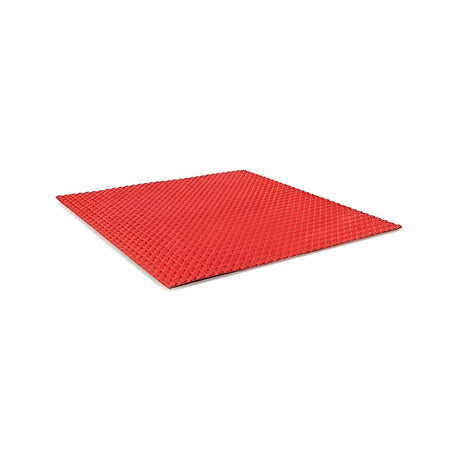

ProWarm™ Electric Underfloor Heating cable provide a reliable and effective underfloor heating system that can work with tiles and many other floor coverings (installation methods differ, please call us for advice). This cable must be used with the ProWarm™ ProGrid+ Heating Mat.

Flooring size options listed above provide 150 watt heat output.

Full Technical Support is provided free of charge by our team of Fully Qualified Electricians and for total peace of mind each system comes with the amazing CableSafe Guarantee - cut through your heating cable during installation and ProWarm™ will replace your cable free of charge. Click here for Terms and Conditions

Please ensure all safety guidelines are adhered to during and after installation of this product.

The Underfloor Heating Store are an Approved Partner of ProWarm™ Underfloor Heating Systems.

Please note: Our 10m2 and 12m2 sizes will be made up of two individual cables, rather than one cable.

Specifications

Resistance Values

Twin Conductor 13.7W / m / 230 VOLTS

Length (M)	Watts (W)	Resistance (Ohms)
10.9	150	352.67
16.4	225	235.11
21.9	300	176.33
27.4	375	141.07
32.8	450	117.56
38.3	525	100.76
43.8	600	88.17
49.3	675	78.37
54.7	750	70.53
65.7	900	58.78
76.6	1050	50.38
87.6	1200	44.08
98.5	1350	39.19
109.5	1500	35.27
131.4	1800	29.39
153.3	2100	25.19
175.2	2400	22.04

Installation

Please Note: The following is intended as a guide only. Always refer to the full installation manual for instructions.

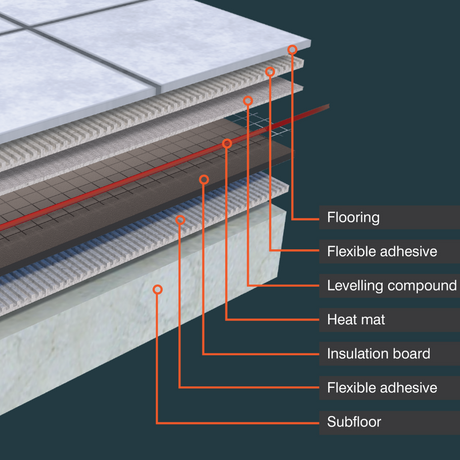

Ensure that the subfloor is solid and suitable for tiling, free from dust and debris. Wooden subfloors should ideally be reinforced to prevent flexing and the possibility of tiles dislodging.This can be reinforced using a suitable WBP or Marine plywood or insulated tile-backer boards such as ProWarm™ Backer Boards. Bitumen bases should be covered with a suitable backerboard or a 3-5mm levelling compound.

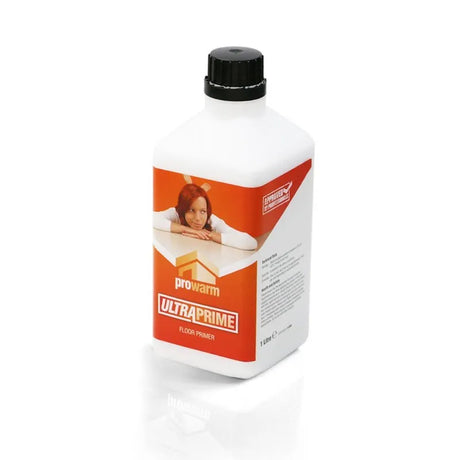

Prime the floor using the acrylic based primer (see advice for anhydrite screeds).Once primed leave to dry (typically 1-2 hours). Once primed avoid any excess foot traffic over this area. The purpose of priming is to promote greater adhesion of the tile adhesive by reducing the amount of moisture absorbed into the subfloor.ALWAYS CHECK with tile adhesive/levelling compound manufacturer that the primer is suitable for use with their product/s, please contact our technical help centre if you are in any doubt.
If using ProWarm™ insulation tile Backer Boards or XPS insulation boards, do so in accordance with the manufacturer's instructions, we do advise staggering the boards in a brick bond style and making sure the boards are fixed using suitable flexible adhesives to solid floors and/or mechanically fixed to wooden subfloors @ 300mm centres using suitable screws and washers.

Cable Coverage Guide

Product Code	Cable length (m)	230w/m2	150w/m2	115w/m2
60mm	90mm	120mm
PROGRIDCABLEONLY1.0	10.9	0.7	1	1.3
PROGRIDCABLEONLY1.5	16.4	1	1.5	2
PROGRIDCABLEONLY2.0	21.9	1.3	2	2.6
PROGRIDCABLEONLY2.5	27.4	1.6	2.5	3.3
PROGRIDCABLEONLY3.0	32.8	2	3	3.9
PROGRIDCABLEONLY3.5	38.3	2.3	3.5	4.6
PROGRIDCABLEONLY4.0	43.8	2.6	4	5.3
PROGRIDCABLEONLY4.5	49.3	3	4.5	5.9
PROGRIDCABLEONLY5.0	54.7	3.3	5	6.6
PROGRIDCABLEONLY6.0	65.7	3.9	6	7.9
PROGRIDCABLEONLY7.0	76.6	4.6	7	9.2
PROGRIDCABLEONLY8.0	87.6	5.3	8	10.5
PROGRIDCABLEONLY9.0	98.5	5.9	9	11.8
PROGRIDCABLEONLY10.0	109.5	6.6	10	13.1
PROGRIDCABLEONLY12.0	131.4	7.9	12	15.8
PROGRIDCABLEONLY14.0	153.3	9.2	14	18.4
PROGRIDCABLEONLY16.0	175.2	10.5	16	21
