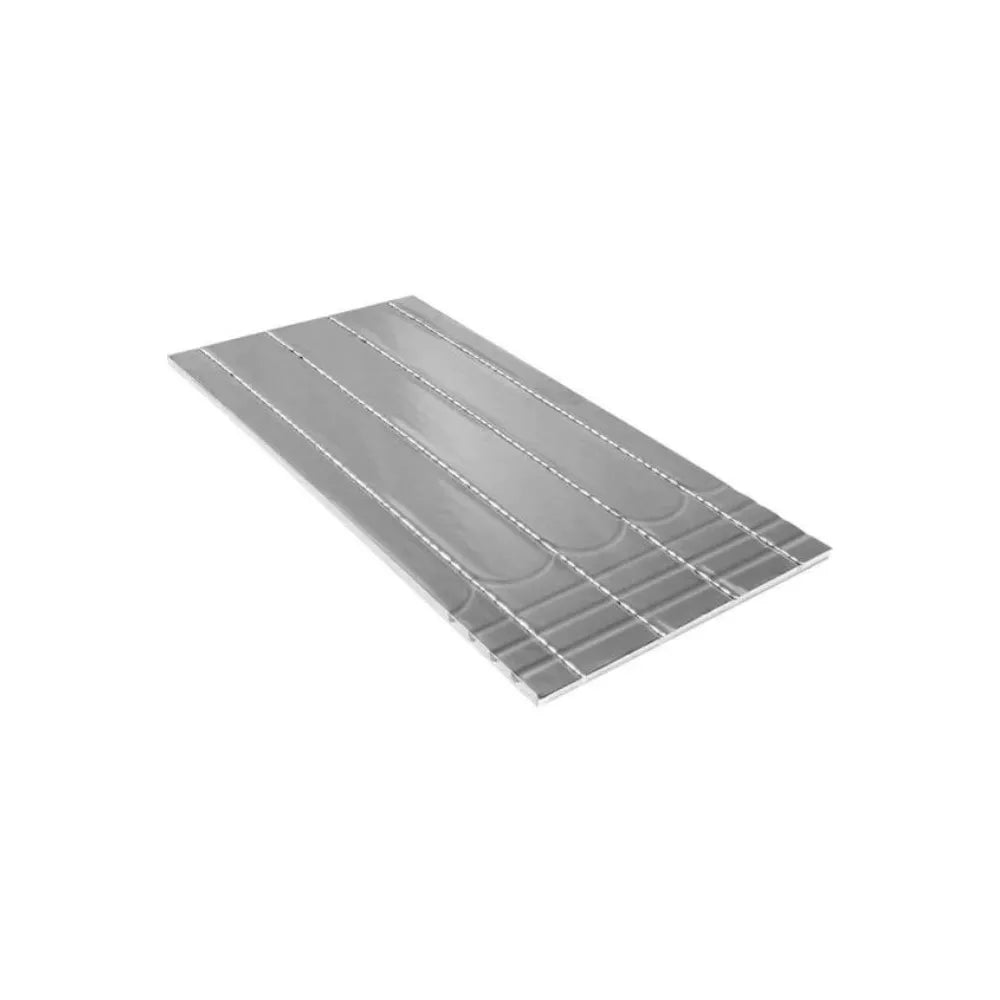

ProWarm LoFlo LITE Overlay Panels

Discover the exceptional versatility and performance of ProWarm LoFlo LITE Overlay Panels available in 1200x600x20mm and 1200x600x16mm. These innovative panels are designed to accommodate various floor coverings, making them the ideal solution for both tiles and floating floors, such as engineered wood and laminate. With two different installation methods for each flooring type, you can achieve the perfect underfloor heating system with ease.

Key features:

• Suitable for 16mm and 20mm Pipework: The panels are specifically designed to be compatible with 16mm or 20mm pipework (dependent on option selected), ensuring efficient heat transfer and optimal performance.
• Dual-Purpose Design: These panels serve a dual purpose, allowing you to use them as a reliable underlay for both tiles and floating floors. Enjoy the flexibility to choose your desired floor covering without compromising on the effectiveness of your underfloor heating system.
• Consistent Grade Polystyrene: ProWarm LoFlo LITE panels utilize EPS 400 kpA grade polystyrene consistently throughout the product. You can trust in the quality and durability of the materials used.
• Effective Heat Distribution: With a bonded 200-micron aluminium heat diffuser, these panels ensure even and rapid heat transfer across the entire floor surface. Experience optimal heat output and superior comfort in your living space.
• Ultra-Strong and Lightweight: The LoFlo LITE panels are engineered to be ultra-strong yet lightweight, making them easy to handle and install. Enjoy the convenience of a hassle-free installation process.

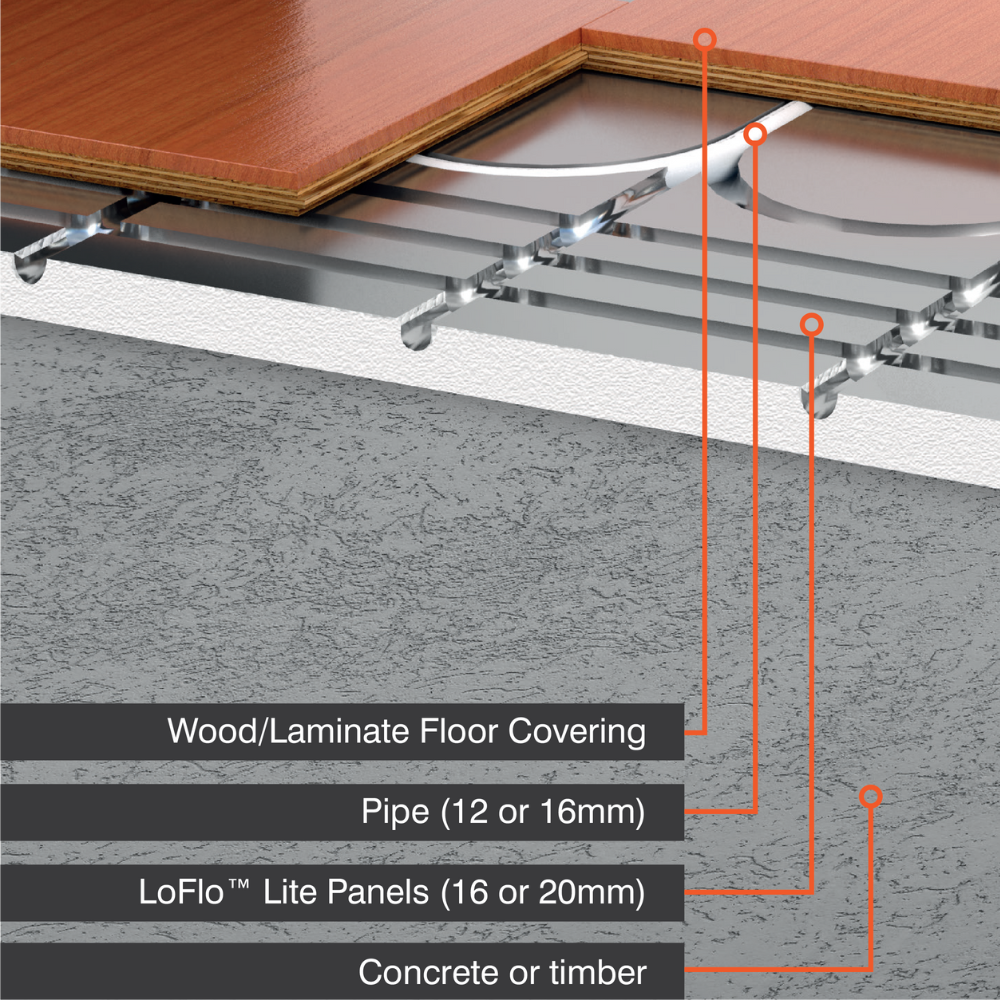

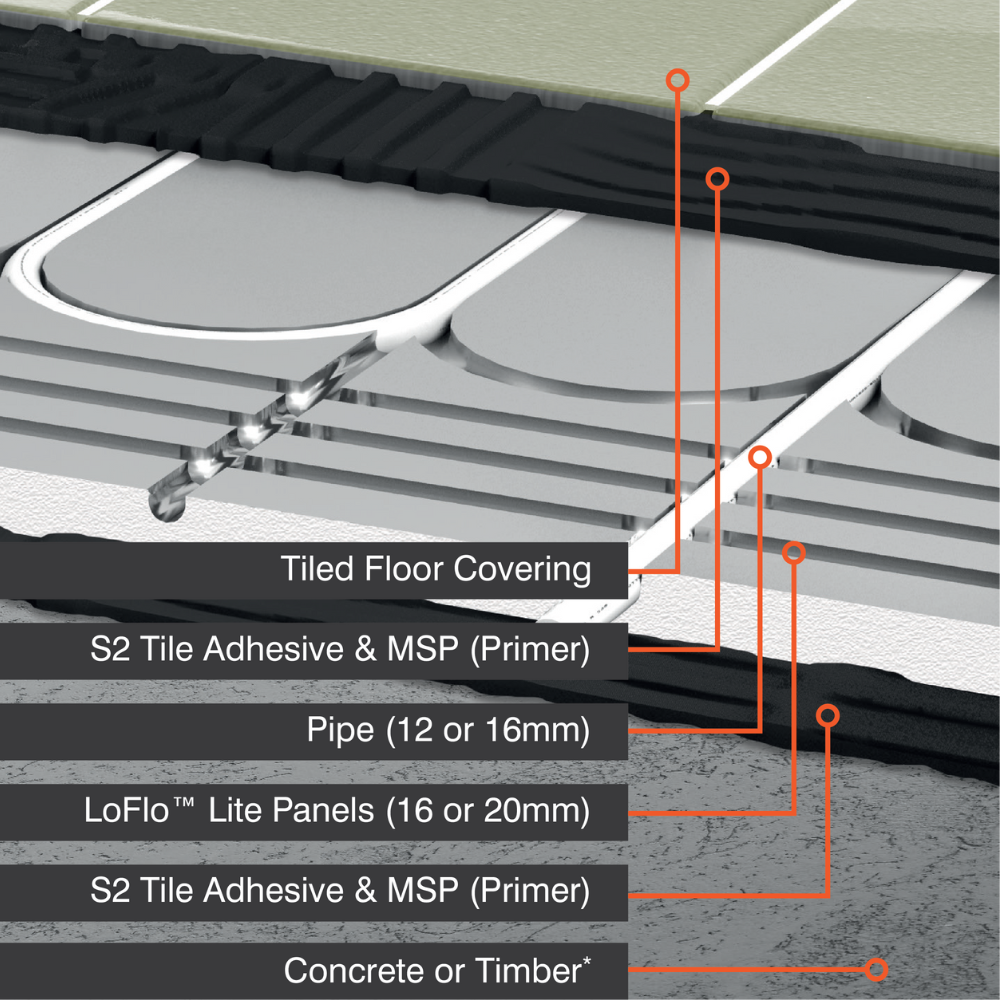

• Accepts Various Floor Coverings: These panels are compatible with a wide range of floor coverings, including laminate, engineered wood, and porcelain/ceramic tiles. You have the freedom to choose the perfect finish for your space.
• Peace of Mind Installation: ProWarm LoFlo LITE panels are the only panels on the market that have received approval from Instarmac Group PLC, a recognized leader in the tile adhesives and levelling compound market and a member of The Tile Association. Rest assured that your installation will meet the highest standards of quality and reliability.

Experience the ultimate convenience and performance with ProWarm LoFlo LITE Dual Purpose Overlay Panel. These panels offer exceptional versatility, easy installation, and the ability to accommodate a variety of floor coverings. Choose the ideal solution for your underfloor heating needs. Install confidently and enjoy the benefits of a high-quality, energy-efficient underfloor heating system.

• 20mm panel thickness is compatible with 16mm pipework
• 16mm panel thickness is compatible with 12mm pipework
• Pipe Spacing of 150mm are applicable for both 20mm and 16mm panels

Each panel measures 1200x600 (0.72m2) in coverage, this means you would need 14 boards to cover a 10m2 area for example.

Please note: this product should be secured to the floor by either glue or screws, it is not advised to have these panels unsecured.
