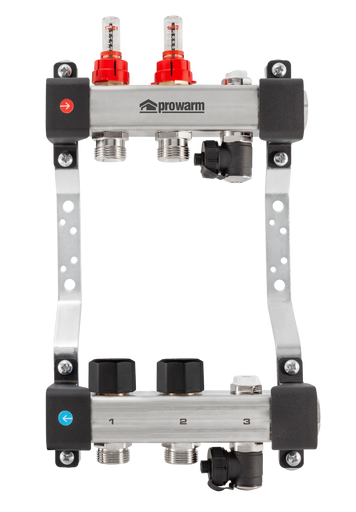

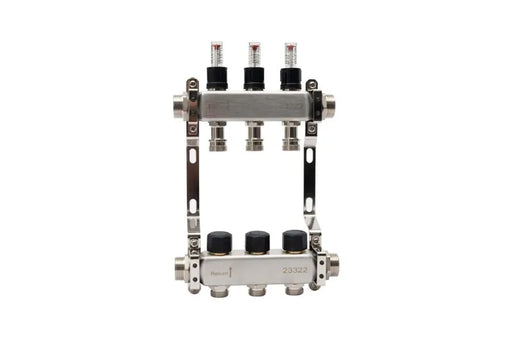

Underfloor Heating Manifolds

The placement of underfloor heating manifolds depends on various factors, including the layout of your property, accessibility, and design preferences. However, here are some general guidelines for the best placement of underfloor heating manifolds:

1. Central Location: It is generally recommended to position the underfloor heating manifold in a central location within your property. This allows for more balanced distribution of the heated water throughout the underfloor heating system. Placing the manifold centrally can help minimize pressure drops and temperature variations across different zones or rooms.
2. Accessibility: The manifold should be easily accessible for maintenance, adjustments, and potential repairs. It's preferable to locate it in an area where it can be easily reached without obstruction. A utility room, garage, or dedicated plant room are common choices for manifold placement, as they often provide good accessibility while keeping the manifold out of sight.
3. Proximity to Heat Source: The underfloor heating manifold should be positioned near the heat source, such as a boiler or heat pump. This minimizes the length of piping required to connect the manifold to the heat source, reducing heat loss and improving system efficiency.
4. Wall-Mounted or Floor-Mounted: Underfloor heating manifolds can be wall-mounted or floor-mounted. Wall-mounted manifolds are commonly installed at a convenient height on a wall, while floor-mounted manifolds are placed on the floor, usually in a dedicated enclosure. The choice between wall-mounted or floor-mounted depends on available space, aesthetics, and personal preference.
5. Zone Considerations: If your underfloor heating system has multiple zones, you may consider placing individual manifolds for each zone to provide better control and flexibility. In this case, the manifold for each zone can be placed in a central location specific to that zone, keeping the distribution of heating balanced within each area.

It's recommended to consult with a professional heating engineer or one of our underfloor heating specialists who can assess your specific property layout and requirements to determine the most suitable placement for the underfloor heating manifolds. We can provide expert guidance based on our knowledge and experience.

The number of manifolds needed for underfloor heating depends on the size and complexity of your underfloor heating system. In general, you will require at least one manifold for each heating zone in your property. A heating zone refers to a distinct area or room within your property that has its own temperature control.

Here are some factors to consider when determining the number of manifolds needed:

1. Heating Zones: Identify the different areas or rooms that require individual temperature control. Each zone typically requires its own manifold. For example, you may have separate zones for the ground floor, first floor, or specific rooms such as the living room, kitchen, and bedrooms.
2. Size and Layout: The size and layout of your property will influence the number of heating zones. Larger properties with multiple floors or complex layouts may require more manifolds to ensure efficient heat distribution and temperature control.
3. Load-Balancing: If certain areas of your property have significantly different heating requirements, it may be beneficial to have separate manifolds to achieve load-balancing. This allows for better control and optimization of heating within each area.
4. System Design: The design of your underfloor heating system may also impact the number of manifolds needed. For example, some systems use a single manifold with multiple circuits, allowing for different areas or rooms to be controlled independently.

It is recommended to consult with our team to assess your specific requirements and design an efficient and effective system. We can help determine the appropriate number of manifolds based on factors such as the size of your property, heating zones, and system design.

Yes, water underfloor heating systems typically require a manifold, whereas electric systems would not. The manifold serves as the central distribution point for the heated water that circulates through the underfloor pipes in water underfloor heating, allowing for precise control and efficient operation of the system.
