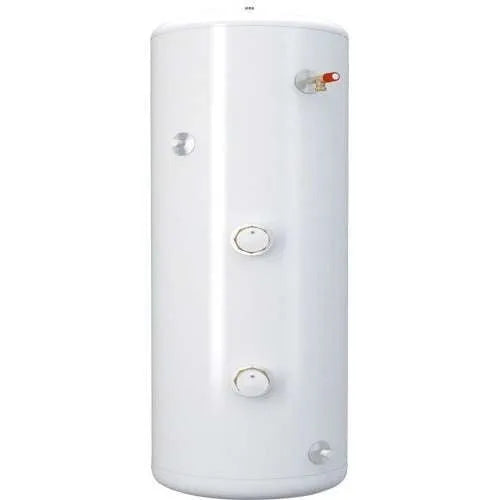

Daikin UK’s new Pre Plumbed Cylinder is the perfect partner to the Daikin Altherma Monobloc system, off ering plug & play installation with all key hydraulics included to ensure a fast and easy installation. This slimline model has a small footprint to minimise the fl oor space required, making it ideal for smaller properties. Yet it delivers maximum performance, thanks to a built-in 20 litre buff er vessel and pre-fi tted magnetic fi lter to ensure optimal performance of the Daikin Altherma Monobloc.

The Pre Plumbed Cylinder comes pre-fitted with:

> 20 litre buffer vessel

> G3 kit (expansion vessel supplied loose)

> Monobloc wiring centre > ESBE 3-way valve

> Magnetic filter

> Automatic air vents

> Dual immersion heaters

> Thermostatic mixing valve

The Daikin Monoblock Heat Pump requires only a controller indoors when space heating is needed, where a wiring centre is added for use of both space heating and domestic hot water. This outdoor unit can be installed almost under a window sill, or in the smallest of gardens. So it is a natural fit for new building and renovation projects alike.

MCS accredited renewable heating system
Easy to operate controller
Works efficiently with underfloor heating, radiators and fan convectors
The system delivers water temperatures of up to 55C
Eligible for funding from the domestic renewable heat incentive (dRHI)
Can be installed easily with little disruption
COP up to 5 with typical annual efficiencies up to 300 Percent
Easy installation out of the box with no refrigerant handling
Easy serviceability and user-friendly interface
Perfect for any modern home

All Kits include:

Monobloc Heat Pump
Pre Plumbed Cylinder
Anti-freeze valve
Pair of flexible hoses with elbow
Pair of flexi-feet for mounting outdoor unit
Altherma R32 Monobloc Wiring Centre

Specification

4kw-8kw Daikin Altherma Heat Pump

					EDLA04E2V3	EDLA06E2V3	EDLA08E2V3
Heating capacity	Nom.			kW	4.30 (1), 4.60 (2)	6.00 (1), 5.90 (2)	7.50 (1), 7.80 (2)
Power input	Heating		Nom.	kW	0.840 (1), 1.26 (2)	1.24 (1), 1.69 (2)	1.63 (1), 2.23 (2)
COP					5.10 (1), 3.65 (2)	4.85 (1), 3.50 (2)	4.60 (1), 3.50 (2)
Dimensions	Unit		Height	mm	770	770	770
			Width	mm	1,250	1,250	1,250
			Depth	mm	362	362	362
Weight	Unit			kg	88.0	88.0	88.0
Operation range	Heating	Water side	Min.	°C	9 (3)	9 (3)	9 (3)
			Max.	°C	65 (3)	65 (3)	65 (3)
	Domestic hot water	Ambient	Min.	°CDB	-27	-27	-27
			Max.	°CDB	35	35	35
		Water side	Min.	°C	25	25	25
			Max.	°C	55 (3)	55 (3)	55 (3)
Sound power level	Heating		Nom.	dBA	58.0 (1)	60.0 (1)	62.0 (1)
Sound pressure level	Heating		Nom.	dBA	44.0 (1)	47.0 (1)	49.0 (1)
Refrigerant	Type				R-32	R-32	R-32
	GWP				675.0	675.0	675.0
	Charge			kg	1.35	1.35	1.35
Space heating	Average climate water outlet 55°C	General	SCOP		3.26	3.26	3.32
			Seasonal space heating eff. class		A++	A++	A++
	Average climate water outlet 35°C	General	SCOP		4.48	4.47	4.56
			Seasonal space heating eff. class		A+++	A+++	A+++
Compressor component	Main power supply		Phase		3N~	3N~	3N~
			Voltage	V	220	220	220
Power supply	Name				V3	V3	V3
	Phase				1~	1~	1~
	Frequency			Hz	50	50	50
	Voltage			V	230 +/-10%	230 +/-10%	230 +/-10%

9kw-14kw Daikin Altherma Heat Pump

					EDLA09DA3V3	EDLA11DA3V3	EDLA14DA3V3
Heating capacity	Nom.			kW	9.37 (1), 9.00 (2)	10.6 (1), 9.82 (2)	12.0 (1), 12.5 (2)
Heater capacity	Step 1			kW	3	3	3
Power input	Heating		Nom.	kW	1.91 (1), 2.43 (2)	2.18 (1), 2.68 (2)	2.46 (1), 3.42 (2)
COP					4.91 (1), 3.71 (2)	4.83 (1), 3.66 (2)	4.87 (1), 3.64 (2)
Dimensions	Unit		Height	mm	870	870	870
			Width	mm	1,380	1,380	1,380
			Depth	mm	460	460	460
Weight	Unit			kg	149	149	149
Fan	Air flow rate	Heating	High	m³/min	48.0	55.8	70.4
Operation range	Heating	Water side	Min.	°C	15 (6)	15 (6)	15 (6)
			Max.	°C	60 (6)	60 (6)	60 (6)
	Domestic hot water	Ambient	Min.	°CDB	-25	-25	-25
			Max.	°CDB	35	35	35
		Water side	Min.	°C	25	25	25
			Max.	°C	55 (6)	55 (6)	55 (6)
Refrigerant	Type				R-32	R-32	R-32
	GWP				675.0	675.0	675.0
	Charge			kg	3.80	3.80	3.80
Space heating	Average climate water outlet 55°C	General	SCOP		3.39	3.32	3.37
			Seasonal space heating eff. class		A++	A++	A++
	Average climate water outlet 35°C	General	SCOP		4.72	4.64	4.62
			Seasonal space heating eff. class		A+++	A+++	A+++
Compressor component	Main power supply		Phase		1~	1~	1~
			Voltage	V	230	230	230
Power supply	Name				V3	V3	V3
	Phase				1~	1~	1~
	Frequency			Hz	50	50	50
	Voltage			V	230	230	230
