Grant Aerona3 Air Source Heat Pump & Install Pack (No Cylinder)

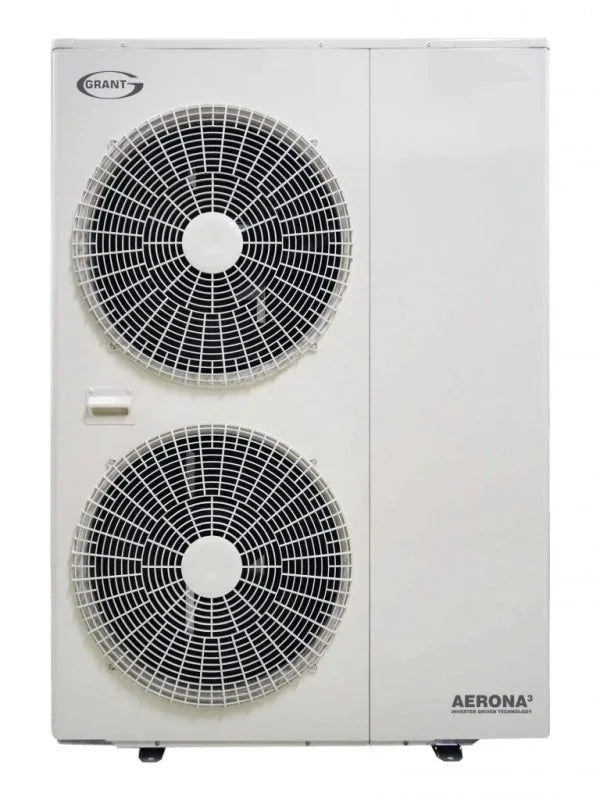

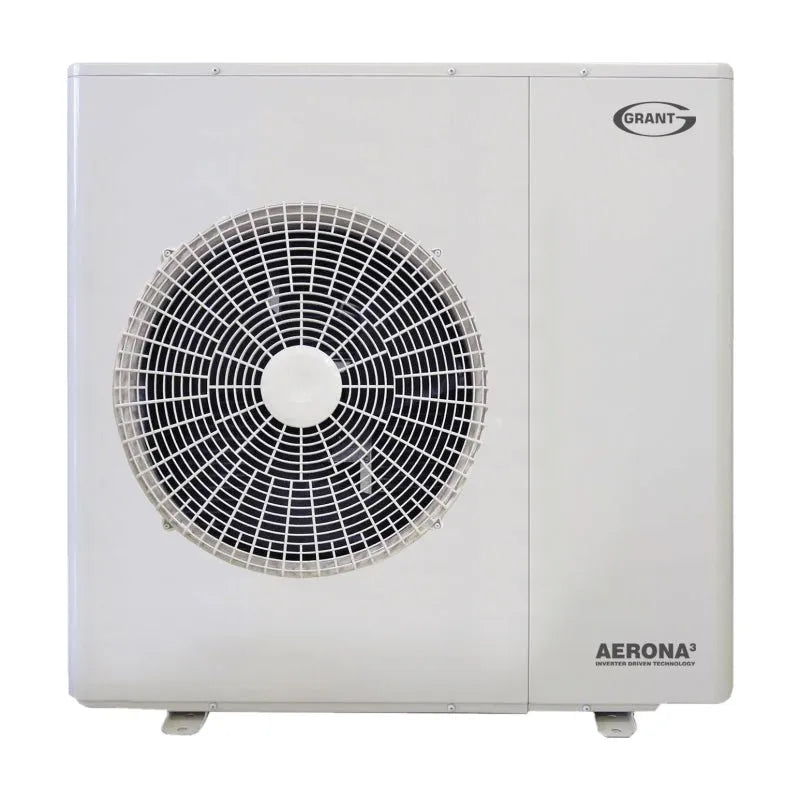

Grant Aerona3 Air Source Heat Pump

Extracting heat present in the air, the Grant Aerona R32 can typically require four times less energy than a gas boiler to supply the same amount of heat.

Utilizing the more environmentally friendly R32 refrigerant the Aerona air source heat pumps are clean and eco-friendly whilst also being some of the most efficient heat pumps available on the market.

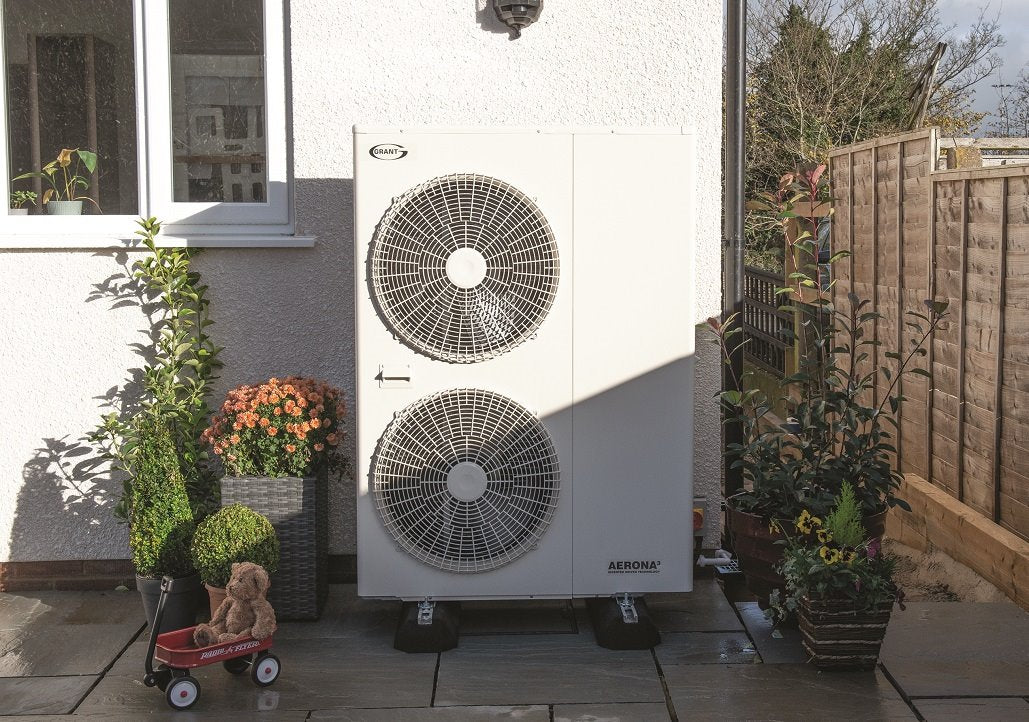

The Aerona3 R32 heat pump is a single phase, DC inverter driven ASHP which incorporates built in weather compensation and a base tray heating element which helps prevent ice formation. Monobloc in design, the Aerona R32 is suitable for use with S-Plan heating control systems and is simple to work with for installation and maintenance. With their compact footprint and low operating noise levels, the Aerona 3 R32 models have minimal impact on their surroundings once installed.

• DC inverter driven
• In-built weather compensation
• Base tray heating element
• Suitable for use with S-Plan heating control systems
• Compact footprint
• Single phase
• ErP rating A+++

Installation Pack

• Sealed system kits are available to suit all Aerona³ heat pump models and they are available in three sizes: 12 litre, 18 litre and 50 litre
• The flexi-foot kit with fixings is supplied in a pack comprising of two 600mm feet for mounting the Aerona³, two kits will be required totalling four feet.
• The through wall insulation kit is a heavy duty insulation to fit the 22-28mm flexi hoses used with the Aerona³.
• Hot Water Priority Relay (up to two space heating zones): this relay gives hot water priority over the central heating system.
• Grant’s 7 day immersion programmer automatically switches on the cylinder’s immersion element, either daily or weekly.
• Domestic Hot Water Programmer: this automatically controls the heat pump domestic hot water operating periods. The integrated timer provides up to four on/off periods per day.
• The Grant System Combined Volumiser/Low Loss Header creates hydraulic separation therefore maintaining the correct flow rate through the heat pump while providing a suitable volume of system water to allow the heat pump to fully modulate. Includes 3kW supplementary element and relay.
• If the Combined Volumiser/Low Loss Header cannot be fitted inside, a 30 litre External Volumiser can be supplied to sit behind the heat pump. Connected to the flow from the heat pump into the flow of the system, this volumiser provides a minimum volume of water to allow the heat pump to control its modulation and it comes complete with 3kW supplementary heater and relay.
• Grant's EP001 wiring centre centralises the wiring for up to four heating zones and one domestic hot water zone providing a convenient solution for Multi-zone wiring.

Specification

Grant Aerona3 Air Source Heat Pump Specification

Grant Aerona3 Installation Pack Specification

Installation Pack A is suitable for S-Plan systems using non pre-plumbed cylinders includes,

• Grant system combined volumiser/low loss header
• 7 day immersion programmer (Legionella)
• Flexi foot kit
• Mag one filter
• 18ltr sealed system kit
• Wiring centre c/w DHW priority
• Domestic hot water programmer
• AC Isolator

Installation Pack B is suitable for S-Plan systems using pre-plumbed cylinders includes,

• Grant system combined volumiser/low loss header
• Flexi foot kit
• Mag one filter
• 18ltr sealed system kit
• Domestic hot water programmer
• AC Isolator

Installation Pack C is suitable for Direct systems using non pre-plumbed cylinders includes,

• Grant systems combined volumiser/low loss header
• 7 day immersion programmer (Legionella)
• Heat pump wiring interface
• Flexi foot kit
• Mag one filer
• 18ltr sealed system kit
• 3 Port diverter valve
• Cylinder sensor
• Water priority relay
• Domestic hot water programmer
• AC Isolator
