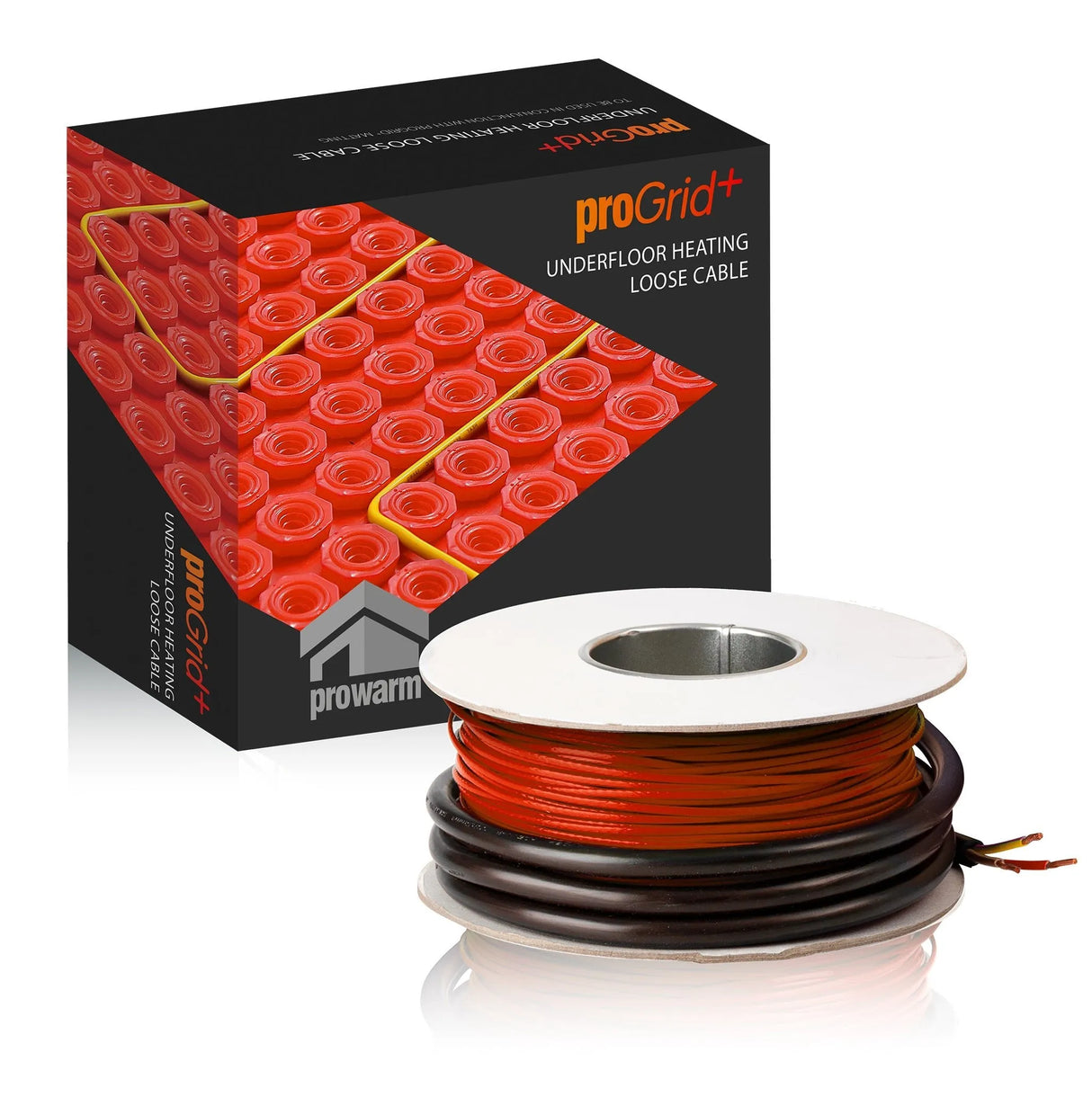

ProWarm ProGrid+ Underfloor Heating Cable

Experience the ultimate comfort as the ProWarm ProGrid+ Electric Underfloor Heating Cable 150W delivers gentle and consistent heat, transforming your floors into a cosy haven. Say goodbye to cold tile surfaces and embrace a world of soothing warmth that enhances your overall living experience.

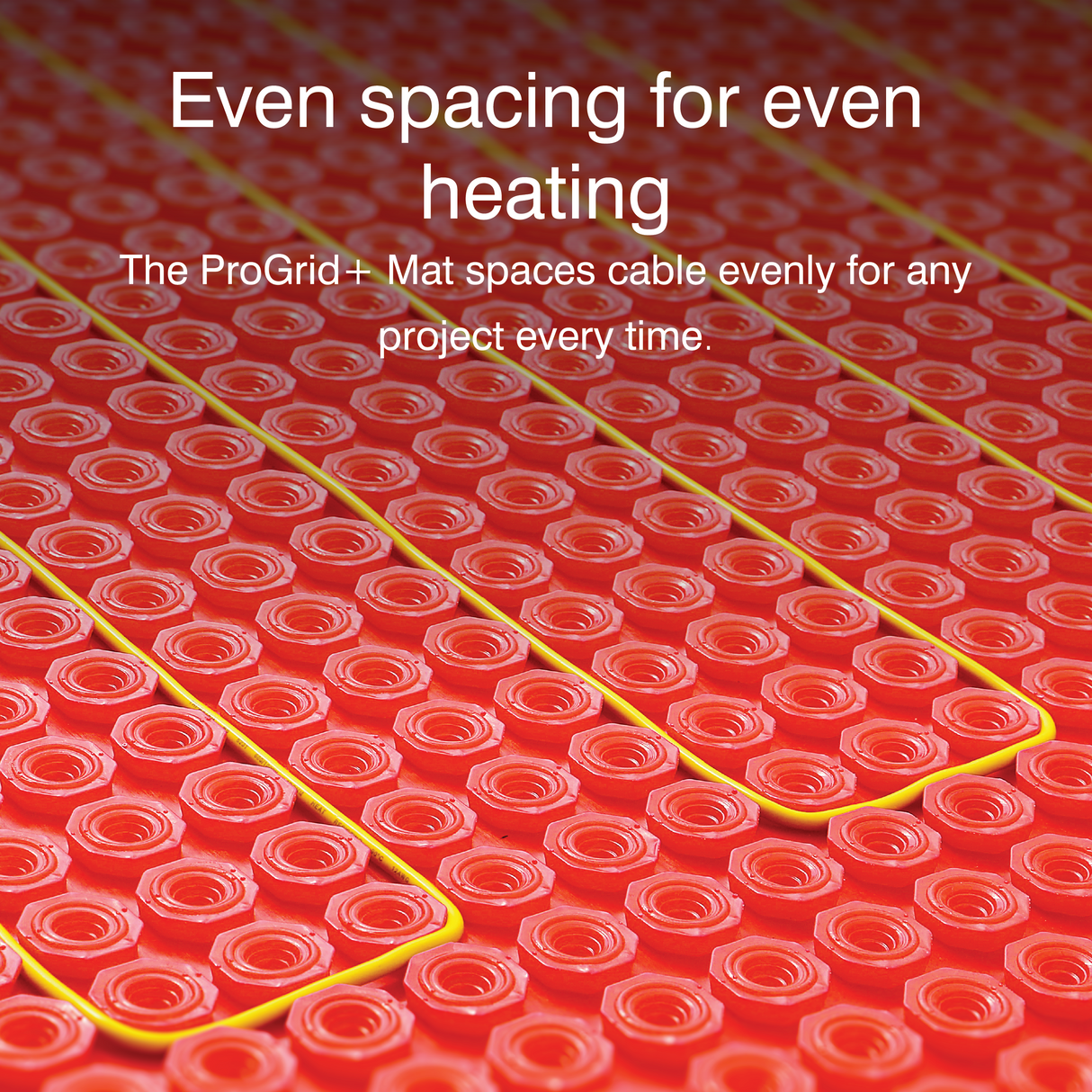

For optimal performance, it is essential to pair the ProWarm Electric Underfloor Heating cable with the ProWarm ProGrid+ Heating Mat (not included). This combination guarantees maximum heat distribution and efficiency, making your underfloor heating system truly exceptional. The ProGrid+ Heating Mat provides additional insulation and ensures uniform heat dispersion across your floor, creating an environment of unparalleled comfort.

Rest assured that the ProWarm ProGrid+ Electric Underfloor Heating Cable is designed with reliability and longevity in mind. Built to withstand the test of time, this cable is crafted using high-quality materials, ensuring durability and consistent performance over the years. You can trust that your underfloor heating system will continue to provide warmth and comfort for a lifetime.

Upgrade your home with the ProWarm ProGrid+ Electric Underfloor Heating Cable and create a luxurious environment where warmth and comfort prevail. Enjoy the freedom to walk on heated floors, experience the soothing touch of warmth underfoot, and revel in the unmatched cosiness of your space. Say goodbye to chilly floors and embrace the transformative power of ProWarm for a truly remarkable underfloor heating experience.

PLEASE NOTE: Must be used with ProWarm ProGrid+ Heating Mat. Not included with the Progrid+ cable.

Specifications

Resistance Values Twin Conductor 13.7W / m / 230 VOLTS

Installation

Please Note: The following is intended as a guide only. Always refer to the full installation manual for instructions.

• Ensure that the subfloor is solid and suitable for tiling, free from dust and debris. Wooden subfloors should ideally be reinforced to prevent flexing and the possibility of tiles dislodging. This can be reinforced using a suitable WBP or Marine plywood or insulated tile-backer boards such as ProWarm Backer Boards. Bitumen bases should be covered with a suitable backer board or a 3-5mm leveling compound.
• Prime the floor using the acrylic-based primer (see advice for anhydrite screeds). Once primed leave to dry (typically 1-2 hours). Once primed avoid any excess foot traffic over this area. The purpose of priming is to promote greater adhesion of the tile adhesive by reducing the amount of moisture absorbed into the subfloor. ALWAYS CHECK with tile adhesive/levelling compound manufacturer that the primer is suitable for use with their product/s, please contact our technical help center if you are in any doubt.
• If using ProWarm insulation tile Backer Boards or XPS insulation boards, do so in accordance with the manufacturer's instructions, we do advise staggering the boards in a brick bond style and making sure the boards are fixed using suitable flexible adhesives to solid floors and/or mechanically fixed to wooden subfloors @ 300mm centres using suitable screws and washers

Cable Coverage Guide
