ThermaSkirt Bi-Directional TRV Feed & Return Kit

The Bi-Directional TRV Feed & Return Kit is used when the pipework is located in the middle of a wall. It is most often used when replacing a radiator with immovable pipework.

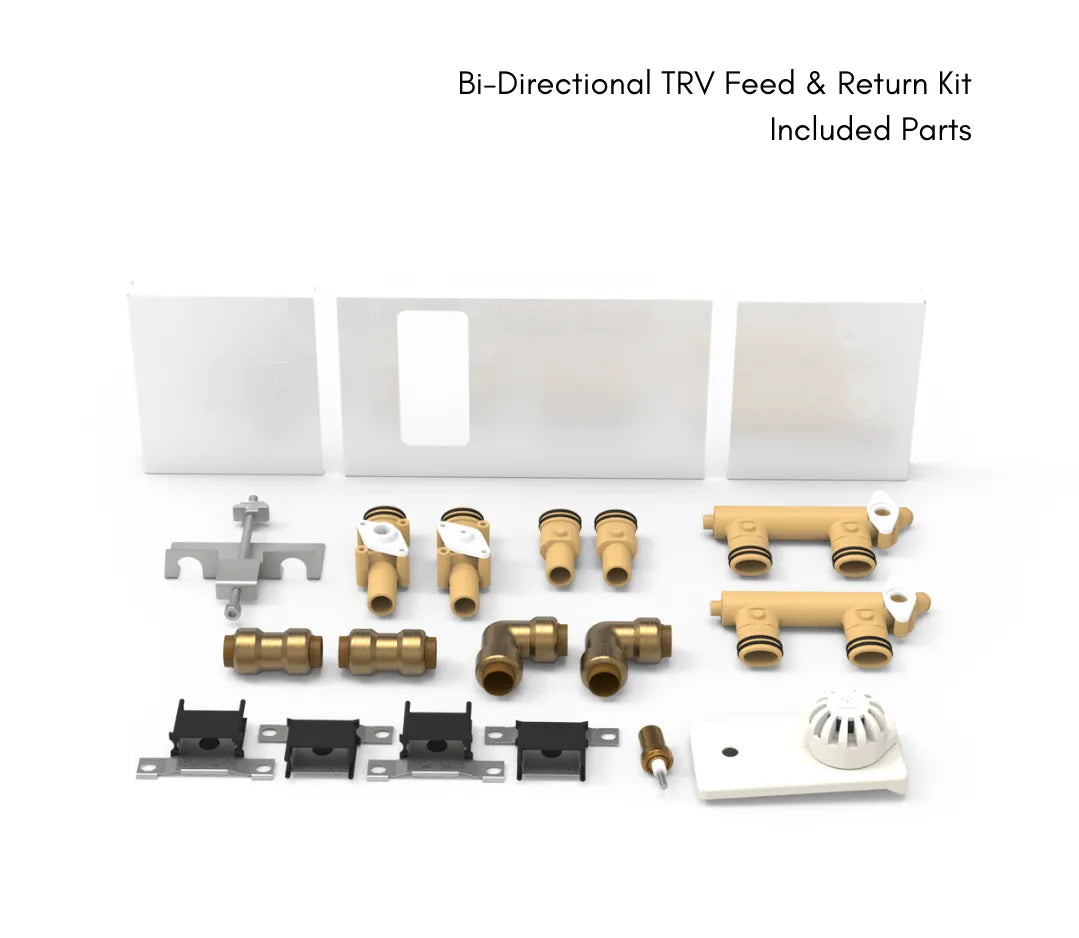

BM2 Bi-Directional TRV Feed and Return Kit contains:

• TRV Valve 15mm or 16mm x1
• Lockshield Valve 15mm or 16mm x1
• Oval- 15mm or 16mm connections x2
• TRV Retaining Bracket x1
• TRV Valve Fascia Plate inc Wax Element
• Tectite Classic Elbow 15mm or 16mm x2
• Tectite Classic Straight Coupling 15mm or 16mm x2
• Return Manifold Unit x2
• Stainless Steel Retaining Clip x4
• Bi-Directional TRV Cover
• Left Hand End Return Manifold Cover
• Right Hand End Return Manifold Cover

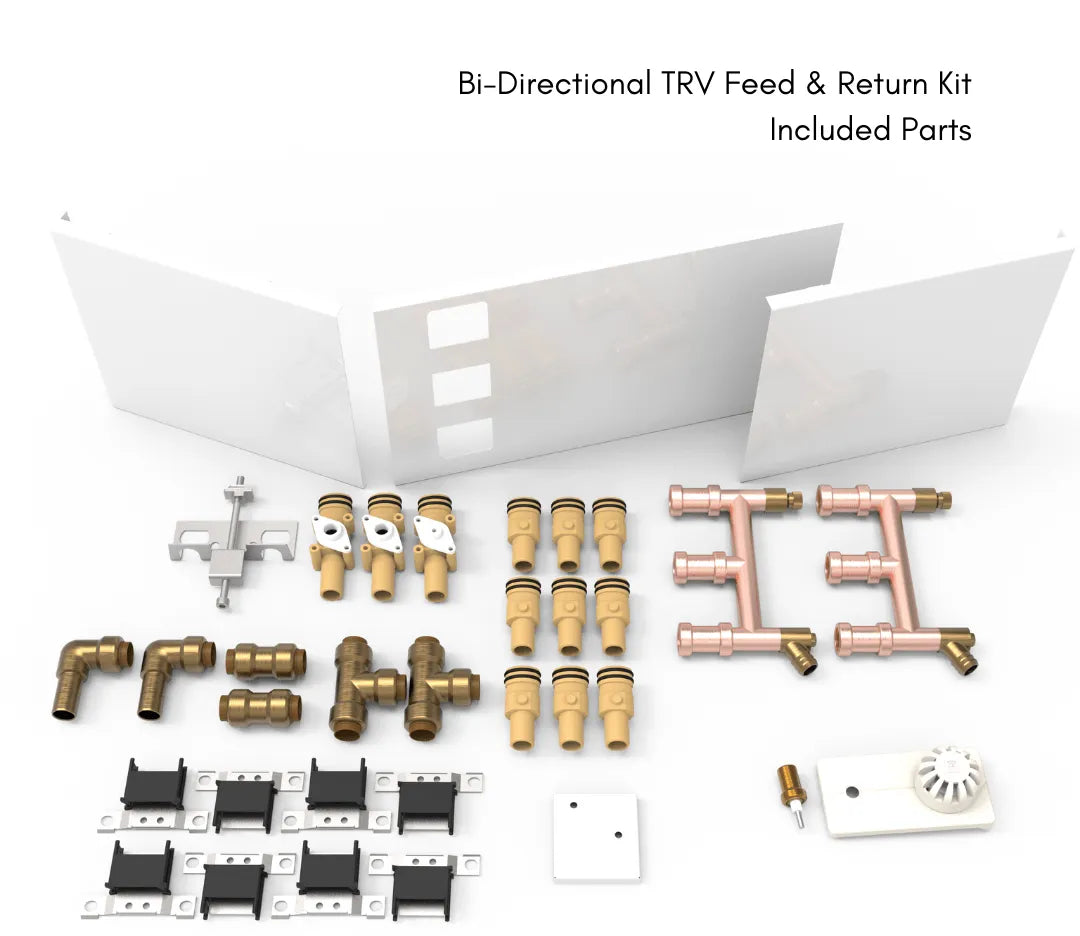

BM3 Bi-Directional TRV Feed and Return Kit contains:

• TRV Valve 15mm or 16mm x1
• Lockshield Valve 15mm or 16mm x2
• Oval- 15mm or 16mm connections x3
• TRV Retaining Bracket x1
• TRV Valve Fascia Plate inc Wax Element
• Tectite Classic Elbow 15mm or 16mm x2
• Tectite Classic Straight Coupling 15mm or 16mm x4
• Return Manifold Unit x2
• Stainless Steel Retaining Clip x8
• Bi-Directional TRV Cover
• Left Hand End Return Manifold Cover
• Right Hand End Return Manifold Cover
