JG Overlay Boards - Floor

From £19.99
Now £19.99
Sold out
Out of stock
JG Overlay Boards - Floor
From £19.99
Now £19.99
Contact us

Advice or better price?

Help, advice or want us to beat a price? Call us on 01268 567016

Fast & Reliable Delivery

For delivery on Sunday

Order within hours minutes seconds

How many boards do I need?
Add your area dimensions and we'll calculate how many boards you need

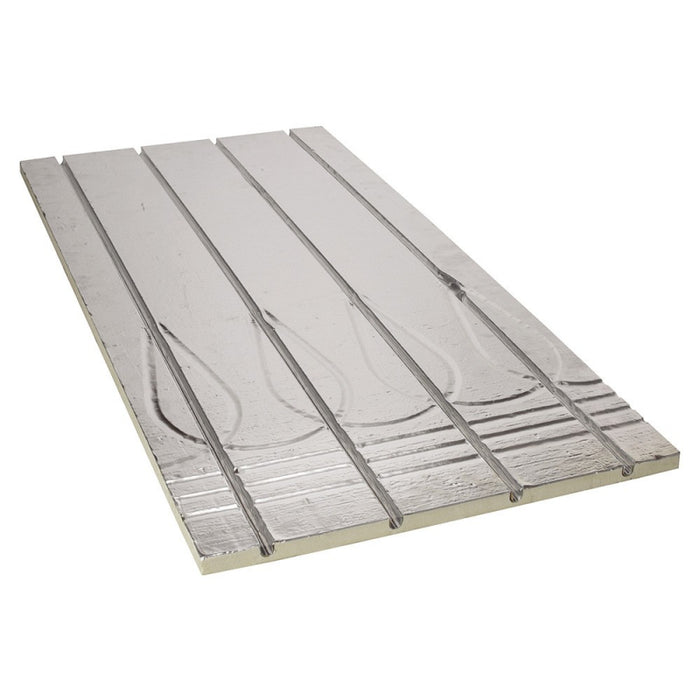

Introducing JG Overlay Boards - Floor, the perfect solution for installing 15mm tubing over existing floor structures. Whether you're working on a new build or a renovation project, these grooved foil faced insulation panels offer an ideal fixing system that combines convenience and performance.

John Guest Overlay Boards - Floor is a low profile system designed to enhance your underfloor heating experience. The lightweight insulated panels feature grooves that securely hold 15mm JG Layflat pipe, ensuring efficient heat distribution and optimal performance. This system is suitable for both lightweight floor coverings, such as laminate, engineered wood, and carpet, as well as ceramic tiles when used with a brio board beneath.

With its easy installation process and versatility, John Guest Overlay Boards - Floor is suitable for various applications, including larger areas and multiple room installations. The panels can be easily handled and cut to fit your specific project requirements.

Key Features of John Guest Overlay Boards - Floor:

  • Grooved Foil-Faced Panel: The panels feature precise grooves that securely hold the 15mm JG Layflat pipe, ensuring a reliable and efficient underfloor heating system.
  • Easy Installation: The straightforward installation process of John Guest Overlay Boards - Floor saves time and effort, allowing for a hassle-free integration of underfloor heating.
  • Medium Heat Output and Response: The system offers a balanced heat output and responsive performance, providing optimal comfort and energy efficiency.
  • Low Profile: With its low profile design, John Guest Overlay Boards - Floor seamlessly blend into your existing floor structure, minimizing the impact on floor height and overall aesthetics.

Elevate your underfloor heating system with John Guest Overlay Boards - Floor. Experience the convenience of easy installation, efficient heat distribution, and a low-profile solution for your flooring structures. Whether it's a new build or a renovation project, John Guest Overlay Boards - Floor delivers exceptional performance and comfort.

Heat output approx 50-60w/m2
Recommended flow temperature 50-60ºC
Maximum circuit length 100m
Typical cover per loop 13-15m2
Individual panel size 600X1250X25(mm)
Pipe spacing 150mm
