Cable Coverage Guide

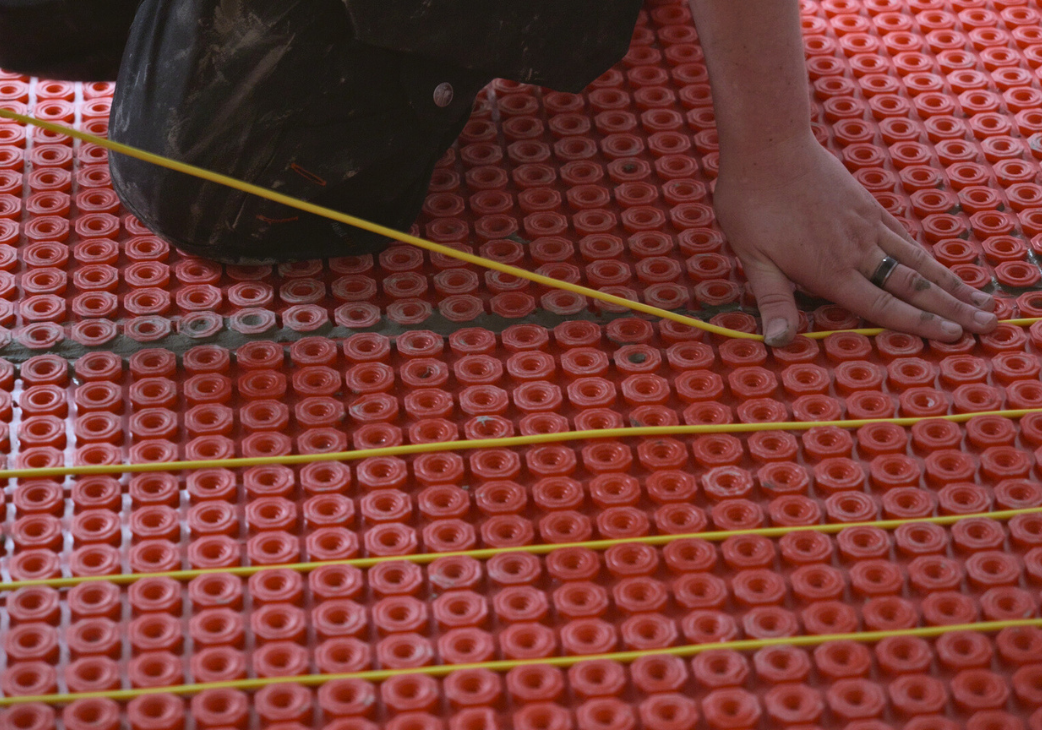

Find your room size from the coverage section below, based on your planned cable spacing, and get all the technical data for that particular size.

Curious about the area that our electric underfloor heating cables can effectively cover?

To provide you with a clear understanding, we've prepared a user-friendly table below. This table illustrates the coverage based on the spacing maintained between each cable row during installation. You can explore various cable coverage possibilities with spacing options of 50mm, 60mm, 65mm, 75mm, and 100mm.

Coverage m2 Drum Sizes2
5cm spacing2 6cm spacing 6.5cm spacing 7.5cm spacing 10cm spacing Power Cable Length Drum 1 Drum 2
0.6m 2 0.7m 2 0.75m 2 0.9m 2 1.15m 2 115w 11.5m 11.5m -
0.7m 2 0.8m 2 0.9m 2 1.1m 2 1.4m 2 140w 14m 14m -
0.8m 2 1m 2 1.1m 2 1.3m 2 1.7m 2 170w 17m 17m -
1.1m 2 1.4m 2 1.5m 2 1.7m 2 2.25m 2 225w 22.5m 22.5m -
1.45m 2 1.7m 2 1.9m 2 2.2m 2 2.9m 2 290w 29m 29m -
1.75m 2 2.1m 2 2.3m 2 2.7m 2 3.5m 2 350w 35m2 35m2 -
2m 2 2.4m 2 2.7m 2 3.1m 2 4m 2 400w 40m2 40m2 -
2.4m 2 2.9m 2 3.2m 2 3.7m 2 4.8m 2 480w 48m2 48m2 -
2.8m 2 3.4m 2 3.7m 2 4.3m 2 5.6m 2 560w 56m2 56m2 -
3.2m 2 3.9m 2 4.2m 2 5m 2 6.4m 2 640w 64m2 64m2 -
3.5m 2 4.3m 2 4.6m 2 5.4m 2 7m 2 700w 70m2 70m2 -
3.8m 2 4.6m 2 5m 2 5.8m 2 7.6m 2 760w 76m2 76m2 -
3.8m 2 4.6m 2 5m 2 5.8m 2 7.6m 2 760w 76m2 76m2 -
4.1m 2 4.9m 2 5.4m 2 6.3m 2 8.2m 2 820w 82m2 82m2 -
4.6m 2 5.6m 2 6m 2 6.9m 2 9.2m 2 920w 92m2 92m2 -
5.2m 2 6.3m 2 6.9m 2 8m 2 10.4m 2 1040w 104m2 104m2 -
5.7m 2 6.9m 2 7.6m 2 8.8m 2 11.4m 2 1140w 114m2 114m2 -
6.2m 2 7.6m 2 8.3m 2 9.6m 2 12.5m 2 1250w 125m2 125m2 -
7.2m 2 8.8m 2 9.6m 2 11.2m 2 14.5m 2 1450w 145m2 145m2 -
7.2m 2 8.8m 2 9.6m 2 11.2m 2 14.5m 2 1450w 145m2 145m2 -
8m 2 9.7m 2 10.6m 2 12.3m 2 16m 2 1160w 160m2 160m2 -
9m 2 10.9m 2 12m 2 13.8m 2 18m 2 1800w 180m2 180m2 -
10.4m 2 12.6m 2 14m 2 16m 2 20.8m 2 2080w 208m2 104m2 104m
11.4m 2 13.9m 2 15.2m 2 17.6m 2 22.8m 2 2280w 228m2 114m2 114m
12.5m 2 15.2m 2 16.7m 2 19.3m 2 25m 2 2500w 250m2 125m2 125m
13.5m 2 16.4m 2 18m 2 20.8m 2 27m 2 2700w 270m2 145m2 125m
14.5m 2 17.5m 2 19m 2 22.3m 2 29m 2 2900w 290m2 145m2 145m
15.3m 2 18.2m 2 20m 2 23.1m 2 30.5m 2 3050w 305m2 160m2 145m
16m 2 19.5m 2 21.3m 2 24.5m 2 32m 2 3200w 320m2 160m2 160m
17.3m 2 20m 2 23m 2 25.4m 2 34.5m 2 3400w 345m2 180m2 160m
18m 2 21.8m 2 24m 2 27.7m 2 36m 2 3600w 360m2 180m2 180m
