Description
Description

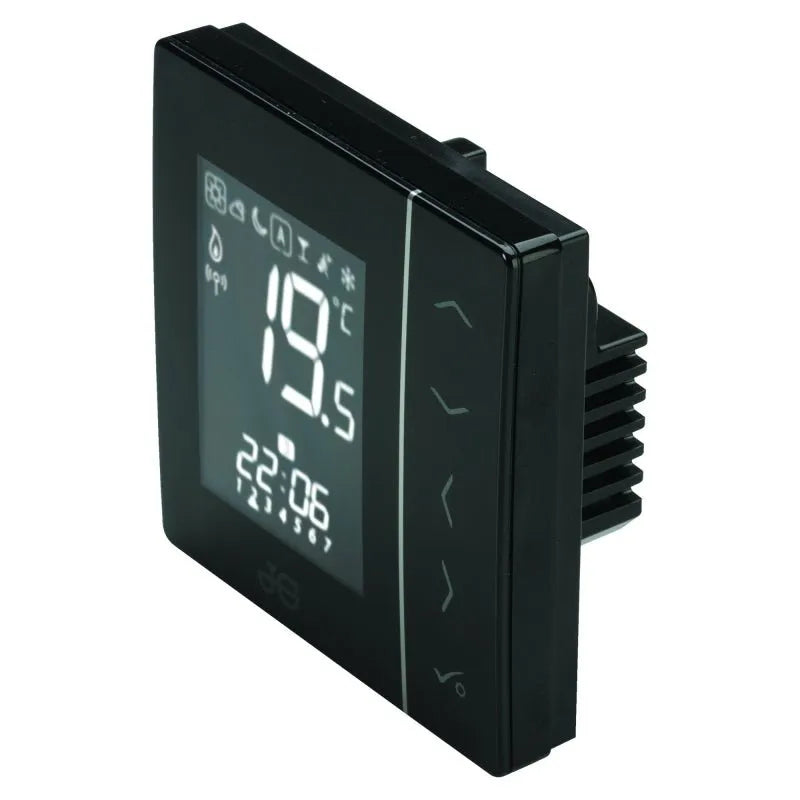

The JG Aura Programmable Thermostat 230V - Black is a versatile 4-in-1 230V thermostat that provides combined control of underfloor heating and individual radiators. It offers a convenient solution for installing energy-saving multi-zone systems in both new and retrofit projects.
Key Features:
- Multi-Zone Control: With the JG Aura Thermostat, you can easily control underfloor heating and individual radiators in multiple zones. This allows for customized temperature settings and energy-saving opportunities throughout your home.
- Programmable Room Thermostat: The thermostat functions as a programmable room thermostat, allowing you to set specific temperature schedules for each zone. This helps optimize comfort while reducing energy consumption.
- Group Control Thermostat: By installing the 0.5mm 2 core data cable, you can enable the group control functionality. This allows you to control multiple thermostats as a group, providing synchronized temperature control for different zones.
- Group Thermostat: The JG Aura Thermostat can also operate as a standalone group thermostat, giving you control over a specific zone without the need for additional thermostats.
- Hot Water Timer: In addition to controlling heating systems, this thermostat includes a hot water timer function. You can conveniently schedule the activation and deactivation of your hot water system to suit your daily needs.
Specifications
Model | JGSTAT2W or JGSTAT2B |
---|---|
Type | Electronic programmable room thermostat, digital room thermostat and hot water timer designed for 230v AC applications |
Programming Modes | User selectable for 5/2, ALL and Individual day options |
Program Number | 1-6 Selectable |
Modes | Party, Vacation, Program and Frost |
Override | Permanent and temporary |
Frost Protection | 5°C Adjustable. |
Power Source | 230v AC 50Hz |
Rating | 3 Amp |
Communication Bus | 12v DC |
Temperature Scale | 5°C to 35°C, tolerance 0.5°C |
Heat/Cool | Global changeover using communication bus and external input to the wiring centre |
Sensor | Air or floor protection. Cylinder thermostat when configured for hot water timer |
Operating Temperature | 0°C to 50°C |
Storage Temperature | -20°C to 60°C |
