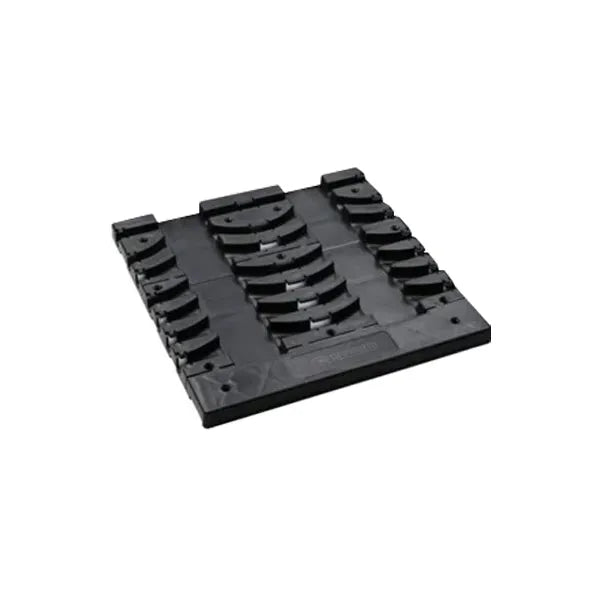

ProWarm LoFlo End Returns

The ProWarm LoFlo End Returns, available in thicknesses of 15mm and 18mm is a versatile and innovative solution that serves as a multifunctional pipe return, pipe clip, and floor support system. With its unique design featuring multiple snapping points, this end support allows for easy adjustment to decrease its size, maximizing the heat emitter area and providing greater installation flexibility.

The LoFlo End Support revolutionizes underfloor heating installation by offering multiple benefits:

• Flexible Installation: The multiple snapping points of the LoFlo End Support enable a more flexible approach to underfloor heating installation, allowing installers to cover larger floor areas and accommodate various room layouts.
• Secure Pipe Fixing: The integral pipe securing system ensures a trouble-free and quick installation of the pipework. It effectively holds the underfloor pipework in place, maintaining its fixed position throughout.
• Floor Support: The LoFlo End Support acts as a support for the floor covering around the perimeter of the room, eliminating the need for a biscuit screed. It provides stability and structural support for the floor, enhancing overall durability.

The ProWarm LoFlo End Return offers a range of features designed to optimize performance and convenience:

• Self-Retaining Pipe Locking System: The innovative design ensures a secure and reliable connection for the underfloor heating pipework.
• Multiple Flow and Return Channels: The end support enables the installation of larger areas by providing multiple channels for efficient flow and return of the heating system.
• Flexible Entry Points: The non-continuous return design allows for flexible entry points to the board, facilitating seamless integration with the underfloor heating system.
• Interlocking Panels: The end support panels interlock to create a secure base, ensuring stability and preventing movement during installation and use.
• Flexible Pipe Routing: The multiple snapping points offer a flexible pipe routing system between rooms, allowing for customized configurations to meet specific project requirements.
• Available in Different Thicknesses: The ProWarm LoFlo End Return is available in thicknesses of 15mm and 18mm, providing options to suit different installation needs.
• Product size: 320mm x 300mm

Experience the versatility and convenience of the ProWarm LoFlo End Return 18mm. With its innovative design and comprehensive testing by ADJ designs, this end support delivers reliable performance and peace of mind for underfloor heating installations.

Ensure proper installation and follow the provided guidelines to achieve optimal results and customer satisfaction.
