ProWarm Aluminium Fit From Below J Spreader Plate
Description
Description

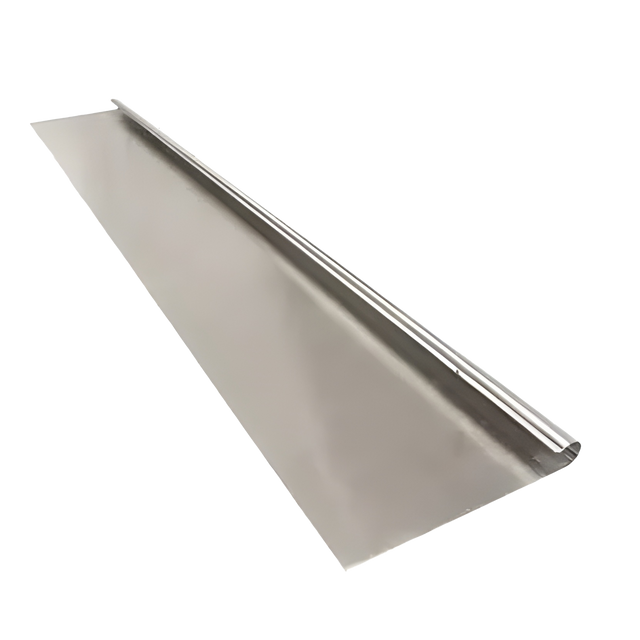

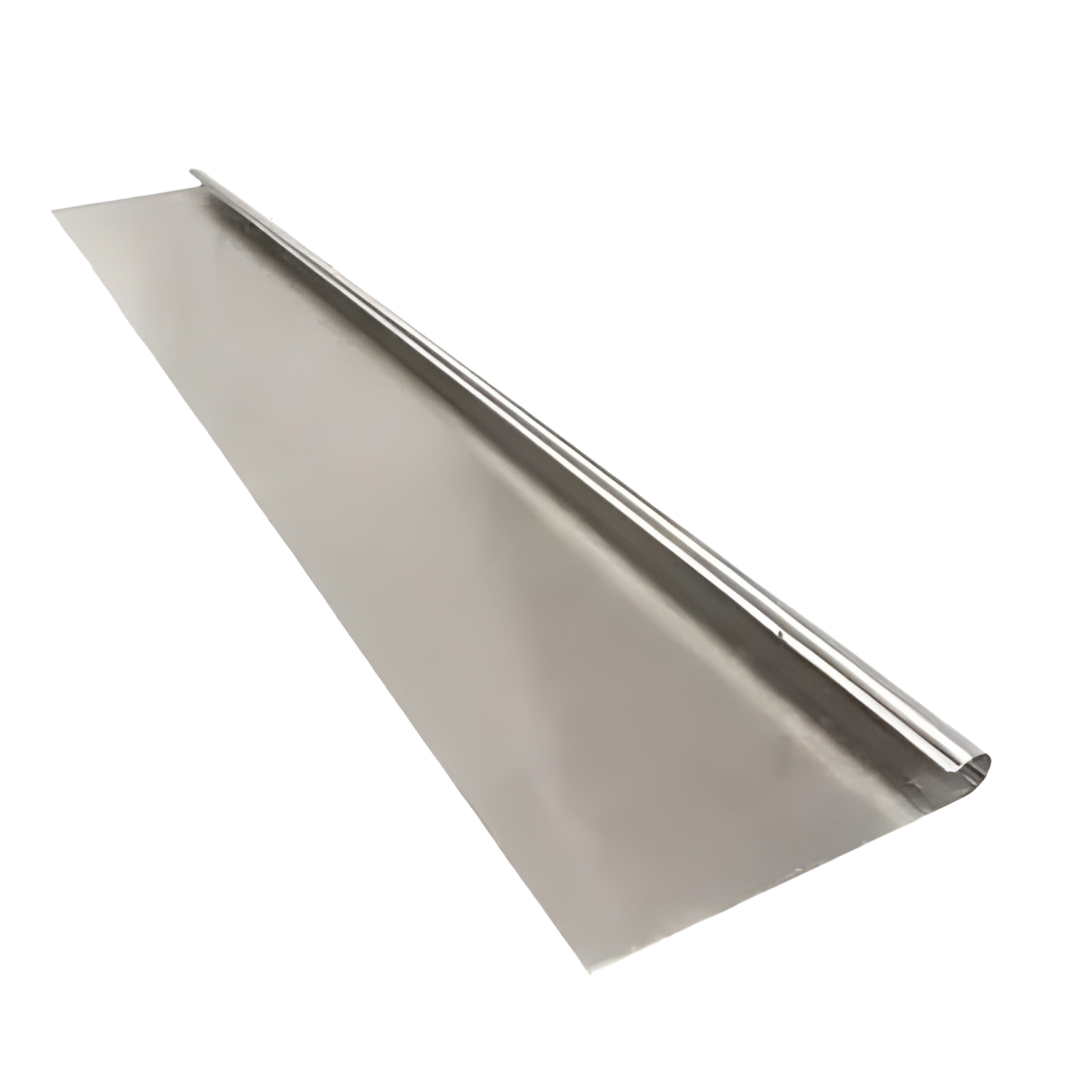

The ProWarm Aluminium Fit From Below J Spreader Plate offers a convenient and efficient solution for underfloor heating installations, eliminating the need to lift floorboards. Designed with a width of 100mm and single-channel grooves, these plates fit seamlessly from below, providing the same excellent heat outputs as traditional heat plates.
Features & Benefits:
- Easy Installation: Can be installed within timber joists, allowing for a straightforward setup without disrupting existing floor structures.
- Versatile Fit: Accommodates various centre joist spacings, making it adaptable to different installation configurations.
- Enhanced Heat Distribution: The integrated insulation barrier ensures that heat is effectively directed upwards, maximizing efficiency and comfort.
- High Output: Provides a typical output of up to 81W/m², delivering efficient and reliable heating performance.
- Precision Fit: Plates are available in a single format with dimensions of 1000mm x 100mm, designed specifically for use with 16mm pipe.
The ProWarm Aluminium Fit From Below J Spreader Plate is an ideal choice for efficient and effective underfloor heating, combining ease of installation with high-performance heating outputs.
| Flow Temp °C | Finished Floor Covering | ||
|---|---|---|---|
| Tile / 6mm Ply | 6mm Ply / Carpet 1.5 Tog | ||
| Floor Heat Output (W/m²) | |||
| 55/50 | 81 | 66 | |
| 50/45 | 70 | 57 | |
| 45/40 | 58 | 47 | |
| 40/35 | 47 | 38 | |
