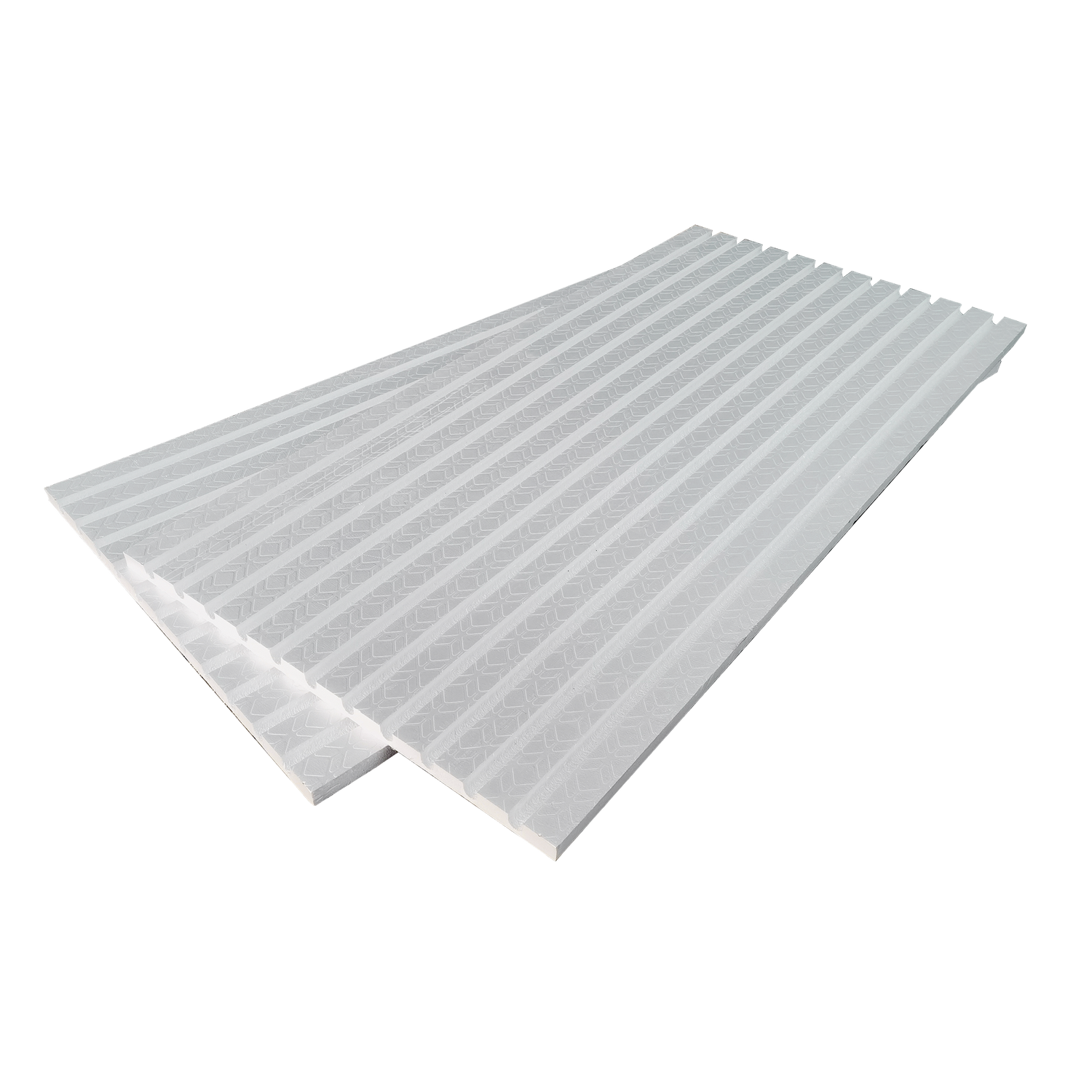

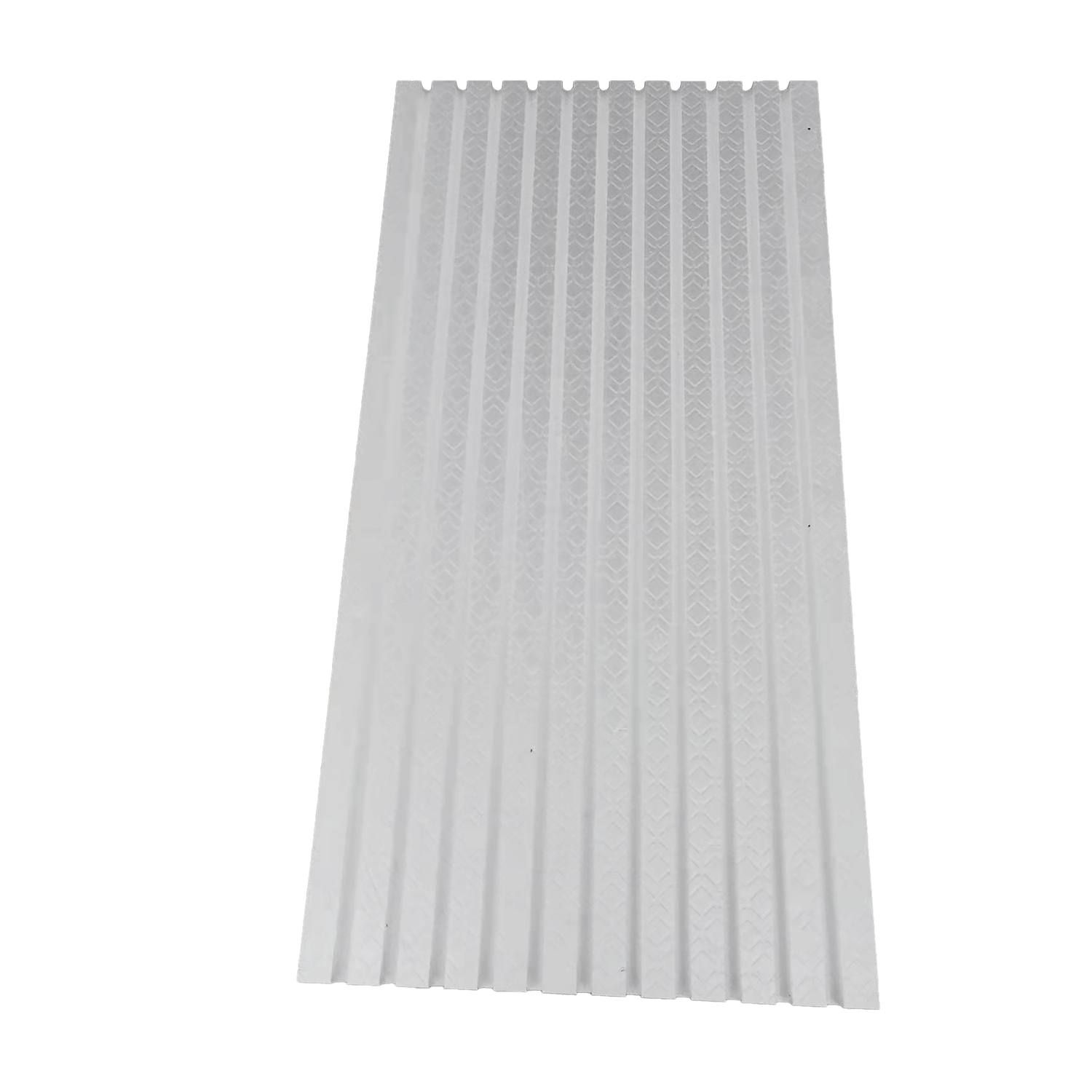

ProWarm Highway Transition Panel - 1200mm x 600mm

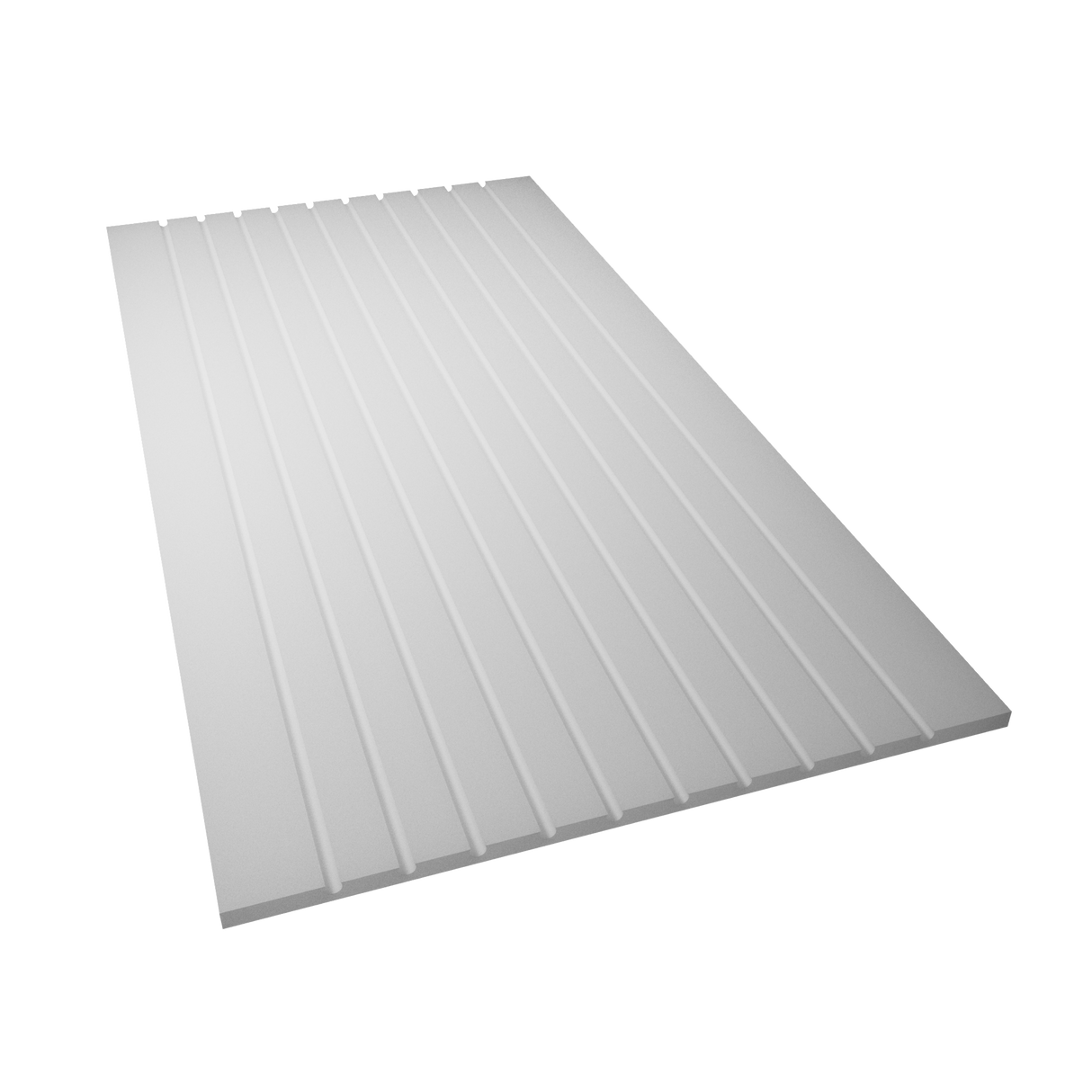

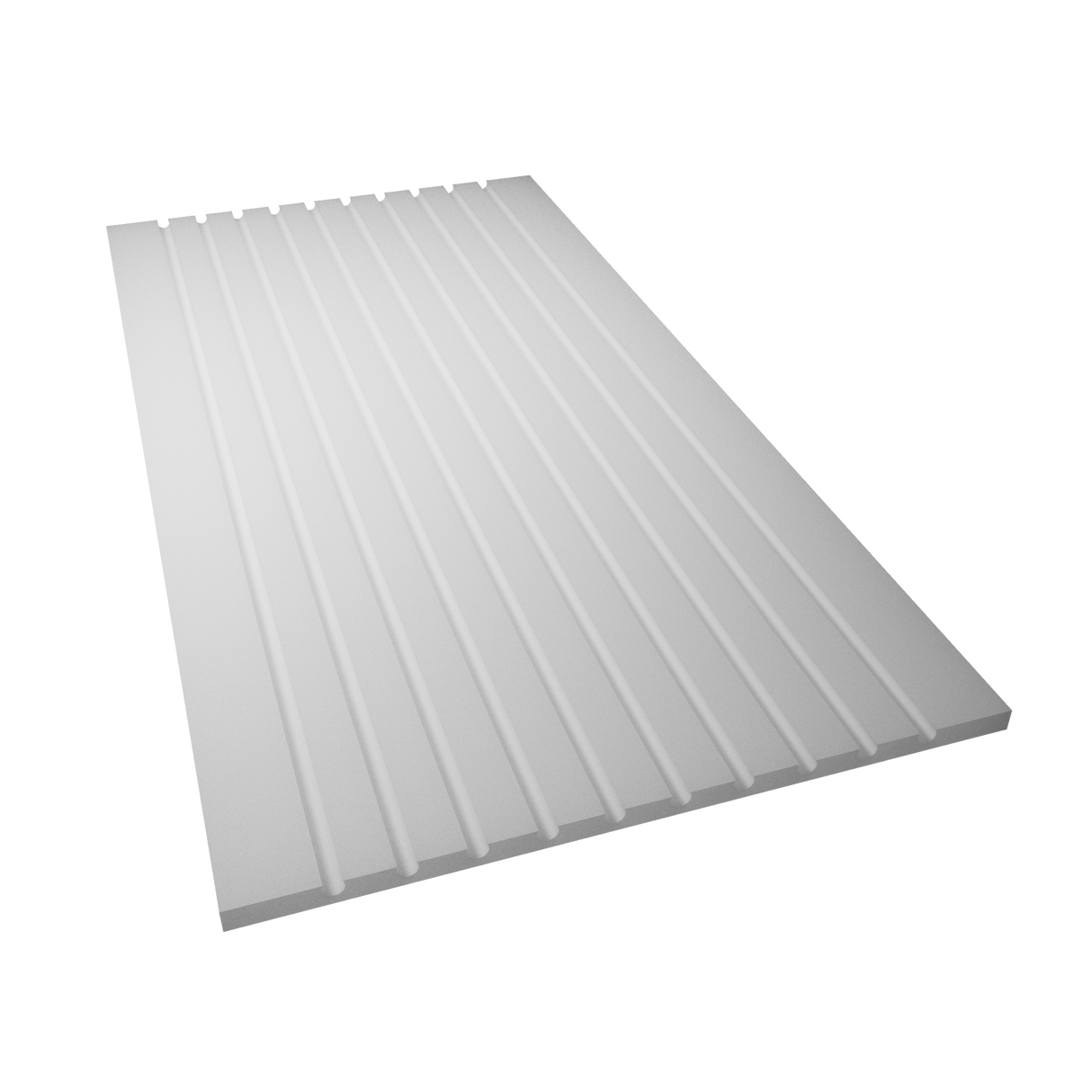

ProWarm Highway Transition Panel - 1200mm x 600mm is a high-performance panel designed for water-based underfloor heating systems, offering an efficient solution for both new builds and renovation projects. Available in 16mm and 20mm thicknesses, this panel provides a structured base for laying underfloor heating pipes in concentrated areas such as room perimeters or routes back to the manifolds.

Key Benefits:

• Low-Profile Design: With a slim profile of 16mm and 20mm, this panel is ideal for projects where floor height is a concern, offering minimal impact on the overall build-up height.
• High-Density Material: Made from high-density polystyrene, the panel provides effective thermal insulation, reducing heat loss to the subfloor and maximising heat efficiency.
• Durability: The robust construction ensures long-lasting performance, providing a stable surface for flooring.
• Pre-Routed Channels: The panel is pre-routed with channels that securely hold underfloor heating pipes, sized for 12mm and 16mm pipes. These channels are precisely spaced to ensure even heat distribution across the floor.

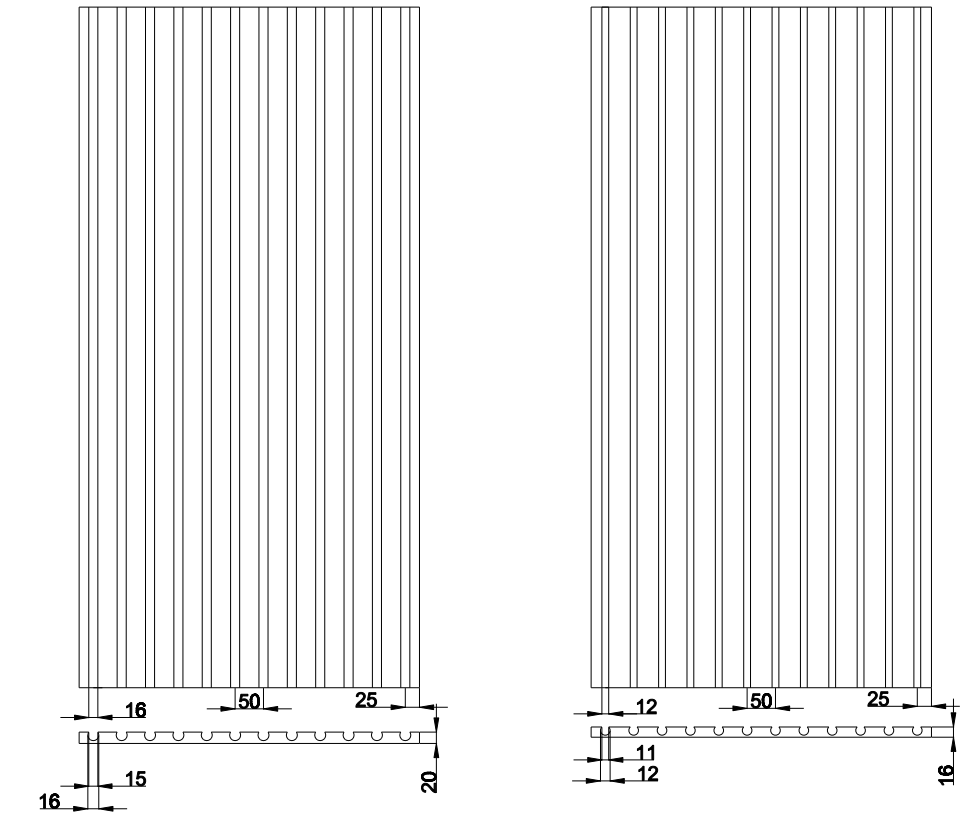

• Easy Installation: The pre-routed channels are spaced at 50mm apart, allowing for consistent pipe spacing for pipe leaders returning to the manifold.
• Flooring Compatibility: Suitable for a wide range of floor finishes, including tiles, laminate, engineered wood, and carpets (with appropriate underlay), making it a versatile choice for different projects.

Choose the ProWarm Highway Panel for a reliable and efficient underfloor heating solution. Its low-profile design, high-density material, and easy installation make it an excellent choice for achieving optimal heating performance in both residential and commercial applications.
