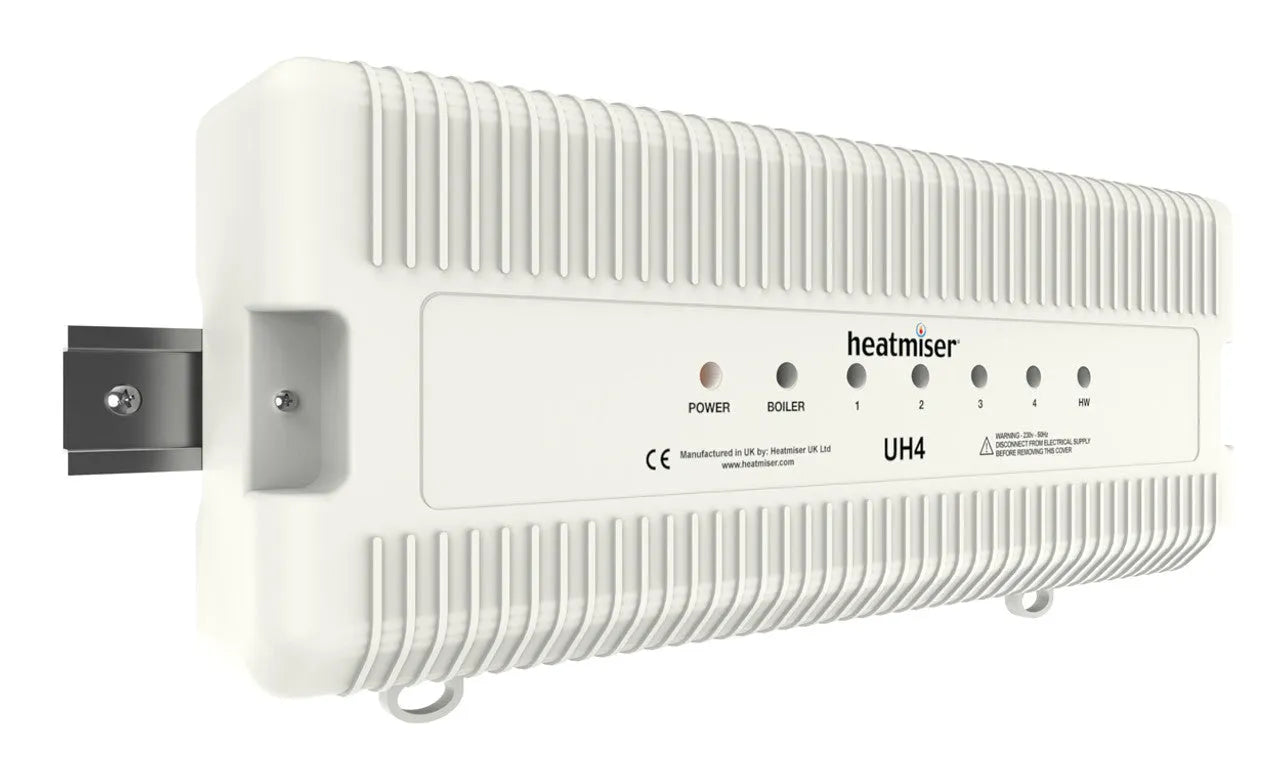

Heatmiser UH4 Wiring Centre - 4 Zone

Regular price £47.99 Inc VAT
Order in
00 00 00
for Next Day Delivery

Buy now, Pay with Klarna

Buy now, Pay with PayPal

Description

The Heatmiser UH4 Wiring Centre - 4 Zone is a versatile wiring centre designed to work seamlessly with our mains thermostats. It is particularly well-suited for underfloor heating applications. When used for underfloor heating, the UH4 offers the option to use Zone 4 for conventional radiator control, providing comprehensive heating control in your space.

Key Features:

  • Four Zone Control: The UH4 allows you to centrally switch and control up to four zone actuators, offering precise temperature regulation in different areas of your home or building.
  • Hot Water Cylinder and Boiler Control: In addition to zone control, the wiring centre provides outputs for a hot water cylinder, system boiler, and pump, allowing you to efficiently manage your hot water system.
  • Neon Indication: The UH4 features neon indicators that provide clear visual indication of the operational status, making it easy to monitor the system and identify any issues.
  • DIN Rail Mounting: The UH4 is designed for DIN Rail Mounting, ensuring easy and secure installation.
  • Radiator Zone Option: The UH4 offers the flexibility to configure Zone 4 for conventional radiator control, allowing you to integrate radiator heating into your system alongside underfloor heating.

The UH4 is compatible with any actuator or valve that requires a 230V AC signal, providing versatile control options for your heating system. It also offers a volt-free output to operate a boiler or other heat sources, enabling seamless integration with different heating components.

    With its comprehensive features and reliable performance, the Heatmiser UH4 is an excellent choice for controlling and managing your heating system.

    Specifications

    Supply 230v AC
    Relay Load Max 3A
    Total Load 5A
    Ip Protection IP20
    Dimensions (L,H,D) Mm 384x148x60mm
    No. Heating Zones 4
    No. Hw Zones 1
    Weight 800g
