ProWarm Water Underfloor Heating - Low Profile 18mm - Single Room

Sale price £1,040.39 Regular price £1,155.99 Inc VAT
Order in
00 00 00
for Next Day Delivery

Buy now, Pay with Klarna

Buy now, Pay with PayPal

Description

The ProWarm Water Underfloor Heating Low Profile 18mm - Single Room is an exceptional choice for renovation and new-build projects. Designed for single-zone applications, it provides efficient and comfortable heating for a single room. If you require heating for multiple rooms, please explore our multi-zone system kits.

With its unique low profile design, ProWarm LoFlo allows floor heating to be installed effortlessly. Unlike traditional underfloor systems that require expensive excavation or floor raising, the ProWarm LoFlo system can be installed directly over the existing floor. At only 18mm in depth, it provides a cost-effective and convenient solution, eliminating the need for extensive construction work.

The ProWarm LoFlo panel is a fibrous panel specifically designed for heavyweight floor coverings such as ceramics. It also serves as a secure base for floor coverings that need to be directly attached to the panel, such as engineered wood that requires fixing down. This panel ensures optimal heat distribution and stability, enhancing the overall performance of the underfloor heating system.

The ProWarm LoFlo system utilizes a 12mm pipe with 150mm pipe centres, delivering excellent response times and heat output. Compared to traditional built-in underfloor heating solutions, ProWarm LoFlo is suitable for both traditional heating systems and low-temperature renewable systems, offering versatility and efficiency for various heating requirements.

An innovative feature of the ProWarm LoFlo system is the unique end support design, allowing installers to easily "SNAP-OFF" sections to create the desired number of channels around the room's edge. This simplifies the installation of leaders and perimeter loops, making the entire process more straightforward and efficient.

ProWarm Water Underfloor Heating Kits are proud to offer lifetime warranty.

✅ The ProWarm Water Underfloor Heating Kit has WRAS-approved pipe; this indicates that the Pert-Al-Pert Pipe as part of this product has been thoroughly tested to demonstrate it is of suitable quality and standard against the requirements of the Water Fittings Regulations and Scottish Byelaws.

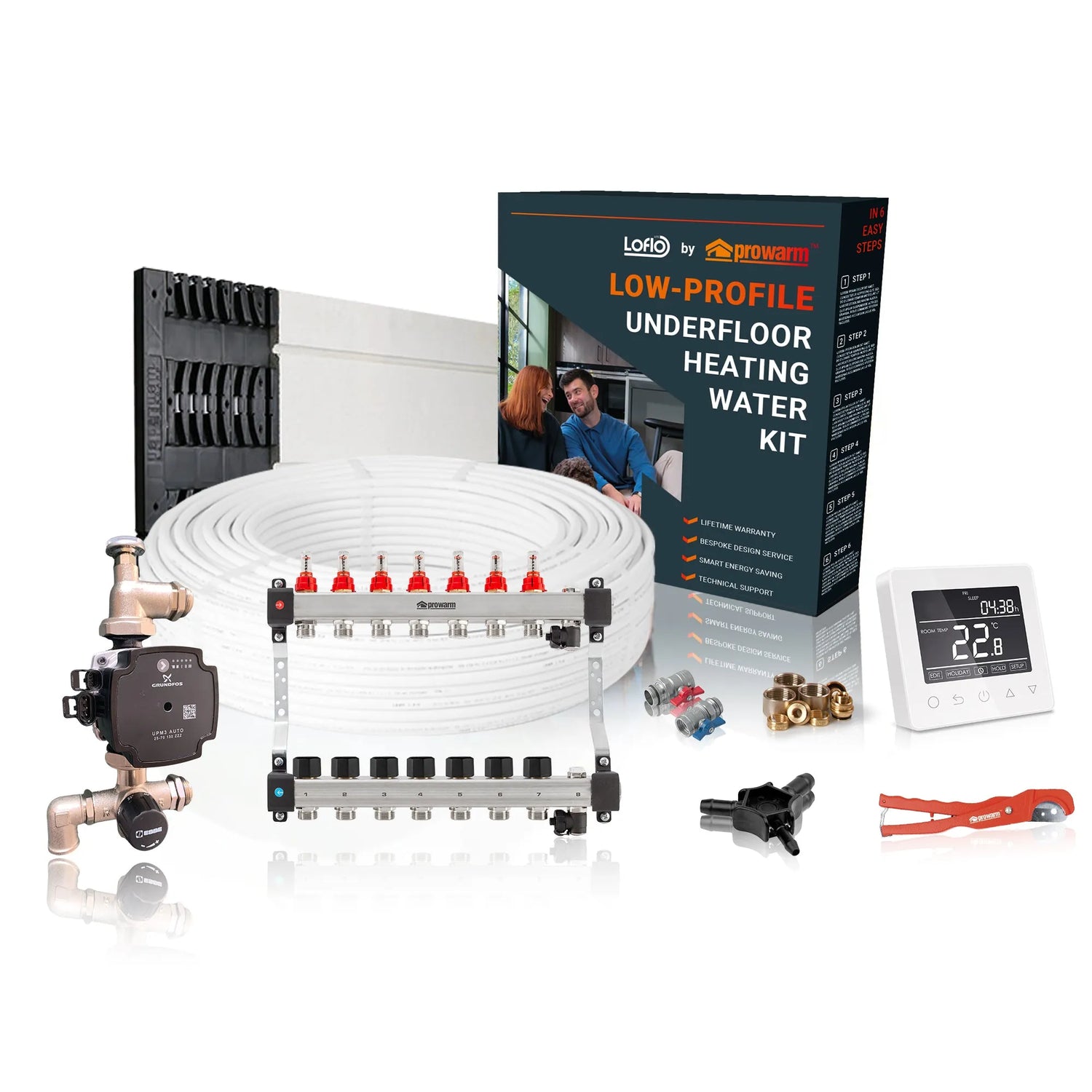

ProWarm Water Underfloor Heating Kit Components

Below are examples of the products that could comprise your ProWarm Water Underfloor Heating Kit. To determine your chosen kit's exact manifold size and pipe length, please refer to our handy Kit Content Comparison Table below.

  • Grundfos Mixing Unit: A rated UPM3 Grundfos Manifold Pump/Mixing Valve Unit, ensuring optimal performance and efficiency.
  • Various Thermostat Options : Depending if you've selected such option.
  • Manifold: This stainless steel manifold has an adjustable flow meter, allowing easy system balance. It comes factory pre-assembled on fixing brackets for simplified installation.
  • ProWarm European Standard Pex-Al-HDPE Pipe: 12mm (outside) diameter Pex-Al-HDPE pipe, meeting the highest quality and durability standards for long-lasting performance.
  • LoFlo Floor Panel: ProWarm LoFlo 18mm floor panels provide a stable and reliable base for the underfloor heating system.
  • Tools: The kit includes essential Pipe Cutters for precise and easy pipe cutting during installation, ensuring a professional and accurate finish.

Compare Kits

This table shows exactly what you'll get in the box based on your chosen kit size.

Kit Size (m2) 15 20 25 30 35 40 50 60 70 80
Manifold Pump Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
Manual Thermostat Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
Manifold Ports 2 2 3 3 4 4 5 6 7 8
Pipe Length (m) 100 160 180 240 260 320 400 450 530 610
Floor Panels 31 42 52 63 73 84 105 125 146 168
Tools Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
Kit Size (m2) 15 20 25 30 35
Manifold Pump Yes Yes Yes Yes Yes
Manual Thermostat Yes Yes Yes Yes Yes
Manifold Ports 2 2 3 3 4
Pipe Length (m) 100 160 180 240 260
Floor Panels 31 42 52 63 73
Tools Yes Yes Yes Yes Yes
Kit Size (m2) 40 50 60 70 80
Manifold Pump Yes Yes Yes Yes Yes
Manual Thermostat Yes Yes Yes Yes Yes
Manifold Ports 4 5 6 7 8
Pipe Length (m) 320 400 450 530 610
Floor Panels 84 105 125 146 168
Tools Yes Yes Yes Yes Yes

The ProWarm Water Underfloor Heating Kit is WRAS approved. WRAS approval demonstrates it is of a suitable quality and standard against the Water Supply (Water Fittings) Regulations and Water Supply (Water Fittings) (Scotland) Byelaws, provided it is installed and used in accordance with the installation and requirement notes and any other restrictions within the approval. Any water fitting, which when installed, will carry or receive water from the public mains water supply in the UK, must comply with these regulations. They require that a water fitting should not cause waste, misuse, undue consumption or contamination of the water supply and must be ‘of an appropriate quality and standard’. To learn more about compliance, visit: WRAS approvals.
