Warmup VLo Econna-12 Water Underfloor Heating

Introducing the Warmup VLo Econna-12 Water Underfloor Heating & Chipboard Kit, a system designed specifically for a straightforward installation over battened or joisted floors. Experience optimized performance and efficiency with this cutting-edge system.

Discover Warmup's VLo Econna-12, an enhanced version of its predecessor (Econna Joisted Floor System). Meticulously designed, this advanced system allows for insulation material and other services to be accommodated in the voids between them. Its low-profile design makes it the perfect choice for infusing radiant warmth into renovation projects with timber floor constructions.

Equipped with energy-saving technology, the Econna-12 not only provides superior comfort but also offers significant savings on your energy bills. Compatible with both traditional boilers and heat pumps, this versatile system ensures efficient heating in any setup*. The updated design boasts enhanced efficiency, ensuring exceptional value for money and rapid installation times.

Experience swift installation times with the VLo Econna-12 Joisted Floor System, thanks to its dry, screedless installation method and ingenious one-piece panel design. These slimline 22mm thick panels, equipped with a built-in heat diffusion foil, guarantee an even and consistent heat distribution, eliminating any potential hot or cold spots.

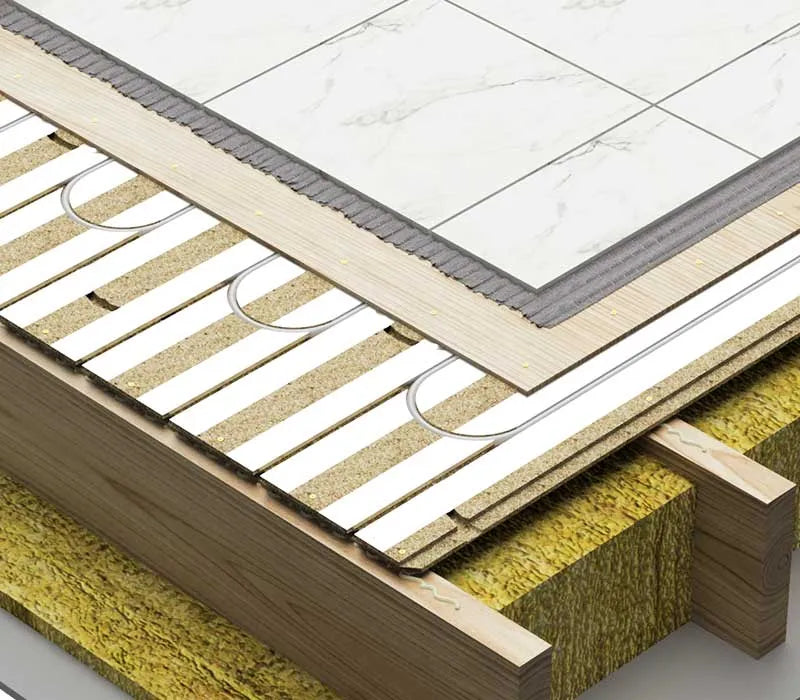

The Econna-12's low-profile design incorporates a 12mm heating pipe with effortless integration into the structural floor, ensuring that the floor finish remains at an optimal temperature without any risk of overheating. The 22mm chipboard panels can be installed over battens or joists, with spacings of up to 600mm centres. With a fluted exit for easy panel-to-panel transition, the universal panels securely hold the heating pipe in the ideal position. The installation process is as simple as gluing and screwing down the boards, placing the pipes within the grooves, and applying a 6mm ply on top before fitting the desired floor finish. Econna-12 provides a streamlined and efficient solution for your heating needs.

*For use with heat pumps and boilers with low flow temperatures we recommend system output is calculated using the values & formulae detailed on page 5 of the Technical specifications manual to ensure the system output is adequate.

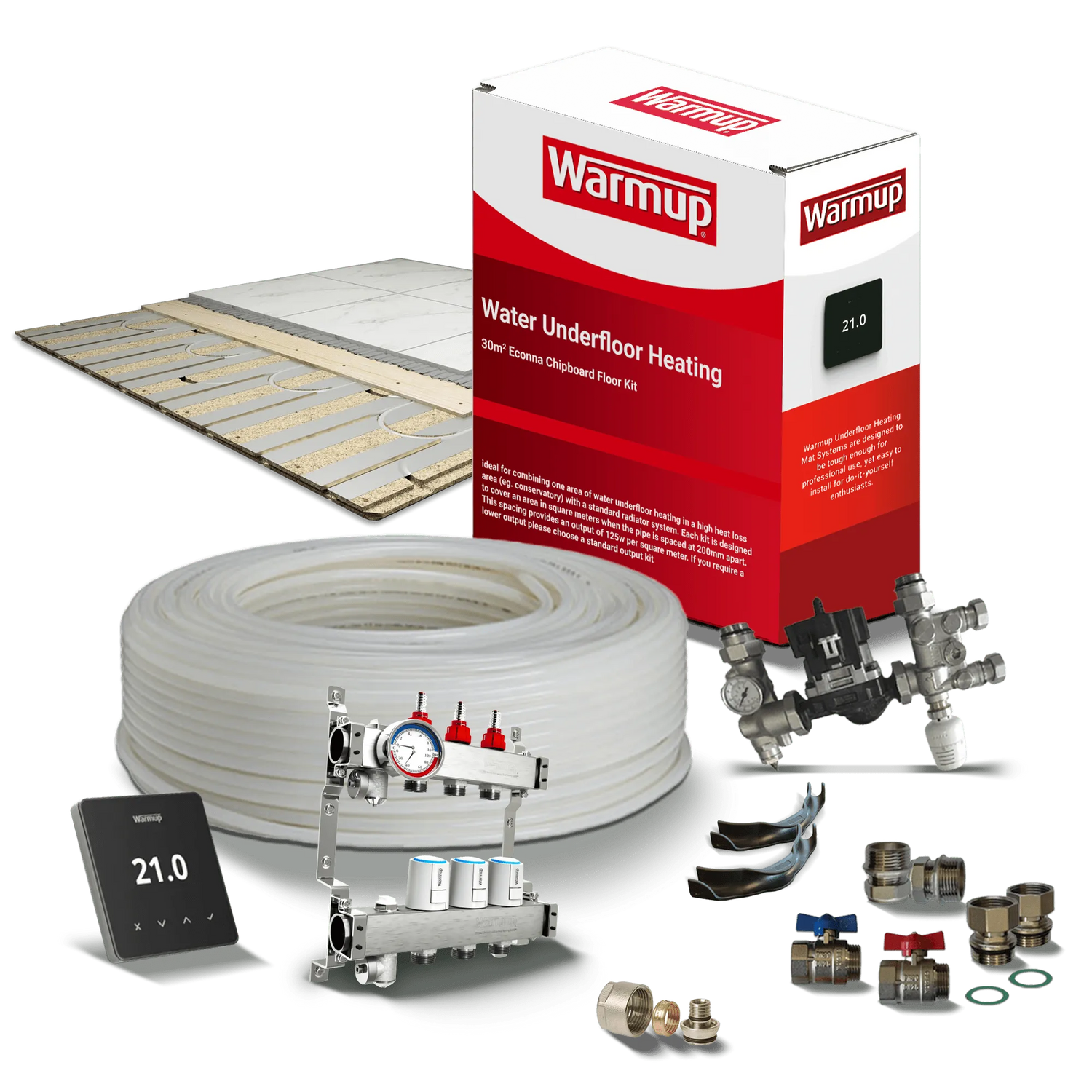

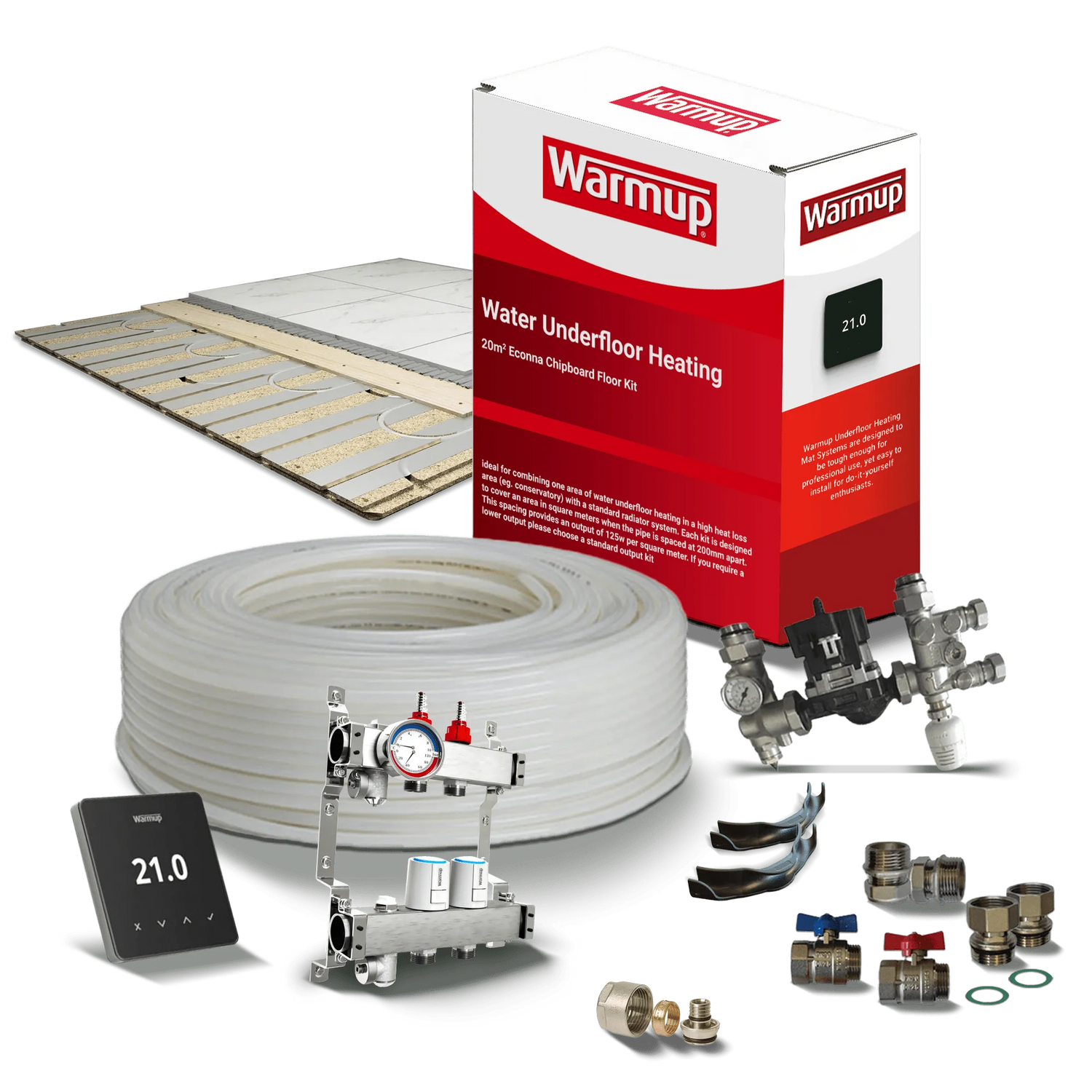

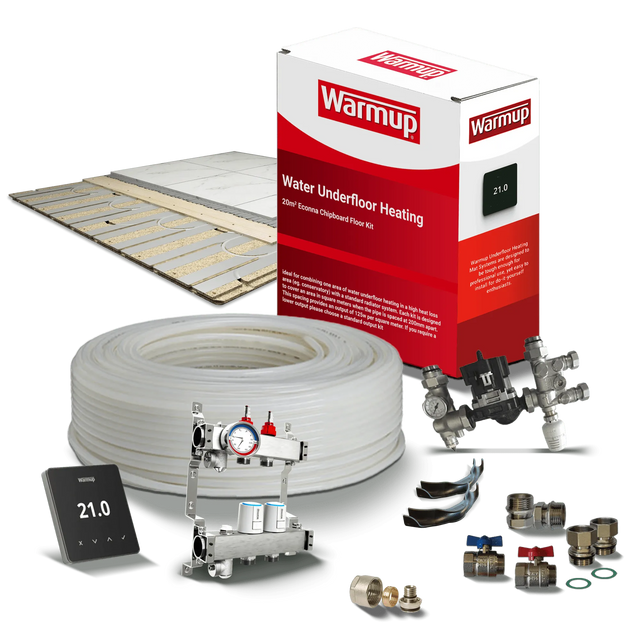

Kit Components

• Manifold
• Pump / blending unit
• Fill/drain ports
• Isolation valves
• Eurocone
• PERT Pipe
• Curved pipe support
• Grooved chipboard
• Thermostat (if selected)
