Polypipe Water Underfloor Heating - Multi Room

Polypipe Water Underfloor Heating Multi Room Systems are the ideal choice for homeowners and tradesmen looking to install the market leader in water underfloor heating systems. These kits give you the flexibility of controlling different rooms at different times and temperatures.

Polypipe High Output - Multiple zone underfloor heating kits are ideal for areas which need to produce primary heating. Each zone can be controlled by its own thermostat (please note - the maximum pipe length per circuit is 100m). Each kit is designed to cover an area in square meters when the pipe is spaced 100mm apart.

Please Note: Polypipe Water Underfloor Heating kits feature water temperature control. Beware of systems without this facility. Polypipe only uses high-quality Polybutylene pipe.

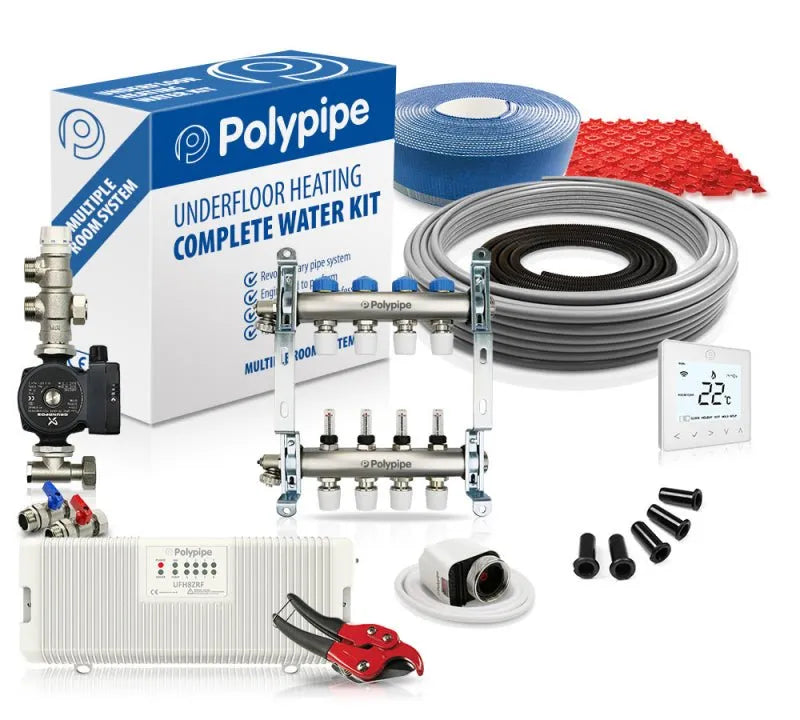

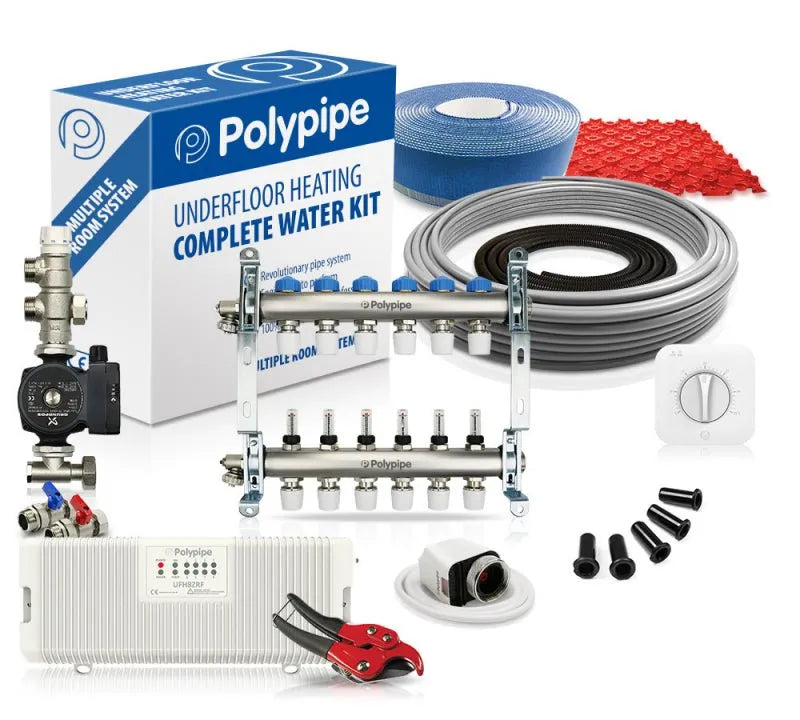

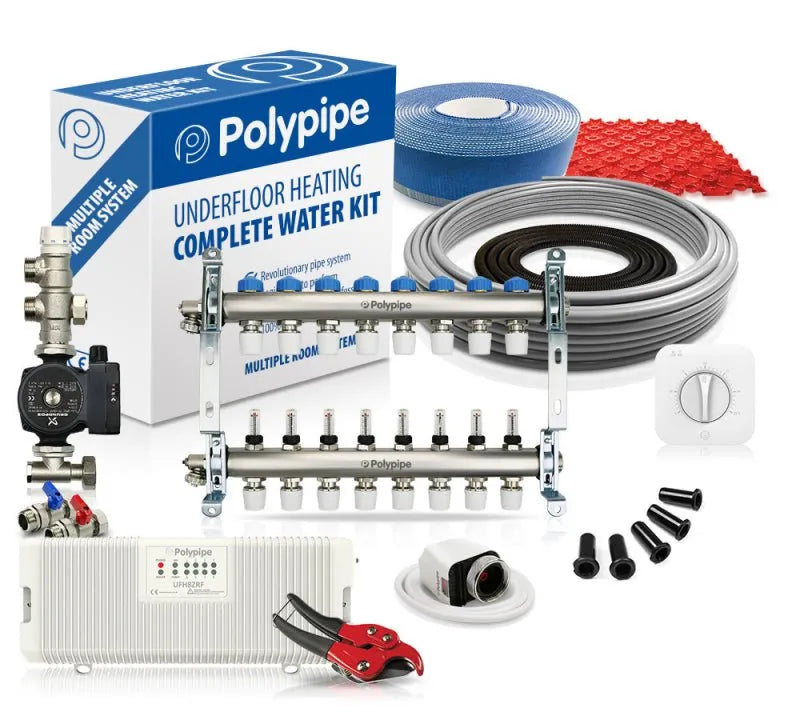

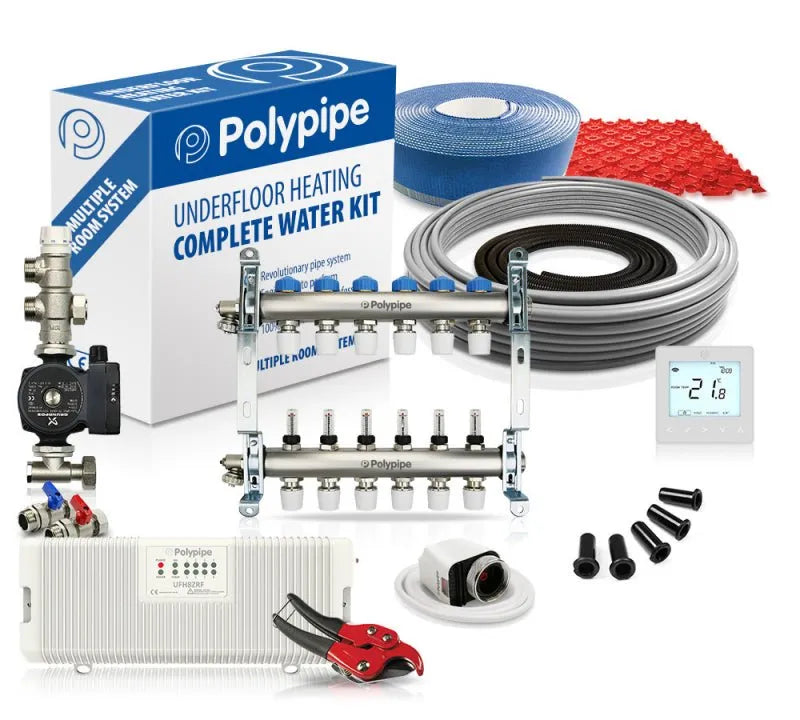

Polypipe Water Underfloor Heating Kit Components:

Below are examples of all products which could comprise your Water Underfloor Heating Kit. You can find out exactly what you will get in the box using our handy Kit Content Comparison Table below.

• A Rated Grundfos Single Circuit Constant Supply Temperature Unit
  • New EEI compliant pump
  • Mixer Valve
  • Adaptor Kit
  • Isolation Valves

  The Control Pack maintains the water temperature in an underfloor heating system between 35°C and 60°C.

• Multi port push fit manifold includes fill and drain valves

  The manifold comes complete with a drain and air vent assembly, which can be positioned on either end of the manifold. Isolation valves are supplied separately for the supply end of the manifold.

  Each Polypipe manifold includes a flow meter on each flow port to provide a visual indicator of the flow through rate of each circuit.

  • Material: Brass
  • Outside Diameter: 15mm
  • Manufactured in accordance with BS EN ISO 9002
• Pipe, includes stainless steel pipe stiffeners
  • Suitable for all plumbing and heating applications as a flexible alternative to copper tube
  • Suitable in both hard and soft water areas.
  • Material: Polybutylene
  • Outside Diameter: 15mm
  • KIWA/KOMO approved (Certificate numbers K14341, 14342 and 14343)
• Thermal Actuators
  • Underfloor Heating Valve Actuator
  • The Polyplumb system is suitable for use in hot and cold water supply
  • The system is suitable for use in working applications up to 12 Bar/20 Degrees Centigrade (6 Bar/90 Degrees Centigrade)
  • Manufactured in accordance with BS EN ISO 9002
• Single zone master control unit and multi zone slave unit

  When used in a 'single zone' application, the master wiring centre provides the wiring connections for the underfloor heating pump, two-port zone valve, boiler switched live connection (230V or volt-free), and the programmable room thermostat.

  The multi-zone slave unit plugs into the Single Zone Master Unit and provides simple wiring of actuators and room thermostats for multiple zone control.

  Please note: Master control and slave units may change depending on the selection of thermostats.

• Polypipe manual room thermostats as standard

  The PBRS is a traditional dial-type room thermostat that combines accurate comfort control with a familiar dial-type user operation.

  You can upgrade your thermostat for a small additional cost. See the thermostats tab for further details.

• Edging Insulation

  Blue or white polystyrene Edge Insulation is to be used around the edge of the room in order to minimize unwanted heat loss and allow for expansion.

• Accessories
  • Pipe Stiffeners
  • Floor Panels
  • Pipe Conduit

Compare Kits

This table shows exactly what you'll get in the box based on your chosen kit size.

Specifications
