Teledyne FLIR One Edge Wireless Thermal Camera

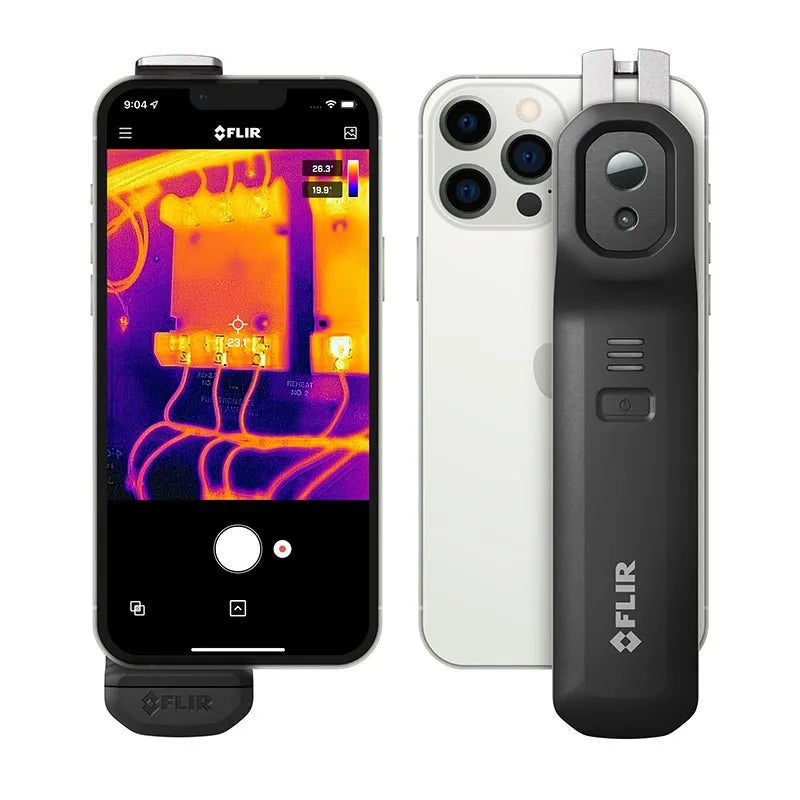

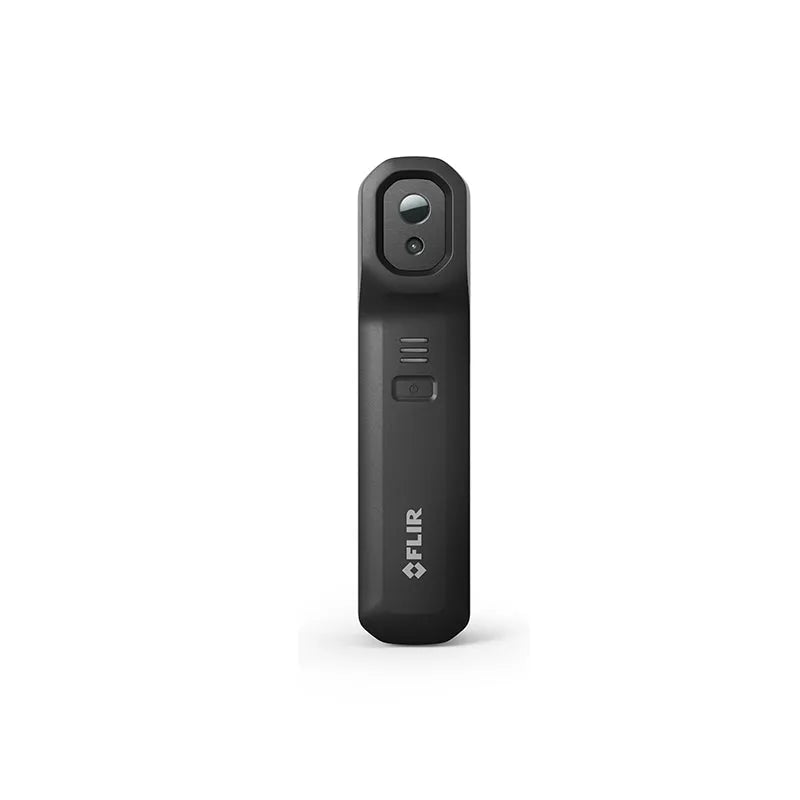

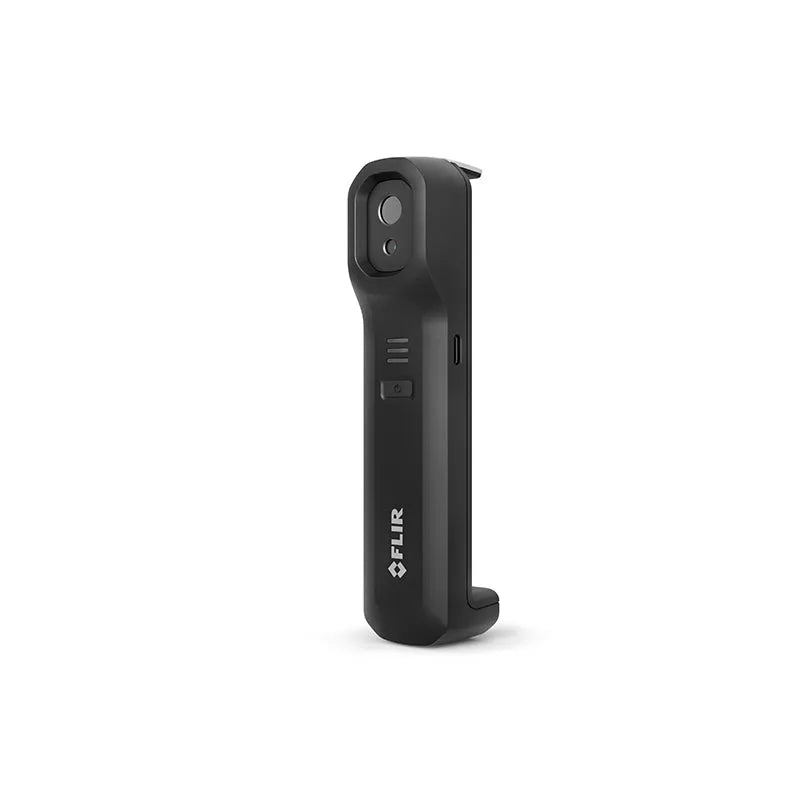

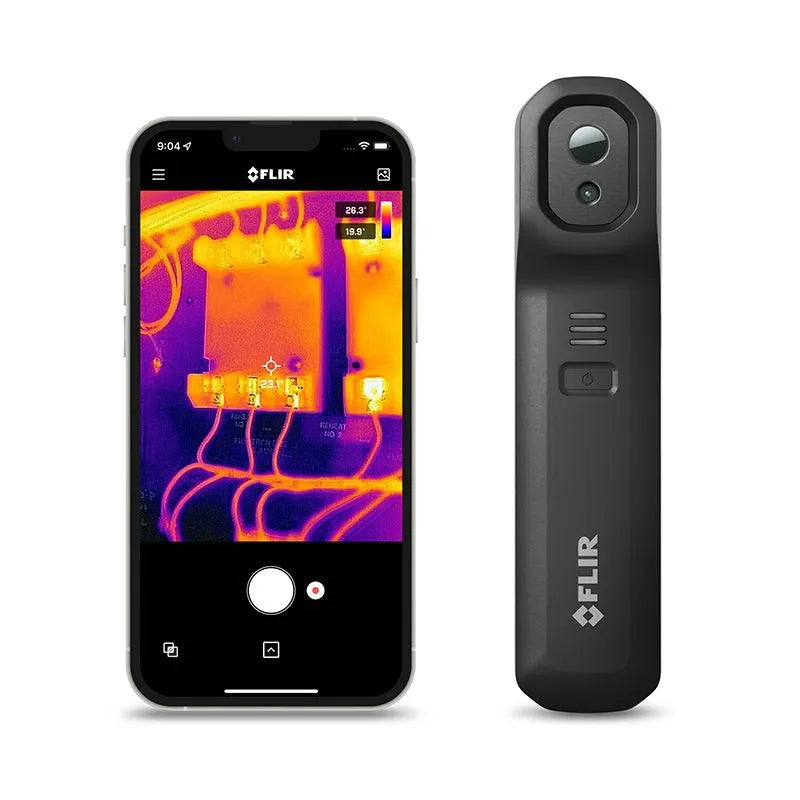

Inspect out-of-reach targets with the Teledyne FLIR One Edge Wireless Thermal Camera. This infrared imager connects to your iOS/Android smartphone wirelessly enabling one-handed inspections while imaging functions, such as MSX, and Ignite technology allow you to capture clear, detailed thermal images from any angle which may be instantly uploaded to Teledyne FLIR’s Cloud.

High-quality Thermal Imaging

Offering a thermal resolution of 80 x 60px, the Teledyne FLIR One Edge Wireless Thermal Camera captures sharp, clear thermal images. An MSX imaging function works to improve image detail by overlaying digital images onto corresponding thermal scenes, allowing you to pinpoint problem areas with greater precision, speed, and simplicity.

Furthermore, the Teledyne FLIR One Edge Wireless Thermal Camera allows you to take temperature measurements. It has a temperature measurement range of -20°C to +120°C.

Efficient & Easy-to-Use

The design of the Teledyne FLIR One Edge Wireless Thermal Camera ensures you can always retain a natural grip on the camera. In addition to its ergonomic design, the Teledyne FLIR One Edge Wireless Thermal Camera is compatible with an array of FLIR storage, analysis, and reporting products, making it easy to conduct efficient inspections at scale.

One such compatible product is Teledyne FLIR’s Ignite Cloud Service. You can upload videos and images captured using the Teledyne FLIR One Edge Wireless Thermal Camera to the FLIR Ignite Cloud for storage, editing, and/or sharing. The Teledyne FLIR One Edge Wireless Thermal Camera is also compatible with the FLIR One App and FLIR Thermal Studio Software.

Main Applications

The many features and capabilities of the Teledyne FLIR One Edge Wireless Thermal Camera make it ideal for:

• Identifying and locating moisture intrusion
• Finding insulation deficiencies
• HVAC/R inspections
• Pinpointing faults in electrical or mechanical components

The Teledyne FLIR One Edge Wireless Thermal Camera is an easy-to-use, ergonomic thermal imaging module that transforms your smartphone into an efficient infrared inspection instrument.

Teledyne FLIR One Edge Wireless Thermal Camera Key Features

• Thermal imager that wirelessly connects to your iOS/Android smartphone
• Inspect out-of-reach targets
• One-handed operation
• Thermal resolution: 80 x 60px
• MSX imaging function
• Temperature range: -20°C to +120°C
• Compatible with FLIR One App, FLIR Thermal Studio Software, and FLIR Ignite Cloud
• Upload images and videos to the FLIR Ignite Cloud for storage, editing, and/or sharing
• Identify and locate moisture intrusion
• Find insulation deficiencies
• Suitable for HVAC/R inspections
• Pinpoint faults in electrical or mechanical components
• An easy-to-use, ergonomic thermal imaging module that transforms your smartphone into an efficient infrared inspection instrument

What’s Included?

• Teledyne FLIR One Edge Wireless Thermal Camera – iOS & Android
• USB-C Cable
• Relevant Documentation

Specifications

High-Quality Construction

•
  ProWarm Electric Underfloor Heating Sticky Mat: Utilizes the same premium cable as the ProWarm Loose Cable kit. The mat incorporates a sticky fibreglass mesh to ensure optimal heat output by maintaining proper cable spacing. Installation is straightforward—simply roll out the mat to cover the desired heating area.
•
  Heating Cable: Series-type with twin conductors and a 4m cold lead at one end.
•
  Cable Composition: The resistance heating wire is encased in a fluoropolymer insulation layer, wrapped in protective metal shielding, and enclosed in a final plastic outer sheath. The twin conductor cable has a final diameter of 2mm.
•
  Junction Design: Unique design for hot and cold lead junctions ensures they are 100% foolproof.

Standards and Approvals

•
  Standards: Meets all test requirements of IEC 60335.
•
  Certifications: CE certified by SGS.

Performance and Benefits

•
  Cost-Effective: Provides heat precisely where needed, optimizing heat utilization and minimizing losses.
•
  Flexibility: Can be installed in any area or floor layout.
•
  Comfort: Close and uniform spacing of heating cables, combined with thermostat controls, allows for precise temperature settings, enhancing comfort.
•
  DIY-Friendly: Designed for easy installation with clear instruction manuals and professional technical support.
•
  Versatility: Available in various heat loads and sizes to suit various flooring types.

Mat Dimensions

•
  Width: 0.5m
•
  Length: Dependent on the selected square meter coverage
•
  Cable thickness: 2mm

Kit Includes:

• Underfloor Heating Sticky Mat (Two individual mats if kit size over 12m2)
• Floor Primer - a high-performance universal priming/sealing agent suitable for plaster, timber, brick, and block work.
• Roller - a high-quality roller for applying floor primer to the subfloor
• Adhesive tape - works to assist in holding a mat or cable in position during installation
• 2m Floor Sensor Probe Conduit - provides a protective pathway for the sensor probe, connecting to your thermostat
• Digital thermostat (if selected) - adjust the heat settings and enjoy warm floors through a simple touch of a button

Installation

Please Note: This is a brief guide. Always refer to the full installation manual for comprehensive instructions.

1. Plan Your Layout:

• Divide the floor into a series of rectangles. Use these measurements to calculate the number and sizes of mats needed, excluding permanent or static fixtures from your calculations.

2. Prepare the Subfloor:

• For screed over concrete floors, lay insulation boards to minimize heat loss and ensure quicker warm-up times.

3. Lay the Heating Mat:

• Start with the first run of the mat. Cut the mat (leaving the cable intact) at the end of each run, turn it 90° or 180°, and continue laying.
• Once the area is covered, adjust the mat so that the loops are evenly spaced.
• Secure the mat to the subfloor using the special tape provided.

4. Electrical Connections:

• Install an RCD fused spur to power the thermostatic controller/programmer and the mat system.
• Lay the temperature probe from the timer-thermostat onto the floor, position it equidistant between two cable loops, and secure it to the surface.
• Position the unheated power supply cable from the end of the mat system near the thermostat.
• Make all necessary connections to the power supply. Run the heaters for no more than 10 minutes to ensure they are heating up properly.

5. Finish the Flooring:

• Option 1: Apply a thin, self-levelling screed over the mat and allow it to dry completely before laying tiles.
• Option 2: Directly trowel flexible tile adhesive over the mat and lay the floor tiles.
• After grouting, let the tile adhesive cure fully before switching on the system.
