ProWarm™ Water Underfloor Heating Systems are the ideal choice for homeowners and tradesmen wishing to install a Premium Branded water underfloor heating kit.
ProWarm™ Water Underfloor Heating Single room kits are ideal for combining one area of water underfloor heating (eg. living room) with a standard radiator system. Each kit is designed to cover an area in square meters when the pipe is spaced at 250mm apart. This spacing provides an output of 115w per square meter. If you require a higher output please choose a high output kit
Please Note : ProWarm™ Water Underfloor Heating kits feature water temperature control, beware of systems without this facility. ProWarm™ only use high quality European Standard Pex-Al-HDPE pipe. The aluminium layer acts as an oxygen barrier, preventing the oxygen diffusion through the polymer matrix, which stops corrosion of the metal components in the system.

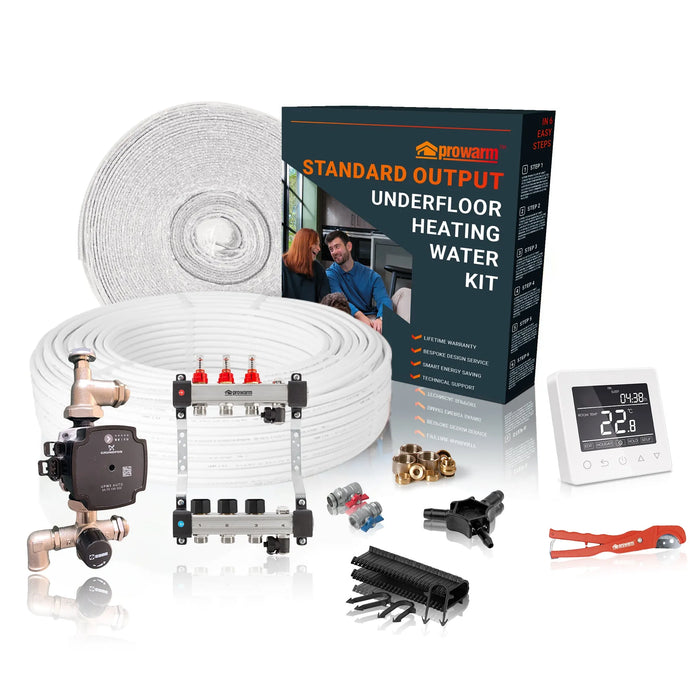

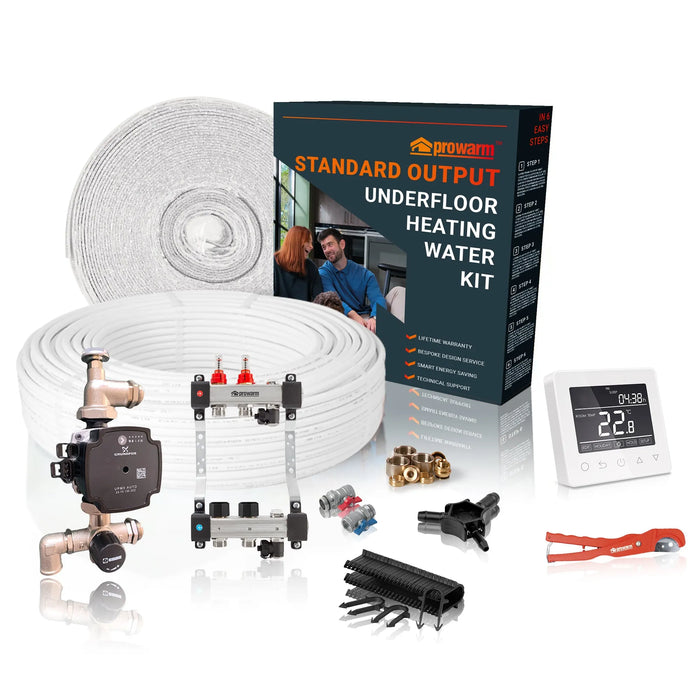

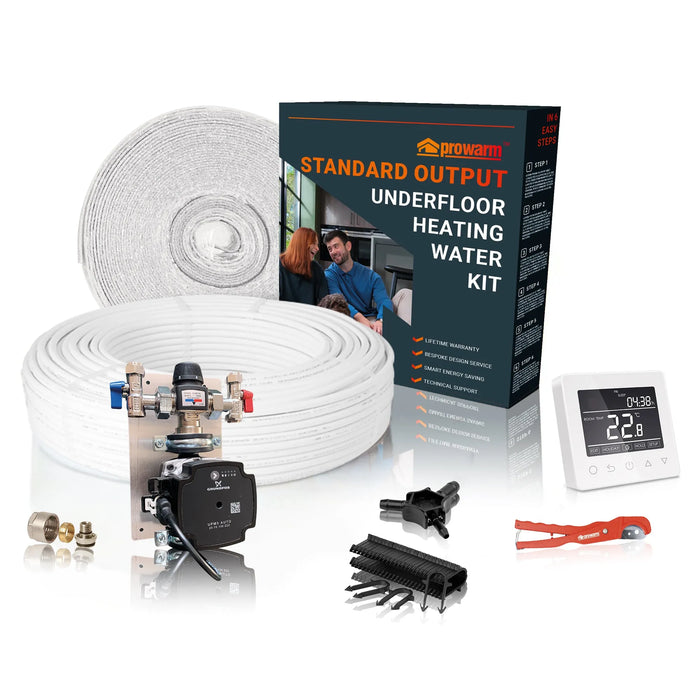

ProWarm™ Water Underfloor Heating Kit Components:
Below are examples of all products which could comprise your ProWarm™ Water Underfloor Heating Kit.You can find out exactly what you will get in the box using our handy Kit Content Comparison Table below.
Grundfos Temperature Unit
A rated UPS 2 Grundfos Single Circuit Constant Supply Temperature Unit.
Grundfos Mixing Unit
A rated UPS 2 Grundfos Manifold Pump/Mixing Valve Unit
2,3 or 4 Port Manifold
Stainless steel manifold with adjustable flow meter.Factory assembled on fixing bracket.
Manual thermostat
For a small additional fee you can upgrade your thermostat to a digital, programmable, wireless or touchscreen one.
ProWarm™ European Standard Pex-Al-HDPE pipe
16mm (outside) diameter Pex-Al-HDPE pipe
Edging Insulation
Edge Insulation is to be used around the edge of the room in order to minimise unwanted heat loss and allow for expansion.
Tools
Pipe Re Rounding Tool, Pipe Staples and Pipe Cutters.
This table shows exactly what you'll get in the box based on your chosen kit size.
Kit Size (m2)
12
15
17
20
22
25
27
30
37
50
62
75
87
100
Single Circuit Pump
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
X?
X?
X?
X?
X?
X?
Manifold Pump + Mixer
X?
X?
X?
X?
X?
X?
X?
X?
Yes
Yes
Yes
Yes
Yes
Yes
Manual Thermostat
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Manifold Ports
X?
X?
X?
X?
X?
X?
X?
X?
2
2
3
3
4
4
Pipe Length (m)
50
60
70
80
90
100
110
120
150
200
250
300
350
400
Edging Insulation
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Pipe re-rounding tool
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Pipe staples
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Pipe cutters
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Nuts and olives
X?
X?
X?
X?
X?
X?
X?
X?
Yes
Yes
Yes
Yes
Yes
Yes
Valves
X?
X?
X?
X?
X?
X?
X?
X?
Yes
Yes
Yes
Yes
Yes
Yes
Kit Size (m2)
12
15
17
20
22
25
27
Temperature Unit
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Manifold Pump + Mixer
X?
X?
X?
X?
X?
X?
X?
Manual Thermostat
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Manifold Ports
X?
X?
X?
X?
X?
X?
X?
Pipe Length (m)
50
60
70
80
90
100
110
Edging Insulation
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Pipe re-rounding tool
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Pipe staples
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Pipe cutters
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Nuts and olives
X?
X?
X?
X?
X?
X?
X?
Valves
X?
X?
X?
X?
X?
X?
X?
Kit Size (m2)
30
37
50
62
75
87
100
Temperature Unit
Yes
X?
X?
X?
X?
X?
X?
Manifold Pump + Mixer
X?
Yes
Yes
Yes
Yes
Yes
Yes
Manual Thermostat
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Manifold Ports
X?
2
2
3
3
4
4
Pipe Length (m)
120
150
200
250
300
350
400
Edging Insulation
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Pipe re-rounding tool
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Pipe staples
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Pipe cutters
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Nuts and olives
X?
Yes
Yes
Yes
Yes
Yes
Yes
Valves
X?
Yes
Yes
Yes
Yes
Yes
Yes
Features
Values
Testing Methods
Material
Crosslinked polyethylene PE-Xb internal layer, internal bonding layer, intermediate aluminium layer, external bonding layer, high density polyethylene HDPE external layer.
-
Colour
RAL white 9003
-
Dimensions
14÷32 mm
-
Application
Hot and cold potable water distribution, convector and radiator heating systems, radiant heating and air cooling systems, compressed air distribution systems, industrial installations.
-
Fittings
Pexal Brass, Bravopress and Pexal Twist
-
Minimum operating Temperature(1)
-60°C
-
Maximum temperature
+95°C/+100°C
EN ISO 21003-1
Maximum Pressure
+10 bar
EN ISO 21003-1
Density at 23°C
> 0.950 g/cm3 (crosslinked polyethylene)
-
Softening temperature
135°C
-
Thermal expansion coefficient
0.026 mm/m.K
-
Thermal conductivity
0.42÷0.52 W/m.K
-
Internal roughness
0.007 mm
-
Oxygen permeability
0 mg/l
-
UV Resistance
Yes, if protected with UV-resistant paint
-
Halogen levels
Halogen-free
-
(1) At any rate above the freezing temperature of the transported fluid.
