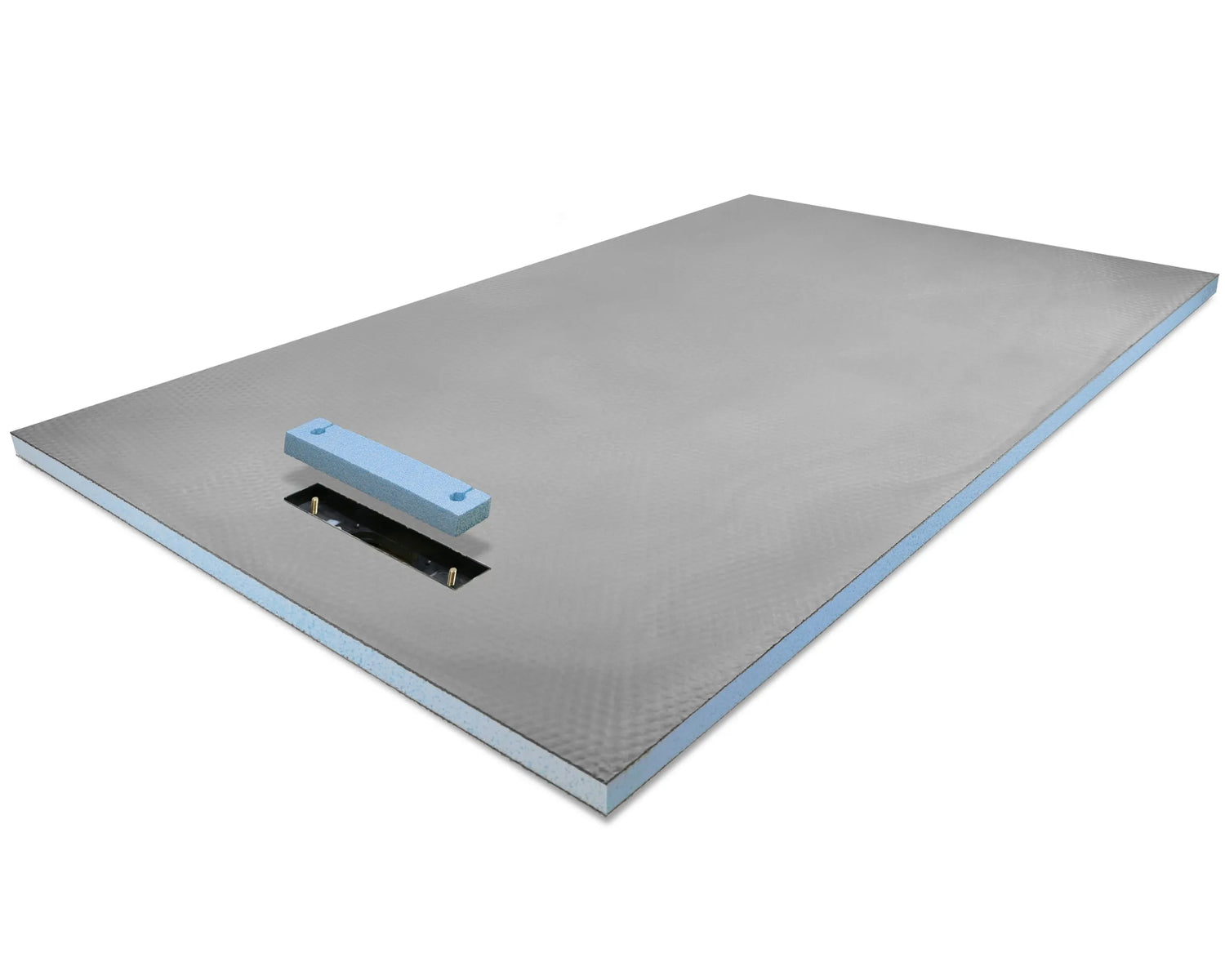

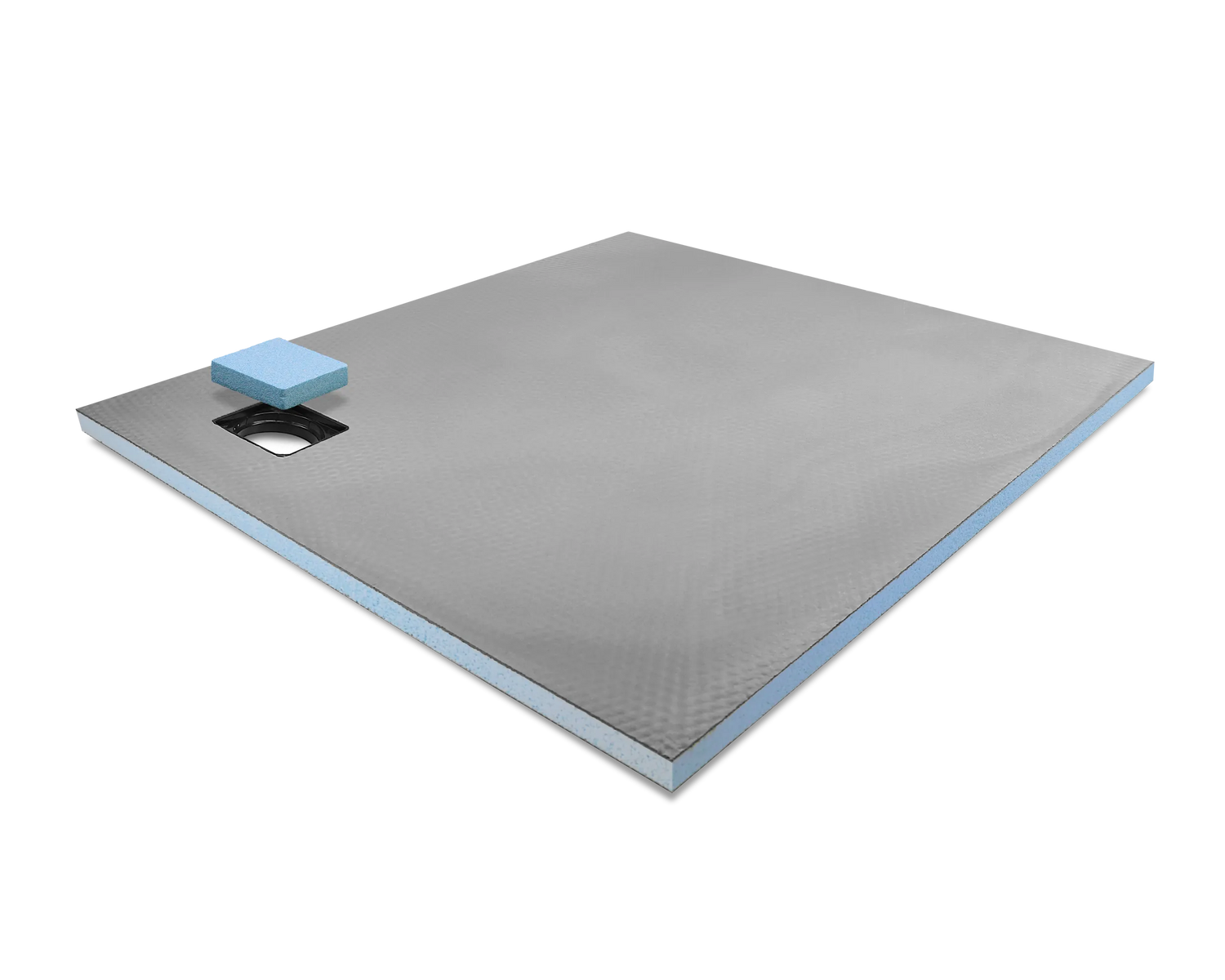

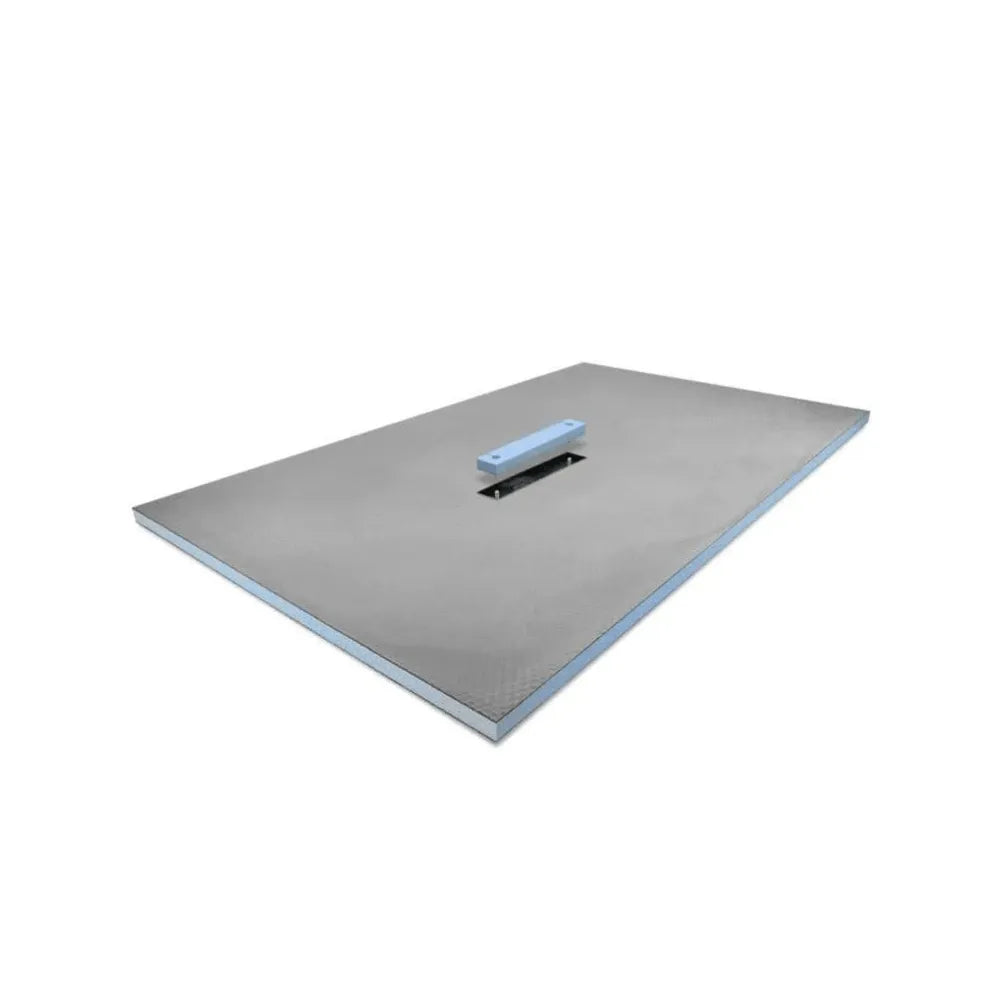

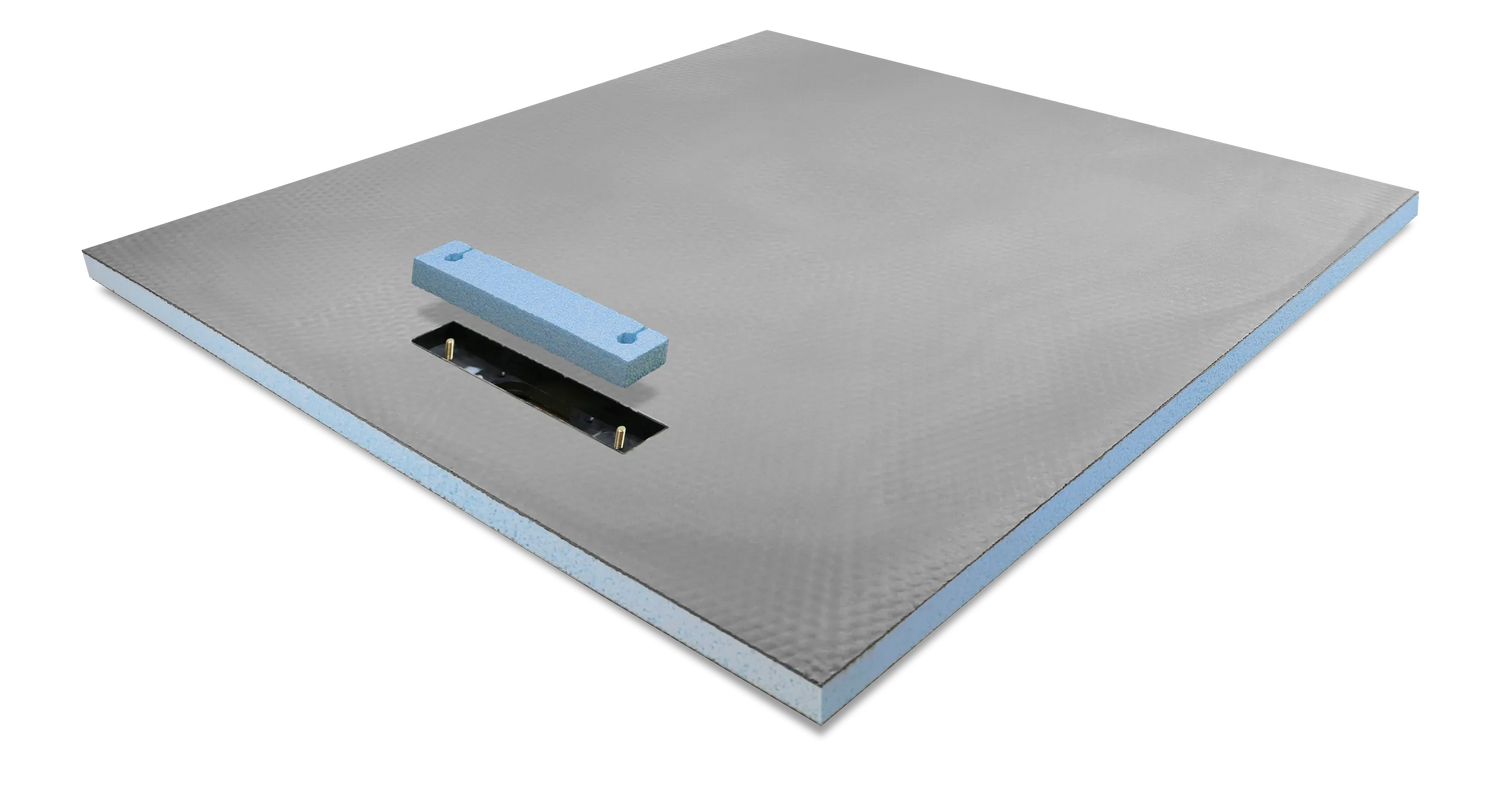

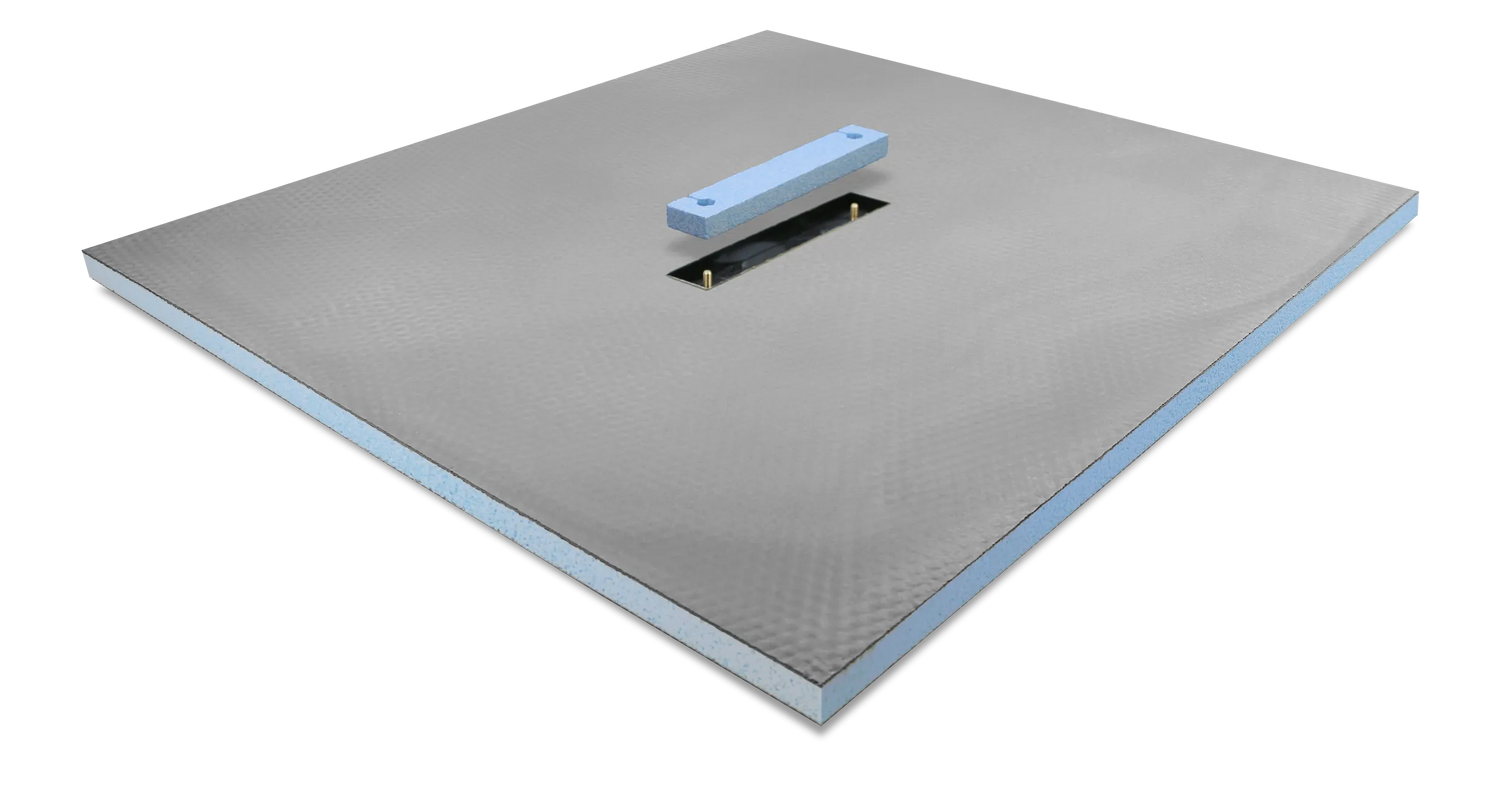

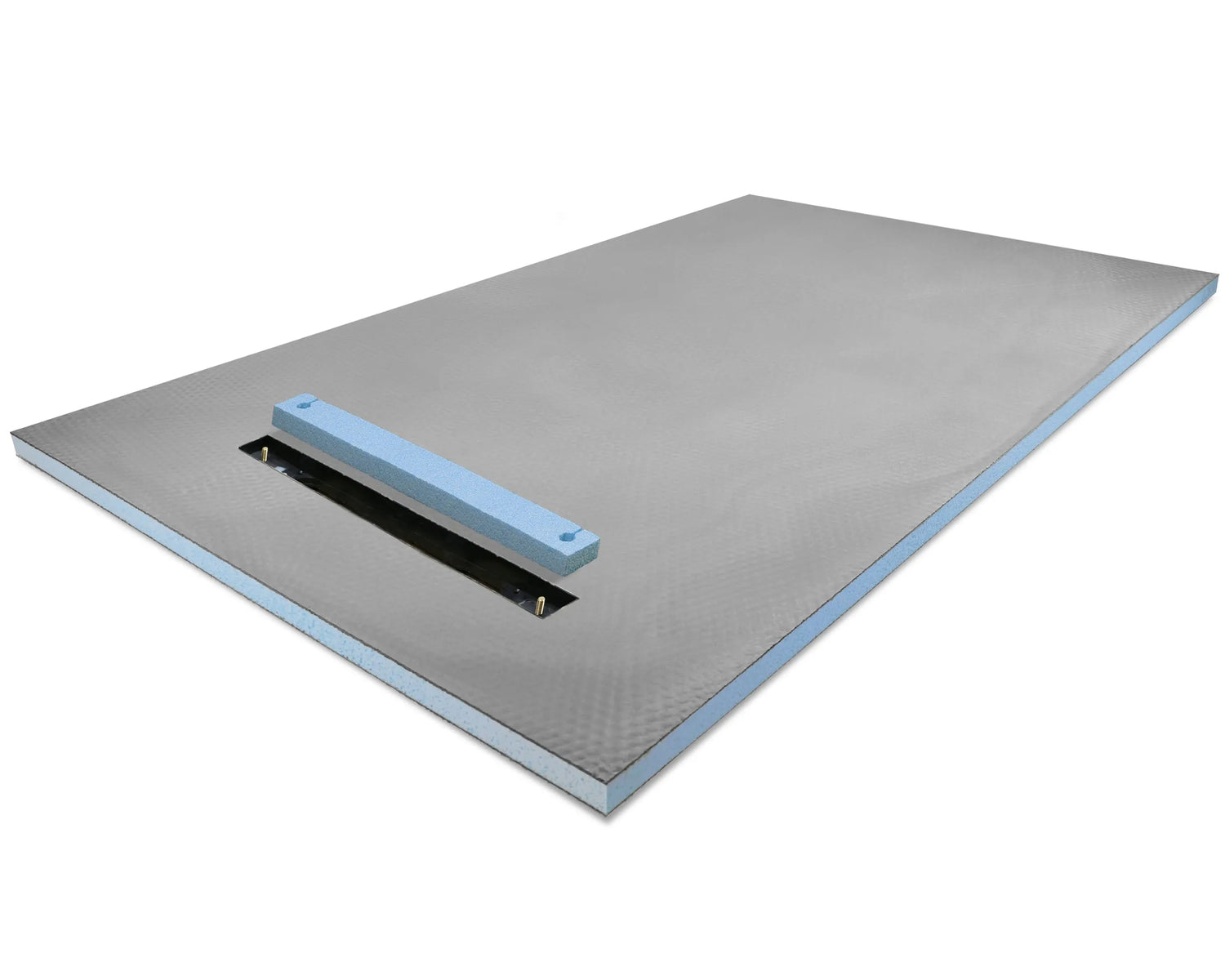

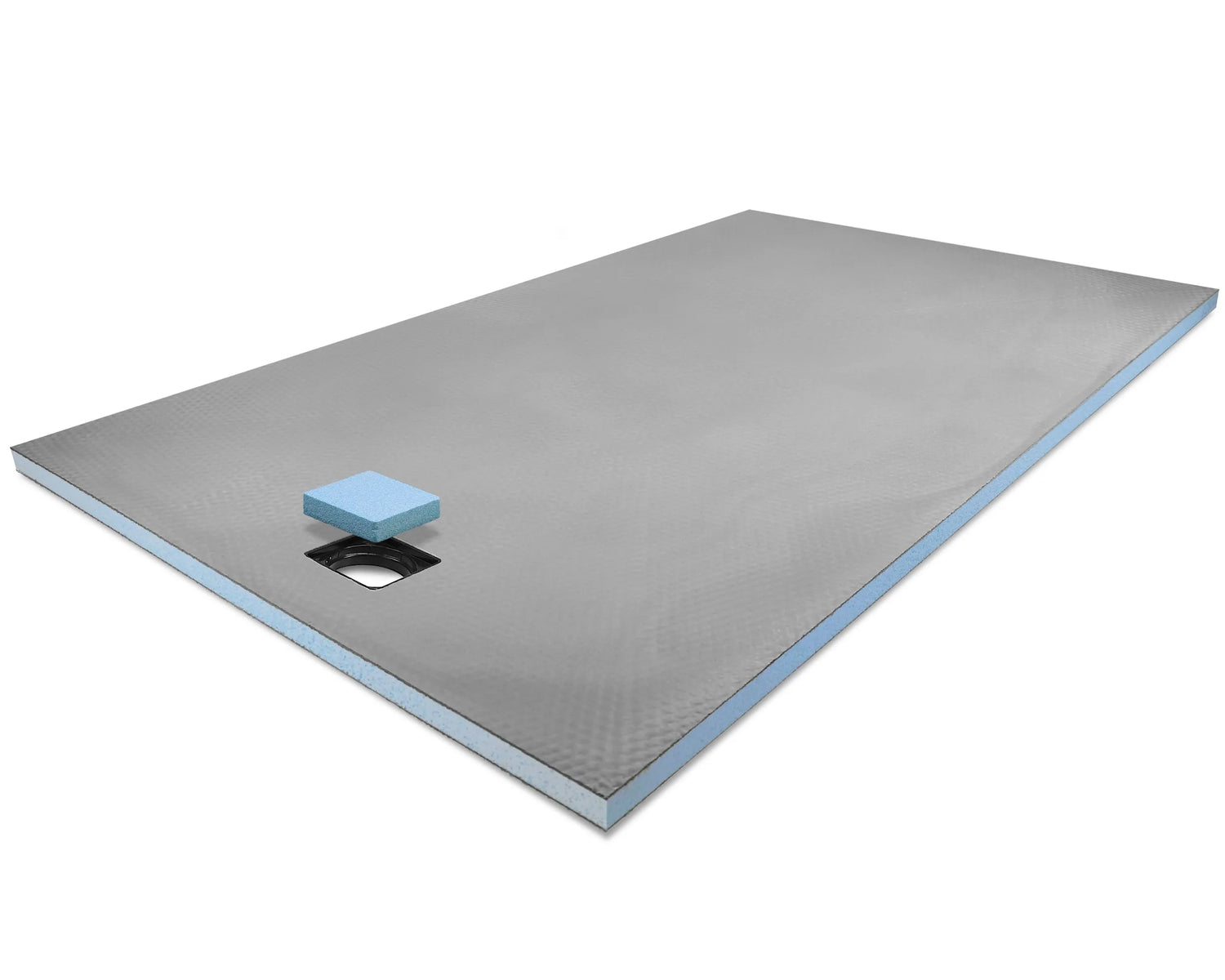

ProWarm™ 30mm End Drain Wetroom Shower Tray

ProWarm™ 30mm End Drain Wetroom Shower Tray

RRP: £412.79£217.99

In stock

Please select an option.
Please select an option.
Qty
Calculate your monthly payments
This calculator is for illustrative purposes only, exact payment terms will be provided prior to an application for finance.

PLEASE NOTE: You will need a minimum of 15mm from the top of the shower tray to the top of the finished tile to ensure you can fit this tileable drain.

These wet room trays are not suitable for use with Vinyl or Altro resin floor coverings.

The wet room tray is lightweight, and can be cut easily using a fine tooth hand saw, the tray is designed to accept most tiles including porcelain, stone and ceramic tiles.

  • Solid integrated drain base (to prevent leaks!)
  • 10 year manufacturers guarantee
  • High compressive strength

Drain cover options

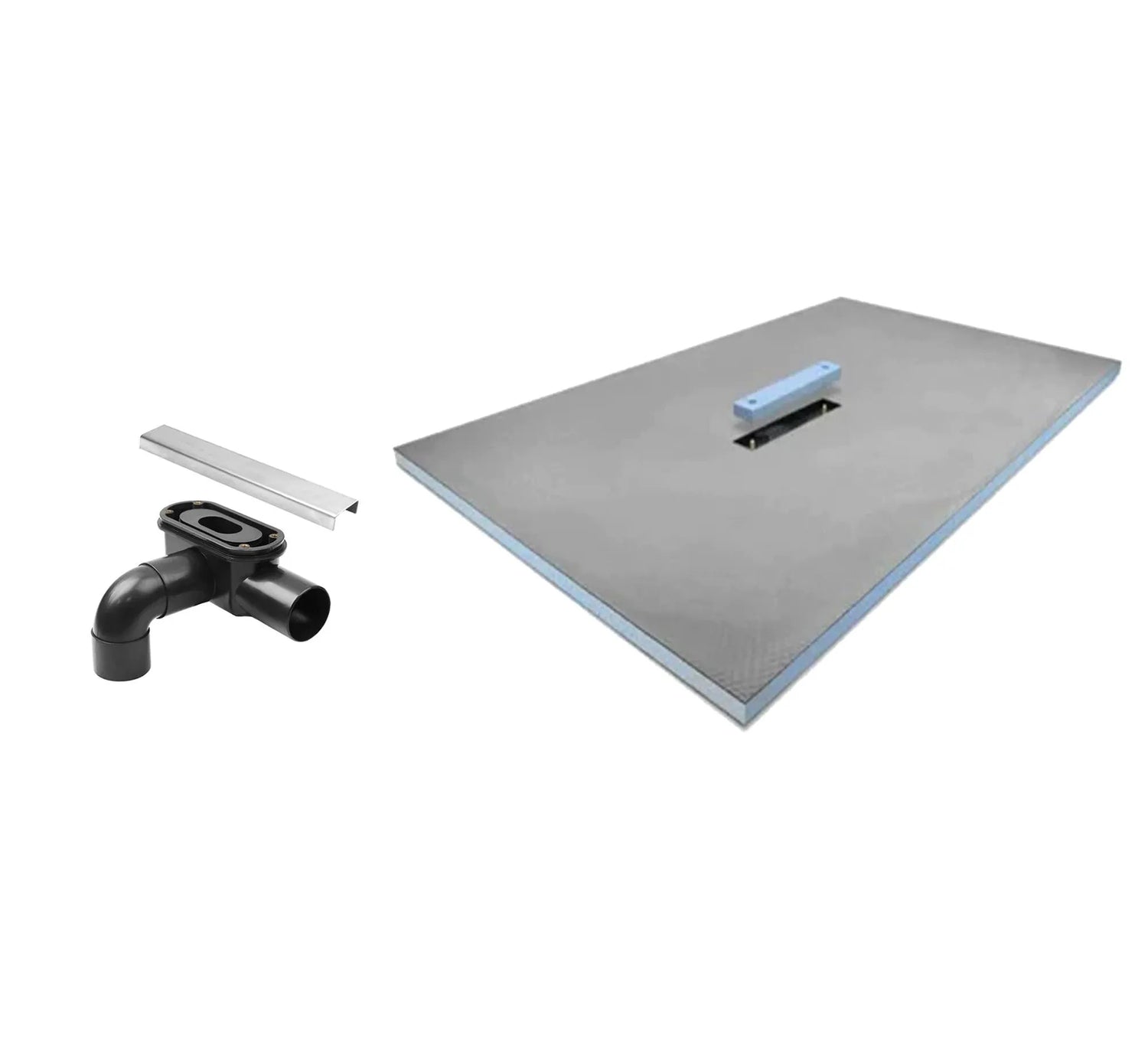

Standard horizontal drain and basic stainless steel cover

The standard horizontal drain cover comes complete with a 2" solvent pipe, compatible with standard British pipes and non-standard 1 ½" pipes. The drain also comes with a removable hair trap. Grate size is 120mm x 120mm and has a 60l per minute flow rate. A 10 year guarantee against manufacturing defects comes as standard with this drain system.

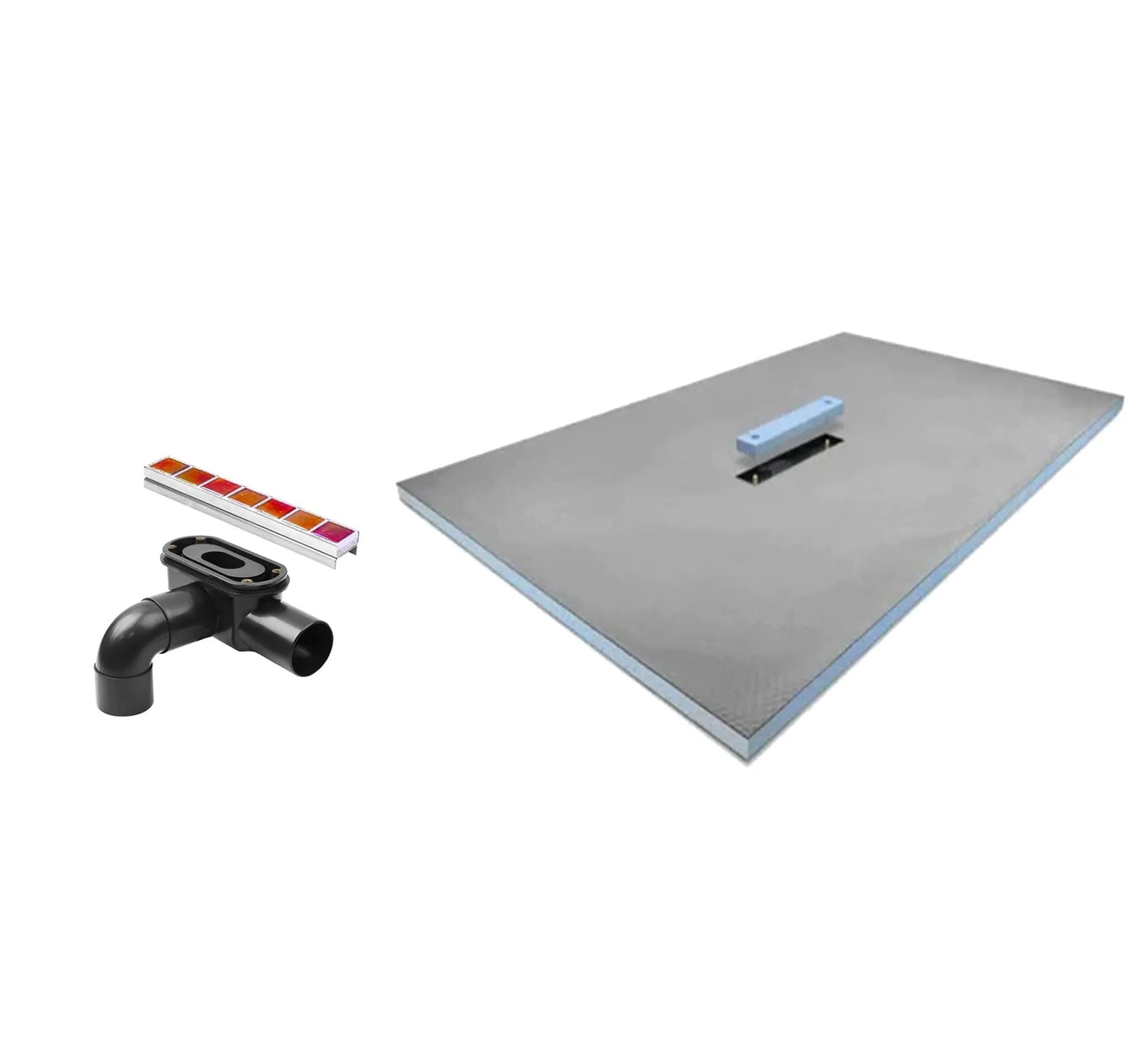

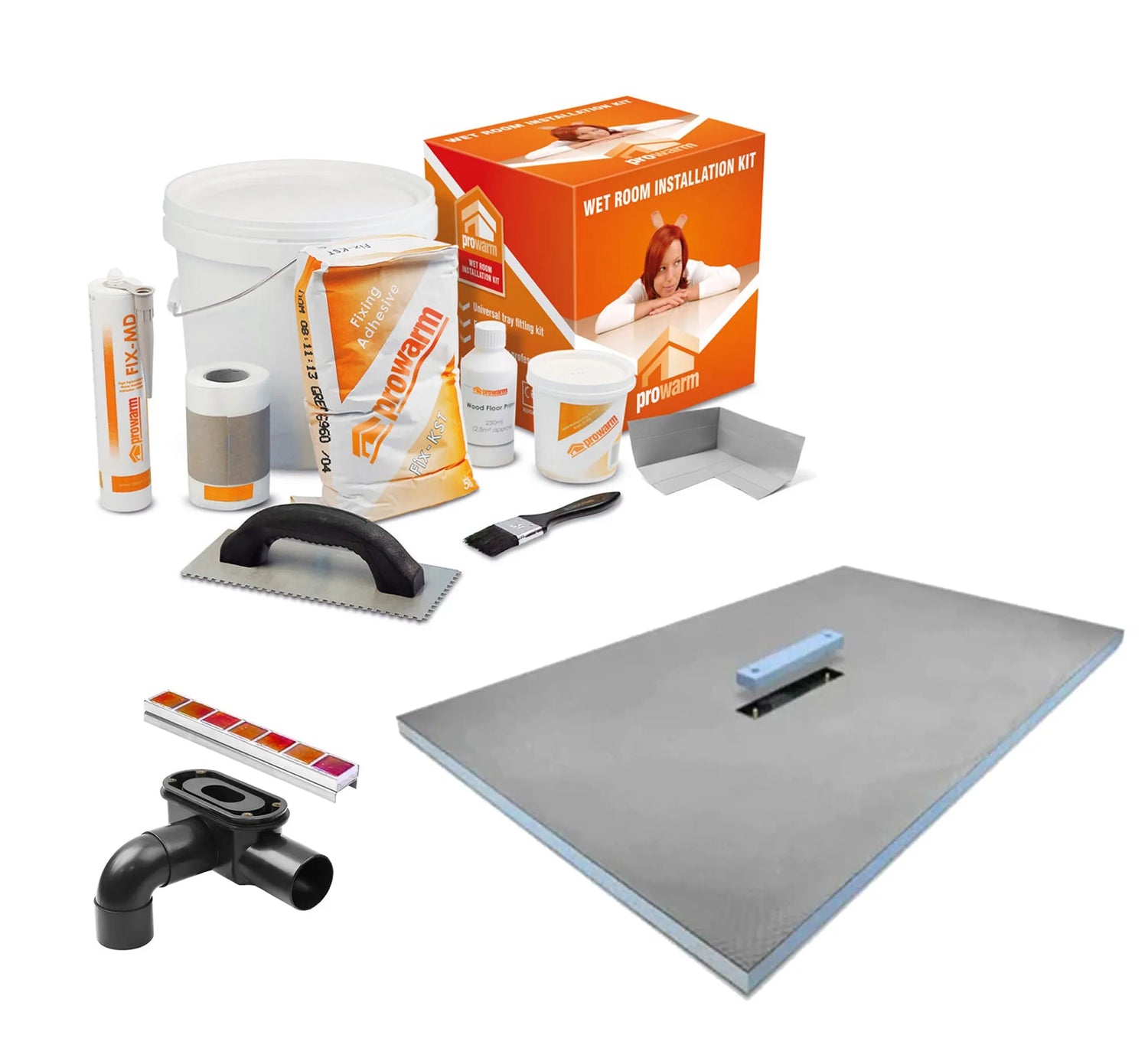

Standard horizontal drain and tileable cover kit

This option comes with the standard drain as above but has a tileable cover (replacing the standard steel grate).

PLEASE NOTE: You will need a minimum of 15mm from the top of the shower tray to the top of the finished tile to ensure you can fit this tileable drain.

Standard horizontal drain and solid stainless steel grate

This option comes with the standard drain as above but is supplied with a solid stainless steel grate for a more designer look, this grate can also be screwed down (which is ideal for commercial installations).

To join the shower tray to the backer boards you have 2 options:

  1. Use Prowarm™ self adhesive waterproofing tape
  2. Separate waterproof tape and sealing compound
Compressive Strength @ 10% Def (k/pa)250
Compressive Strength @ 1% Def (k/pa)100
Bending Strength (k/pa)350
Thermal Conductivity (w/mk).031
Dimensional Stability @ 23°C/50% RHDS (N) 2
Dimensional Stability @ 23°C/90% RHDS (23,90) 1
Water Absorption Capillary0
Water Absorption by Immersion0.1%
U-Value0.83 W/m2K
NameProduct CodePrice
ProWarm™ End Drain Wetroom Shower Tray - 1200mmx900mm490£217.99
ProWarm™ End Drain Wetroom Shower Tray - 1500mmx800mm491£247.00
ProWarm™ End Drain Wetroom Shower Tray - 1600mmx900mm492£251.99
