JG Water Underfloor Heating - Standard Output

JG Water Underfloor Heating Standard Output are the ideal choice for homeowners and tradesmen looking to install a market-leading water underfloor heating system.

John Guest Standard Output Packs are designed for well-insulated areas and are controlled by a single thermostat. Each pack is designed to cover a specific area in square meters when the pipe is spaced 200mm apart. This spacing is suitable for well-insulated areas. For less well-insulated areas, we recommend our high-output systems.

Please Note: John Guest Water Underfloor Heating kits feature water temperature control, which is a crucial feature not present in all systems. John Guest uses only high-quality Polybutylene pipe.

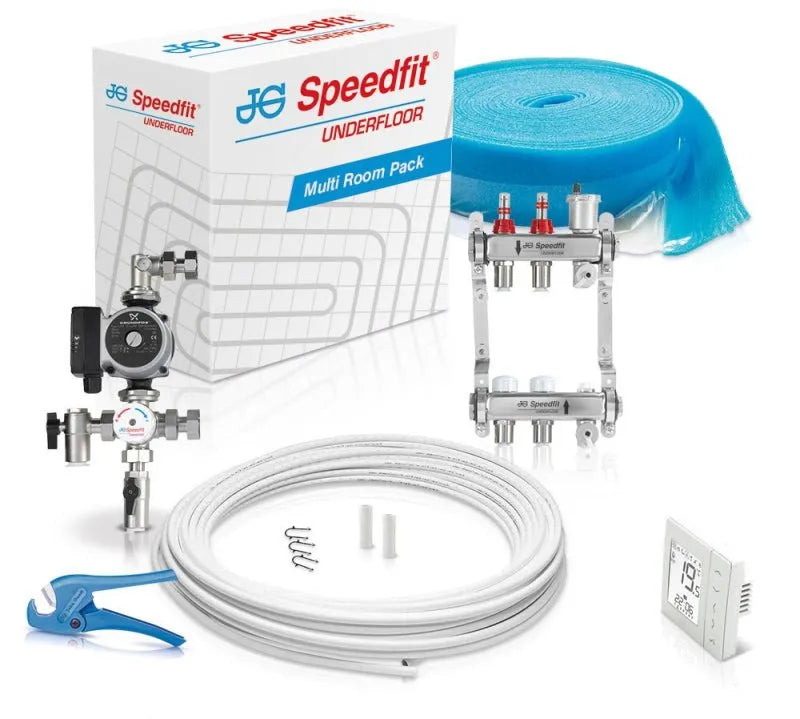

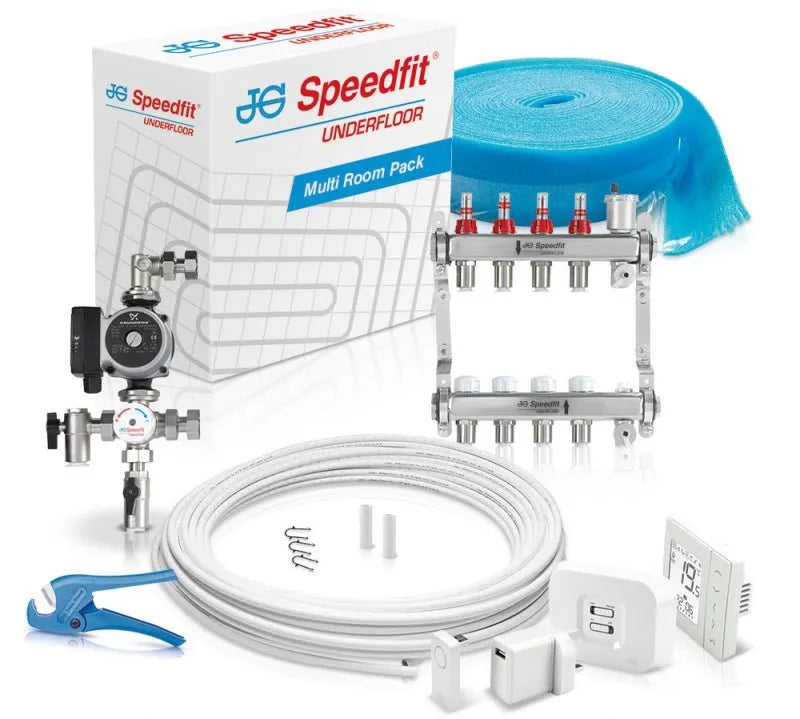

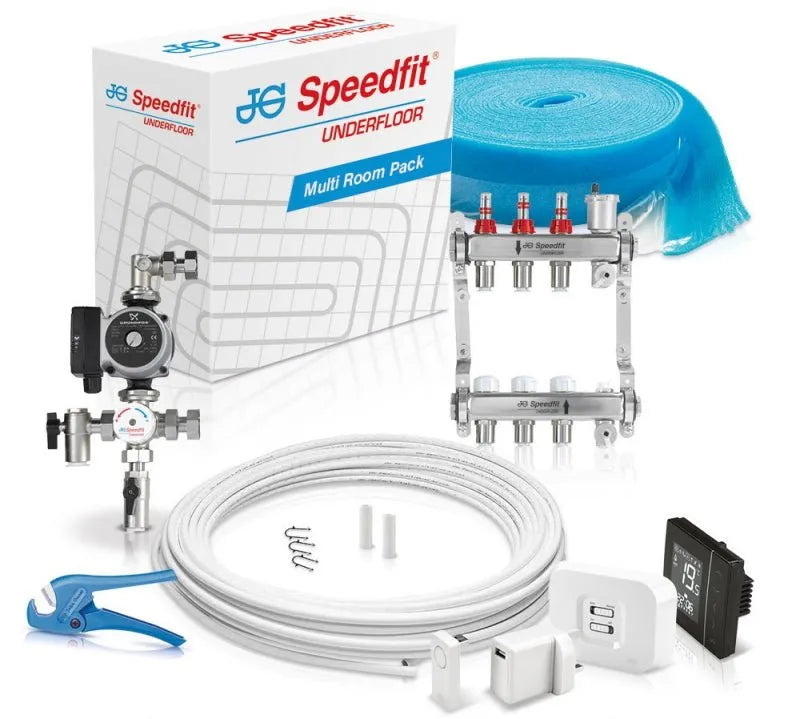

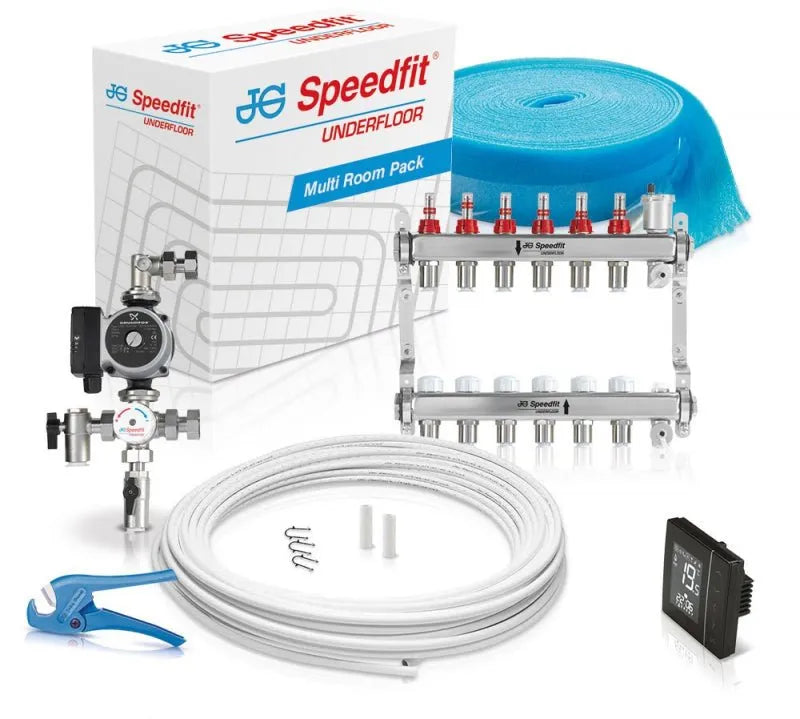

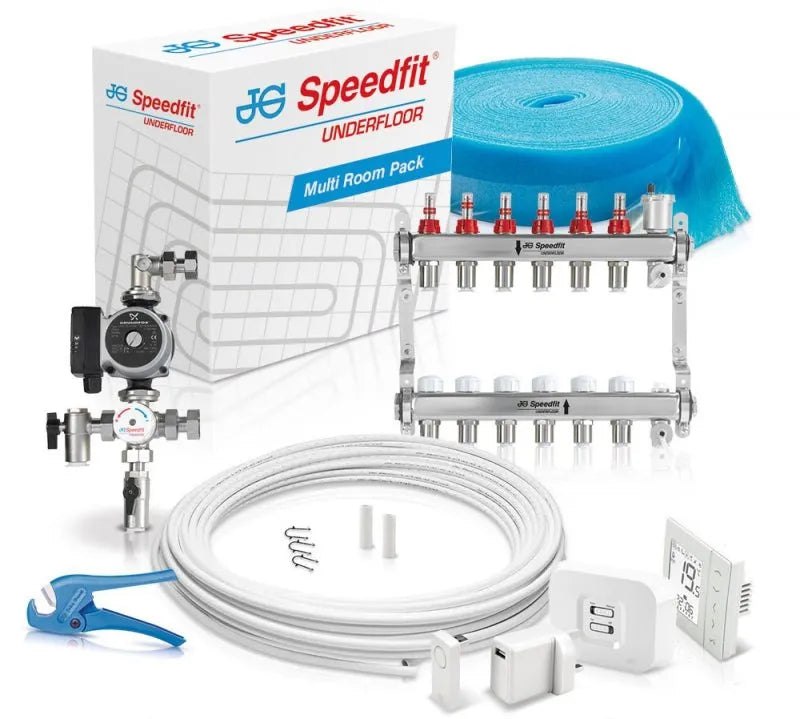

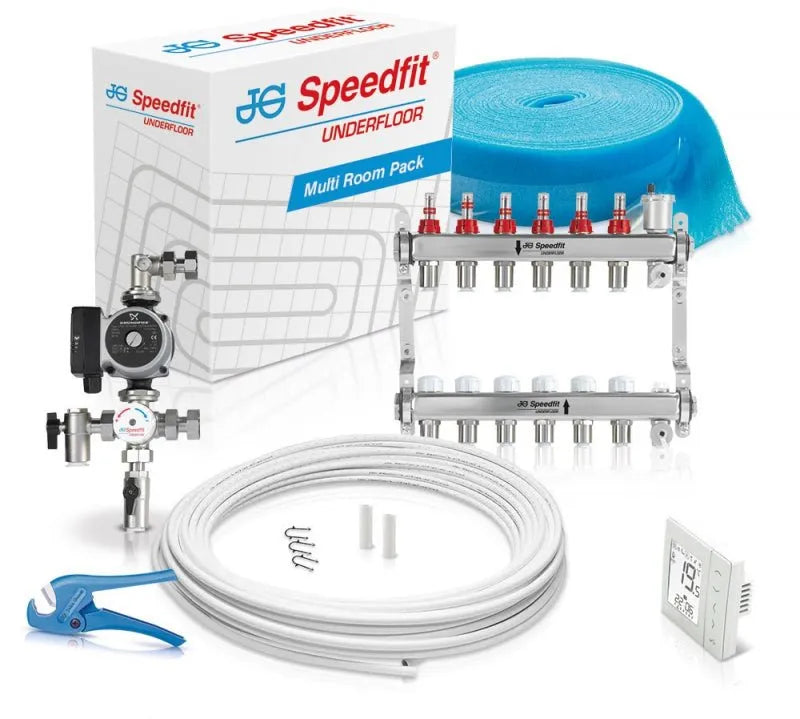

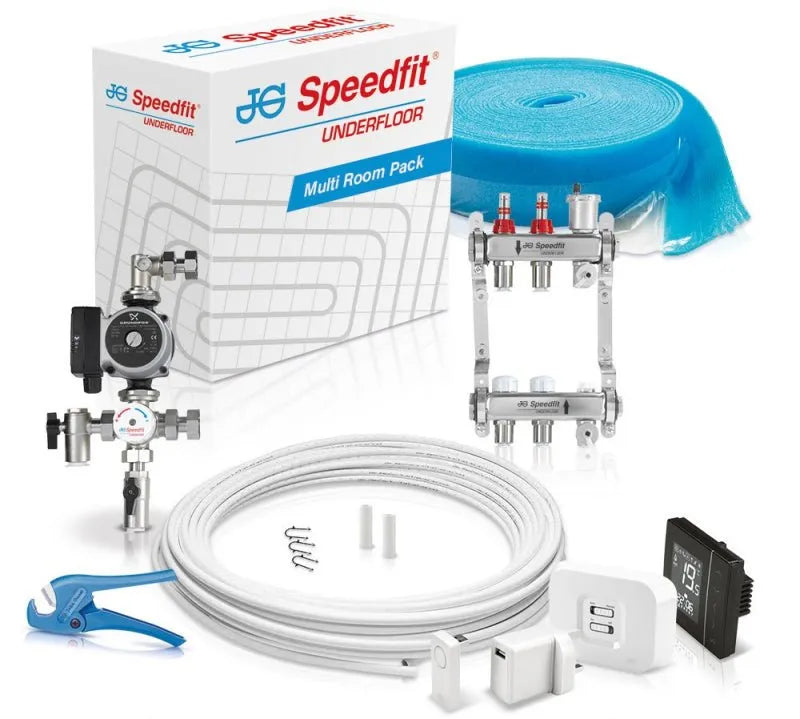

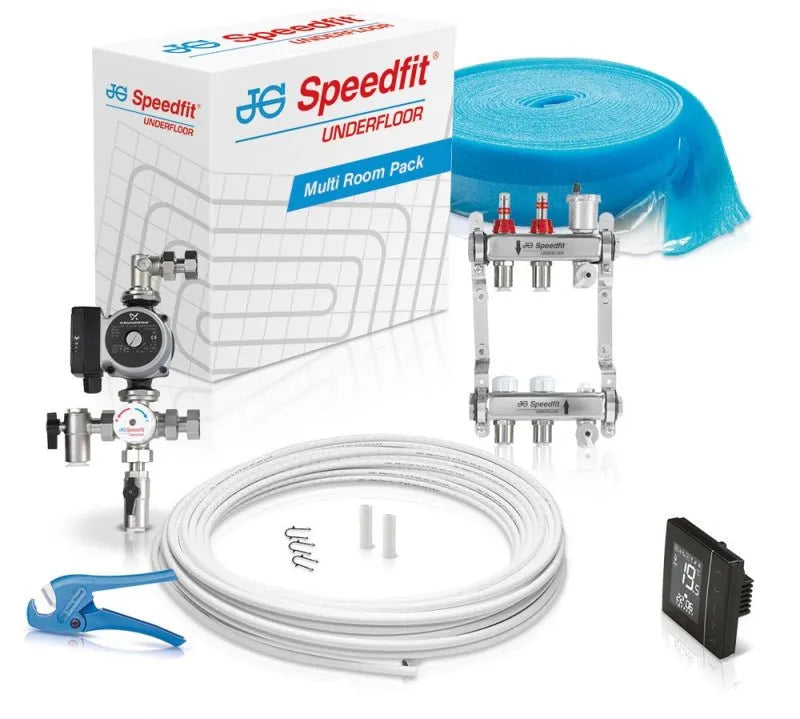

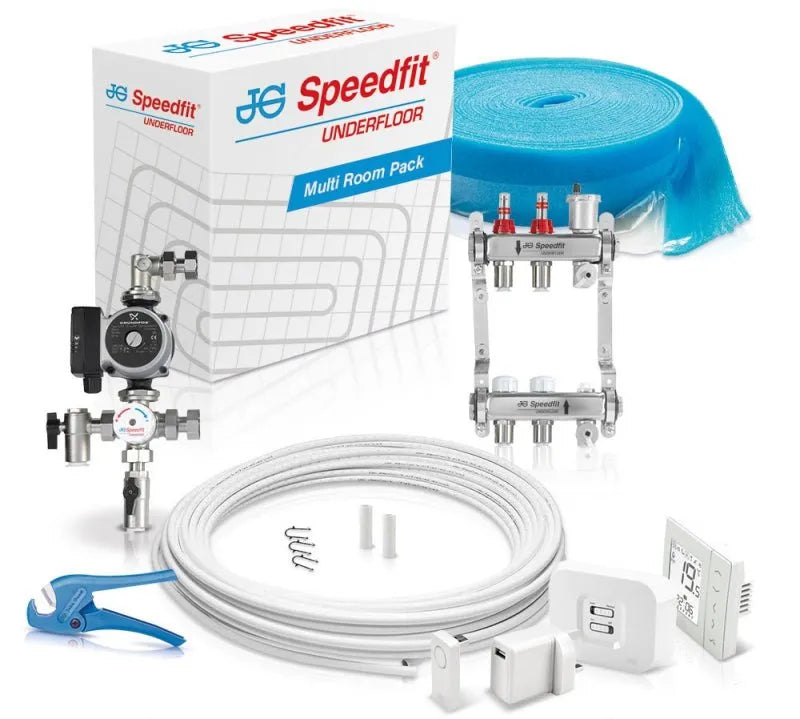

John Guest Heating Pack Components:

• CONTROL PACK with an 'A' rated Grundfos Single Circuit Constant Supply Unit

  Used to mix and control water temperature, Speedfit's lightweight control pack is suitable for heating systems up to 14kW. It connects directly to the manifold without the need for extra brackets or support. The nickel-plated control pack includes a mixing valve, Grundfos A-rated pump, return elbow, manifold adaptor, and all necessary seals. Speedfit push-fit pipe connections can be made from the side or below the manifold. The pack isolates all system components for maintenance and can be mounted on either side of the manifold.

• Manifold

  Manufactured from stainless steel and available in sizes from 2 to 12 zones, our manifolds come with brackets and a vibration isolation mount. Pipe connections use easy-to-use Speedfit push-fit fittings. The manifold also includes a pre-assembled automatic air vent, filling valve, and flow rate indicators for adjusting flow and isolating the pipe circuit.

• Barrier Pipe

  The JG Layflat pipe, made from Polybutylene, is ideal for laying underfloor heating circuits. It features an inner barrier to prevent oxygen ingress and is approved by British Gas for use in vented and sealed central heating systems.

• Programmable Room Thermostat

  The JG Aura 4 in 1 Thermostat offers combined control of underfloor heating, individual radiators, and wireless boiler switching, making it suitable for multi-zone energy-saving systems in both new and retrofit projects.

• Boiler Receiver

  The Wireless Boiler Receiver communicates with the wireless thermostats via the wireless wiring centre, simplifying installation by eliminating the need for wiring.

• Wireless Coordinator

  The wireless coordinator is essential for the successful communication within a wireless system and facilitates automated pairing of the Aura products. Please note: This item is only supplied with the Wireless Thermostat option.

• Pipe Inserts

  Push-fit plastic fittings for connecting plastic and copper pipes.

• Edging Insulation

  Edge insulation is used around the perimeter of the room to minimize unwanted heat loss and accommodate expansion.

• Pipe Cutters

  John Guest Pipe Cutter suitable for cutting JG Speedfit barrier pipe up to 22mm in diameter.

• Pipe Staples (300 Pack)

  Staples for securing pipe to floor insulation. Approximately 12 staples per m² of floor. Use with a pipe staple gun (sold separately) for quick installation.
