JG Water Underfloor Heating Standard Output

JG Water Underfloor Heating Systems are the ideal choice for homeowners and tradesmen looking to install the market leader in water underfloor heating systems.

John Guest Standard Output Packs - water underfloor heating single room packs are ideal for well insulated areas that are to be controlled by one thermostat. Each pack is designed to cover an area in square meters when the pipe is spaced at 200mm apart.

This spacing is suitable for well-insulated areas. If you are uncertain that your area is well insulated, we recommend our high-output systems.

Please Note: John Guest Water Underfloor Heating kits feature water temperature control, beware of systems without this facility. John Guest only use high-quality Polybutylene pipe.

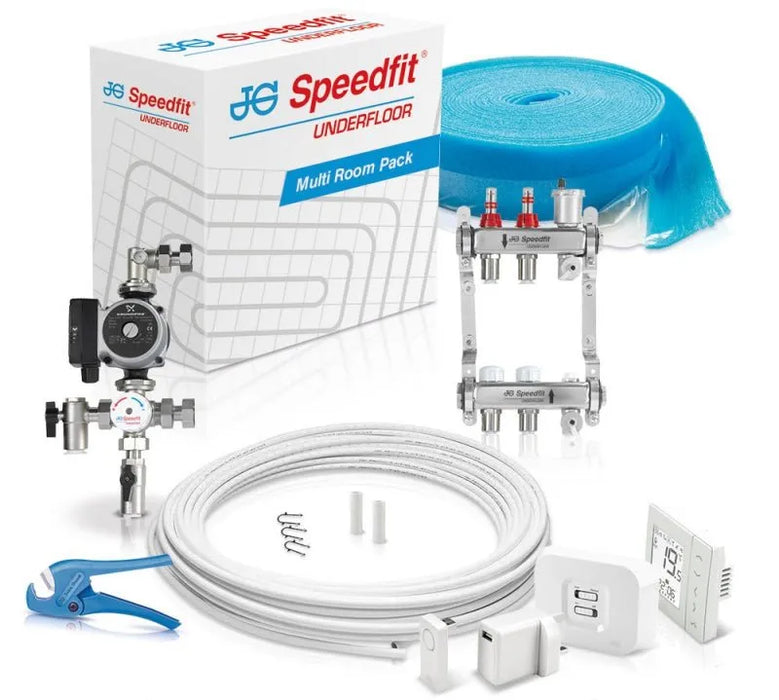

John Guest Heating Pack Components:

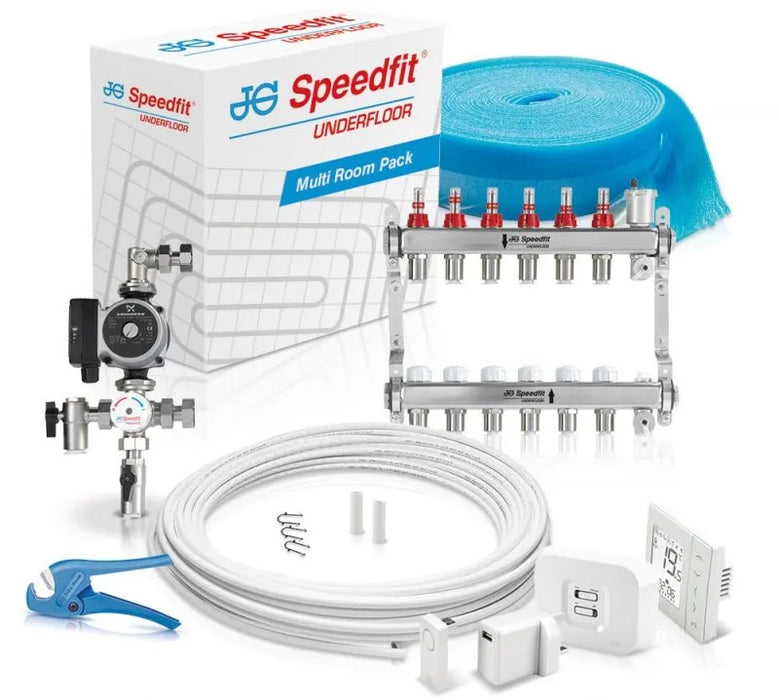

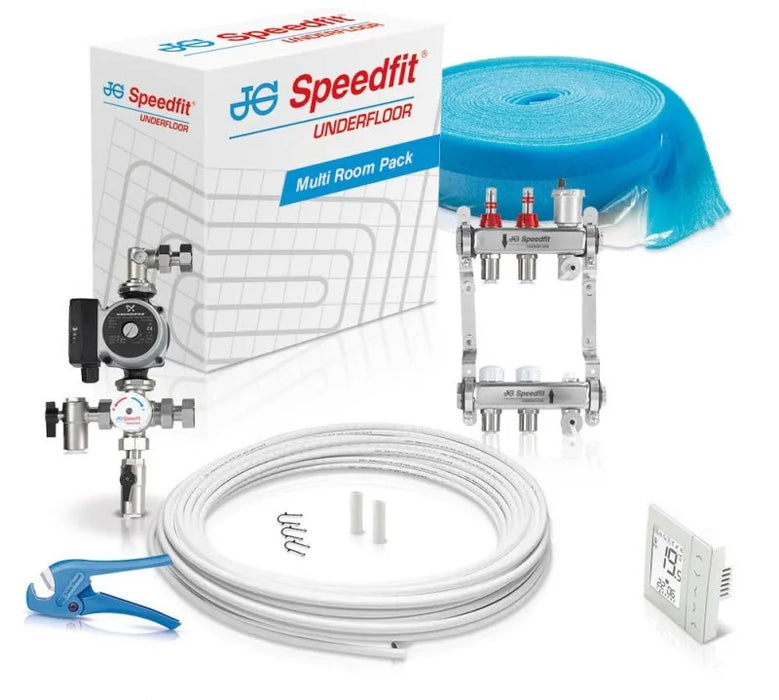

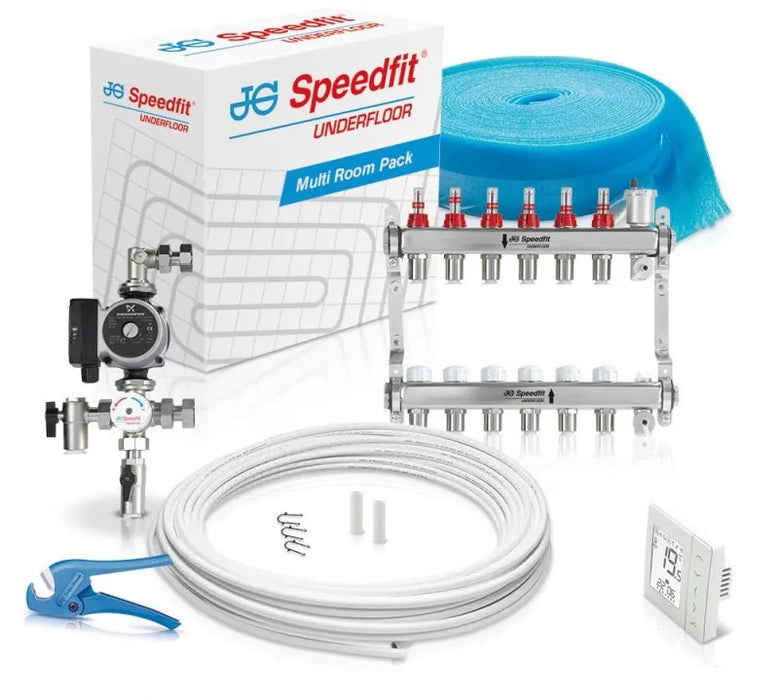

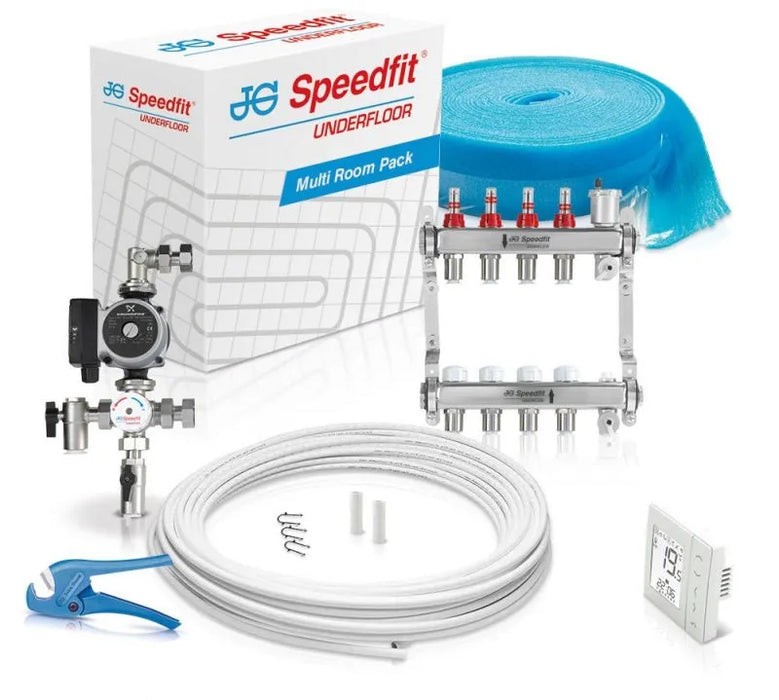

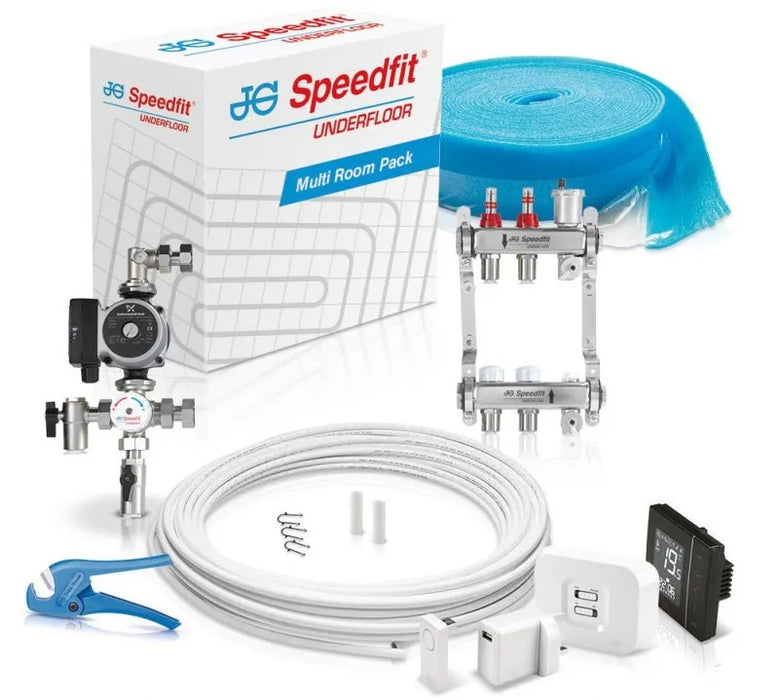

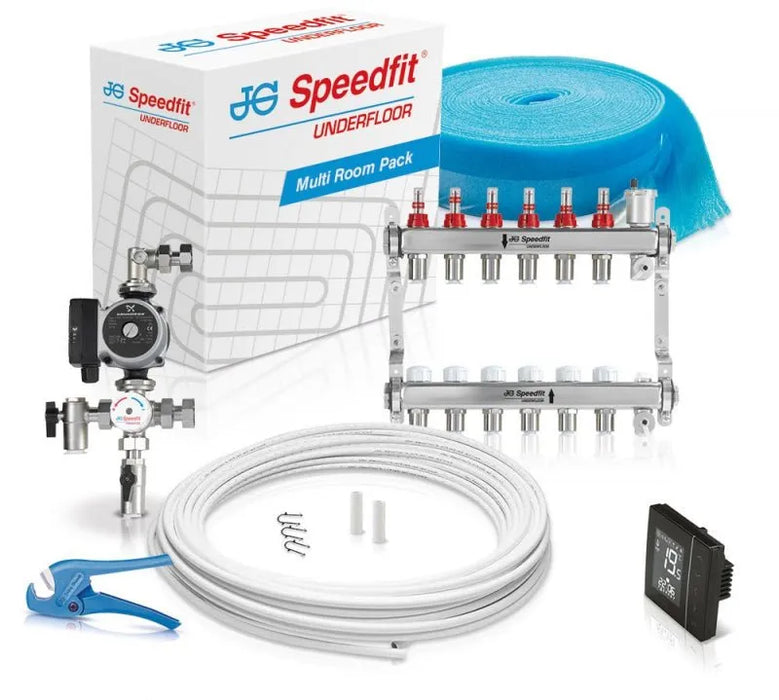

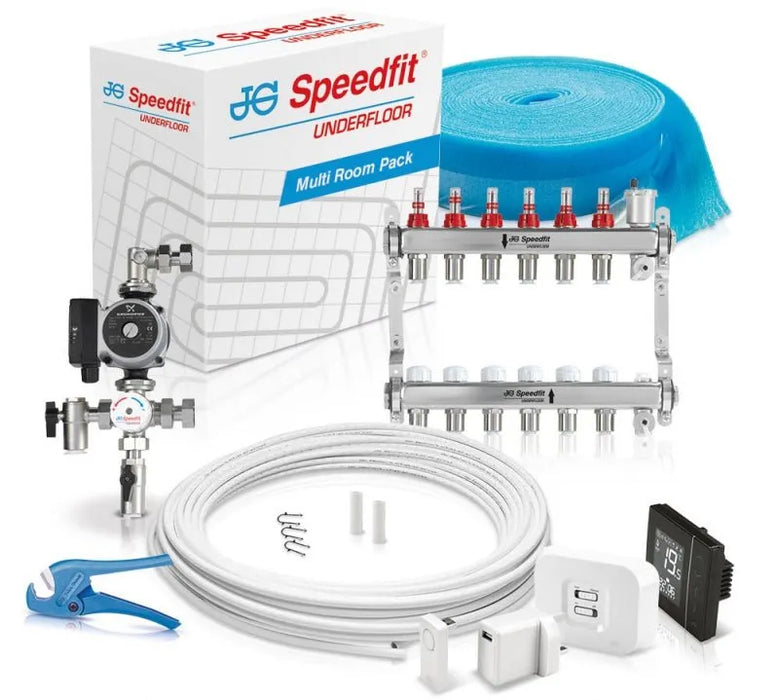

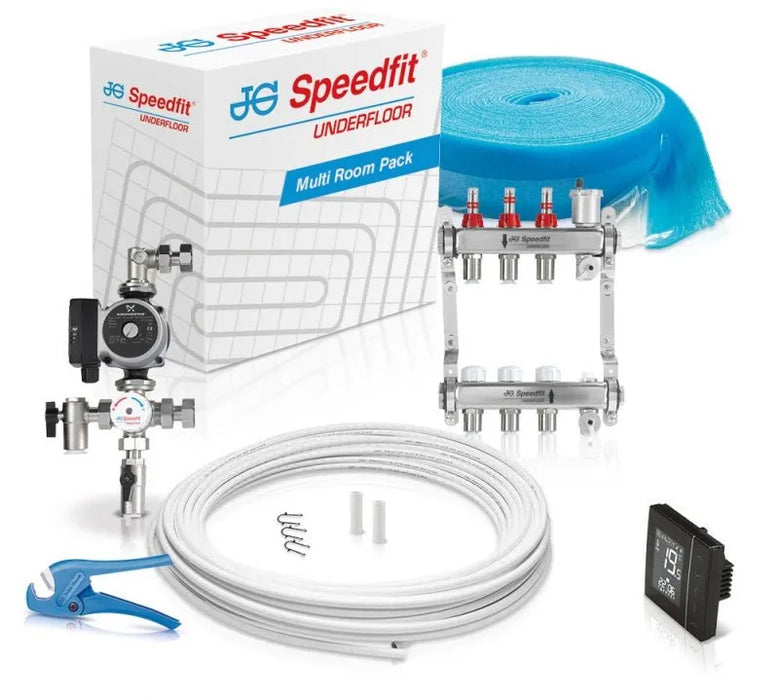

Below are examples of all products which could comprise your JG underfloor heating pack;

• CONTROL PACK with an 'A' rated Grundfos Single Circuit Constant Supply Unit

  Used to mix and control water temperature, Speedfit's lightweight control pack is suitable for heating systems up to 14kW and connects directly to the manifold without the need of extra brackets or support. The nickel-plated control pack consists of a mixing valve, Grundfos A rated pump, return elbow, manifold adaptor and all necessary seals. Speedfit push-fit pipe connections can be made from the side or below the manifold. The pack also isolates all system components for maintenance purposes and can be mounted either side of the manifold to suit application.

• Manifold

  Manufactured to the highest standard, our manifolds are made from stainless steel and are available in a range of sizes from 2 to 12 zones. All manifolds come fitted with brackets and a vibration isolation mount. A unique feature is that pipe connections are all made with easy to use Speedfit push-fit fittings. Integrated within the manifold rail is a pre-assembled automatic air vent, filling valve and flow rate indicators for adjusting flow and isolating the pipe circuit.

• Barrier pipe

  JG Layflat pipe is made from a soft material with little memory, making it ideal for laying underfloor heating pipe circuits. Made from Polybutylene, the 15mm pipe has an inner barrier to stop the ingress of oxygen molecules and is approved by British Gas for water pipe in vented and sealed central heating systems.

• Programmable Room Thermostat

  The JG Aura 4 in 1 Thermostat gives combined control of UFH, individual radiators as well as wireless boiler switching allowing simple installation of multi-zone energy-saving systems in new or retrofit projects.

• Boiler Receiver

  The Wireless Boiler Receiver communicates with the wireless thermostats via the wireless wiring centre. Installation is simplified as no wiring is required.

• Wireless Co-ordinator

  Wireless coordinator is essential to the successful communication of a wireless system and facilitates an automated pairing of the Aura products.

  Please note; this item is only supplied when the Wireless Thermostat option is selected above.

• Pipe Inserts

  Push-fit plastic fitting for the connection of plastic and copper pipe.

• Edging Insulation

  Edge Insulation is to be used around the edge of the room in order to minimise unwanted heat loss and allow for expansion.

• Pipe Cutters

  John Guest Pipe Cutter suitable for the cutting of JG Speedfit barrier pipe up to a 22mm diameter.

• Pipe Staples 300 Pack

  Pipe staples for securing pipe to floor insulation. Approximately 12 staples per m2 of floor. Use with pipe staple gun, sold separately, for quick installation.
