ProWarm Foil Underfloor Heating (Wood, Vinyl & Carpet)

Introducing the ProWarm Foil Underfloor Heating Mat - the perfect solution for those seeking a comfortable and efficient way to heat their wooden, vinyl and carpet floors. This innovative product is designed to provide consistent and controllable warmth throughout any wooden flooring, from engineered boards to laminate and hardwood, as well as for vinyl or carpet floors.

The ProWarm Foil Underfloor Heating Mat is easy to install and is compatible with most types of floating floors, ensuring a quick and hassle-free installation process. It features a high-quality heating foil that works to provide reliable and even heat distribution throughout any floor.

The ProWarm Foil Underfloor Heating Mat is backed by an industry-leading lifetime warranty, providing peace of mind and ensuring that you can enjoy the benefits of underfloor heating for years to come. Upgrade your home's heating system with the ProWarm Wood Underfloor Heating Mat and experience the ultimate in comfort and energy efficiency today.

The ProWarm Foil Underfloor Heating Mat is constructed using Fluoropolymer-insulated heating cables embedded between two layers of specially reinforced aluminium foil. This design not only enhances durability but also ensures precise and even heat distribution, making it an excellent choice for consistent warmth under floating floors.

This system is equipped with a flat, two-core flexible power lead that exits from one corner of the mat. The compact design of the lead, featuring insulated conductors within a protective metal and outer sheath, simplifies installation while maintaining safety and reliability.

Engineered to deliver a heat output of 150 W/m², each mat is available in predetermined lengths and includes a cold tail. Every unit is prefabricated and rigorously tested in a controlled factory setting, guaranteeing optimal performance and quality assurance.

These mats MUST be installed in conjunction with ProFoam or XPS Insulation. When installing carpet/vinyl flooring, Heat-Pak® Dual Overlay must also be used. Please ensure when installing that the carpet and underlay combined tog value does not exceed 2.0, please note in most cases when carpet is laid underfloor heating cannot be used as a primary heat source.

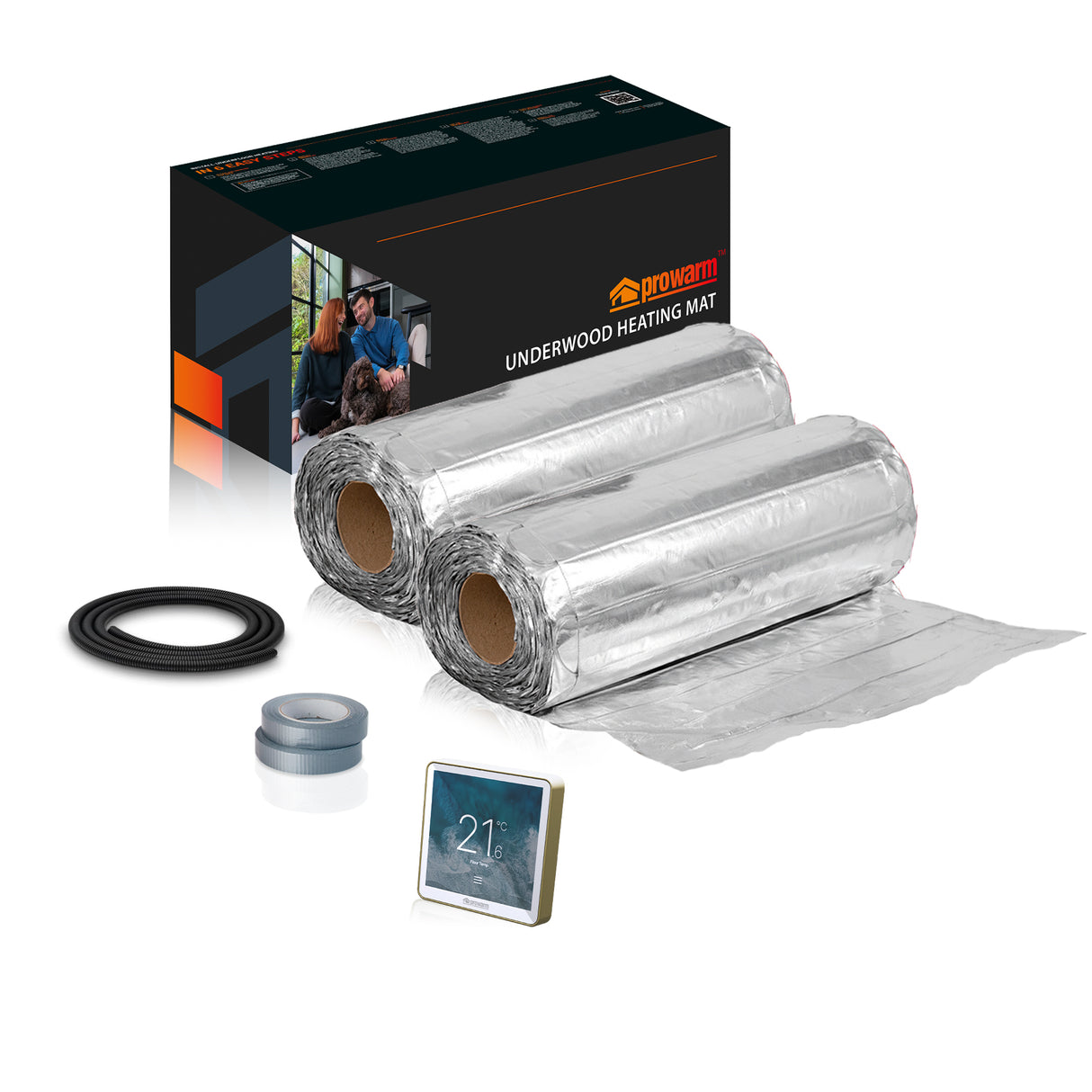

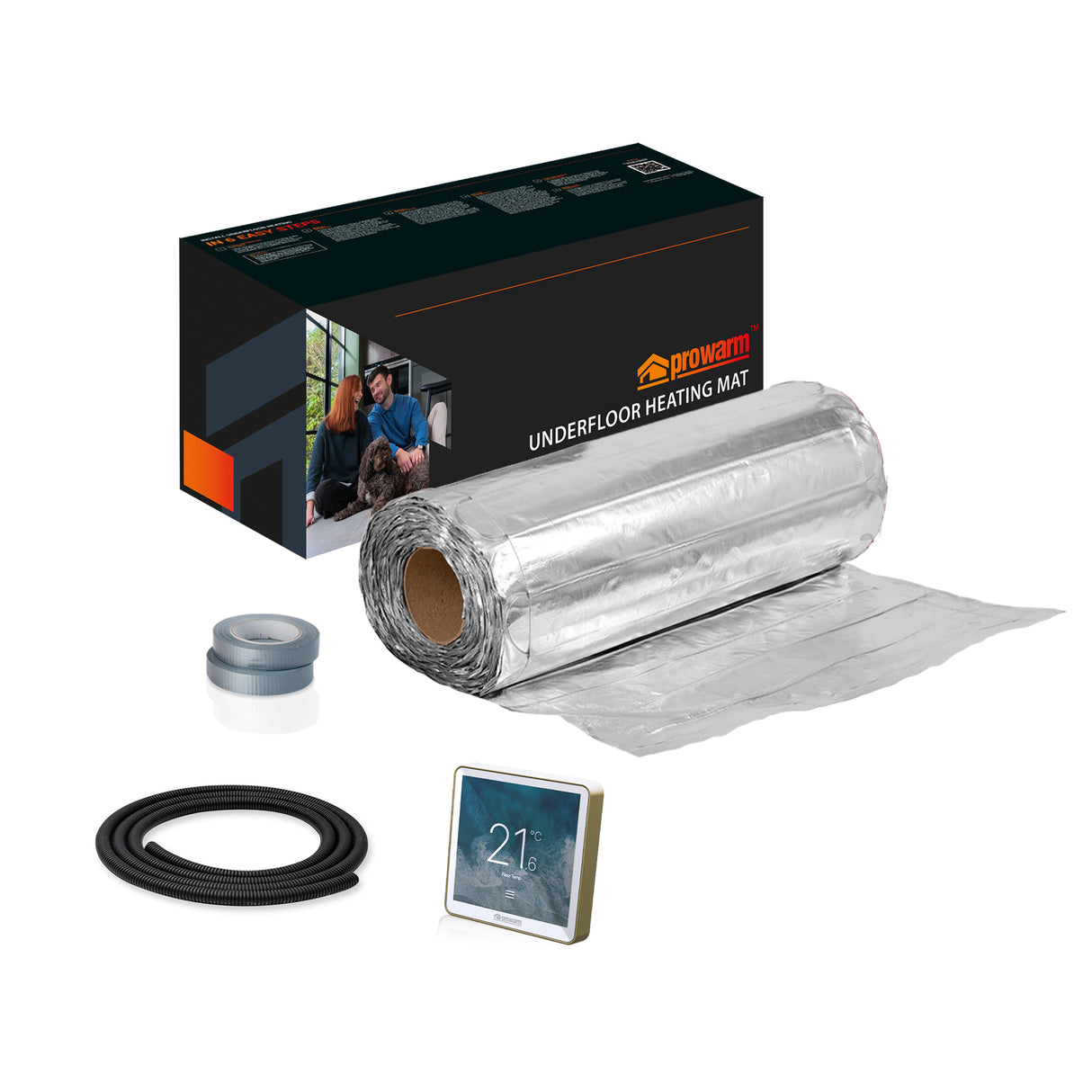

Your kit will contain the following items:

• ProWarm Foil Underfloor Heating Mat: Immerse yourself in the unparalleled comfort of our premium heating mat, available in single, double or triple mat configurations for areas over 12m2.
• Digital Thermostat (if selected): Take control of your comfort with our range of programmable digital thermostats, each equipped with a floor temperature probe. Experience the convenience of effortlessly adjusting your underfloor heating system. Enjoy the peace of mind that comes with our Lifetime Warranty* on all ProWarm digital thermostats.
• Adhesive Tape: Our kits include adhesive tape to ensure a secure installation, keeping the mat or cable in place for a flawless finish that exceeds expectations.
• Conduit: Enhance the longevity and protection of your heating system with our included conduit, adding an extra layer of durability and reliability.

Specifications

• Standards - Meets all test requirements of IEC 60335.
• Approvals - SEMKO certified
• Cost-effective - Underfloor heating provides heat where required, resulting in optimal heat utilization and minimal losses.
• Flexibility - Can be laid on any area, or any floor layout.
• Comfort - Close and uniform spacing of heating cables, associated with thermostat controls to select temperature requirements, provides higher comfort.
• DIY - ProWarm underfloor heating systems are designed to be easy to install, with clear instruction manuals professional technical support and amazing back up.
• Range - A wide range of heat loads and sizes ensure suitability to all kinds of floorings.

Specifications

High-Quality Construction

•
  ProWarm Electric Underfloor Heating Sticky Mat: Utilizes the same premium cable as the ProWarm Loose Cable kit. The mat incorporates a sticky fibreglass mesh to ensure optimal heat output by maintaining proper cable spacing. Installation is straightforward—simply roll out the mat to cover the desired heating area.
•
  Heating Cable: Series-type with twin conductors and a 4m cold lead at one end.
•
  Cable Composition: The resistance heating wire is encased in a fluoropolymer insulation layer, wrapped in protective metal shielding, and enclosed in a final plastic outer sheath. The twin conductor cable has a final diameter of 2mm.
•
  Junction Design: Unique design for hot and cold lead junctions ensures they are 100% foolproof.

Standards and Approvals

•
  Standards: Meets all test requirements of IEC 60335.
•
  Certifications: CE certified by SGS.

Performance and Benefits

•
  Cost-Effective: Provides heat precisely where needed, optimizing heat utilization and minimizing losses.
•
  Flexibility: Can be installed in any area or floor layout.
•
  Comfort: Close and uniform spacing of heating cables, combined with thermostat controls, allows for precise temperature settings, enhancing comfort.
•
  DIY-Friendly: Designed for easy installation with clear instruction manuals and professional technical support.
•
  Versatility: Available in various heat loads and sizes to suit various flooring types.

Mat Dimensions

•
  Width: 0.5m
•
  Length: Dependent on the selected square meter coverage
•
  Cable thickness: 2mm

Kit Includes:

• Underfloor Heating Sticky Mat (Two individual mats if kit size over 12m2)
• Floor Primer - a high-performance universal priming/sealing agent suitable for plaster, timber, brick, and block work.
• Roller - a high-quality roller for applying floor primer to the subfloor
• Adhesive tape - works to assist in holding a mat or cable in position during installation
• 2m Floor Sensor Probe Conduit - provides a protective pathway for the sensor probe, connecting to your thermostat
• Digital thermostat (if selected) - adjust the heat settings and enjoy warm floors through a simple touch of a button

Installation

Please Note: This is a brief guide. Always refer to the full installation manual for comprehensive instructions.

1. Plan Your Layout:

• Divide the floor into a series of rectangles. Use these measurements to calculate the number and sizes of mats needed, excluding permanent or static fixtures from your calculations.

2. Prepare the Subfloor:

• For screed over concrete floors, lay insulation boards to minimize heat loss and ensure quicker warm-up times.

3. Lay the Heating Mat:

• Start with the first run of the mat. Cut the mat (leaving the cable intact) at the end of each run, turn it 90° or 180°, and continue laying.
• Once the area is covered, adjust the mat so that the loops are evenly spaced.
• Secure the mat to the subfloor using the special tape provided.

4. Electrical Connections:

• Install an RCD fused spur to power the thermostatic controller/programmer and the mat system.
• Lay the temperature probe from the timer-thermostat onto the floor, position it equidistant between two cable loops, and secure it to the surface.
• Position the unheated power supply cable from the end of the mat system near the thermostat.
• Make all necessary connections to the power supply. Run the heaters for no more than 10 minutes to ensure they are heating up properly.

5. Finish the Flooring:

• Option 1: Apply a thin, self-levelling screed over the mat and allow it to dry completely before laying tiles.
• Option 2: Directly trowel flexible tile adhesive over the mat and lay the floor tiles.
• After grouting, let the tile adhesive cure fully before switching on the system.
