ProWarm Water Underfloor Heating - Standard Output & ProCrate

ProWarm Water Underfloor Heating Standard Output Kit & ProCrate are the perfect choice for homeowners and tradesmen seeking a premium branded water underfloor heating kit. These systems provide unparalleled performance and efficiency, ensuring optimal comfort throughout your home.

ProWarm Water Underfloor Heating Single room kits are specifically designed to combine water underfloor heating in one area, such as a living room, with a standard radiator system. Each kit is carefully designed to cover a specific area in square meters when the pipe is spaced at 250mm apart. This spacing provides an output of 115W per square meter, depending on the floor covering. If you require a higher output, we offer high-output kits to meet your specific heating needs.

It's important to note that ProWarm Water Underfloor Heating kits feature water temperature control, ensuring precise and efficient heating. Be cautious of systems that lack this essential facility. Additionally, ProWarm only uses high-quality European Standard Pert-Al-Pert pipe. The inclusion of an aluminium layer acts as an oxygen barrier, preventing oxygen diffusion through the polymer matrix. This effectively stops corrosion of the metal components within the system, ensuring its longevity and performance.

ProWarm Water Underfloor Heating Kits are proud to offer lifetime warranty.

✅ The ProWarm Water Underfloor Heating Kit has WRAS-approved pipe; this indicates that the Pert-Al-Pert Pipe as part of this product has been thoroughly tested to demonstrate it is of suitable quality and standard against the requirements of the Water Fittings Regulations and Scottish Byelaws.

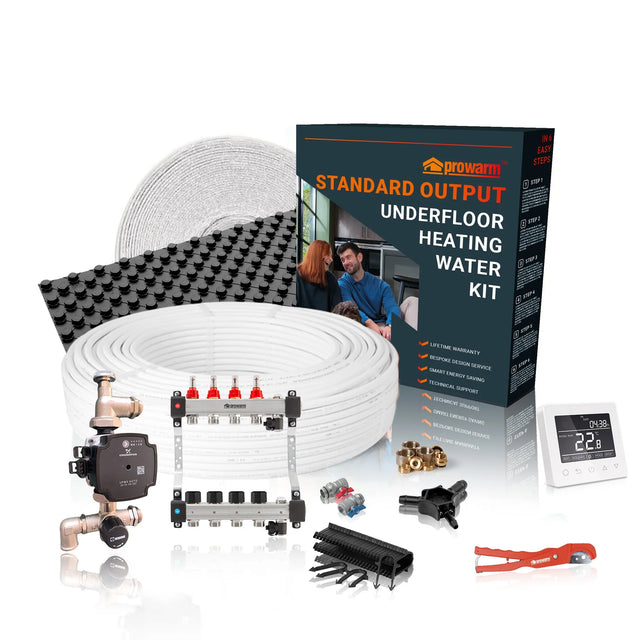

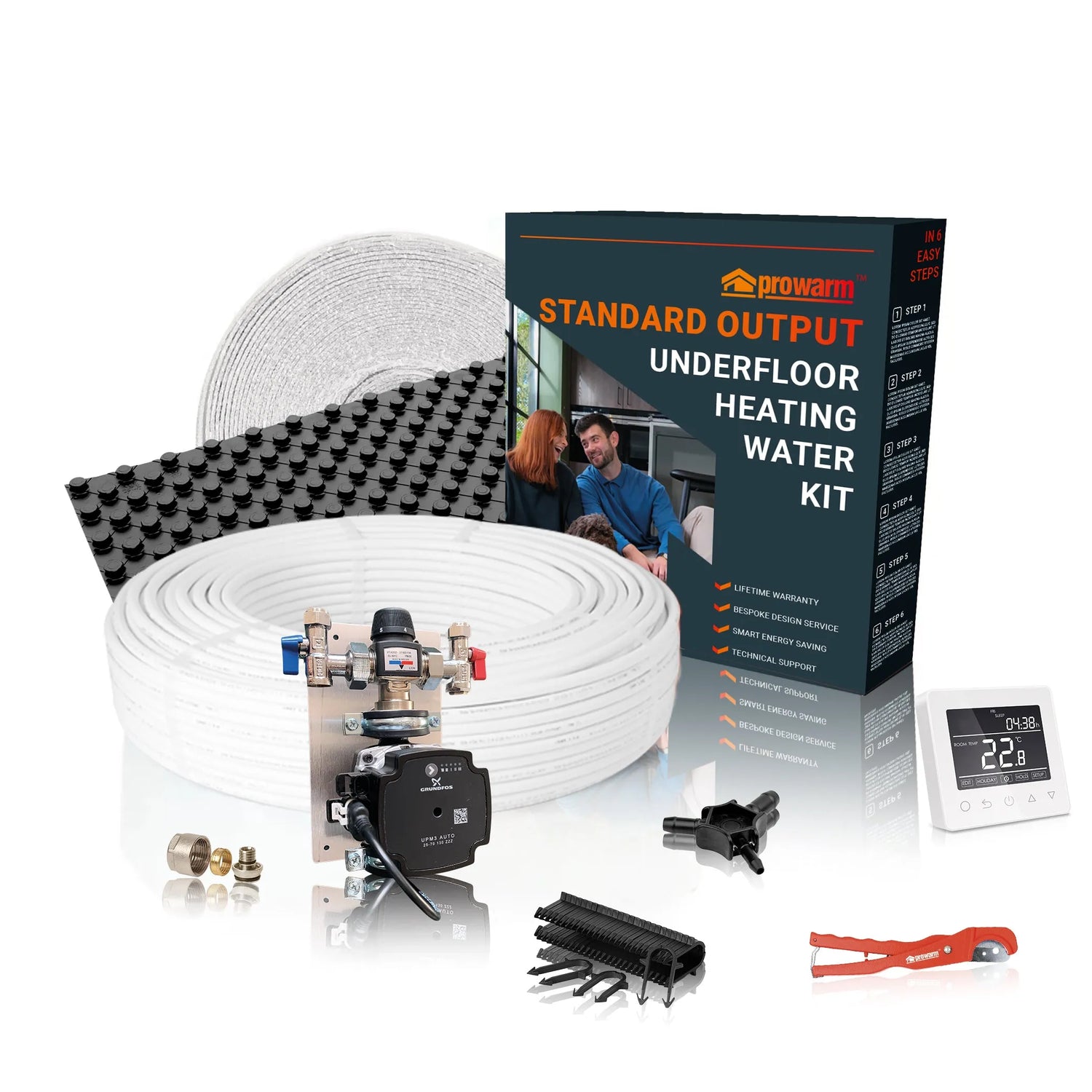

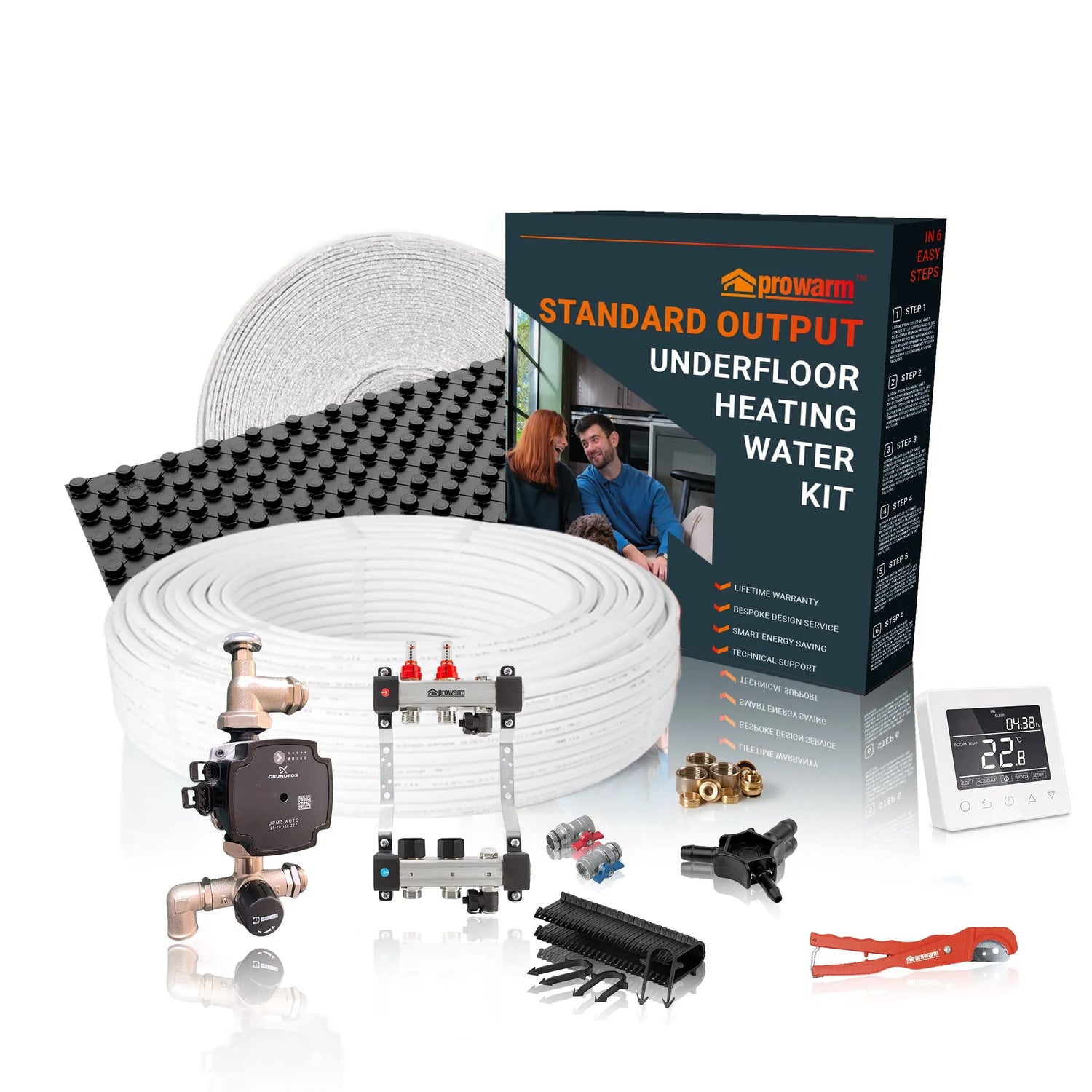

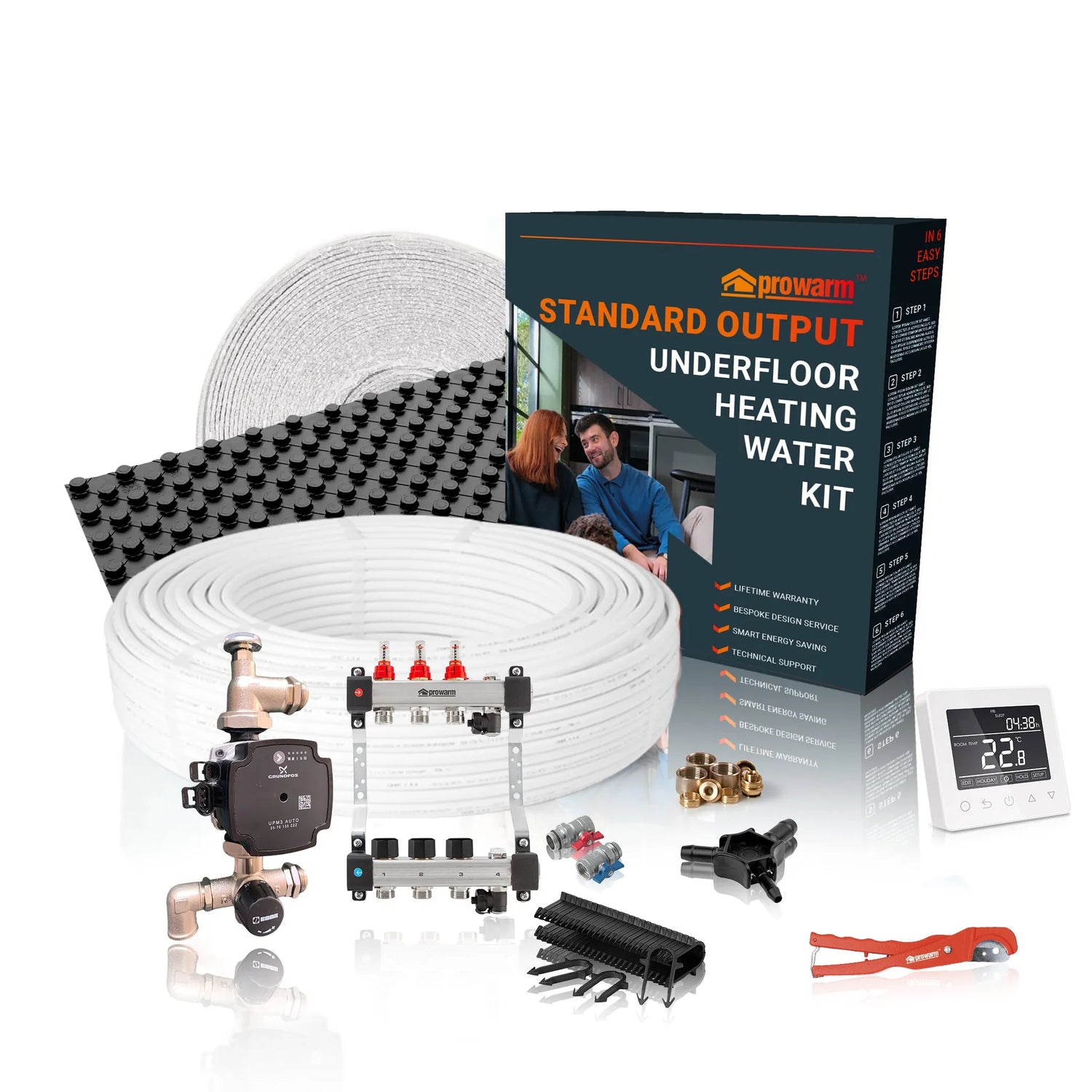

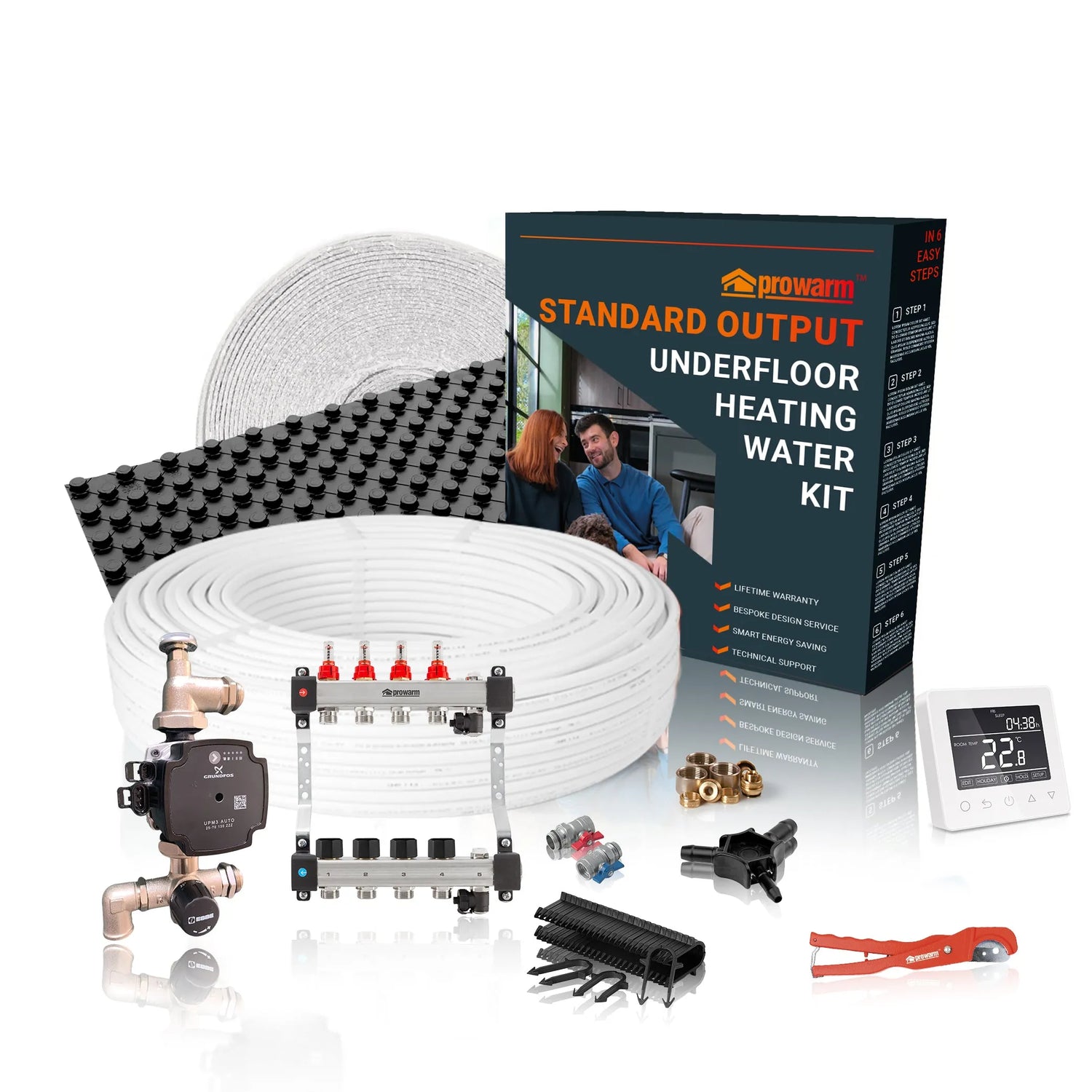

ProWarm Water Underfloor Heating Kit Components

Below, we provide examples of the products that could be included in your ProWarm Water Underfloor Heating Kit. For a detailed breakdown of the contents, please refer to our convenient Kit Content Comparison Table.

• Grundfos Temperature Unit: A rated UPM3 Grundfos Single Circuit Constant Supply Temperature Unit, offering reliable and consistent temperature control for optimal comfort.
• Grundfos Mixing Unit: A rated UPM3 Grundfos Manifold Pump/Mixing Valve Unit, ensuring efficient mixing and distribution of the heated water within the system.
• 2, 3, or 4 Port Manifold: A stainless steel manifold with an adjustable flow meter, allowing for easy balancing and control of the water flow. The manifold comes factory assembled on a fixing bracket, simplifying the installation process.
• Manual Thermostat: Depending if you've selected such option.
• ProWarm European Standard Pert-Al-Pert Pipe: A 16mm (outside) diameter Pert-Al-Pert pipe, adhering to the highest European standards of quality and durability. This pipe ensures efficient heat transfer and long-lasting performance.
• ProCrate Egg Crate: The ProCrate Egg Crate system offers a quick and simple installation process, featuring ready-made pipe spacing and pipe retaining fixings. It streamlines the setup of your underfloor heating system.
• Edging Insulation: Edge Insulation is utilized around the perimeter of the room to minimize unwanted heat loss and accommodate expansion, optimizing the overall performance of the system.
• Tools: The kit includes essential tools such as a Pipe Re Rounding Tool, Pipe Staples, and Pipe Cutters, enabling precise and efficient installation of the system.

Compare Kits

This table shows exactly what you'll get in the box based on your chosen kit size.

Specifications

(1) At any rate above the freezing temperature of the transported fluid.

The ProWarm Water Underfloor Heating Kit is WRAS approved. WRAS approval demonstrates it is of a suitable quality and standard against the Water Supply (Water Fittings) Regulations and Water Supply (Water Fittings) (Scotland) Byelaws, provided it is installed and used in accordance with the installation and requirement notes and any other restrictions within the approval. Any water fitting, which when installed, will carry or receive water from the public mains water supply in the UK, must comply with these regulations. They require that a water fitting should not cause waste, misuse, undue consumption or contamination of the water supply and must be ‘of an appropriate quality and standard’. To learn more about compliance, visit: WRAS approvals.

Specifications

High-Quality Construction

•
  ProWarm Electric Underfloor Heating Sticky Mat: Utilizes the same premium cable as the ProWarm Loose Cable kit. The mat incorporates a sticky fibreglass mesh to ensure optimal heat output by maintaining proper cable spacing. Installation is straightforward—simply roll out the mat to cover the desired heating area.
•
  Heating Cable: Series-type with twin conductors and a 4m cold lead at one end.
•
  Cable Composition: The resistance heating wire is encased in a fluoropolymer insulation layer, wrapped in protective metal shielding, and enclosed in a final plastic outer sheath. The twin conductor cable has a final diameter of 2mm.
•
  Junction Design: Unique design for hot and cold lead junctions ensures they are 100% foolproof.

Standards and Approvals

•
  Standards: Meets all test requirements of IEC 60335.
•
  Certifications: CE certified by SGS.

Performance and Benefits

•
  Cost-Effective: Provides heat precisely where needed, optimizing heat utilization and minimizing losses.
•
  Flexibility: Can be installed in any area or floor layout.
•
  Comfort: Close and uniform spacing of heating cables, combined with thermostat controls, allows for precise temperature settings, enhancing comfort.
•
  DIY-Friendly: Designed for easy installation with clear instruction manuals and professional technical support.
•
  Versatility: Available in various heat loads and sizes to suit various flooring types.

Mat Dimensions

•
  Width: 0.5m
•
  Length: Dependent on the selected square meter coverage
•
  Cable thickness: 2mm

Kit Includes:

• Underfloor Heating Sticky Mat (Two individual mats if kit size over 12m2)
• Floor Primer - a high-performance universal priming/sealing agent suitable for plaster, timber, brick, and block work.
• Roller - a high-quality roller for applying floor primer to the subfloor
• Adhesive tape - works to assist in holding a mat or cable in position during installation
• 2m Floor Sensor Probe Conduit - provides a protective pathway for the sensor probe, connecting to your thermostat
• Digital thermostat (if selected) - adjust the heat settings and enjoy warm floors through a simple touch of a button

Installation

Please Note: This is a brief guide. Always refer to the full installation manual for comprehensive instructions.

1. Plan Your Layout:

• Divide the floor into a series of rectangles. Use these measurements to calculate the number and sizes of mats needed, excluding permanent or static fixtures from your calculations.

2. Prepare the Subfloor:

• For screed over concrete floors, lay insulation boards to minimize heat loss and ensure quicker warm-up times.

3. Lay the Heating Mat:

• Start with the first run of the mat. Cut the mat (leaving the cable intact) at the end of each run, turn it 90° or 180°, and continue laying.
• Once the area is covered, adjust the mat so that the loops are evenly spaced.
• Secure the mat to the subfloor using the special tape provided.

4. Electrical Connections:

• Install an RCD fused spur to power the thermostatic controller/programmer and the mat system.
• Lay the temperature probe from the timer-thermostat onto the floor, position it equidistant between two cable loops, and secure it to the surface.
• Position the unheated power supply cable from the end of the mat system near the thermostat.
• Make all necessary connections to the power supply. Run the heaters for no more than 10 minutes to ensure they are heating up properly.

5. Finish the Flooring:

• Option 1: Apply a thin, self-levelling screed over the mat and allow it to dry completely before laying tiles.
• Option 2: Directly trowel flexible tile adhesive over the mat and lay the floor tiles.
• After grouting, let the tile adhesive cure fully before switching on the system.
