ProWarm™ Water Underfloor Heating Standard Output Kit & ProCrate

From
Was
£549.99
From £549.99
Now £549.99
In stock, ready to be shipped
CRATEWATERKIT12M2NOSTAT
In stock, ready to be shipped
CRATEWATERKIT15M2NOSTAT
In stock, ready to be shipped
CRATEWATERKIT17M2NOSTAT
In stock, ready to be shipped
CRATEWATERKIT20M2NOSTAT
In stock, ready to be shipped
CRATEWATERKIT22M2NOSTAT
In stock, ready to be shipped
CRATEWATERKIT25M2NOSTAT
In stock, ready to be shipped
CRATEWATERKIT27M2NOSTAT
In stock, ready to be shipped
CRATEWATERKIT30M2NOSTAT
In stock, ready to be shipped
CRATEWATERKIT37M2NOSTAT
In stock, ready to be shipped
CRATEWATERKIT50M2NOSTAT
In stock, ready to be shipped
CRATEWATERKIT62M2NOSTAT
In stock, ready to be shipped
CRATEWATERKIT75M2NOSTAT
In stock, ready to be shipped
CRATEWATERKIT87M2NOSTAT
In stock, ready to be shipped
CRATEWATERKIT100M2NOSTAT
ProWarm™ Water Underfloor Heating Standard Output Kit & ProCrate
From
Was
£549.99
From £549.99
Now £549.99
Contact us

Product advice or want to place an order?

Call our product experts 01268 567016

Fast & Reliable Delivery

For delivery on Tuesday

When ordered before 4pm (On weekdays)

ProWarm™ Water Underfloor Heating Systems are the perfect choice for homeowners and tradesmen seeking a premium branded water underfloor heating kit. These systems provide unparalleled performance and efficiency, ensuring optimal comfort throughout your home.

ProWarm™ Water Underfloor Heating Single room kits are specifically designed to combine water underfloor heating in one area, such as a living room, with a standard radiator system. Each kit is carefully designed to cover a specific area in square meters when the pipe is spaced at 250mm apart. This spacing provides an output of 115W per square meter, depending on the floor covering. If you require a higher output, we offer high-output kits to meet your specific heating needs.

It's important to note that ProWarm™ Water Underfloor Heating kits feature water temperature control, ensuring precise and efficient heating. Be cautious of systems that lack this essential facility. Additionally, ProWarm™ only uses high-quality European Standard Pert-Al-Pert pipe. The inclusion of an aluminium layer acts as an oxygen barrier, preventing oxygen diffusion through the polymer matrix. This effectively stops corrosion of the metal components within the system, ensuring its longevity and performance.

ProWarm™ Water Underfloor Heating Kits are proud to offer lifetime warranty.

✅ The ProWarm™ Water Underfloor Heating Kit has WRAS-approved pipe; this indicates that the Pert-Al-Pert Pipe as part of this product has been thoroughly tested to demonstrate it is of suitable quality and standard against the requirements of the Water Fittings Regulations and Scottish Byelaws.

ProWarm™ Water Underfloor Heating Kit Components

Below, we provide examples of the products that could be included in your ProWarm™ Water Underfloor Heating Kit. For a detailed breakdown of the contents, please refer to our convenient Kit Content Comparison Table.

  • Grundfos Temperature Unit: A rated UPM3 Grundfos Single Circuit Constant Supply Temperature Unit, offering reliable and consistent temperature control for optimal comfort.
  • Grundfos Mixing Unit: A rated UPM3 Grundfos Manifold Pump/Mixing Valve Unit, ensuring efficient mixing and distribution of the heated water within the system.
  • 2, 3, or 4 Port Manifold: A stainless steel manifold with an adjustable flow meter, allowing for easy balancing and control of the water flow. The manifold comes factory assembled on a fixing bracket, simplifying the installation process.
  • Manual Thermostat: For a small additional fee, you have the option to upgrade your thermostat to a digital, programmable, wireless, or touchscreen one, providing enhanced control and convenience for managing your underfloor heating system.
  • ProWarm™ European Standard Pert-Al-Pert Pipe: A 16mm (outside) diameter Pert-Al-Pert pipe, adhering to the highest European standards of quality and durability. This pipe ensures efficient heat transfer and long-lasting performance.

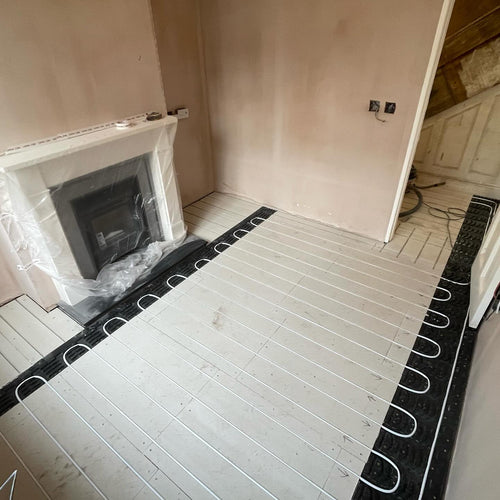

  • ProCrate Egg Crate: The ProCrate Egg Crate system offers a quick and simple installation process, featuring ready-made pipe spacing and pipe retaining fixings. It streamlines the setup of your underfloor heating system.
  • Edging Insulation: Edge Insulation is utilized around the perimeter of the room to minimize unwanted heat loss and accommodate expansion, optimizing the overall performance of the system.
  • Tools: The kit includes essential tools such as a Pipe Re Rounding Tool, Pipe Staples, and Pipe Cutters, enabling precise and efficient installation of the system.

This table shows exactly what you'll get in the box based on your chosen kit size.

Kit Size (m2) 12 15 17 20 22 25 27 30 37 50 62 75 87 100
Single Circuit Pump Yes Yes Yes Yes Yes Yes Yes Yes X? X? X? X? X? X?
Manifold Pump + Mixer X? X? X? X? X? X? X? X? Yes Yes Yes Yes Yes Yes
Manual Thermostat Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
Manifold Ports X? X? X? X? X? X? X? X? 2 2 3 3 4 4
Pipe Length (m) 50 60 70 80 90 100 110 120 150 200 250 300 350 400
Edging Insulation Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
Pipe re-rounding tool Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
Pipe staples Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
Pipe cutters Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
Nuts and olives X? X? X? X? X? X? X? X? Yes Yes Yes Yes Yes Yes
Valves X? X? X? X? X? X? X? X? Yes Yes Yes Yes Yes Yes
Procrate Panels 11 14 16 19 20 23 25 28 34 46 57 69 80 91
Features Values Testing Methods
Material Crosslinked polyethylene PE-Xb internal layer, internal bonding layer, intermediate aluminium layer, external bonding layer, high density polyethylene HDPE external layer. -
Colour RAL white 9003 -
Dimensions 14÷32 mm -
Application Hot and cold potable water distribution, convector and radiator heating systems, radiant heating and air cooling systems, compressed air distribution systems, industrial installations. -
Fittings Pexal Brass, Bravopress and Pexal Twist -
Minimum operating Temperature(1) -60°C -
Maximum temperature +95°C/+100°C EN ISO 21003-1
Maximum Pressure +10 bar EN ISO 21003-1
Density at 23°C > 0.950 g/cm3 (crosslinked polyethylene) -
Softening temperature 135°C -
Thermal expansion coefficient 0.026 mm/m.K -
Thermal conductivity 0.42÷0.52 W/m.K -
Internal roughness 0.007 mm -
Oxygen permeability 0 mg/l -
UV Resistance Yes, if protected with UV-resistant paint -
Halogen levels Halogen-free -

(1) At any rate above the freezing temperature of the transported fluid.

The ProWarm™ Water Underfloor Heating Kit is WRAS approved. WRAS approval demonstrates it is of a suitable quality and standard against the Water Supply (Water Fittings) Regulations and Water Supply (Water Fittings) (Scotland) Byelaws, provided it is installed and used in accordance with the installation and requirement notes and any other restrictions within the approval. Any water fitting, which when installed, will carry or receive water from the public mains water supply in the UK, must comply with these regulations. They require that a water fitting should not cause waste, misuse, undue consumption or contamination of the water supply and must be ‘of an appropriate quality and standard’. To learn more about compliance, visit: WRAS approvals.

Heatmiser DS1, Central Heating Dial Thermostat

  • Power On and Heat On Indication
  • Modern Appearance
  • Easily increase or decrease the required temperature
  • Variable Switching Differential
  • Built In Air Sensor

Explore the product

Heatmiser Slimline-W, Programmable Thermostat

  • Holiday Feature
  • °C / °F selectable
  • Frost protection with adjustable temperature setting
  • Blue backlight
  • Flexible programming
  • Key locking
  • Temperature hold facility
  • Self learning preheat

Explore the product

Heatmiser Touch-W, Programmable Touchscreen Thermostat

  • Holiday Feature
  • °C / °F selectable
  • Frost protection with adjustable temperature setting
  • Blue backlight
  • Flexible programming
  • Key locking
  • Temperature hold facility
  • Self learning preheat

Explore the product

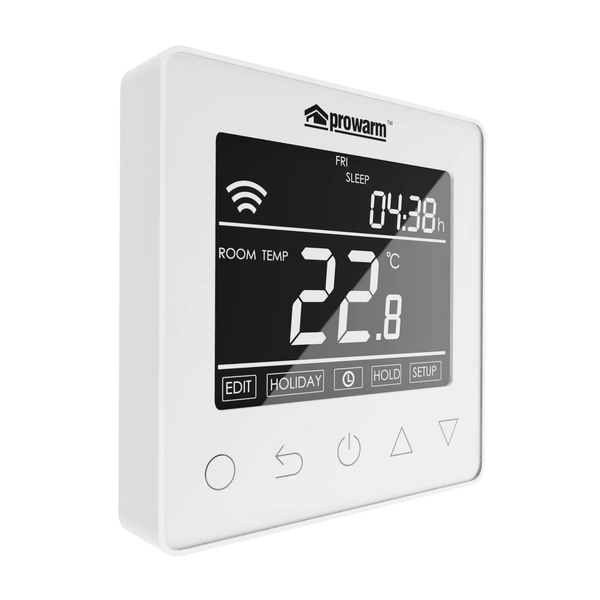

ProWarm™ ProTouch-W WiFi Smart Thermostat (Water)

  • For Use With Water Underfloor Heating
  • Wi-Fi control
  • Programmable
  • Large Screen
  • Professional Design
  • App available on IOS and Android - Compatible with Alexa
Explore the product

Heatmiser Slimline-RF Wireless Thermostat Kit

  • Wireless control
  • Key lock facility
  • Self learning preheat
  • Holiday function
  • Frost protection
Explore the product
