SKU: UH8

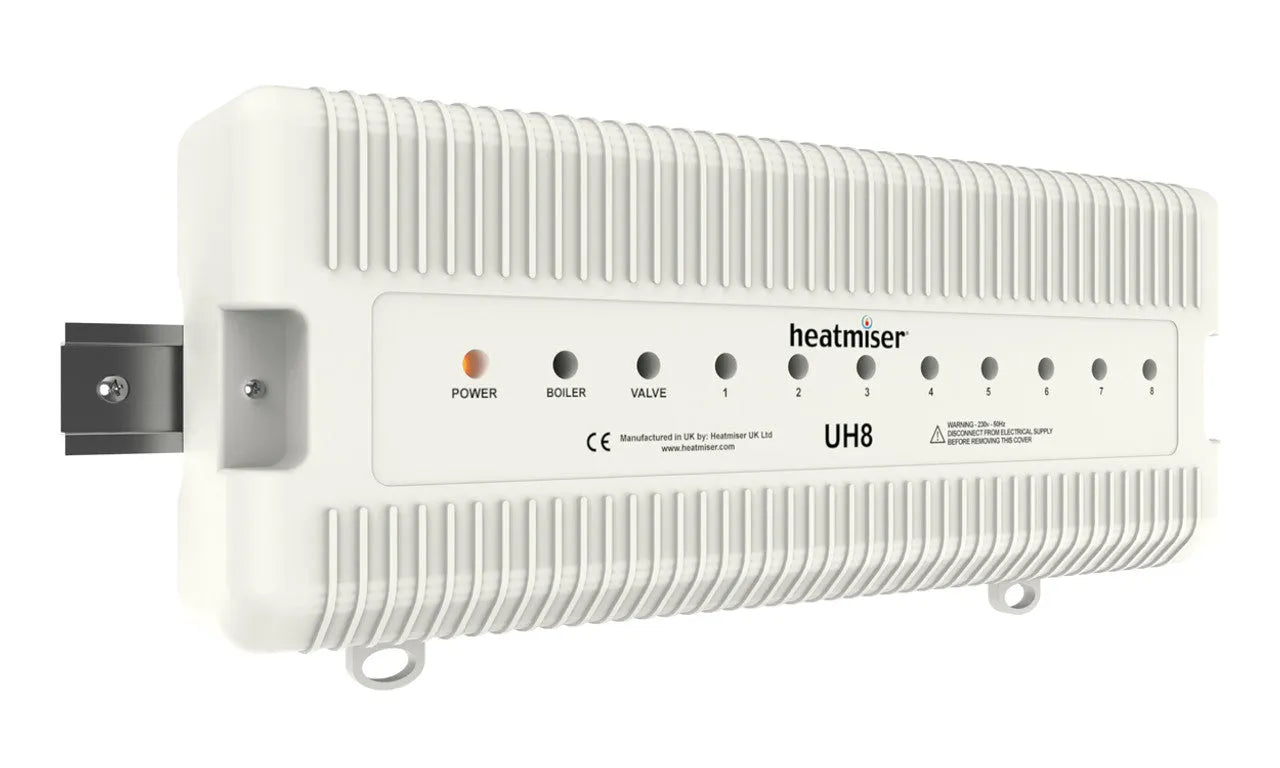

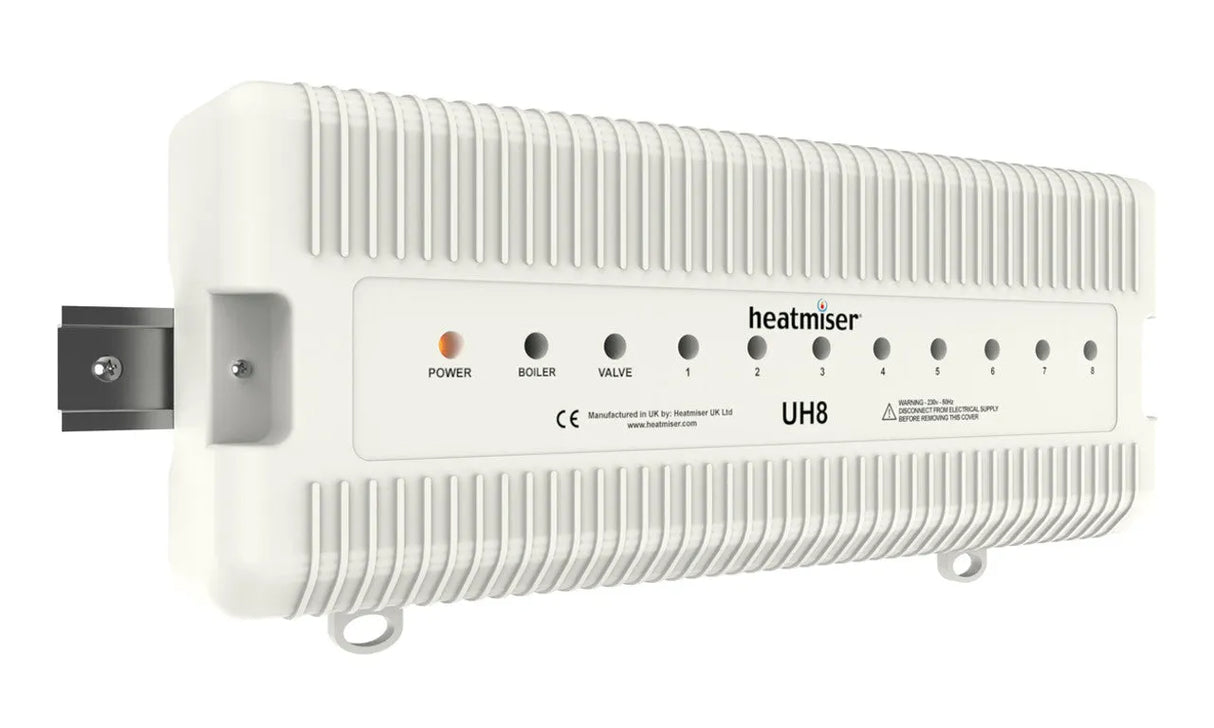

Heatmiser UH8 Wiring Centre - 8 Zone

Regular price £59.99
Order in
00 00 00
for Next Day Delivery

Buy now, Pay with Klarna

Buy now, Pay with PayPal

Description

The Heatmiser UH8 Wiring Centre - 8 Zone is a versatile and reliable solution designed to work seamlessly with our 4 channel 230v time clock (TM4) and 230v Set Back thermostat (DS-SB). It can also be used with any 230v room thermostat, offering flexibility and compatibility for various heating setups.

Key Features:

  • Zone Control: The UH8 allows you to control up to eight zones, providing precise temperature management for different areas of your home or building.
  • Heating Channels: On board the UH8, you'll find two heating channels, each allowing you to specify which time channel it should follow. This ensures efficient scheduling and control of your heating system.
  • Additional Time Channels: The wiring centre also provides two additional time channel connections, which can be used for hot water control or other auxiliary devices, enhancing the versatility of the system.
  • Volt Free Connection: A volt free connection is included for the boiler, making the UH8 compatible with almost all types of boilers, ensuring seamless integration with your heating setup.
  • Radiator Option: A simple slide switch enables zone 8 to control a radiator zone. When used for radiator control, zone 8 does not activate the underfloor heating pump, valve, and boiler, allowing independent control of the radiator zone.
  • DIN Rail Mounting: The UH8 offers DIN Rail Mounting, providing a secure and organized installation, keeping your wiring tidy and easily accessible.
  • Output Indication: LED indicators on the UH8 provide clear status indication for each zone, boiler, pump, and valve, facilitating easy testing and troubleshooting of the heating system.

The UH8 wiring centre is a versatile and user-friendly solution, offering seamless integration with various heating components and providing efficient zone control.

Compatibility: Works with 4 channel 230v time clock (TM4), 230v Set Back thermostat (DS-SB), and other 230v room thermostats

Specifications

Supply 230v AC
Relay Load Max 3A
Total Load 5A
Ip Protection IP20

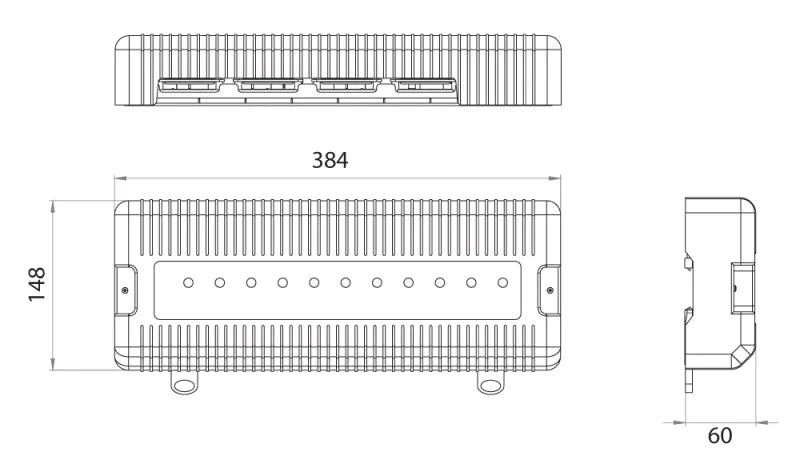

Dimensions (L,H,D) Mm 384x148x60mm
No. Heating Zones 8
