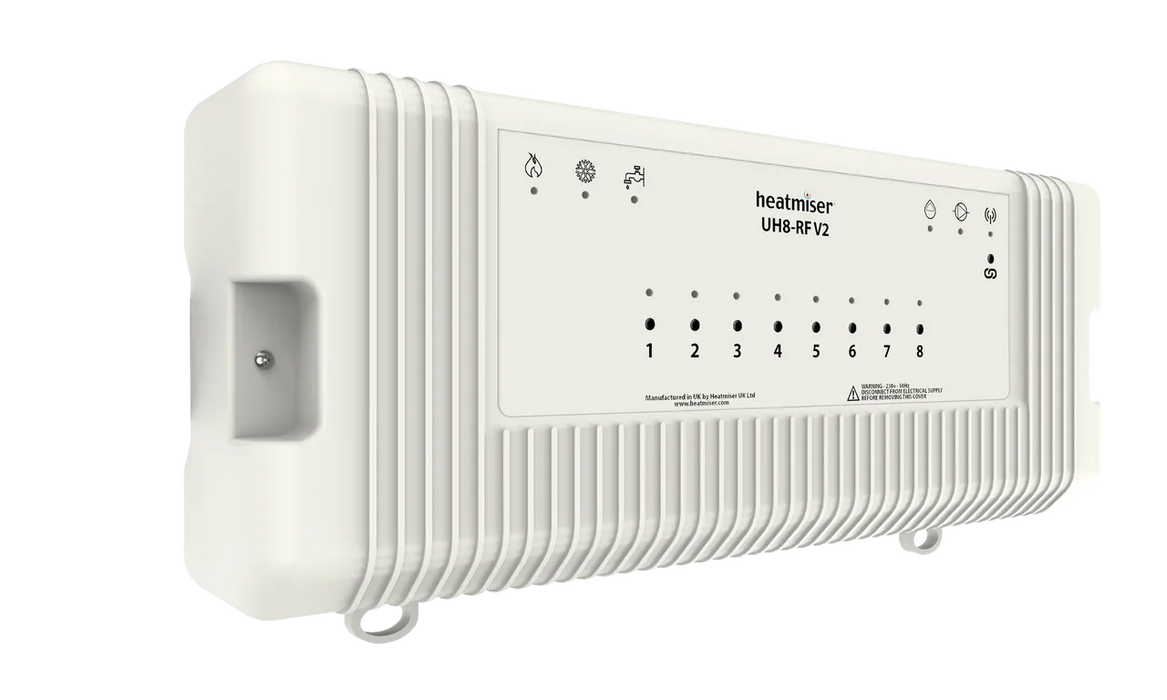

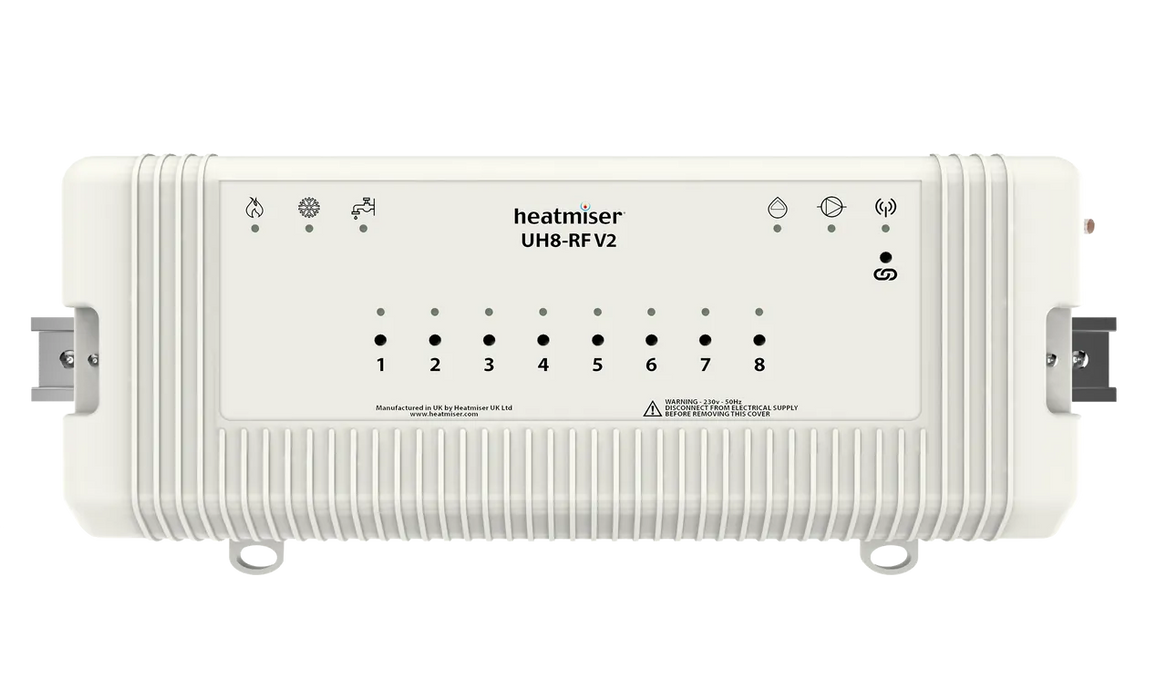

Heatmiser UH8-RF Wiring Centre - 8 Zone

The Heatmiser UH8-RF Wiring Centre - 8 Zone is a versatile wiring centre specifically designed to work seamlessly with Heatmiser-compatible wireless thermostats, providing efficient control of your heating system.

Key Features:

• Central Switching: The UH8-RF V2 offers central switching capabilities, making it the perfect companion for your underfloor heating manifold. It allows you to control up to eight zones, ensuring precise temperature regulation in different areas of your home or building.
• Hot Water Cylinder Output: In addition to zone control, the wiring centre provides an output for a hot water cylinder, allowing you to efficiently manage your hot water system.
• Wireless Compatibility: The UH8-RF V2 is compatible with Heatmiser's range of wireless thermostats, including Slimline-RF, Touch-RF, and NeoAir, providing convenient wireless control and flexibility in thermostat placement.
• Neon Indication: The UH8-RF V2 features neon indicators that provide clear visual indication of the operational status, making it easy to monitor the system and identify any issues.
• DIN Rail Mounting: Designed for DIN Rail Mounting, the UH8-RF V2 offers easy and secure installation, ensuring a neat and organized setup.

The UH8-RF V2 allows for flexible configuration of zones, with the option to designate certain zones for underfloor heating and others for radiators. When there is a call for heat from a radiator zone, the underfloor heating pump and valve will not be enabled, ensuring efficient and controlled heating.

The UH8-RF V2 is equipped with RF switch compatibility and RF boost compatibility, providing enhanced wireless connectivity and signal strength. Additionally, the enclosure of the wiring centre has been thoughtfully designed, eliminating the need for drilling cutouts for cable entry.

With its comprehensive features and compatibility with Heatmiser wireless thermostats, the UH8-RF V2 offers a reliable and convenient solution for managing your heating system.

Specifications
