Polypipe™ Water Underfloor Heating Systems are the ideal choice for homeowners and tradesmen looking to install the market leader in water underfloor heating systems.
Polypipe™ Standard Output - water underfloor heating single room kits are ideal for well insulated areas which are to be controlled by one thermostat . Each kit is designed to cover an area in square meters when the pipe is spaced at 200mm apart.
This spacing is suitable for well insulated areas. If you are uncertain that your area is well insulated we recommend our high output systems.
Please Note : Polypipe™ Water Underfloor Heating kits feature water temperature control, beware of systems without this facility. Polypipe™ only use high quality Polybutylene pipe.

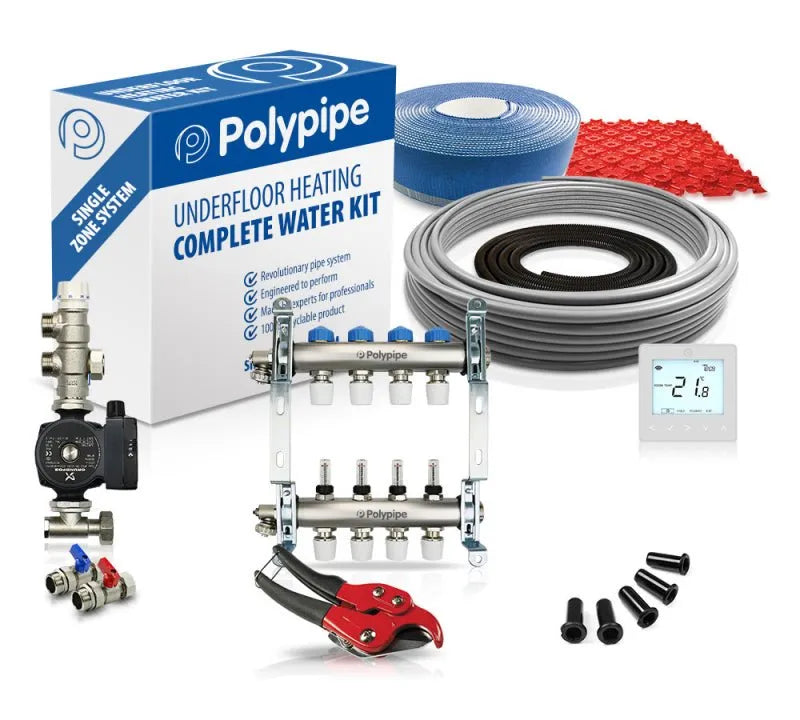

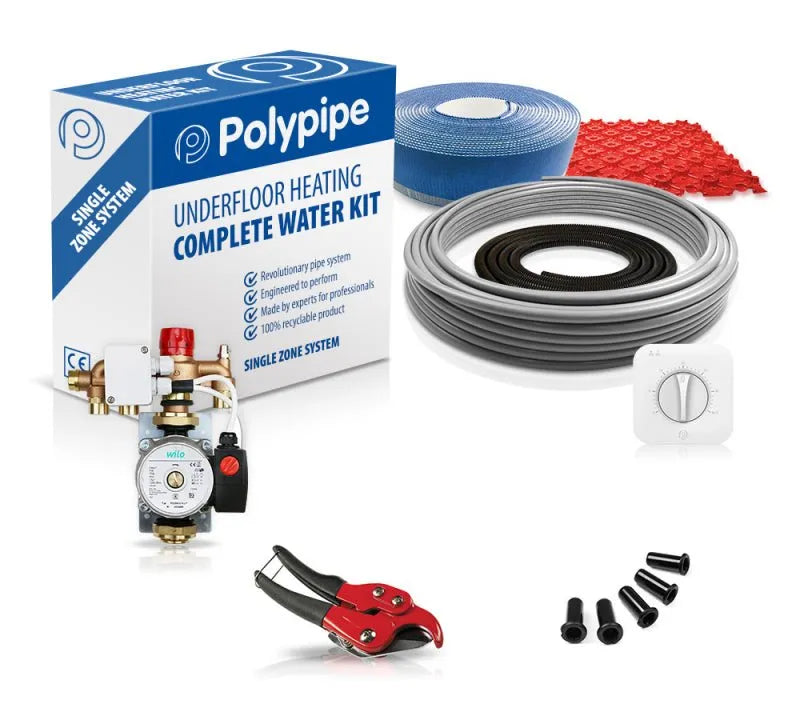

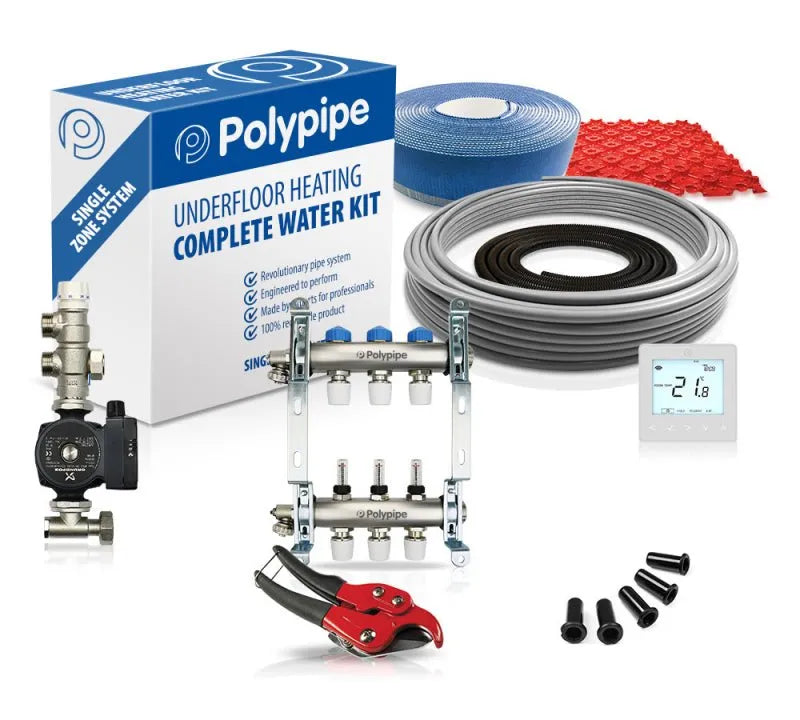

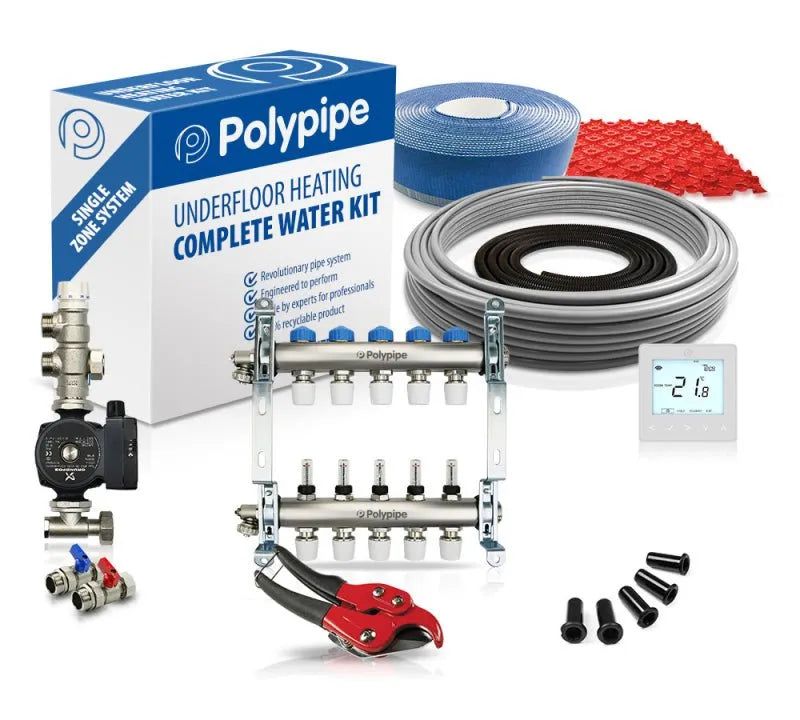

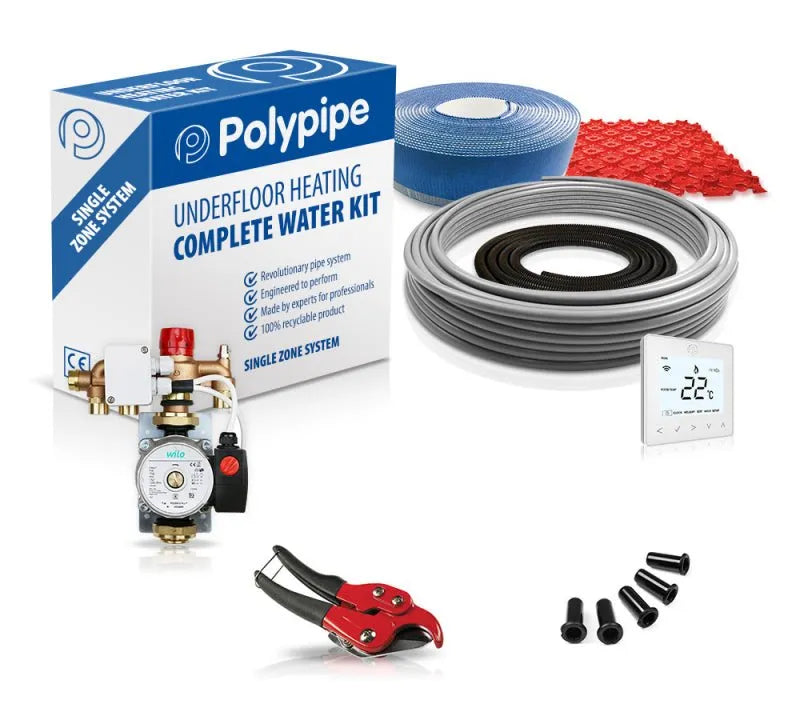

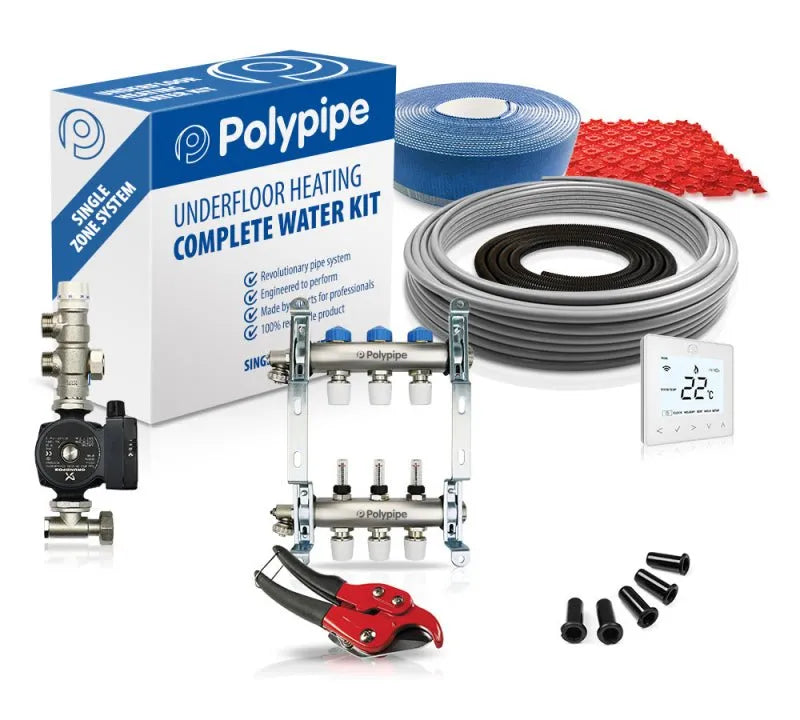

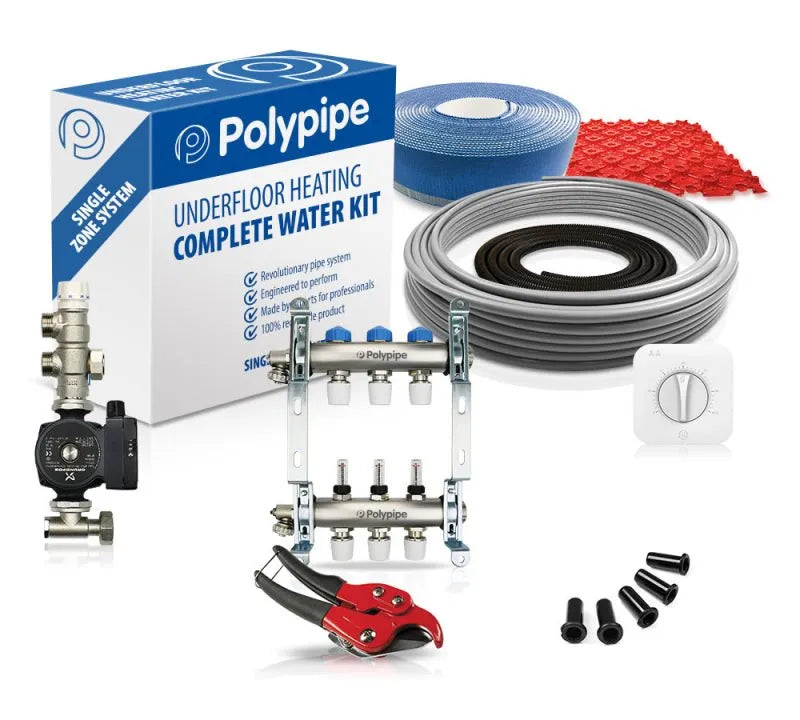

Below are examples of all products which could comprise your Polypipe Water Underfloor Heating Kit.You can find out exactly what you will get in the box using our handy kit content comparison table below.
Polypipe UFH Zonal Regulation Unit provides a simpler method of connecting in to the existing system, without the need for expensive hydraulic or electrical alterations.
Comes with mixer valve, adaptor kit and isolation valves. The Control Pack maintains the water temperature in an underfloor heating system between 35°C and 60°C.
Made from Polybutylene and having a 15mm outside diameter makes this pipe suitable for all plumbing and heating applications as a flexible alternative to copper tube.
You can upgrade your thermostat for a small additional cost. See the thermostats tab for further details.
Blue or white polystyrene Edge Insulation is to be used around the edge of the room in order to minimise unwanted heat loss and allow for expansion.
Pipe Stiffeners, Floor Panels, Pipe Conduit
This table shows exactly what you'll get in the box based on your chosen kit size.
Kit Size (m2) | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 |
---|---|---|---|---|---|---|---|---|---|---|---|---|
2/3 Circuit Pump | Yes | Yes | Yes | Yes | Yes | Yes | ? | ? | ? | ? | ? | ? |
Mixing unit | ? | ? | ? | ? | ? | ? | Yes | Yes | Yes | Yes | Yes | Yes |
Manual Thermostat | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
Manifold Ports | ? | ? | ? | ? | ? | ? | 3 | 3 | 4 | 4 | 5 | 5 |
Pipe Length (m) | 50 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 |
Edging Insulation | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
Accessories | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
Polypipe Egg Crate | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
Product | Standard | Pipe Dia | Manifold Connection |
---|---|---|---|
Grey Plumbing, Heating and Underfloor Heating Pipe | BS 7291 Class S | 15mm | Push Fit |
Ultra-Flexible Underfloor Heating Pipe | BS EN15876 | 12mm | Push Fit |
Ultra Flexible Underfloor Heating Pipe | BS EN15876 | 15mm | Push Fit |
Ultra Flexible Underfloor Heating Pipe | BS EN15876 | 18mm | Eurocone |
Metal Composite Underfloor Heating Pipe | BS EN21003 | 16mm | Eurocone |
System Usage | Application |
---|---|
Solid Floor, Clip Rail, Staple System, DHSP and Fit From Below Systems, Floating Floor System, Overlay™ 15 System | Underfloor Heating, Radiator Systems and Hot and Cold (Portable) Water Installations |
Overlay™ and Overlay™ Lite Systems | Underfloor Heating Only |
Solid Floor, Clip Rail, Staple System, DHSP and Fit From Below Systems, Floating Floor System, Overlay™ 15 System | Underfloor Heating Only |
Solid Floor, Clip Rail, Floating Floor System | Underfloor Heating Only |
Solid Floor, Staple and Rail System | Underfloor Heating Only |
Compare thermostats
Discover the best thermostat for your upcoming project
The Polypipe UFHDIALW is a central heating thermostat, ideal for conventional or combi-boiler systems. This thermostat is used in conjunction with a separate programmer.
The following features of the UFHDIALW central heating thermostat are available;
The Polypipe UFHSMARTW is a 230v programmable thermostat featuring illuminated touch keys.
When paired to the neoHub (sold separately) you can control your heating from anywhere.
The neoStat can be configured to work as a programmable thermostat or as a timer- so if you want to take control of your towel rails, or lighting - Neo offers you this and more!
The Polypipe UFHSMARTRFWis a 230v programmable thermostat featuring illuminated touch keys.
The UFHSMARTRFWcan be configured to work as a programmable thermostat or as a timer- so if you want to take control of your towel rails, or lighting - UFHSMARTRFW offers you this and more!
