ProWarm™ Foiled Faced In Joist/Batten System

Was £14.99
From Was £14.99
Was £14.99
Now £13.49
From £13.49
Now £13.49
Save £391 Save £1.50
in stock, ready to be shipped
INJOISTSYSTEM1BOARD
in stock, ready to be shipped
INJOISTSYSTEM5BOARDS
in stock, ready to be shipped
INJOISTSYSTEM10BOARDS
in stock, ready to be shipped
INJOISTSYSTEM20BOARDS
in stock, ready to be shipped
INJOISTSYSTEM40BOARDS
Only 5 left!
INJOISTSYSTEM80BOARDS
Only 2 left!
INJOISTSYSTEM160BOARDS
Only 1 left!
INJOISTSYSTEM320BOARDS
ProWarm™ Foiled Faced In Joist/Batten System
From Was £14.99
Was £14.99
£13.49
From £13.49
Now £13.49
Contact us

Product advice or want to place an order?

Call our product experts 01268 567016

Fast & Reliable Delivery

For delivery on Saturday

Order within hrs mins secs

How many boards do I need?
Add your area dimensions and we'll calculate how many boards you need
m2

The ProWarm™ Foiled Faced In Joist/Batten System is an all-in-one solution designed for easy installation. These panels, measuring 1200mm x 350mm x 50mm, provide an ideal method for fixing between existing joists onto battens. They can also be fitted between battens on concrete subfloors, offering a fast and cost-effective solution for installing our pipework. The pipework is set at 200mm centers, ensuring efficient heat distribution throughout the space.

Key Features:

  • Convenient Panel Design: The panels are specifically designed for easy fitting, providing a hassle-free installation process.
  • Optimal Dimensions: With dimensions of 1200mm x 350mm x 50mm, these panels offer a practical size for various joist and batten configurations.
  • Versatile Application: Suitable for both existing joists and battens on concrete subfloors, these panels offer flexibility in installation.
  • Efficient Insulation Material: Made from EPS (Expanded Polystyrene), these panels provide effective thermal insulation, enhancing the energy efficiency of your heating system.
  • All-in-One Solution: The foiled faced in joist/batten system panels eliminate the need for separate spreader plates and foil-faced insulation systems, simplifying the installation process and reducing overall costs.
  • Compatible with 15mm and 16mm Pipe: These panels are suitable for use with 15mm and 16mm pipes, ensuring compatibility with common pipe sizes.

Upgrade your underfloor heating system with the ProWarm™ Foiled Faced In Joist/Batten System. These panels offer a convenient and cost-effective solution, eliminating the need for separate spreader plates and insulation systems. With their efficient insulation properties, they enhance the performance of your heating system while providing a hassle-free installation experience.

Expanded Polystyrene - Grade EPS100 ( BS EN 13163 ).

Panel Dimensions 1200mm x 350mm x 50mm
Panel Thickness up to 125mm ( in 1.0mm increments )
Aluminium Foil Thickness 45 microns
Thermal Conductivity 0.036 W/mK
Compressive Strength 100 kPa @ 10% compression
Compressive Strength 45 kPa @ 1% compression
Fire Classification Euroclass F
Suitable Pipe Size 15mm and 16mm

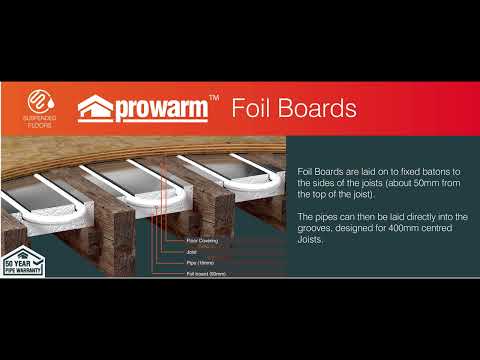

To install the in joist batten system you will begin by securing battens to the sides of the joist with the top of the batten 50mm below the top of the joist. This will allow the insulation to sit flush with the top of the joist.

The pipework can then be placed withing the preformed grooves within the board.

You can finish the installation of this system by installing the finished floor.
