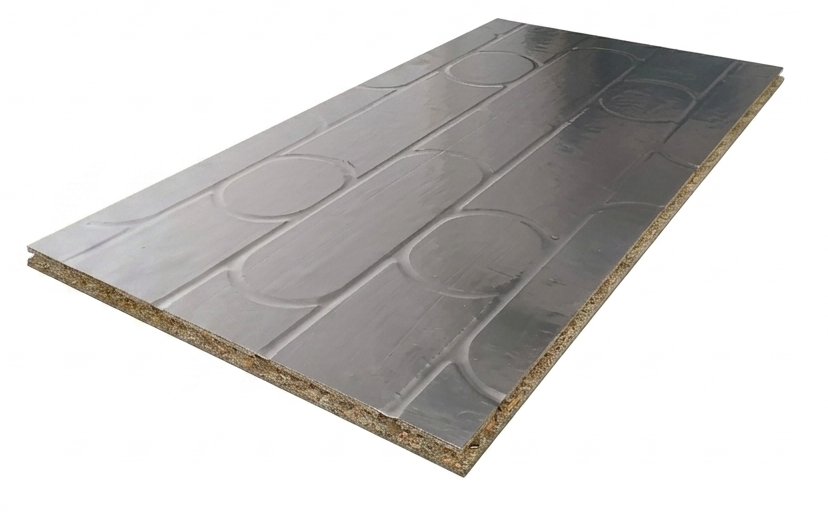

Prowarm Profloor Pre-Routed Foil Faced Chipboard, 16mm Pipe

The ProWarm ProFloor Pre-Routed Chipboard is a high-performance subfloor solution for water-based underfloor heating systems. Designed for efficiency and ease of installation, this foil-faced board features pre-routed channels that perfectly accommodate 16mm heating pipes at 150mm centres, ensuring fast setup and consistent heat distribution. Ideal for both new builds and renovations, it combines excellent thermal conductivity with robust structural strength.

When using as a structural component, the profloor chipboard must be used in conjunction with the Profloor 10mm Cement Topboard.

Key Benefits

• Designed for 16mm Heating Pipes: Pre-routed channels at 150mm centres provide precise pipe positioning and even heat coverage.
• Foil-Faced for Efficient Heat Transfer: An aluminium layer reflects heat upwards and outwards, reducing energy waste and ensuring an even spread of heat.
• Quick and Simple Installation: Large board size (1200mm x 600mm) reduces the number of boards needed and installation time.
• Strong and Durable: 22mm thick OSB delivers excellent load-bearing support for a wide range of floor finishes.
• Moisture Resistant: P5 Chipboard material is engineered for stability and long-lasting performance in residential and commercial environments.
• Backed by a 10-Year Warranty: Peace of mind for long-term reliability and performance.
• Heat Pump Ready - 16mm pipe at 150mm centres, allow for high flow and low temperature heating solution, ideal for use with air source heat pumps. However this heating solution is suitable for use with any heat source. Any questions call our technical team on 01268 567016.

Product Specifications

• Board Dimensions: 1200mm (L) x 600mm (W)
• Thickness: 22mm
• Material: High-quality P5 moisture resistant Chipboard
• Surface: aluminium foil for improved heat reflection
• Pipe Compatibility: Pre-routed for 16mm underfloor heating pipes

The aluminium foil layer enhances the efficiency of your underfloor heating system by reflecting radiant heat back into the room. This minimizes heat loss through the subfloor and ensures quicker, more consistent room heating. The pre-routed channels are evenly spaced to simplify pipe layout and maintain consistent spacing, helping prevent cold spots and ensuring optimal energy use.

Applications

• Residential rooms including kitchens, bathrooms, and living areas
• Commercial spaces such as offices, shops, and studios
• New builds and retrofit installations
• Compatible with a wide range of floor finishes, including tile, wood, laminate, and carpet (with appropriate underlay)

The ProWarm ProFloor Pre-Routed chipboard is a reliable and efficient choice for underfloor heating installations. Its structural durability, foil-enhanced thermal performance, and easy installation make it an ideal solution for both residential and commercial projects. Whether you’re building from scratch or upgrading an existing floor, this board supports better energy efficiency and long-term comfort.
