ProWarm Underfloor Heating Wiring Centre - 8 Zone + 1 Hot Water

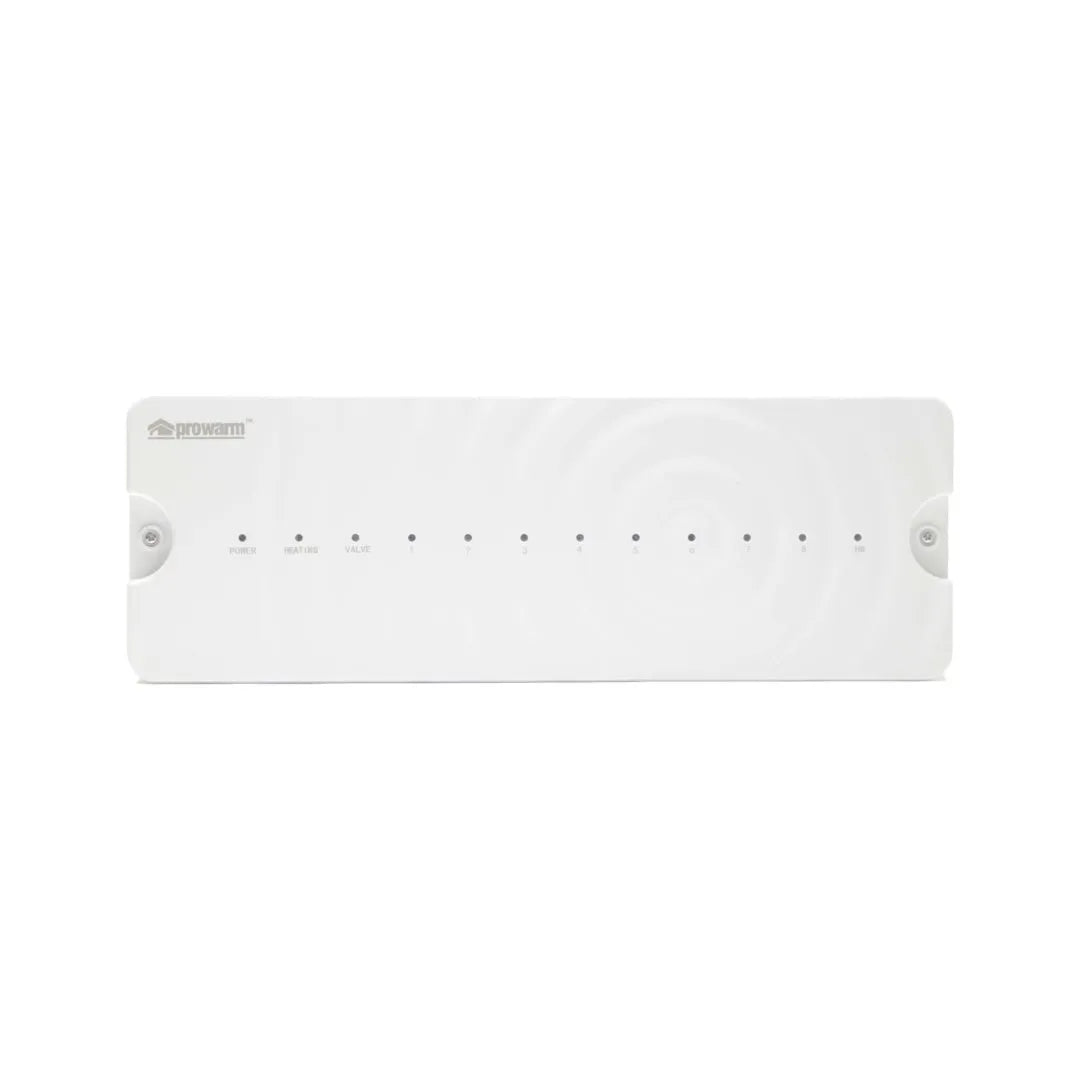

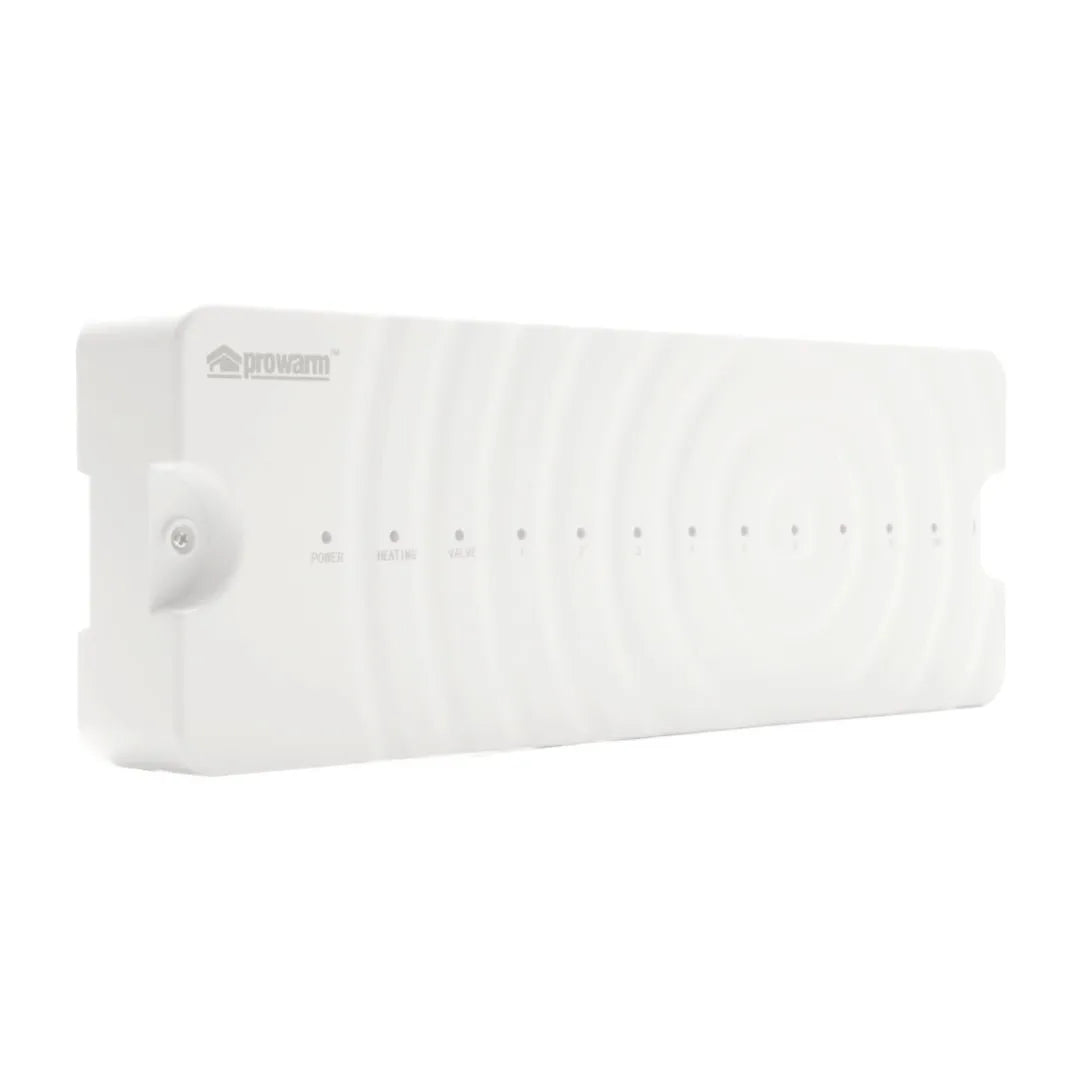

The ProWarm Underfloor Heating Wiring Centre - 8 Zone + 1 Hot Water is a highly efficient solution designed to streamline the installation process of underfloor heating systems. With the capability to connect up to 8 thermostats and 1 hot water zone, this wiring centre offers exceptional versatility and compatibility.

Designed to work seamlessly with any 230volt thermostat, the ProWarm Wiring Centre is particularly suitable for use with the comprehensive range of ProWarm controls. This ensures optimal performance and compatibility for your underfloor heating system.

Key Features:

• Centralized Connection Point: The wiring centre consolidates all underfloor heating connections into one central location, eliminating the need for additional wiring and simplifying the installation process.
• Comprehensive Connections: The wiring centre provides dedicated connections for various components, including the pump, valve, actuators, thermostats, hot water time clock, and a volt-free boiler connection. This versatility allows for seamless integration with different system configurations and boiler switching voltage.
• Efficient Operation: By centralizing the connections, the wiring centre optimizes the efficiency and performance of your underfloor heating system, ensuring precise control and reliable operation.
• 5-Year Warranty: ProWarm stands behind the quality and reliability of their wiring centre by offering a market-leading 5-year warranty. This provides peace of mind for both installers and homeowners, guaranteeing long-term satisfaction and support.

Elevate your underfloor heating installation with the ProWarm 8+1 Zone Underfloor Heating Wiring Centre. Its comprehensive connectivity, streamlined installation process, and industry-leading warranty make it an ideal choice for efficient and reliable underfloor heating systems.

Specifications

Specifications

High-Quality Construction

•
  ProWarm Electric Underfloor Heating Sticky Mat: Utilizes the same premium cable as the ProWarm Loose Cable kit. The mat incorporates a sticky fibreglass mesh to ensure optimal heat output by maintaining proper cable spacing. Installation is straightforward—simply roll out the mat to cover the desired heating area.
•
  Heating Cable: Series-type with twin conductors and a 4m cold lead at one end.
•
  Cable Composition: The resistance heating wire is encased in a fluoropolymer insulation layer, wrapped in protective metal shielding, and enclosed in a final plastic outer sheath. The twin conductor cable has a final diameter of 2mm.
•
  Junction Design: Unique design for hot and cold lead junctions ensures they are 100% foolproof.

Standards and Approvals

•
  Standards: Meets all test requirements of IEC 60335.
•
  Certifications: CE certified by SGS.

Performance and Benefits

•
  Cost-Effective: Provides heat precisely where needed, optimizing heat utilization and minimizing losses.
•
  Flexibility: Can be installed in any area or floor layout.
•
  Comfort: Close and uniform spacing of heating cables, combined with thermostat controls, allows for precise temperature settings, enhancing comfort.
•
  DIY-Friendly: Designed for easy installation with clear instruction manuals and professional technical support.
•
  Versatility: Available in various heat loads and sizes to suit various flooring types.

Mat Dimensions

•
  Width: 0.5m
•
  Length: Dependent on the selected square meter coverage
•
  Cable thickness: 2mm

Kit Includes:

• Underfloor Heating Sticky Mat (Two individual mats if kit size over 12m2)
• Floor Primer - a high-performance universal priming/sealing agent suitable for plaster, timber, brick, and block work.
• Roller - a high-quality roller for applying floor primer to the subfloor
• Adhesive tape - works to assist in holding a mat or cable in position during installation
• 2m Floor Sensor Probe Conduit - provides a protective pathway for the sensor probe, connecting to your thermostat
• Digital thermostat (if selected) - adjust the heat settings and enjoy warm floors through a simple touch of a button

Installation

Please Note: This is a brief guide. Always refer to the full installation manual for comprehensive instructions.

1. Plan Your Layout:

• Divide the floor into a series of rectangles. Use these measurements to calculate the number and sizes of mats needed, excluding permanent or static fixtures from your calculations.

2. Prepare the Subfloor:

• For screed over concrete floors, lay insulation boards to minimize heat loss and ensure quicker warm-up times.

3. Lay the Heating Mat:

• Start with the first run of the mat. Cut the mat (leaving the cable intact) at the end of each run, turn it 90° or 180°, and continue laying.
• Once the area is covered, adjust the mat so that the loops are evenly spaced.
• Secure the mat to the subfloor using the special tape provided.

4. Electrical Connections:

• Install an RCD fused spur to power the thermostatic controller/programmer and the mat system.
• Lay the temperature probe from the timer-thermostat onto the floor, position it equidistant between two cable loops, and secure it to the surface.
• Position the unheated power supply cable from the end of the mat system near the thermostat.
• Make all necessary connections to the power supply. Run the heaters for no more than 10 minutes to ensure they are heating up properly.

5. Finish the Flooring:

• Option 1: Apply a thin, self-levelling screed over the mat and allow it to dry completely before laying tiles.
• Option 2: Directly trowel flexible tile adhesive over the mat and lay the floor tiles.
• After grouting, let the tile adhesive cure fully before switching on the system.
