ProWarm Water Underfloor Heating - Multi Room & ProCrate

ProWarm Water Underfloor Heating Multi Room Kit & ProCrate offer the perfect solution for homeowners and tradesmen looking to install a premium branded water underfloor heating kit. These systems are designed to provide efficient and effective heating throughout your home, ensuring optimal comfort in every room.

Our multi-room water underfloor heating kit includes all the necessary pipe and fittings to cover your chosen zone size. With this comprehensive kit, you can easily and seamlessly install the underfloor heating system in multiple rooms, creating a consistent and cosy environment throughout your home.

It's important to note that ProWarm Water Underfloor Heating kits feature water temperature control, which is a crucial feature to consider when selecting a system. Be cautious of systems that lack this facility, as temperature control plays a key role in ensuring optimal comfort and energy efficiency. Additionally, ProWarm only utilizes high-quality European Standard Pex-Al-HDPE pipe in our kits. The inclusion of an aluminium layer in the pipe acts as an effective oxygen barrier, preventing oxygen diffusion through the polymer matrix. This barrier significantly reduces the risk of corrosion in the metal components of the system, ensuring its durability and longevity.

ProWarm Water Underfloor Heating Kits are proud to offer lifetime warranty.

✅ The ProWarm Water Underfloor Heating Kit has WRAS-approved pipe; this indicates that the Pert-Al-Pert Pipe as part of this product has been thoroughly tested to demonstrate it is of suitable quality and standard against the requirements of the Water Fittings Regulations and Scottish Byelaws.

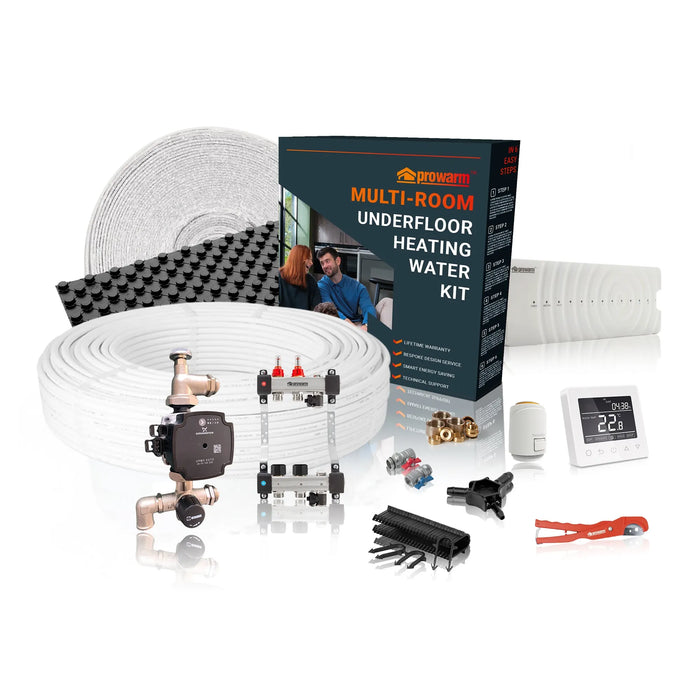

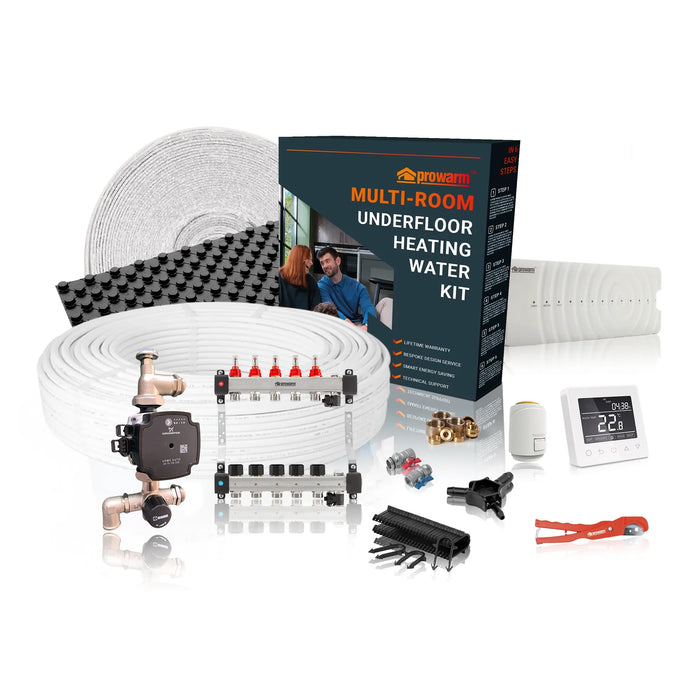

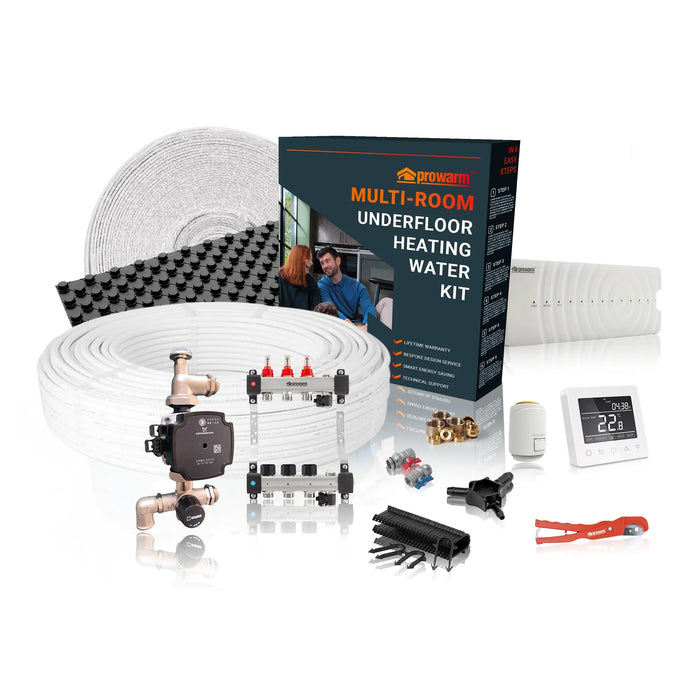

ProWarm Water Underfloor Heating Kit Components

Below, we provide examples of the components that could be included in your ProWarm Water Underfloor Heating Kit. For precise information on the manifold size and pipe length suitable for your chosen kit size, please refer to our convenient kit content comparison table.

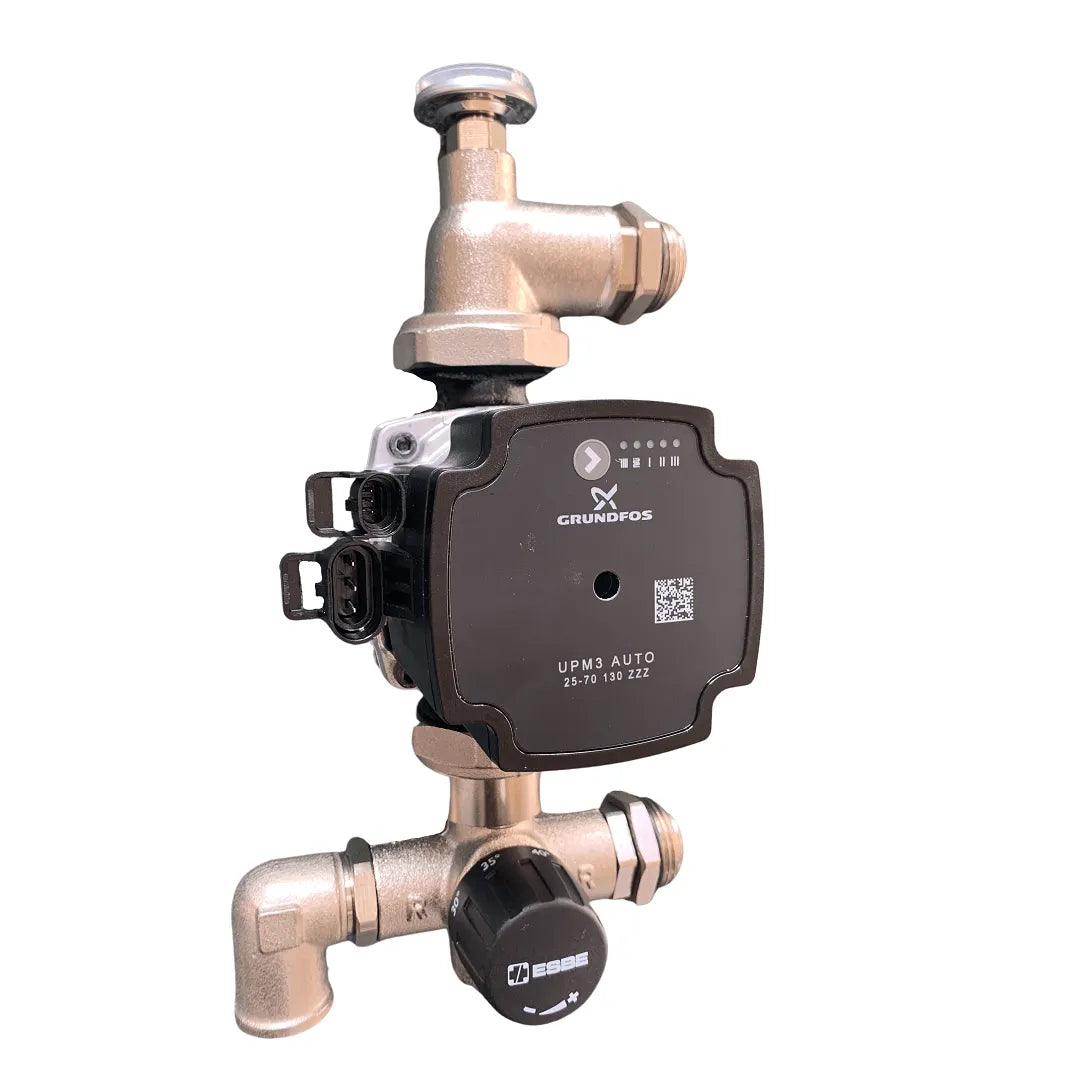

• Grundfos Mixing Unit: A rated UPM3 Grundfos Manifold Pump/Mixing Valve Unit, which ensures efficient mixing and distribution of the heated water within the system. It plays a crucial role in maintaining the desired temperature and providing even heat distribution.

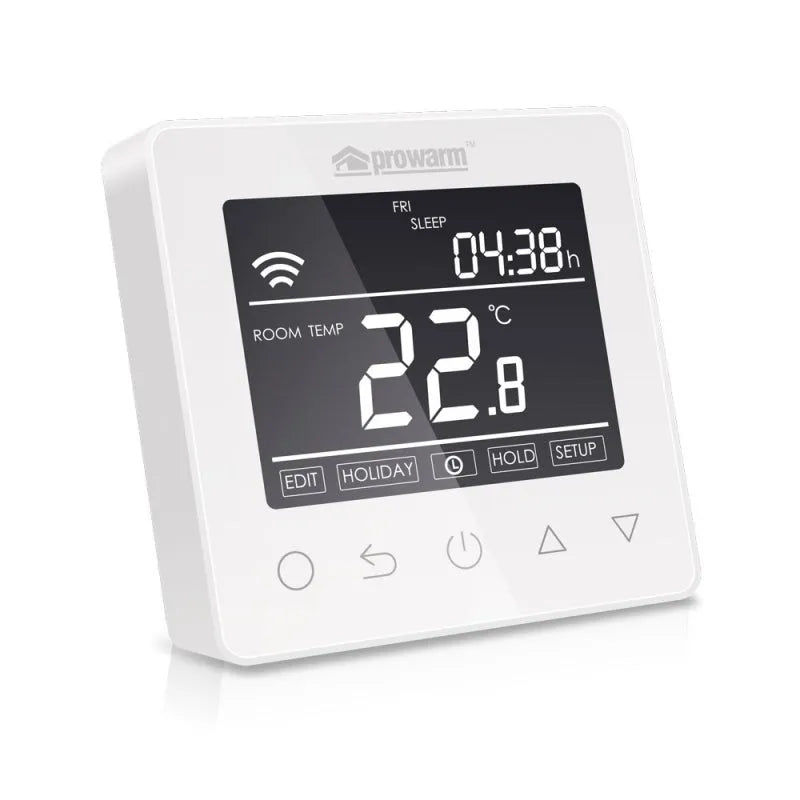

• Manual Thermostat: Depending if you've selected such option.

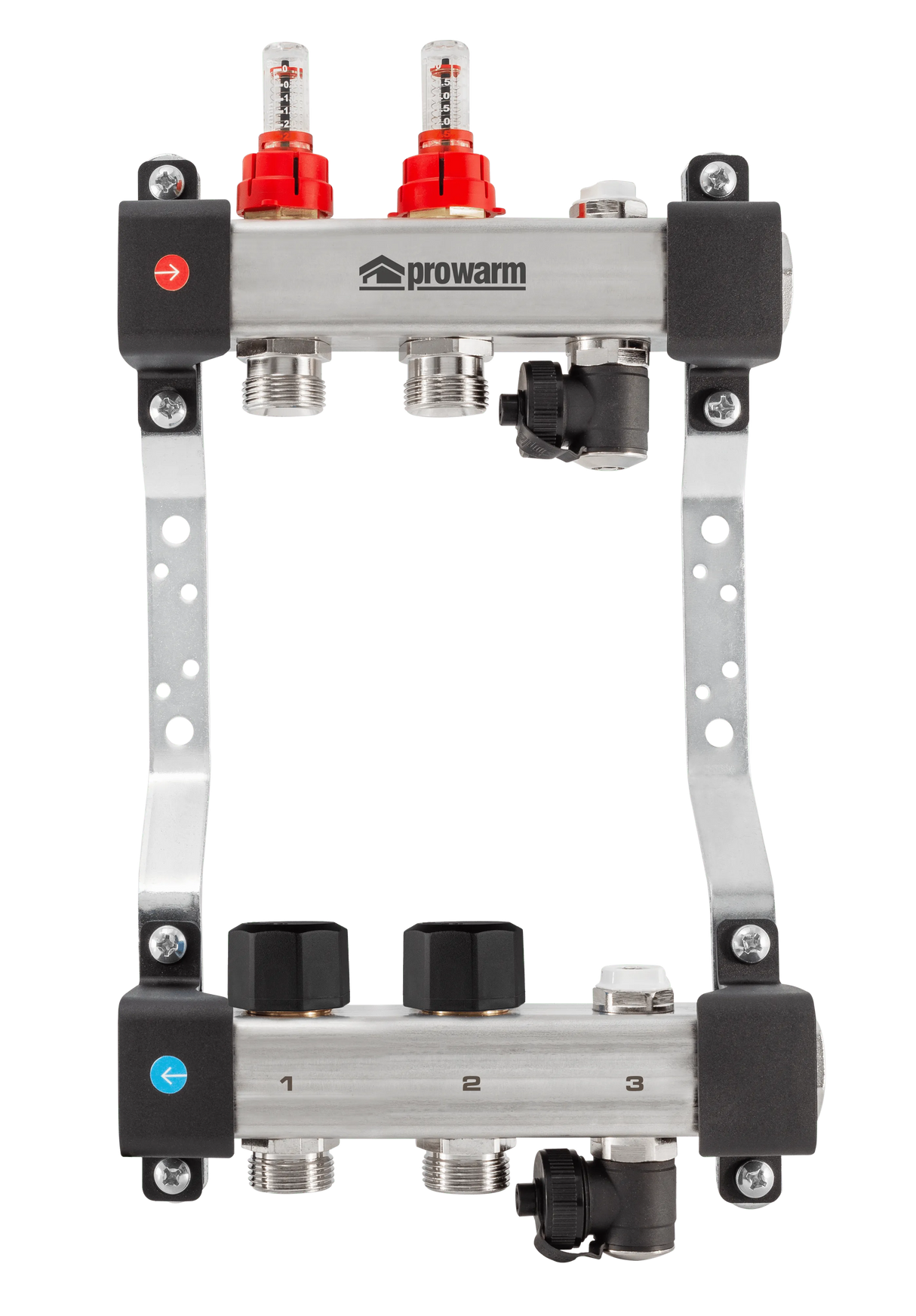

• Manifold: A stainless steel manifold with an adjustable flow meter. The manifold is factory assembled on a fixing bracket, simplifying the installation process and providing convenient control over the water flow.
• Wiring Center and Actuators: Please note that the image of the wiring center is generic and may vary depending on the thermostats purchased. The wiring center and actuators are essential components for controlling and regulating the operation of the underfloor heating system.

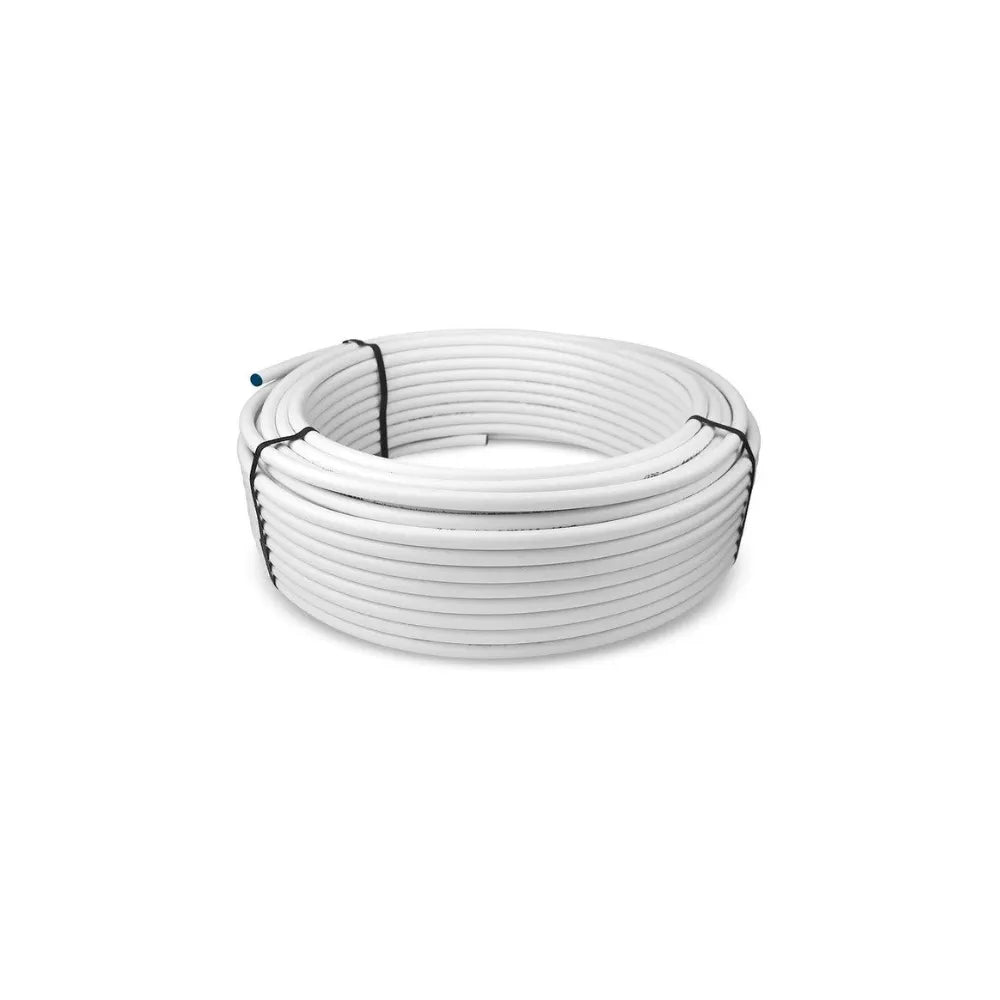

• ProWarm European Standard Pex-Al-HDPE Pipe: Our kits include high-quality 16mm (outside) diameter Pex-Al-HDPE pipe, adhering to the European standards of quality and performance. This pipe is specifically designed for water underfloor heating systems and ensures efficient heat transfer throughout the system.
• ProCrate Egg Crate: The ProCrate Egg Crate system provides a quick and simple installation process, featuring ready-made pipe spacing and pipe retaining fixings. It streamlines the setup of your underfloor heating system, making it more convenient and efficient.

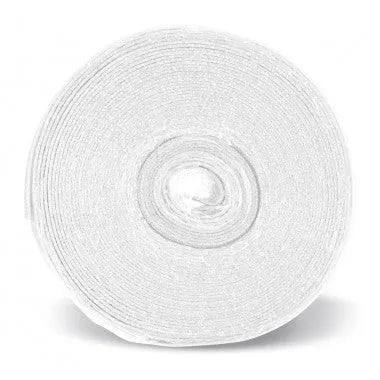

• Edging Insulation: Edge Insulation is used around the edge of the room to minimize unwanted heat loss and allow for expansion. It plays a crucial role in maximizing the overall performance and efficiency of the underfloor heating system.
• Tools: Our kits include essential tools such as a Pipe Re Rounding Tool, Pipe Staples, Pipe Cutters, Nuts and Olives, and Valves. These tools are necessary for a smooth and successful installation process.

Compare Kits

This table shows exactly what you'll get in the box based on your chosen kit size.

Specifications

(1) At any rate above the freezing temperature of the transported fluid.

The ProWarm Water Underfloor Heating Kit is WRAS approved. WRAS approval demonstrates it is of a suitable quality and standard against the Water Supply (Water Fittings) Regulations and Water Supply (Water Fittings) (Scotland) Byelaws, provided it is installed and used in accordance with the installation and requirement notes and any other restrictions within the approval. Any water fitting, which when installed, will carry or receive water from the public mains water supply in the UK, must comply with these regulations. They require that a water fitting should not cause waste, misuse, undue consumption or contamination of the water supply and must be ‘of an appropriate quality and standard’. To learn more about compliance, visit: WRAS approvals.

Specifications

High-Quality Construction

•
  ProWarm Electric Underfloor Heating Sticky Mat: Utilizes the same premium cable as the ProWarm Loose Cable kit. The mat incorporates a sticky fibreglass mesh to ensure optimal heat output by maintaining proper cable spacing. Installation is straightforward—simply roll out the mat to cover the desired heating area.
•
  Heating Cable: Series-type with twin conductors and a 4m cold lead at one end.
•
  Cable Composition: The resistance heating wire is encased in a fluoropolymer insulation layer, wrapped in protective metal shielding, and enclosed in a final plastic outer sheath. The twin conductor cable has a final diameter of 2mm.
•
  Junction Design: Unique design for hot and cold lead junctions ensures they are 100% foolproof.

Standards and Approvals

•
  Standards: Meets all test requirements of IEC 60335.
•
  Certifications: CE certified by SGS.

Performance and Benefits

•
  Cost-Effective: Provides heat precisely where needed, optimizing heat utilization and minimizing losses.
•
  Flexibility: Can be installed in any area or floor layout.
•
  Comfort: Close and uniform spacing of heating cables, combined with thermostat controls, allows for precise temperature settings, enhancing comfort.
•
  DIY-Friendly: Designed for easy installation with clear instruction manuals and professional technical support.
•
  Versatility: Available in various heat loads and sizes to suit various flooring types.

Mat Dimensions

•
  Width: 0.5m
•
  Length: Dependent on the selected square meter coverage
•
  Cable thickness: 2mm

Kit Includes:

• Underfloor Heating Sticky Mat (Two individual mats if kit size over 12m2)
• Floor Primer - a high-performance universal priming/sealing agent suitable for plaster, timber, brick, and block work.
• Roller - a high-quality roller for applying floor primer to the subfloor
• Adhesive tape - works to assist in holding a mat or cable in position during installation
• 2m Floor Sensor Probe Conduit - provides a protective pathway for the sensor probe, connecting to your thermostat
• Digital thermostat (if selected) - adjust the heat settings and enjoy warm floors through a simple touch of a button

Installation

Please Note: This is a brief guide. Always refer to the full installation manual for comprehensive instructions.

1. Plan Your Layout:

• Divide the floor into a series of rectangles. Use these measurements to calculate the number and sizes of mats needed, excluding permanent or static fixtures from your calculations.

2. Prepare the Subfloor:

• For screed over concrete floors, lay insulation boards to minimize heat loss and ensure quicker warm-up times.

3. Lay the Heating Mat:

• Start with the first run of the mat. Cut the mat (leaving the cable intact) at the end of each run, turn it 90° or 180°, and continue laying.
• Once the area is covered, adjust the mat so that the loops are evenly spaced.
• Secure the mat to the subfloor using the special tape provided.

4. Electrical Connections:

• Install an RCD fused spur to power the thermostatic controller/programmer and the mat system.
• Lay the temperature probe from the timer-thermostat onto the floor, position it equidistant between two cable loops, and secure it to the surface.
• Position the unheated power supply cable from the end of the mat system near the thermostat.
• Make all necessary connections to the power supply. Run the heaters for no more than 10 minutes to ensure they are heating up properly.

5. Finish the Flooring:

• Option 1: Apply a thin, self-levelling screed over the mat and allow it to dry completely before laying tiles.
• Option 2: Directly trowel flexible tile adhesive over the mat and lay the floor tiles.
• After grouting, let the tile adhesive cure fully before switching on the system.
