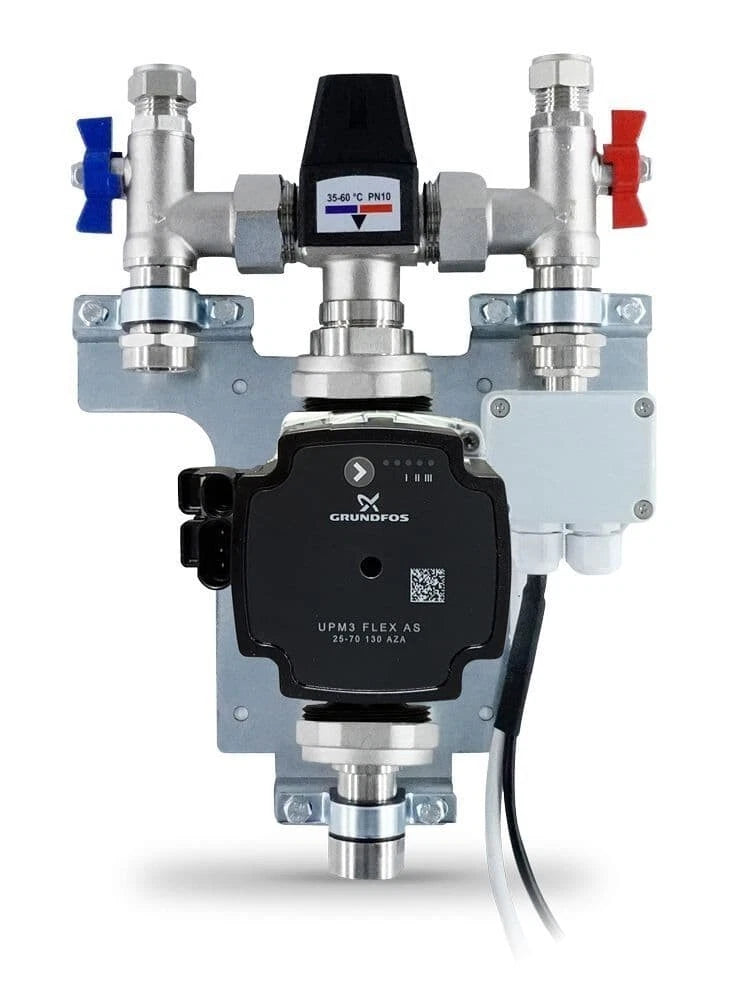

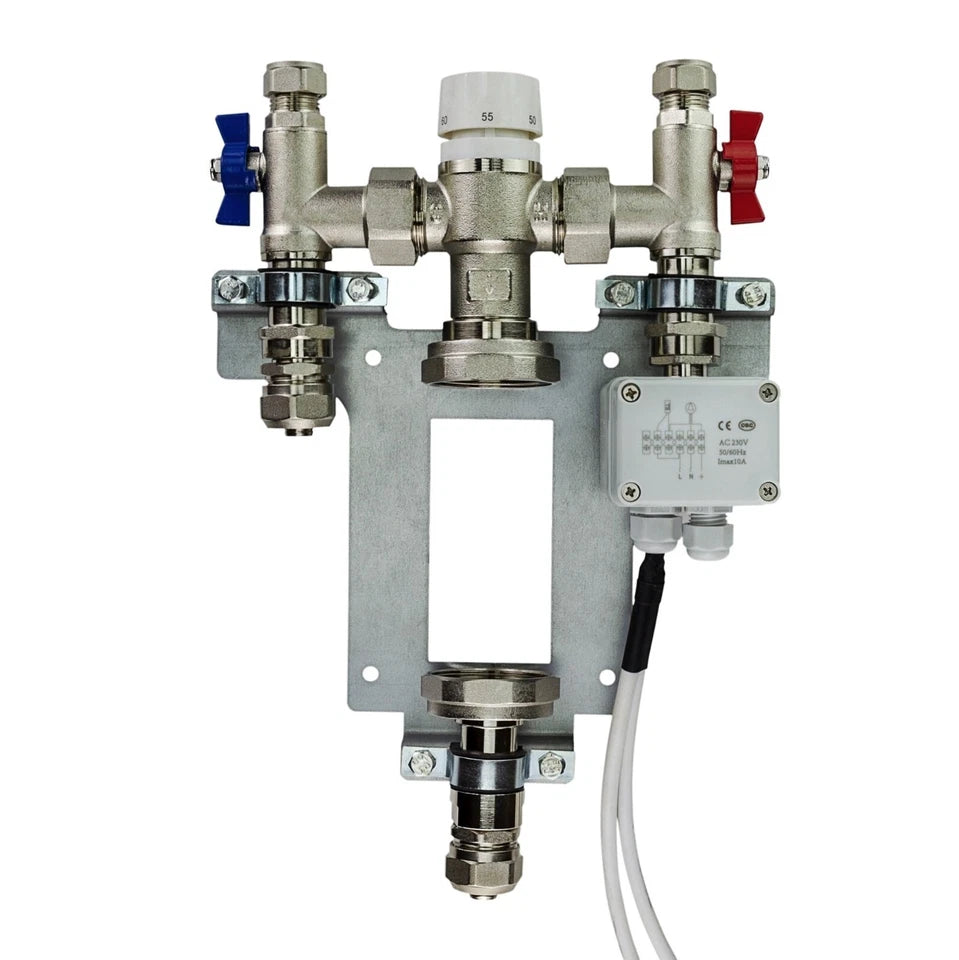

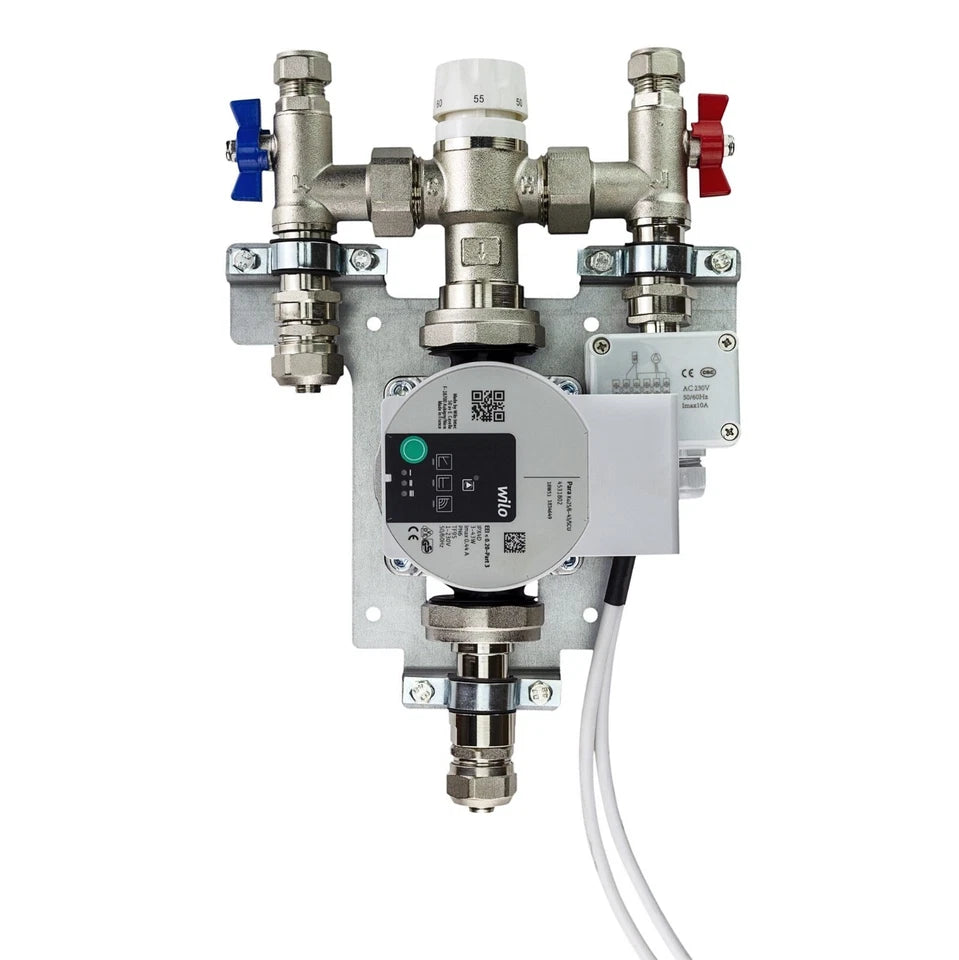

Reliance Single Zone Underfloor Heating Control Pack – Compact UFH Mixing Valve & A-Rated Pump

The Reliance Single Zone Underfloor Heating Control Pack is a compact, all-in-one solution designed to control and regulate flow temperature in small underfloor heating systems. Ideal for areas such as kitchens, bathrooms, and conservatories, it integrates directly onto pipework without the need for additional brackets or support, making installation quick and straightforward.

Featuring a thermostatic mixing valve, an A-rated 7m circulating pump, and integrated isolation and connection components, this unit provides stable and efficient temperature control for small UFH zones.

Key Features

• Complete single-zone UFH control unit for small heating areas
• Compact, lightweight design connects directly to pipework without extra brackets
• Thermostatic mixing valve included for accurate temperature regulation
• A-rated 7m circulating pump for efficient, low-energy operation
• Stable temperature control within ±2°C even with fluctuating boiler flow conditions
• Adjustable temperature range from 25°C to 60°C
• Integrated isolating valves included as standard for easy maintenance and servicing
• Fully assembled control pack for fast installation and commissioning
• Ideal for small UFH areas such as kitchens, bathrooms, and conservatories

Technical Specifications

• Product Type: Single Zone Underfloor Heating Control Pack
• Application: Small wet underfloor heating systems
• Temperature Range: 25°C – 60°C adjustable
• Temperature Stability: ±2°C control accuracy
• Pump: A-rated 7 metre circulating pump
• Components Included:
  • Thermostatic mixing valve
  • Circulating pump
  • Isolating valves
  • Flow and return connections
  • Fixing kit
• Installation: Direct-to-pipework mounting (no additional brackets required)
• Suitable For: Kitchens, bathrooms, conservatories, small UFH zones
