As the UK's biggest underfloor heating store, we're dedicated to offering competitive prices. We regularly monitor market prices and are ready to beat any competitor price. Simply give our sales team a call!
Samsung, a global leader renowned for its innovation and quality, is proud to offer its Air Source Heat Pump - a product that has redefined industry standards. Since its debut in 2011, Samsung has swiftly established itself as a formidable player in the heat pump market, addressing the challenges faced by earlier models with cutting-edge solutions.
The Samsung Air Source Heat Pump integrates advanced technology, making installation and commissioning exceptionally straightforward. Its lightweight design simplifies the installation process, while tailored commissioning information ensures optimal performance. Samsung’s dedication to excellence is further evidenced by their unmatched training and technical support, which stands out in the industry.
When it comes to value, Samsung's air source heat pumps are both competitive and cost-effective, making them a top choice for large-scale installations. Discover why Samsung is the go-to brand for high-efficiency, reliable air source heat pumps.
Delivery Times
Samsung heat pumps are shipped with a delivery time of 3–7 days within England and Wales. For remote areas in Scotland, delivery may take up to 10 working days. For more detailed delivery information, please contact our team.
Included Accessories for Heat Pump Only:
Mono Control Centre
Anti-Vibration Foot Kit (600mm)
Insulated Flex Conn Pipes Elbow (28mm x 300mm)
Concentrate HP Fluid (20L)
1” Y Pattern Strainer with Isolation
Red Isolation Valve (28mm) x2
Circulating Pump x2
2 Port Motorised Valve (28mm) x2
Combined Fill Flush & Flow Meter
Robokit Sealed System Kit

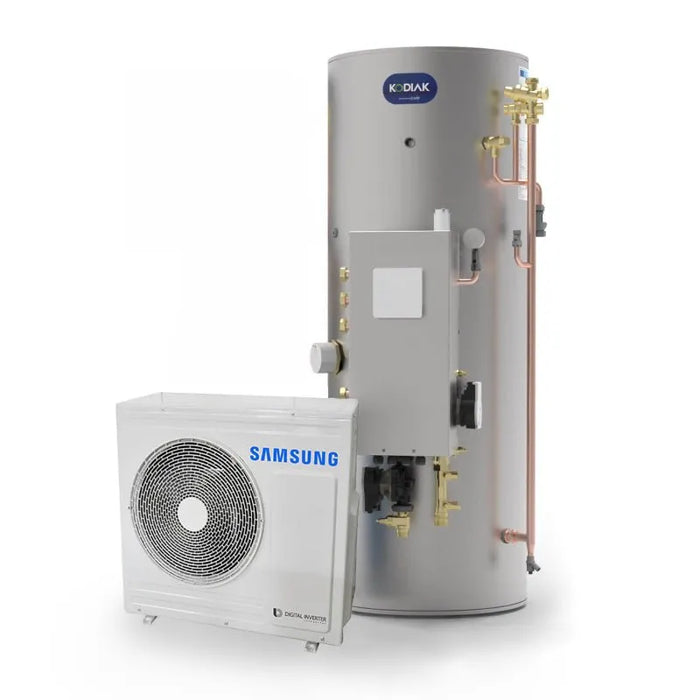

Included Accessories for Heat Pump and Cylinder:
Anti-Vibration Foot Kit (600mm)
Insulated Flex Conn Pipes Elbow (28mm x 300mm)
Concentrate HP Fluid (20L)
1” Y Pattern Strainer with Isolation
Red Isolation Valve (28mm) x2
Robokit Sealed System Kit
Features & Benefits
Discover what makes Samsung Air Source Heat Pumps exceptional:
Comprehensive solution offering heating, hot water, and air conditioning
Highly energy-efficient with variable-speed compressors and inverter-driven systems
Reliable all-weather performance, even in extreme temperatures
Smart controls and connectivity for convenient remote monitoring and management
Quiet operation for minimal noise impact
Advanced air purification and filtration for cleaner indoor air
Environmentally friendly, reducing your carbon footprint
Cylinder Sizes
Wattage
Tank Size (L)
Buffer Tank (L)
5kW
180
60
9kW
200
60
12kW
250
90
16kW
300
90
Product code:JOULE5KW
Specifications
RC090
RC160
Power Supply
Phase
Single
Single
Volts
220 - 240
220 - 240
Hertz
50
50
Nominal Condition Air 7°C Flow 30/35°C
Heating Output (kW)
9
16
Electrical Input (kW)
2.09
3.81
COP
4.3
4.2
Performance Air 7°C Flow 40/45°C
Heating Output (kW)
8.4
15.1
Electrical Input (kW)
2.51
4.58
COP
3.35
3.3
Performance Air -7°C Flow 30/35°C
Heating Output (kW)
7.54
12.28
Electrical Input (kW)
3.35
5.64
COP
2.25
2.18
Performance Air -7°C Flow 40/45°C
Heating Output (kW)
7.59
12.01
Electrical Input (kW)
3.86
6.08
COP
1.97
1.98
Water Side
Heat Exchanger
Brazed Plate Heat Exchanger
Required Water Pressure (bar)
2.8
2.8
Nominal Water Flow Rate (l/min)
20
30
Minimum Water Volume (l)
20
20
Pressure Drop at Heat Ex (kPa)
10
15
Pipe Connection
1 Male
1 Male
Fan Info
Quantity
1
2
Airflow Rate (m³/min)
50
100
Output Power (W)
8.4
14.9
Refrigerant Side
Compressor Type
Rotary Inverter
Oil
POE
Compressor Power (kW)
2.51
4.6
Refrigerant Type
R410A
Refrigerant Factory Charge (g)
1.4
2.2
Electrical Info
Running Current (A)
17.4 (max)
30 (max)
Starting Current (A)
2
2
Recommended Fuse (A)
20
32
Sound Info
Sound Pressure Level (dBA)
50
53
Sound Power Level
66
70
Dimensions
Height (mm)
998
1420
Depth (mm)
330
330
Width (mm)
940
940
Weight (kg)
75
103
Operating Range
Ambient / A2W (°C)
-20 to 35
Leaving Water (°C)
25 to 55
Experience the future of home climate control with Samsung's Air Source Heat Pump—a blend of innovation, efficiency, and reliability.
