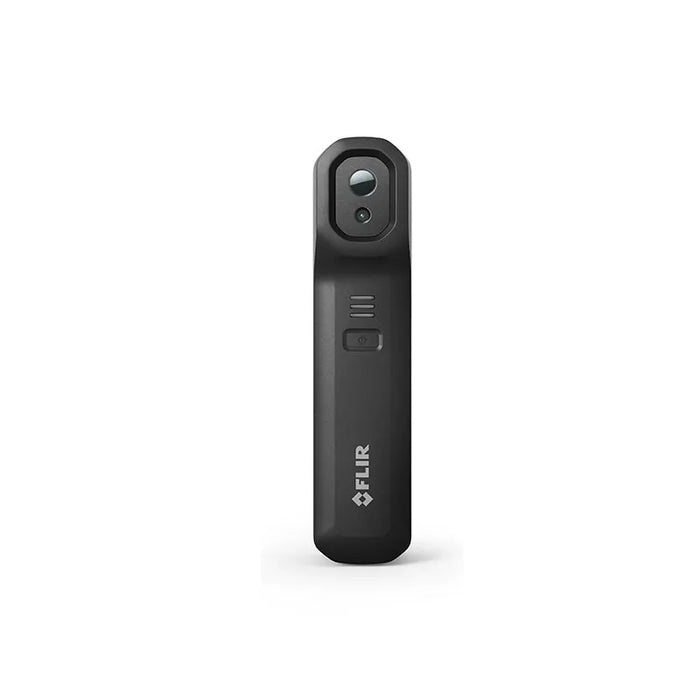

Teledyne FLIR One Edge Pro Wireless Thermal Camera

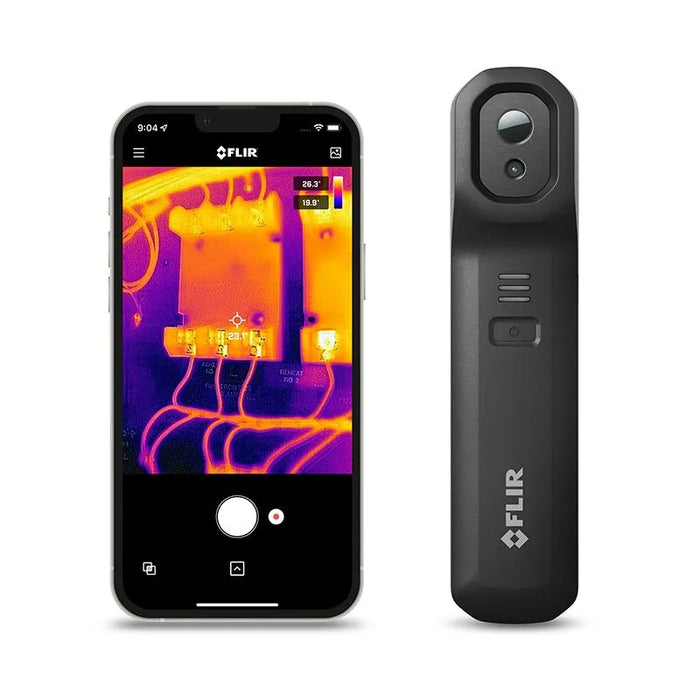

Compatible with iOS and Android smartphones/tablets, the Teledyne FLIR One Edge Pro Wireless Thermal Camera wirelessly connects to your smart device enabling inspections of out-of-reach targets. Alternatively, clip the Teledyne FLIR One Edge Pro to your smartphone or tablet for one-handed inspections. Equipped with VividIR, MSX, and Ignite technology, you can capture clear thermal images and videos from any angle, while maintaining a natural grip on the camera, and instantly upload them to the Cloud.

The Teledyne FLIR One Edge Pro Wireless Thermal Camera has a 160 x 120px thermal resolution and can measure temperatures up to 400°C. This, together with FLIR’s VividIR function, which combines multiple image frames, and MSX mode, which overlays digital details onto thermal images, allows you to capture sharp, high-quality thermal images perfect for identifying targets easily and pinpointing potential problems.

In addition to facilitating comfortable, single-handed operation, the Teledyne FLIR One Edge Pro Wireless Thermal Camera is compatible with an array of FLIR storage, analysis, and reporting products. This makes it easy for you to improve the efficiency of inspections as well as scale your thermography inspection program, particularly as the Teledyne FLIR One Edge Pro offers step-by-step guidance for a range of FLIR-specific apps.

As mentioned above the Teledyne FLIR One Edge Pro Wireless Thermal Camera can be used with FLIR’s Ignite Cloud Service, allowing you to upload videos and images to the Cloud for the purposes of storage, organisation, editing, and/or sharing. The Teledyne FLIR One Edge Pro is also compatible with FLIR’s Thermal Studio Software, a state-of-the-art thermal image analysis and reporting program.

The Teledyne FLIR One Edge Pro Wireless Thermal Camera is an innovative inspection solution that transforms your smartphone or tablet into a thermal imager capable of capturing crisp images and videos.

• A wireless thermal imaging module compatible with iOS and Android smartphones/tablets
• Inspect targets that are out of reach
• Clip to your smartphone/tablet to conduct one-handed inspections
• FLIR VividIR function
• FLIR MSX mode
• 160px x 120px thermal resolution
• Measure temperatures up to 400°C
• Captures sharp, high-quality thermal images and videos
• Compatibility with FLIR apps improves inspection efficiency and makes inspections easily scalable
• Step-by-step guidance for a range of FLIR-specific apps
• Compatible with FLIR’s Thermal Studio Software, an analysis and reporting program
• Compatible with FLIR’s Ignite Cloud Service: instantly upload media to the Cloud for storage, organisation, editing, or sharing
• Rugged design
• Battery life: 1.5 hours
• An innovative inspection solution that transforms your smartphone/tablet into a thermal imager

• Teledyne FLIR One Edge Pro Wireless Thermal Camera – iOS & Android
• Relevant Documentation

Specifications

High-Quality Construction

•
  ProWarm Electric Underfloor Heating Sticky Mat: Utilizes the same premium cable as the ProWarm Loose Cable kit. The mat incorporates a sticky fibreglass mesh to ensure optimal heat output by maintaining proper cable spacing. Installation is straightforward—simply roll out the mat to cover the desired heating area.
•
  Heating Cable: Series-type with twin conductors and a 4m cold lead at one end.
•
  Cable Composition: The resistance heating wire is encased in a fluoropolymer insulation layer, wrapped in protective metal shielding, and enclosed in a final plastic outer sheath. The twin conductor cable has a final diameter of 2mm.
•
  Junction Design: Unique design for hot and cold lead junctions ensures they are 100% foolproof.

Standards and Approvals

•
  Standards: Meets all test requirements of IEC 60335.
•
  Certifications: CE certified by SGS.

Performance and Benefits

•
  Cost-Effective: Provides heat precisely where needed, optimizing heat utilization and minimizing losses.
•
  Flexibility: Can be installed in any area or floor layout.
•
  Comfort: Close and uniform spacing of heating cables, combined with thermostat controls, allows for precise temperature settings, enhancing comfort.
•
  DIY-Friendly: Designed for easy installation with clear instruction manuals and professional technical support.
•
  Versatility: Available in various heat loads and sizes to suit various flooring types.

Mat Dimensions

•
  Width: 0.5m
•
  Length: Dependent on the selected square meter coverage
•
  Cable thickness: 2mm

Kit Includes:

• Underfloor Heating Sticky Mat (Two individual mats if kit size over 12m2)
• Floor Primer - a high-performance universal priming/sealing agent suitable for plaster, timber, brick, and block work.
• Roller - a high-quality roller for applying floor primer to the subfloor
• Adhesive tape - works to assist in holding a mat or cable in position during installation
• 2m Floor Sensor Probe Conduit - provides a protective pathway for the sensor probe, connecting to your thermostat
• Digital thermostat (if selected) - adjust the heat settings and enjoy warm floors through a simple touch of a button

Installation

Please Note: This is a brief guide. Always refer to the full installation manual for comprehensive instructions.

1. Plan Your Layout:

• Divide the floor into a series of rectangles. Use these measurements to calculate the number and sizes of mats needed, excluding permanent or static fixtures from your calculations.

2. Prepare the Subfloor:

• For screed over concrete floors, lay insulation boards to minimize heat loss and ensure quicker warm-up times.

3. Lay the Heating Mat:

• Start with the first run of the mat. Cut the mat (leaving the cable intact) at the end of each run, turn it 90° or 180°, and continue laying.
• Once the area is covered, adjust the mat so that the loops are evenly spaced.
• Secure the mat to the subfloor using the special tape provided.

4. Electrical Connections:

• Install an RCD fused spur to power the thermostatic controller/programmer and the mat system.
• Lay the temperature probe from the timer-thermostat onto the floor, position it equidistant between two cable loops, and secure it to the surface.
• Position the unheated power supply cable from the end of the mat system near the thermostat.
• Make all necessary connections to the power supply. Run the heaters for no more than 10 minutes to ensure they are heating up properly.

5. Finish the Flooring:

• Option 1: Apply a thin, self-levelling screed over the mat and allow it to dry completely before laying tiles.
• Option 2: Directly trowel flexible tile adhesive over the mat and lay the floor tiles.
• After grouting, let the tile adhesive cure fully before switching on the system.
