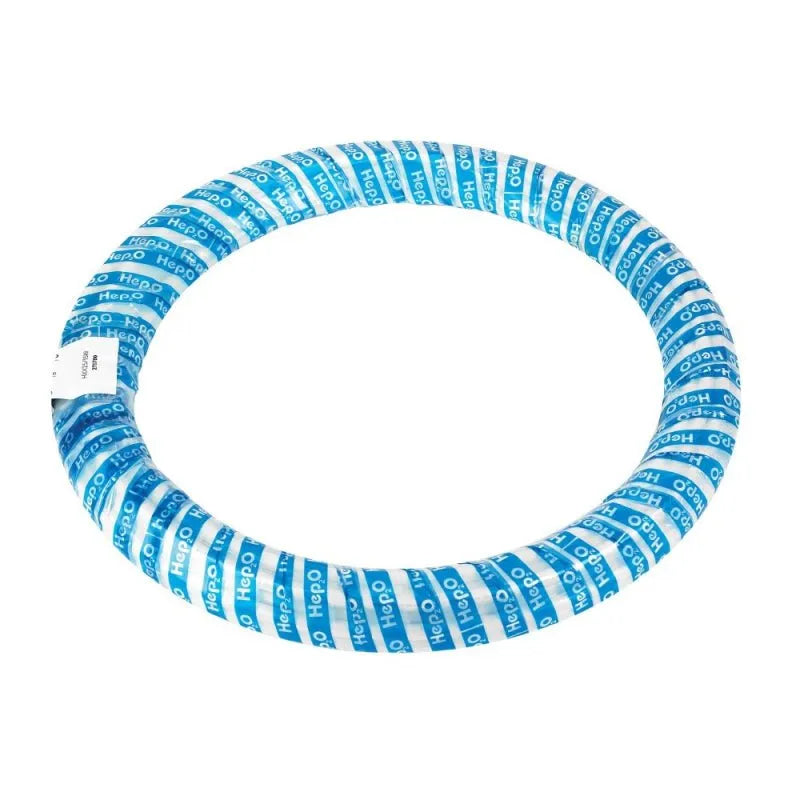

Wavin Hep2O Barrier Pipe 10mm & 15mm

The Wavin Hep2O Barrier Pipe is the ideal choice for both commercial and domestic applications, offering a secure and leakproof solution as an alternative to traditional copper pipes. This flexible and easy-to-install barrier pipe provides superior performance and reliability for your plumbing needs.

Engineered to support seamless integration of pipes, the Hep2O barrier pipe ensures a tight and reliable fit. The In4Sure joint recognition system enhances joint security, providing peace of mind and eliminating the risk of leaks. Additionally, the innovative HepKey system allows for easy demounting, ensuring hassle-free maintenance and alterations to your plumbing system.

Compliant with BS EN 7291 parts 1 and 2 and WRAS approved, this barrier pipe meets stringent industry standards, guaranteeing quality and reliability. The pipe is not suitable for conveying gas, oil, or underground supplies, ensuring safe and appropriate usage.

The Wavin Hep2O Barrier Pipe comes off the coil straight, thanks to the convenient Smartpack dispenser. The inner wrap retains any unused pipe for future use, minimizing waste and promoting efficiency in your projects.

The innovative SmartSleeve support system ensures that the support stays captive within the pipe, reducing the risk of bursting and providing added durability. With leak-free connections and tamper-proof features, such as the requirement of a HepKey for pipe removal from fittings, the Wavin Hep2O Barrier Pipe guarantees a reliable and secure plumbing system.

Additionally, this product comes with an industry-leading 50-year guarantee, providing long-term assurance and confidence in its quality and performance.

Specifications

Specifications

High-Quality Construction

•
  ProWarm Electric Underfloor Heating Sticky Mat: Utilizes the same premium cable as the ProWarm Loose Cable kit. The mat incorporates a sticky fibreglass mesh to ensure optimal heat output by maintaining proper cable spacing. Installation is straightforward—simply roll out the mat to cover the desired heating area.
•
  Heating Cable: Series-type with twin conductors and a 4m cold lead at one end.
•
  Cable Composition: The resistance heating wire is encased in a fluoropolymer insulation layer, wrapped in protective metal shielding, and enclosed in a final plastic outer sheath. The twin conductor cable has a final diameter of 2mm.
•
  Junction Design: Unique design for hot and cold lead junctions ensures they are 100% foolproof.

Standards and Approvals

•
  Standards: Meets all test requirements of IEC 60335.
•
  Certifications: CE certified by SGS.

Performance and Benefits

•
  Cost-Effective: Provides heat precisely where needed, optimizing heat utilization and minimizing losses.
•
  Flexibility: Can be installed in any area or floor layout.
•
  Comfort: Close and uniform spacing of heating cables, combined with thermostat controls, allows for precise temperature settings, enhancing comfort.
•
  DIY-Friendly: Designed for easy installation with clear instruction manuals and professional technical support.
•
  Versatility: Available in various heat loads and sizes to suit various flooring types.

Mat Dimensions

•
  Width: 0.5m
•
  Length: Dependent on the selected square meter coverage
•
  Cable thickness: 2mm

Kit Includes:

• Underfloor Heating Sticky Mat (Two individual mats if kit size over 12m2)
• Floor Primer - a high-performance universal priming/sealing agent suitable for plaster, timber, brick, and block work.
• Roller - a high-quality roller for applying floor primer to the subfloor
• Adhesive tape - works to assist in holding a mat or cable in position during installation
• 2m Floor Sensor Probe Conduit - provides a protective pathway for the sensor probe, connecting to your thermostat
• Digital thermostat (if selected) - adjust the heat settings and enjoy warm floors through a simple touch of a button

Installation

Please Note: This is a brief guide. Always refer to the full installation manual for comprehensive instructions.

1. Plan Your Layout:

• Divide the floor into a series of rectangles. Use these measurements to calculate the number and sizes of mats needed, excluding permanent or static fixtures from your calculations.

2. Prepare the Subfloor:

• For screed over concrete floors, lay insulation boards to minimize heat loss and ensure quicker warm-up times.

3. Lay the Heating Mat:

• Start with the first run of the mat. Cut the mat (leaving the cable intact) at the end of each run, turn it 90° or 180°, and continue laying.
• Once the area is covered, adjust the mat so that the loops are evenly spaced.
• Secure the mat to the subfloor using the special tape provided.

4. Electrical Connections:

• Install an RCD fused spur to power the thermostatic controller/programmer and the mat system.
• Lay the temperature probe from the timer-thermostat onto the floor, position it equidistant between two cable loops, and secure it to the surface.
• Position the unheated power supply cable from the end of the mat system near the thermostat.
• Make all necessary connections to the power supply. Run the heaters for no more than 10 minutes to ensure they are heating up properly.

5. Finish the Flooring:

• Option 1: Apply a thin, self-levelling screed over the mat and allow it to dry completely before laying tiles.
• Option 2: Directly trowel flexible tile adhesive over the mat and lay the floor tiles.
• After grouting, let the tile adhesive cure fully before switching on the system.
