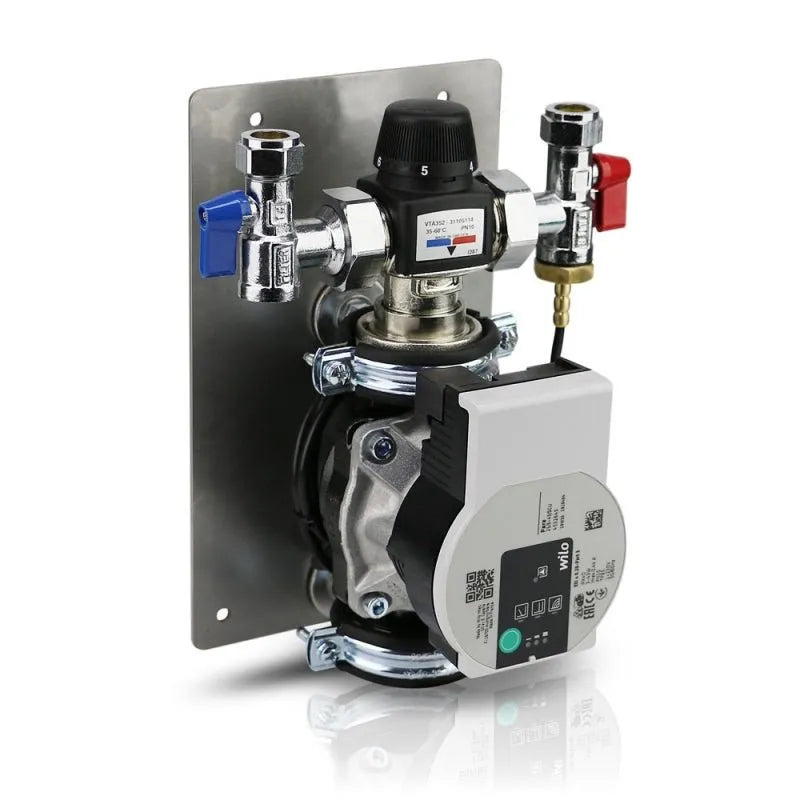

Wilo Single Circuit Pump Pack with ESBE Mixing Valve Unit

The high-performance and reliable Wilo Single Circuit Pump Pack with ESBE Mixing Valve Unit, specifically designed to provide precise control over flow and water temperature in underfloor heating systems. This pre-assembled and tested pump pack ensures easy installation and immediate commissioning, minimizing on-site labor and maximizing efficiency.

The Wilo / ESbe Pump Mixer Pack is engineered to deliver exceptional performance and reliability. With its A-rated Wilo pump, it guarantees efficient operation while consuming minimal energy. The ESbe mixing valve unit, equipped with a thermostatic control, allows precise adjustment of the flow temperature to meet the requirements of your underfloor heating system, ensuring optimal comfort and energy efficiency.

One of the key features of this pump pack is the temperature switch that controls the pump's operation. The switch remains open until the water temperature of the existing heating system reaches above 40°C. Once the threshold is reached, the switch closes, activating the pump. This enables the Esbe Mixing Valve to blend the flow and return water, ensuring the underfloor heating system maintains the desired temperature.

With its user-friendly design, the Wilo Single Circuit Pump Pack with Esbe Mixing Valve Unit simplifies the installation process. The pre-assembled nature of the pack eliminates the need for complex on-site assembly, saving time and effort. Once installed, the system can be immediately commissioned, ensuring prompt functionality and optimal performance.

Trust in the Wilo Single Circuit Pump Pack with Esbe Mixing Valve Unit for efficient control and reliable operation of your underfloor heating system. Experience the benefits of enhanced comfort, energy efficiency, and hassle-free installation, all backed by the trusted quality and performance of Wilo and Esbe.

Specifications

• Single zone
• ESBE 35-60 underfloor heating thermostatic mixing valve c/w built-in bypass, made in Sweden
• Compact design with wall mounting plate
• Built in primary isolation valves
• 1.5 kv, (5kw output)
• Fitted temperature switch (40C)
• Pre-wired pump terminal box
• Pre-tested, pre-packaged and pre-built for instant install, assembled in the UK
• "A" rated Wilo Para 25/6 SCU pump
• 2 year warranty
